◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#160179) — 32 parça

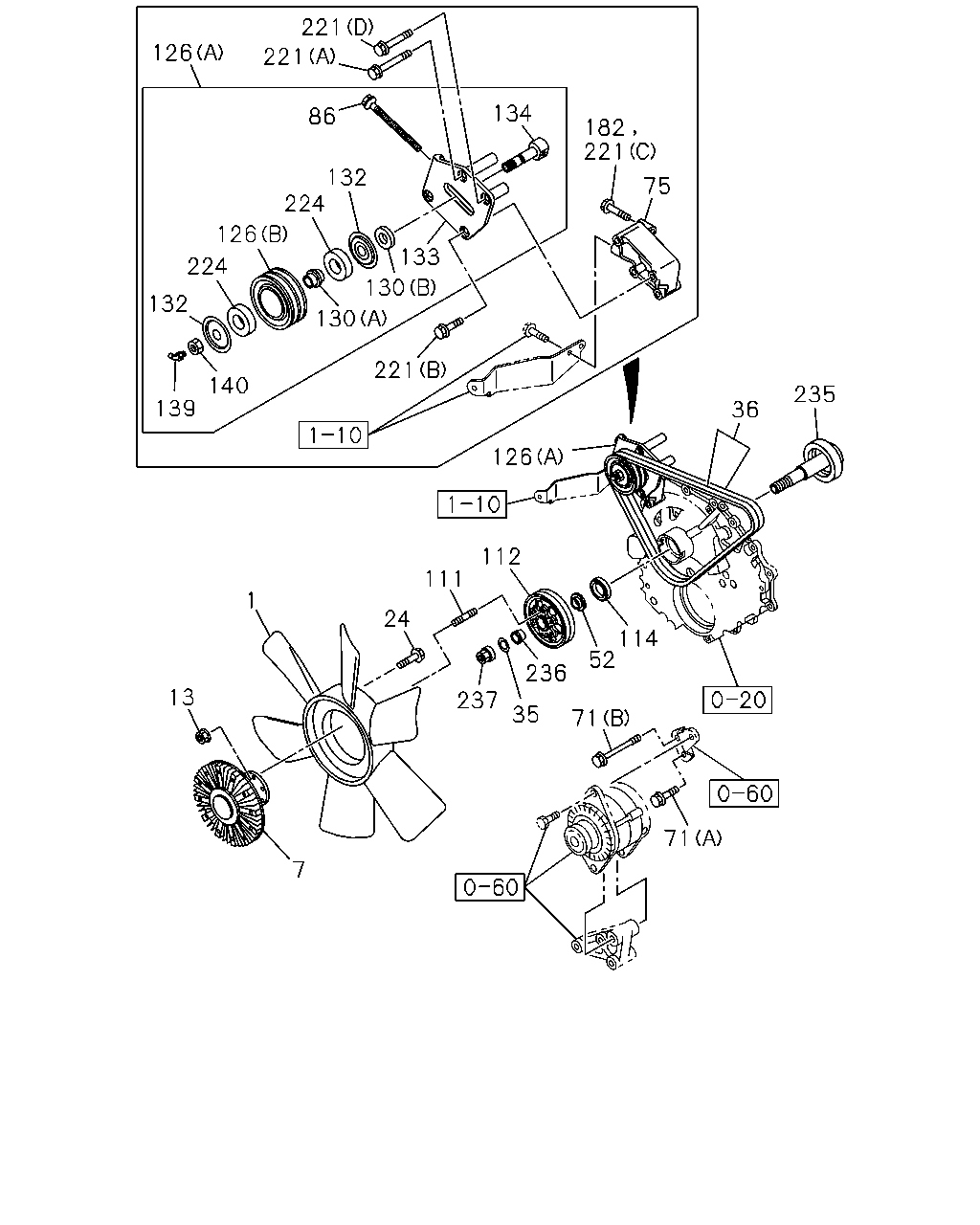

çizim 471850
126 221 221 86 132 224 126 224 132 139 140 130 130 133 221 134 182 221 75 235 36 126 112 111 24 1 13 7 237 35 236 52 114 71 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FAN; COOLING 8-98246-868-0 01 1 1504- ● ● ●
7 COUPLING; FAN 8-98247-116-0 01 1 1504- ● ● ●
13 NUT; COOLING FAN
M10 FLANGE 		0-91180-210-0 06 1 1504- ● ● ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 08 1 1504- ● ● ●
35 WASHER; PL 1-09503-242-0 01 1 1504- ● ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8976463850) MITSUBOSHI 		8-97646-386-0 01 1 1504- ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 1504- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28151-025-0 01 1 1504- ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28156-011-0 01 1 1504- ● ● ●
75 BRACKET; IDLE PULLEY 8-98241-565-1 01 1 1504- ● ● ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1504- ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		0-43211-025-0 06 1 1504- ● ● ●
112 PULLEY; FAN CENTER 1-13663-124-1 01 1 1504- ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 1504- ● ● ●
126 PULLEY; IDLE
(B) 		1-13663-111-2 01 1 1504- ● ● ●
126 PULLEY; IDLE
(A) 		8-97646-269-0 01 1 1504- ● ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 1504- ● ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 1504- ● ● ●
132 COVER; DUST 1-13664-009-2 02 1 1504- ● ● ●
133 BRACKET; IDLE PULLEY 8-97646-268-1 01 1 1504- ● ● ●
134 SPINDLE; IDLE PULLEY 1-13665-064-0 01 1 1504- ● ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 1504- ● ● ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 1504- ● ● ●
182 BOLT; BRKT
M10X50 FLANGE 		0-28151-050-0 01 1 1504- ● ● ●
221 BOLT; IDLE PULLEY
(A) M10X100 FLANGE 		0-28151-000-0 01 1 1504- ● ● ●
221 BOLT; IDLE PULLEY
(B) M10X25 FLANGE 		0-28151-025-0 02 1 1504- ● ● ●
221 BOLT; IDLE PULLEY
(C) M10X50 FLANGE 		0-28151-050-0 01 1 1504- ● ● ●
221 BOLT; IDLE PULLEY
(D) M10X80 FLANGE 		0-28151-080-0 01 1 1504- ● ● ●
224 BEARING; IDLE PULLEY 8-97633-017-0 02 1 1504- ● ● ●
235 SHAFT; FAN CENTER 8-98272-688-1 01 1 1504- ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 1504- ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 1504- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
