◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#160175) — 35 parça

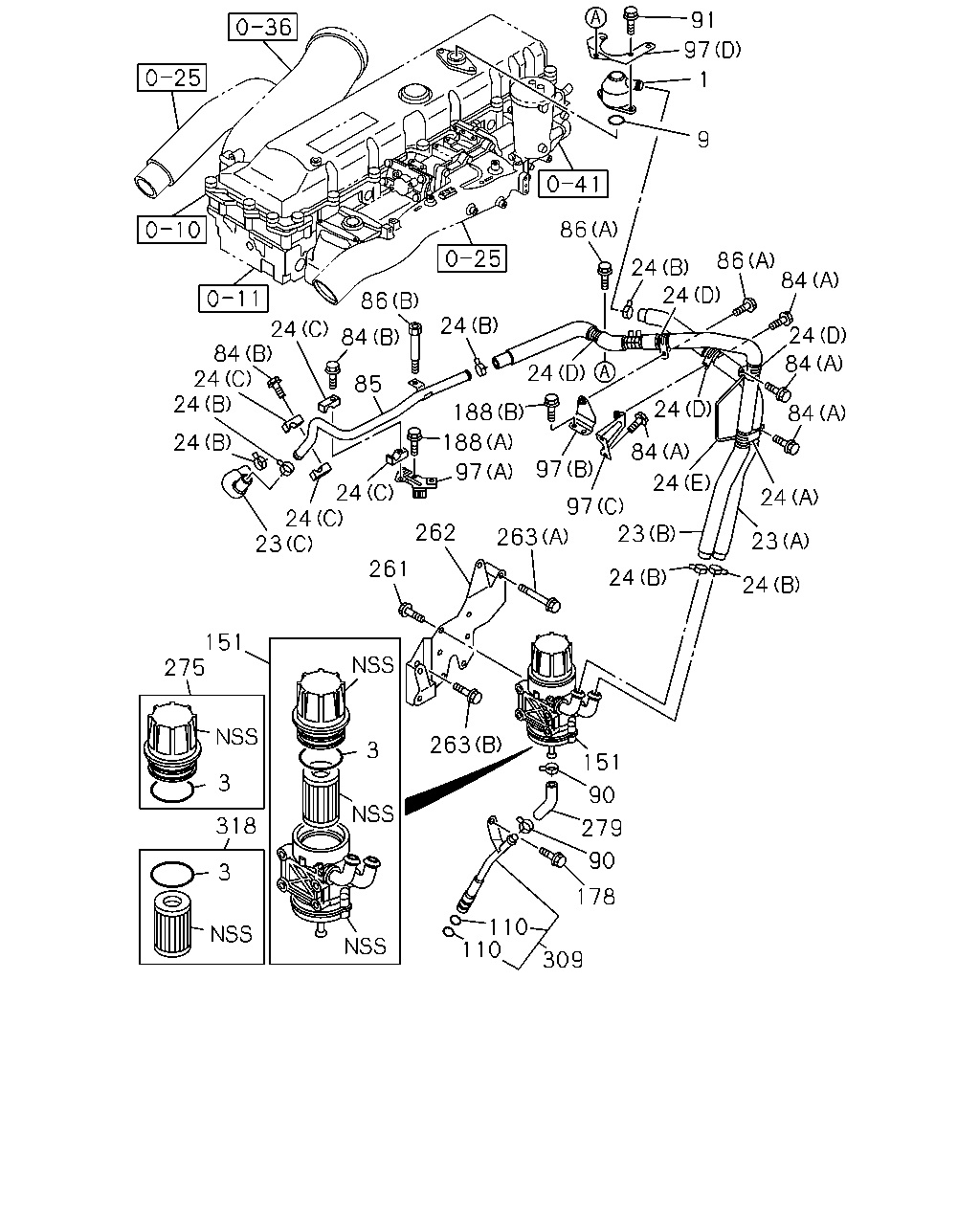

çizim 471768
84 24 24 24 24 86 84 85 24 24 23 151 275 3 318 3 3 110 110 309 178 90 279 90 151 263 261 362 97 188 188 24 86 24 97 263 97 24 23 24 84 24 24 24 86 91 97 1 9 84 24 84 84 24 23 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BREATHER; AIR 1-11740-181-1 01 1 1504- ● ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1504- ● ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 01 1 1504- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-98247-131-0 01 1 1504- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-98247-134-0 01 1 1504- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-98247-593-1 01 1 1504- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=30X2 L=28 		1-09701-266-0 01 1 1504- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=28.5 		1-09707-150-0 06 1 1504- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=24.5 L=22 		8-97603-362-1 04 1 1504- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) ID=33 L=30 		8-97619-250-0 04 1 1504- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) 		8-98216-429-0 01 1 1504- ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1504- ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X60 FLANGE 		0-28050-860-0 02 1 1504- ● ● ●
85 PIPE; BREATHER 8-98247-772-0 01 1 1504- ● ● ●
86 BOLT; BREATHER PIPE
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1504- ● ● ●
86 BOLT; BREATHER PIPE
(B) 		8-97377-804-0 01 1 1504- ● ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1504- ● ● ●
91 BOLT; AIR BREATHER
M10X25 FLANGE 		0-28151-025-0 02 1 1504- ● ● ●
97 BRACKET; HOSE
(A) 		8-98122-985-1 01 1 1504- ● ● ●
97 BRACKET; HOSE
(B) 		8-98247-648-0 01 1 1504- ● ● ●
97 BRACKET; HOSE
(C) 		8-98247-649-0 01 1 1504- ● ● ●
97 BRACKET; HOSE
(D) 		8-98248-144-0 01 1 1504- ● ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 1504- ● ● ●
151 SEPARATOR; OIL,PCV 8-98126-690-0 01 1 1504- ● ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1504- ● ● ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1504- ● ● ●
188 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 02 1 1504- ● ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1504- ● ● ●
262 BRACKET; OIL SEPARETOR 8-98122-426-0 01 1 1504- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1504- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 1504- ● ● ●
275 CAP; PCV 8-97625-726-0 01 1 1504- ● ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 1504- ● ● ●
309 PIPE ASM; OIL SEPARATOR 8-98122-427-0 01 1 1504- ● ● ●
318 ELEMENT KIT; PCV 8-97625-725-0 01 1 1504- ● ● ●
