Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11678 - CYJ RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#160173) — 28 parça
Tümü
A - 6WG1 TC-N
B - 6WG1 TC-C
C - 6WG1 TC-S
◀

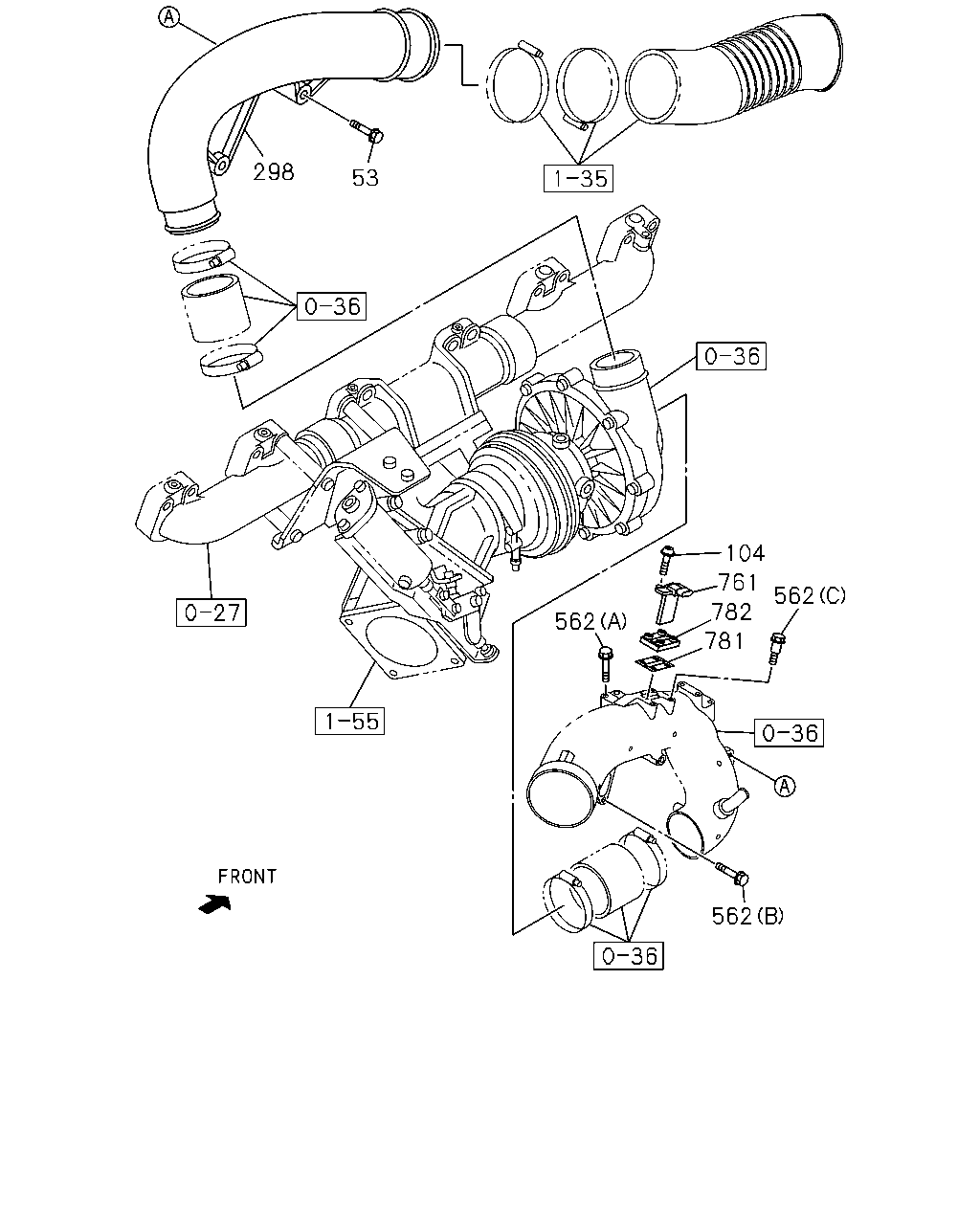

[025A] TURBOCHARGER SIDE (9 parça)

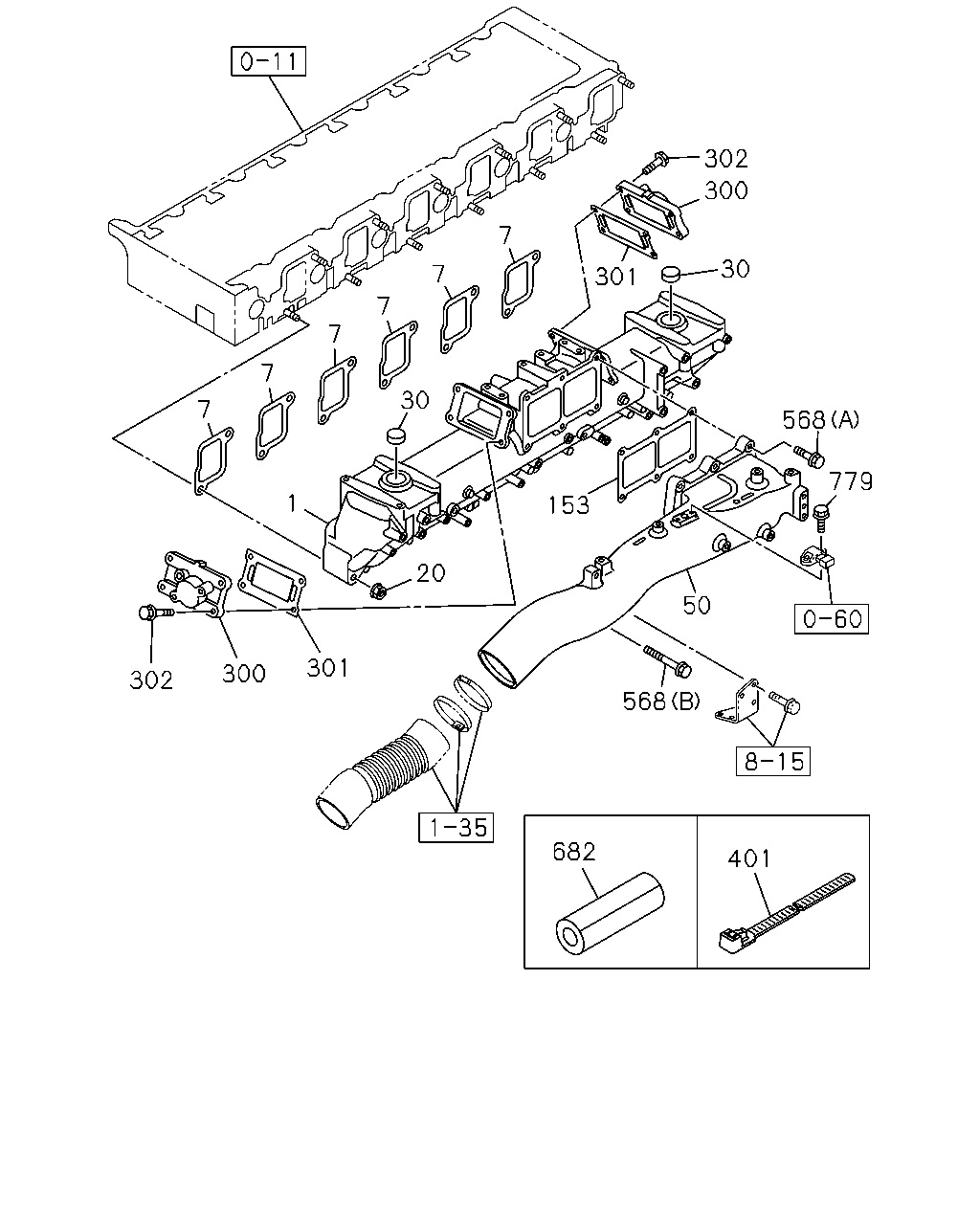

[025A] MANIFOLD ASM AND INL PIPE (14 parça)
[025A] FIXING;CLIP AND BOLT (5 parça)
▶
298
53
562
104
761
782
781
562
562
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
53
BOLT; INL PIPE
M10X60 FLANGE
0-28151-060-0
02
1
1504-
●
●
●
104
SCREW
M4X20 W/LK&PL WASHER
9-03920-420-0
04
1
1504-
●
●
●
298
PIPE; INL,TURBOCHARGER TO INL COVER
8-98195-096-0
01
1
1504-
●
●
●
562
BOLT; INL DUCT
(A) M10X50 FLANGE
0-28151-050-0
02
1
1504-
●
●
●
562
BOLT; INL DUCT
(B) M10X70 FLANGE
0-28151-070-0
01
1
1504-
●
●
●
562
BOLT; INL DUCT
(C) M10X49.8
8-97039-586-0
02
1
1504-
●
●
●
761
SENSOR; MANIF
8-97601-967-0
01
1
1504-
●
●
●
781
GASKET; SENSOR
8-98212-728-0
01
1
1504-
●
●
●
782
ADAPTER; SENSOR
8-98169-371-0
01
1
1504-
●
●
●
302
300
30
301
153
50
568
568
779
20
301
300
302
682
401
7
7
7
7
7
7
1
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MANIFOLD; INL
8-98227-864-0
01
1
1504-
●
●
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97615-623-1
06
1
1504-
●
●
●
20
NUT; INL MANIF
M10 FLANGE
0-91180-110-0
12
1
1504-
●
●
●
30
CUP; SEALING,INL MANIF
OD=40
8-94241-637-0
02
1
1504-
●
●
●
50
PIPE; INL
8-98189-459-1
01
1
1504-
●
●
●
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-094-1
01
1
1504-
●
●
●
300
COVER; INL MANIF
8-98178-944-0
02
1
1504-
●
●
●
301
GASKET; INL MANIF COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97648-198-0
02
1
1504-
●
●
●
302
BOLT; INL MANIF COVER
M10X40 FLANGE
0-28151-040-0
08
1
1504-
●
●
●
401
CLIP; BAND
L=250
8-98216-430-0
01
1
1504-
●
●
●
568
BOLT; PIPE
(A) M10X30 FLANGE
0-28151-030-0
06
1
1504-
●
●
●
568
BOLT; PIPE
(B) M10X80 FLANGE
0-28151-080-0
01
1
1504-
●
●
●
682
COVER; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
01
1
1504-
●
●
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
1504-
●
●
●
326
412
412
412
326
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
326
BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (A) M8X16 FLANGE
0-28050-816-0
01
1
1507-
●
●
●
326
BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (B) M8X20 FLANGE
0-28050-820-0
02
1
1507-
●
●
●
412
CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=11 L=20
0-95235-035-0
02
1
1507-
●
●
●
412
CLIP; HARNESS
MJX16P M/T(Y3Z) (A) ID=16 L=20
0-95235-535-0
01
1
1507-
●
●
●
412
CLIP; HARNESS
MJX16P M/T(Y3Z) (B) ID=5-12 L=18
1-09709-287-0
01
1
1507-
●
●
●
