Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#160171) — 51 parça

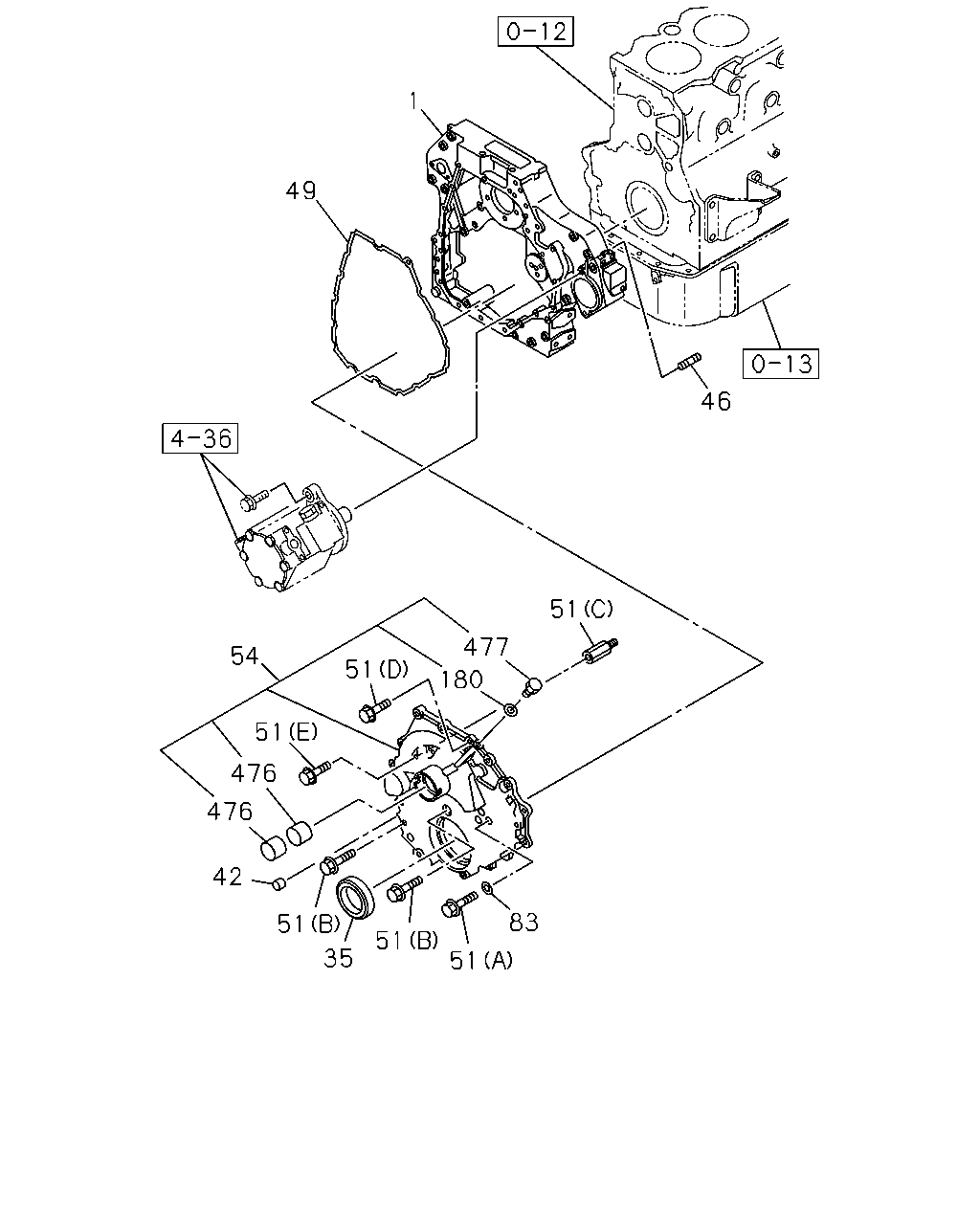

1 49 54 51 476 476 42 51 35 51 51 83 180 51 51 477 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	8-98249-369-0	01	1	1504-	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	8-97617-308-0	01	1	1504-	●	●	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	1504-	●	●	●
46	STUD; BRG COVER,RR M14X45 L=66	0-44011-445-0	01	1	1504-	●	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98061-423-0	01	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (A) M8X40	0-10955-840-0	03	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (B) M10X30 FLANGE	0-28151-030-0	15	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (D) M10X40 FLANGE	0-28151-040-0	01	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (E) M10X50 FLANGE	0-28151-050-0	02	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (C) M10X90	8-97603-482-0	02	1	1504-	●	●	●
54	COVER; GEAR CASE	8-98269-504-0	01	1	1504-	●	●	●
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	1504-	●	●	●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1504-	●	●	●
476	BUSHING; COVER	1-09330-096-0	02	1	1504-	●	●	●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	1504-	●	●	●

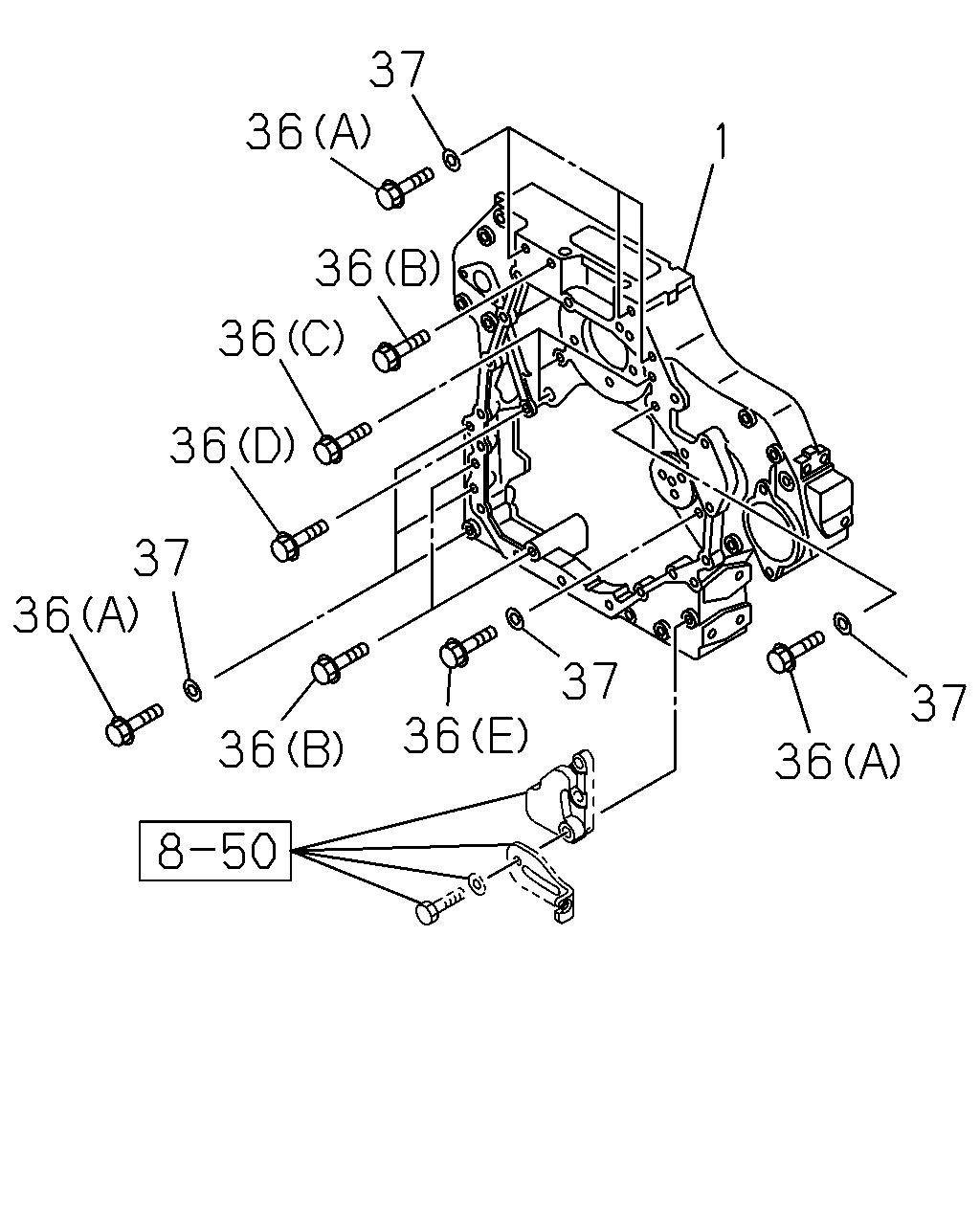

1 37 36 36 36 36 37 36 36 36 37 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	8-98249-369-0	01	1	1504-	●	●	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28151-000-0	03	1	1504-	●	●	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28151-025-0	04	1	1504-	●	●	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28151-035-0	01	1	1504-	●	●	●
36	BOLT; GEAR CASE (A) M14X110	1-09020-007-0	15	1	1504-	●	●	●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	1504-	●	●	●
37	WASHER; PL,GEAR CASE ID=15 OD=26	0-91614-514-0	08	1	1504-	●	●	●

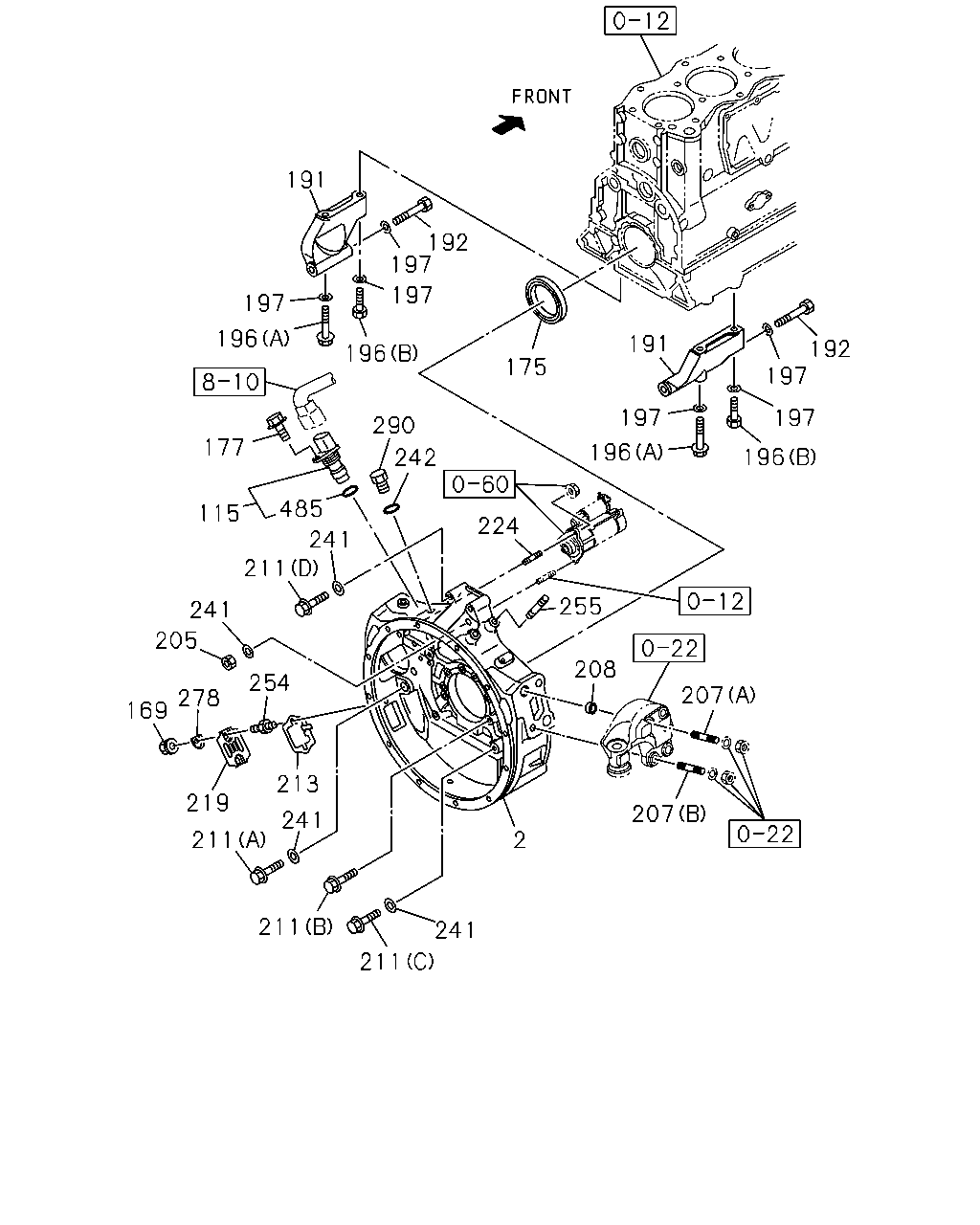

191 197 192 197 196 196 197 177 115 211 241 205 278 169 219 211 213 241 211 211 241 2 207 207 208 255 224 196 197 191 175 242 290 197 192 197 485 241 254 196

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-98182-183-2	01	1	1504-	●	●	●
115	SENSOR; REVOLUTION,ENG SPD	8-97606-943-0	01	1	1504-	●	●	●
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1504-	●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	1504-	●	●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	1504-	●	●	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	1504-	●	●	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	1504-	●	●	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	1504-	●	●	●
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	1504-	●	●	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	1504-	●	●	●
197	WASHER; PL,STAY ID=15 OD=26	0-91614-514-0	06	1	1504-	●	●	●
205	NUT; HSG M14	0-91110-514-0	01	1	1504-	●	●	●
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	1504-	●	●	●
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	1504-	●	●	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	1504-	●	●	●
211	BOLT; HSG (C) M14X50	0-16956-450-0	02	1	1504-	●	●	●
211	BOLT; HSG (B) M8X35 FLANGE	0-28050-835-0	08	1	1504-	●	●	●
211	BOLT; HSG (D) M14X70	9-91666-470-0	02	1	1504-	●	●	●
211	BOLT; HSG (A) M14X45	9-92361-445-0	10	1	1504-	●	●	●
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	1504-	●	●	●
219	COVER; POINTER	1-11349-131-0	01	1	1504-	●	●	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	1504-	●	●	●
241	WASHER; PL,HSG ID=15 OD=26	0-91614-514-0	15	1	1504-	●	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	1504-	●	●	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	1504-	●	●	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	1504-	●	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	1504-	●	●	●
290	PLUG; SENSOR HOLE M20X10.5	8-98009-333-0	01	1	1504-	●	●	●
485	GASKET; SENSOR ID=14.2 OD=18.8	8-97369-404-0	01	1	1504-	●	●	●
