8-60 — HEATER UNIT; FRONT (#160155) — 38 parça

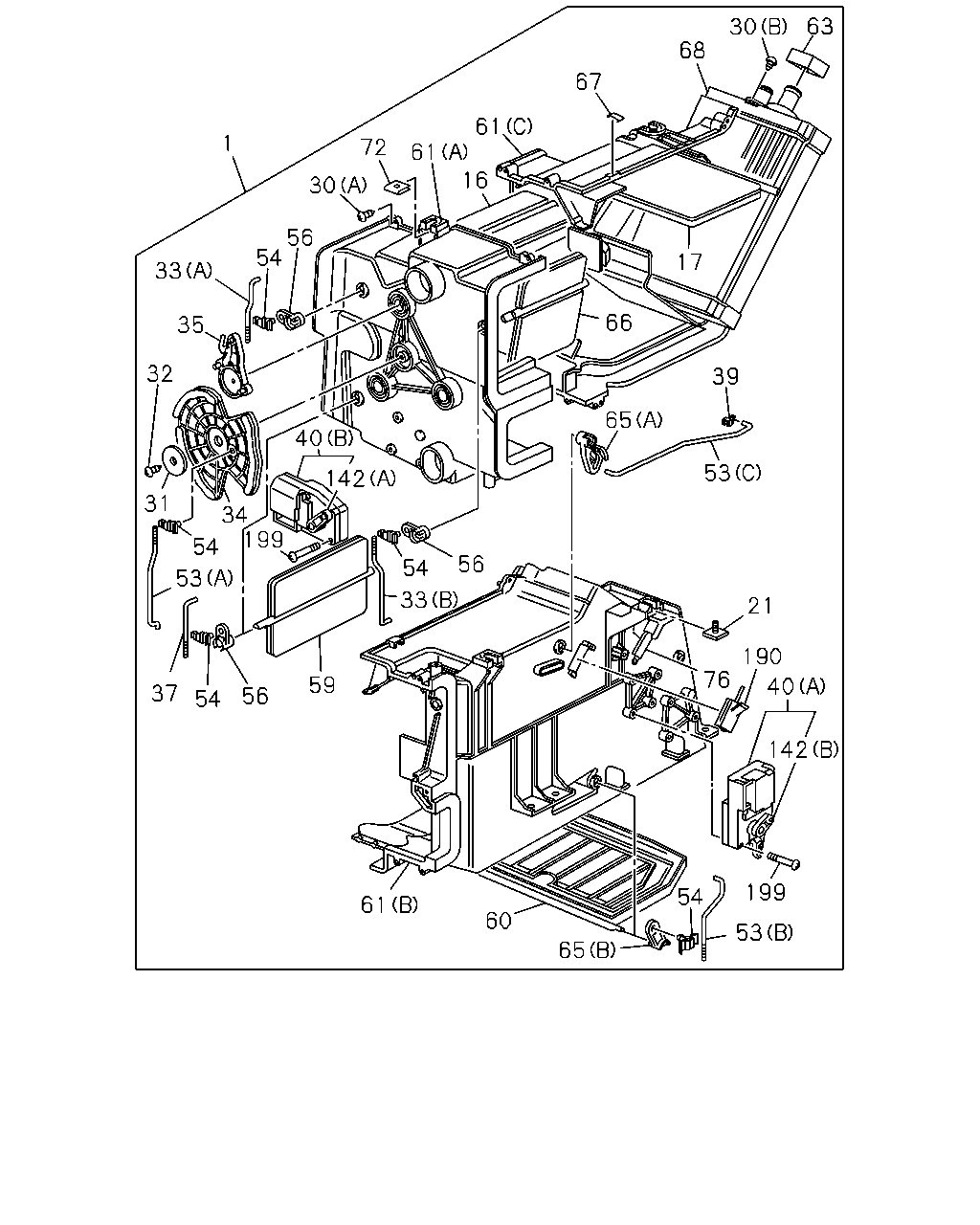

çizim 472062
63 30 68 67 61 61 72 30 56 16 54 33 35 32 31 53 34 54 37 54 56 33 59 199 40 56 54 142 17 66 65 39 53 21 190 40 142 199 76 53 54 65 60 61 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-98238-482-0 01 1 1504-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1504-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1504-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1504-
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1504-
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1504-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1504-
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1504-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1504-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1504-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1504-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1504-
37 ROD; LEVER 1-83579-620-1 01 1 1504-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1504-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-2 01 1 1504-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1504-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1504-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1504-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1504-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1504-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1504-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1504-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1504-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1504-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1504-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1504-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1504-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1504-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1504-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 1504-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1504-
68 CORE; HTR UNIT 8-98238-475-0 01 1 1504-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1504-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 1504-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1504-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1504-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 1504-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1504-
