◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11677 - CYH RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#160144) — 307 parça
çizim 471126
335 342 342 375
BalonParca AdiParca NoAdetTipApplied Date
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1504-
342 BRACKET; HARNESS CAB MTG
(B) 		1-82698-588-0 02 1 1504-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 1504-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1504-
çizim 471160
1 1 1 1 224 1 178 178 178 178 178 178 530 178 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=29 OD=39 L=40 		1-09337-013-0 02 1 1504-
1 SLEEVE; RUBBER
(E) ID=23 OD=27 L=40 		1-09337-015-0 02 1 1504-
1 SLEEVE; RUBBER
(D) ID=38.1 L=25 		1-09337-052-0 02 1 1504-
1 SLEEVE; RUBBER
(D) ID=38.1 L=25 		1-09337-052-0 01 1 1504-
1 SLEEVE; RUBBER
(C) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1504-
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=77 		8-98248-561-0 01 1 1504-
178 GROMMET; HARNESS
(G) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1504-
178 GROMMET; HARNESS
(A) ID=39 OD=45 T=13 		1-09332-076-0 01 1 1504-
178 GROMMET; HARNESS
(C) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1504-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1504-
178 GROMMET; HARNESS
(E) 		1-82698-551-0 01 1 1504-
178 GROMMET; HARNESS
(D) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1504-
178 GROMMET; HARNESS
(D) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1504-
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1504-
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1504-
224 SLEEVE; RUBBER,HARNESS
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1504-
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 1504-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 02 1 1504-
530 SEAL; HARNESS
(B) OD=25 BLACK 		1-76798-019-0 01 1 1504-
530 SEAL; HARNESS
LOW ROOF<6XQ> (A) 100X40 		1-72498-022-1 01 1 1504-
çizim 471163
14 102 51 104 14 206 16 102 142 121 171 305 369 208 380 470 14 16 194 48 380 194 425 16 51 142 208 369 142
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1504-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 01 1 1504-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 02 1 1504-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 02 1 1504-
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 1504-
16 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 1504-
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 09 1 1504-
16 CLIP; HARNESS
(I) ID=31 L=35 		1-09700-329-1 01 1 1504-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 1504-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 09 1 1504-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 1504-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 02 1 1504-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1504-
16 CLIP; HARNESS
(F) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1504-
16 CLIP; HARNESS
(F) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1504-
16 CLIP; HARNESS
(AD) ID=16 L=40 		0-95235-576-0 01 1 1504-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 1504-
16 CLIP; HARNESS
(I) ID=28 L=58 		1-09700-400-0 02 1 1504-
16 CLIP; HARNESS
(L) ID=20 L=50 		1-09700-679-1 01 1 1504-
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 02 1 1504-
16 CLIP; HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 1504-
16 CLIP; HARNESS
(O) ID=26 L=27 		1-09701-006-0 02 1 1504-
16 CLIP; HARNESS
(J) ID=9 H=80 L=23 		1-09701-061-0 02 1 1504-
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1504-
16 CLIP; HARNESS
(AG) ID=18 L=38 H=23 		1-09701-147-0 01 1 1504-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1504-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1504-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1504-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 02 1 1504-
16 CLIP; HARNESS
(AI) ID=5-12 L=18 		1-09709-287-0 01 1 1504-
16 CLIP; HARNESS
(AJ) ID=5-12 L=22 		1-09709-288-0 02 1 1504-
16 CLIP; HARNESS
(H) ID=13-18 L=18 		1-09709-291-0 03 1 1504-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1504-
16 CLIP; HARNESS
(X) ID=21 L=47.5 		8-94178-108-0 03 1 1504-
16 CLIP; HARNESS
(AE) L=36 		8-94224-891-1 01 1 1504-
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-97367-985-1 03 1 1504-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 1504-
16 CLIP; HARNESS
(AA) ID=17 L=20 		8-97619-251-0 01 1 1504-
16 CLIP; HARNESS
(AC) ID=10 L=16.5 		8-98082-034-0 04 1 1504-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (H) ID=13-18 L=18 		1-09709-291-0 05 1 1504-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (H) ID=13-18 L=18 		1-09709-291-0 04 1 1504-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (AH) ID=13-18 L=26 		1-09709-293-0 01 1 1504-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1504-
48 CLIP; FRAME HARNESS
(A) ID=39 H=28 L=32 		1-09701-263-0 04 1 1504-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1504-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 07 1 1504-
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1504-
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1504-
102 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 1504-
102 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 1504-
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> L=140 		5-09707-031-1 04 1 1504-
121 CLIP; FACIA HARNESS
L=250 		5-09707-030-1 02 1 1504-
142 CLIP; HARNESS,ENG
(C) L=251 		8-97619-917-0 03 1 1504-
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1504-
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 10 1 1504-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 02 1 1504-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1504-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 07 1 1504-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1504-
208 CLIP; HARNESS,MAG VLV
(A) L=250 		5-09707-030-1 02 1 1504-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180 		1-09707-162-1 01 1 1504-
305 CLIP; ENG HARNESS
L=250 		5-09707-030-1 04 1 1504-
369 CLIP; BAND EDS HARNESS
(B) L=250 		5-09707-030-1 02 1 1504-
369 CLIP; BAND EDS HARNESS
(A) L=140 		5-09707-031-1 01 1 1504-
380 CLIP; EARTH HARNESS
(A) L=350 		1-09707-183-0 01 1 1504-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 1504-
425 CLIP; MODULATOR
(B) L=350 		1-09707-183-0 02 1 1504-
425 CLIP; MODULATOR
(A) ID=5-12 L=18 		1-09709-287-0 02 1 1504-
425 CLIP; MODULATOR
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(C) ID=11 L=41 		1-09700-403-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 01 1 1504-

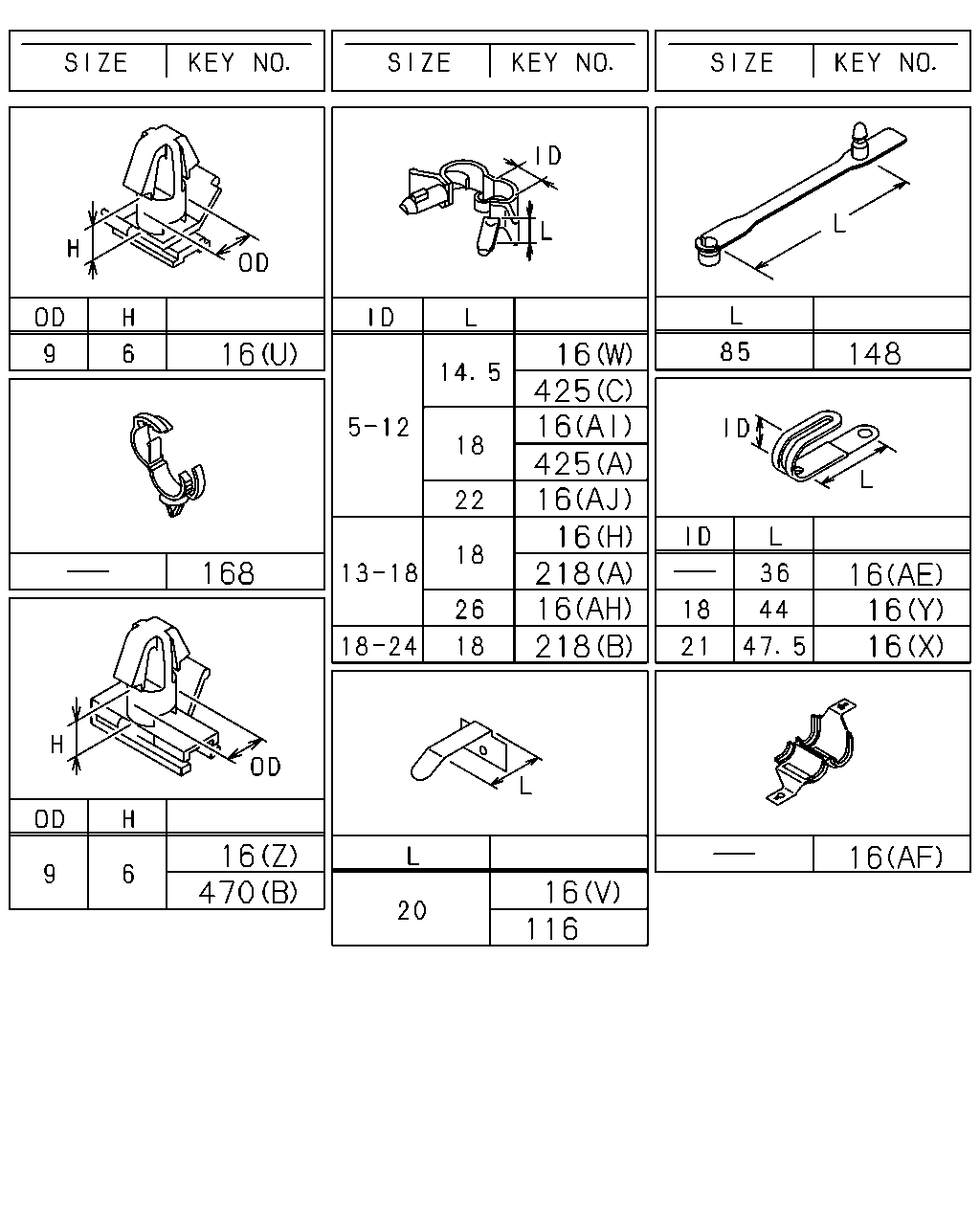

çizim 471165
16 168 16 470 16 116 218 16 218 16 16 425 16 425 16 148 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 1504-
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 09 1 1504-
16 CLIP; HARNESS
(I) ID=31 L=35 		1-09700-329-1 01 1 1504-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 1504-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 09 1 1504-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 1504-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 02 1 1504-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1504-
16 CLIP; HARNESS
(F) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1504-
16 CLIP; HARNESS
(F) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1504-
16 CLIP; HARNESS
(AD) ID=16 L=40 		0-95235-576-0 01 1 1504-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 1504-
16 CLIP; HARNESS
(I) ID=28 L=58 		1-09700-400-0 02 1 1504-
16 CLIP; HARNESS
(L) ID=20 L=50 		1-09700-679-1 01 1 1504-
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 02 1 1504-
16 CLIP; HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 1504-
16 CLIP; HARNESS
(O) ID=26 L=27 		1-09701-006-0 02 1 1504-
16 CLIP; HARNESS
(J) ID=9 H=80 L=23 		1-09701-061-0 02 1 1504-
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1504-
16 CLIP; HARNESS
(AG) ID=18 L=38 H=23 		1-09701-147-0 01 1 1504-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1504-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1504-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1504-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 02 1 1504-
16 CLIP; HARNESS
(AI) ID=5-12 L=18 		1-09709-287-0 01 1 1504-
16 CLIP; HARNESS
(AJ) ID=5-12 L=22 		1-09709-288-0 02 1 1504-
16 CLIP; HARNESS
(H) ID=13-18 L=18 		1-09709-291-0 03 1 1504-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1504-
16 CLIP; HARNESS
(X) ID=21 L=47.5 		8-94178-108-0 03 1 1504-
16 CLIP; HARNESS
(AE) L=36 		8-94224-891-1 01 1 1504-
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-97367-985-1 03 1 1504-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 1504-
16 CLIP; HARNESS
(AA) ID=17 L=20 		8-97619-251-0 01 1 1504-
16 CLIP; HARNESS
(AC) ID=10 L=16.5 		8-98082-034-0 04 1 1504-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (H) ID=13-18 L=18 		1-09709-291-0 05 1 1504-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (H) ID=13-18 L=18 		1-09709-291-0 04 1 1504-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (AH) ID=13-18 L=26 		1-09709-293-0 01 1 1504-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1504-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 08 1 1504-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1504-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 1504-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 1504-
218 CLIP; BAND,RR COMB
(A) ID=13-18 L=18 		1-09709-291-0 05 1 1504-
218 CLIP; BAND,RR COMB
(B) ID=18-24 L=18 		1-09709-294-0 01 1 1504-
425 CLIP; MODULATOR
(B) L=350 		1-09707-183-0 02 1 1504-
425 CLIP; MODULATOR
(A) ID=5-12 L=18 		1-09709-287-0 02 1 1504-
425 CLIP; MODULATOR
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(C) ID=11 L=41 		1-09700-403-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 01 1 1504-

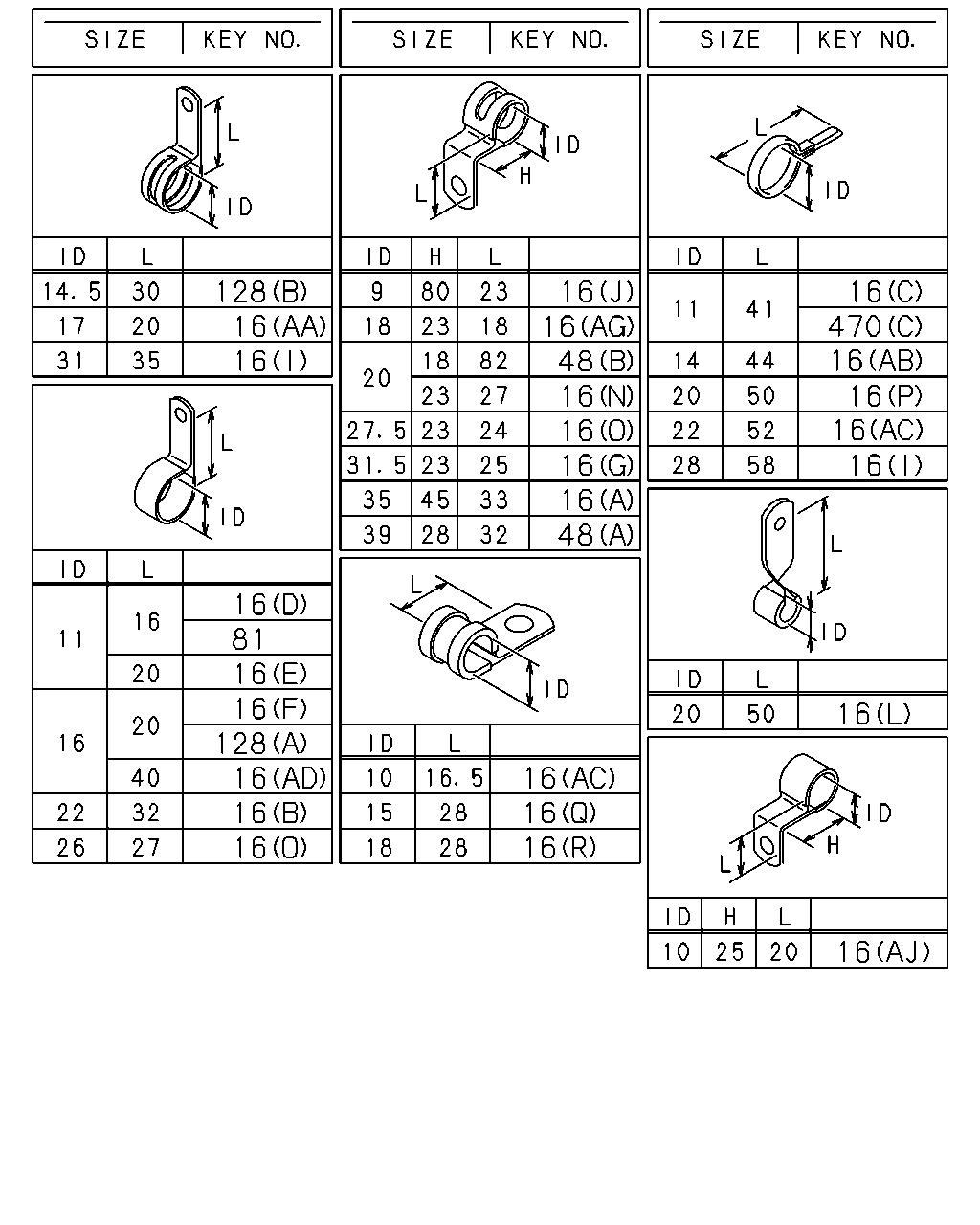

çizim 471166
128 16 16 16 81 16 16 128 16 16 16 16 48 16 16 16 16 16 48 16 16 470 16 16 16 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 1504-
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 09 1 1504-
16 CLIP; HARNESS
(I) ID=31 L=35 		1-09700-329-1 01 1 1504-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 1504-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 09 1 1504-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 1504-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 02 1 1504-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1504-
16 CLIP; HARNESS
(F) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1504-
16 CLIP; HARNESS
(F) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1504-
16 CLIP; HARNESS
(AD) ID=16 L=40 		0-95235-576-0 01 1 1504-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 1504-
16 CLIP; HARNESS
(I) ID=28 L=58 		1-09700-400-0 02 1 1504-
16 CLIP; HARNESS
(L) ID=20 L=50 		1-09700-679-1 01 1 1504-
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 02 1 1504-
16 CLIP; HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 1504-
16 CLIP; HARNESS
(O) ID=26 L=27 		1-09701-006-0 02 1 1504-
16 CLIP; HARNESS
(J) ID=9 H=80 L=23 		1-09701-061-0 02 1 1504-
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1504-
16 CLIP; HARNESS
(AG) ID=18 L=38 H=23 		1-09701-147-0 01 1 1504-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1504-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1504-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1504-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 02 1 1504-
16 CLIP; HARNESS
(AI) ID=5-12 L=18 		1-09709-287-0 01 1 1504-
16 CLIP; HARNESS
(AJ) ID=5-12 L=22 		1-09709-288-0 02 1 1504-
16 CLIP; HARNESS
(H) ID=13-18 L=18 		1-09709-291-0 03 1 1504-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1504-
16 CLIP; HARNESS
(X) ID=21 L=47.5 		8-94178-108-0 03 1 1504-
16 CLIP; HARNESS
(AE) L=36 		8-94224-891-1 01 1 1504-
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-97367-985-1 03 1 1504-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 1504-
16 CLIP; HARNESS
(AA) ID=17 L=20 		8-97619-251-0 01 1 1504-
16 CLIP; HARNESS
(AC) ID=10 L=16.5 		8-98082-034-0 04 1 1504-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (H) ID=13-18 L=18 		1-09709-291-0 05 1 1504-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (H) ID=13-18 L=18 		1-09709-291-0 04 1 1504-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (AH) ID=13-18 L=26 		1-09709-293-0 01 1 1504-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1504-
48 CLIP; FRAME HARNESS
(A) ID=39 H=28 L=32 		1-09701-263-0 04 1 1504-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1504-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 07 1 1504-
81 CLIP; HARNESS
ID=11 L=16 		0-95235-025-0 02 1 1504-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1504-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(C) ID=11 L=41 		1-09700-403-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 01 1 1504-

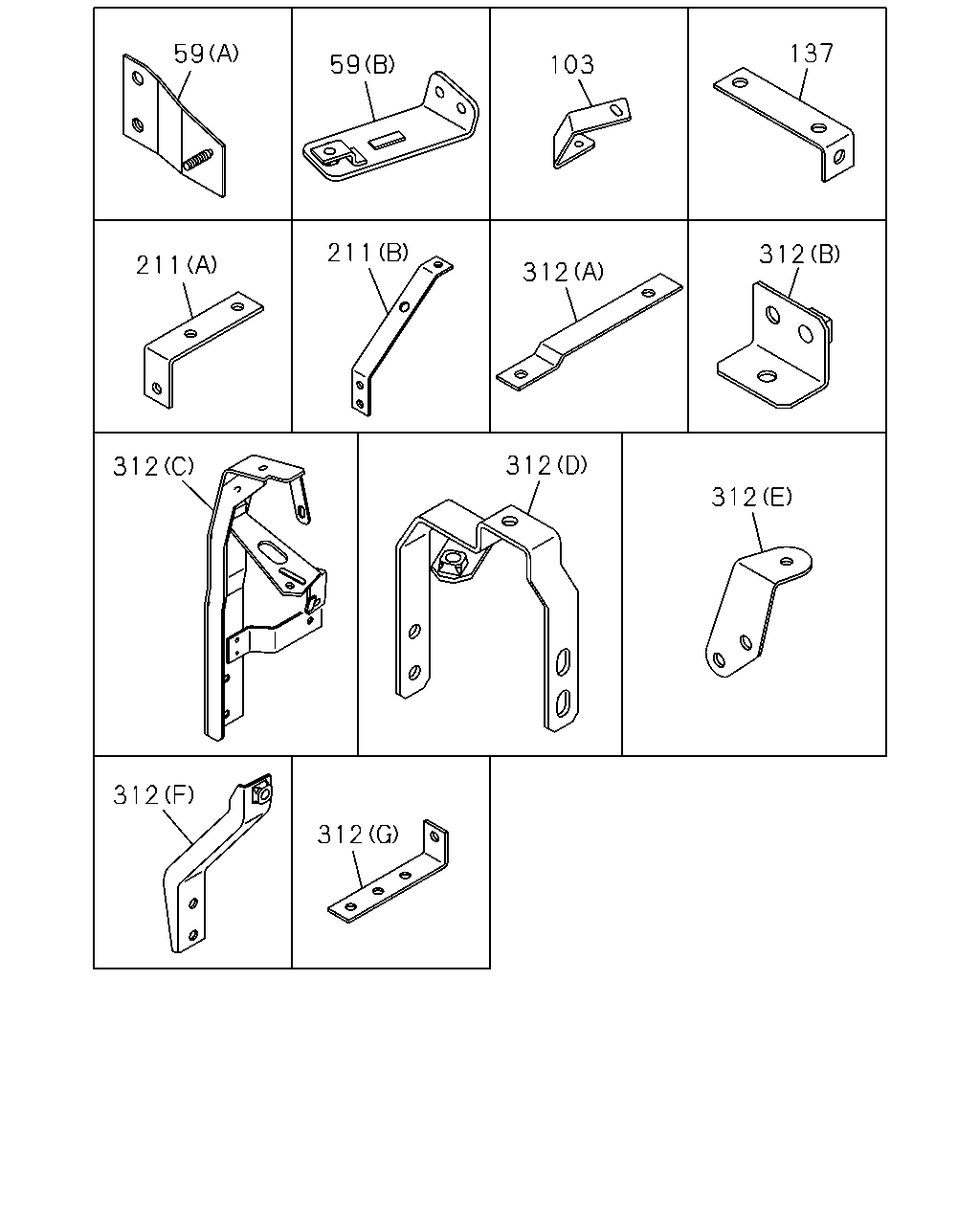

çizim 471312
59 59 103 137 211 211 312 312 312 312 312 312 312
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
(B) 		8-97639-069-0 01 1 1504-
59 BRACKET; FRAME HARNESS
(A) 		8-98061-135-1 01 1 1504-
103 BRACKET; HD LAMP HARNESS
HALOGEN HEADLAMPS<TT5> 		8-98211-939-1 01 1 1504-
103 BRACKET; HD LAMP HARNESS
HALOGEN HEADLAMPS<TT5> 		8-98211-940-1 01 1 1504-
137 BRACKET; HARNESS CLAMP
L=175 H=30 		1-47479-386-1 01 1 1504-
211 BRACKET; AXLE HARNESS
(B) 		1-47479-430-0 02 1 1504-
211 BRACKET; AXLE HARNESS
(A) 		1-82698-588-0 01 1 1504-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-588-0 01 1 1504-
312 BRACKET; CLIP HARNESS
(C) 		8-98316-678-0 01 1 1504-1510
312 BRACKET; CLIP HARNESS
(C) 		8-98325-978-0 01 1 1511-
312 BRACKET; CLIP HARNESS
(G) L=120 H=35 		1-82698-088-0 01 1 1504-
312 BRACKET; CLIP HARNESS
(F) 		8-97636-868-1 01 1 1504-
312 BRACKET; CLIP HARNESS
(A) 		8-98035-927-1 01 1 1504-
312 BRACKET; CLIP HARNESS
(D) 		8-98285-566-1 01 1 1504-
312 BRACKET; CLIP HARNESS
(E) 		8-98285-567-0 01 1 1504-

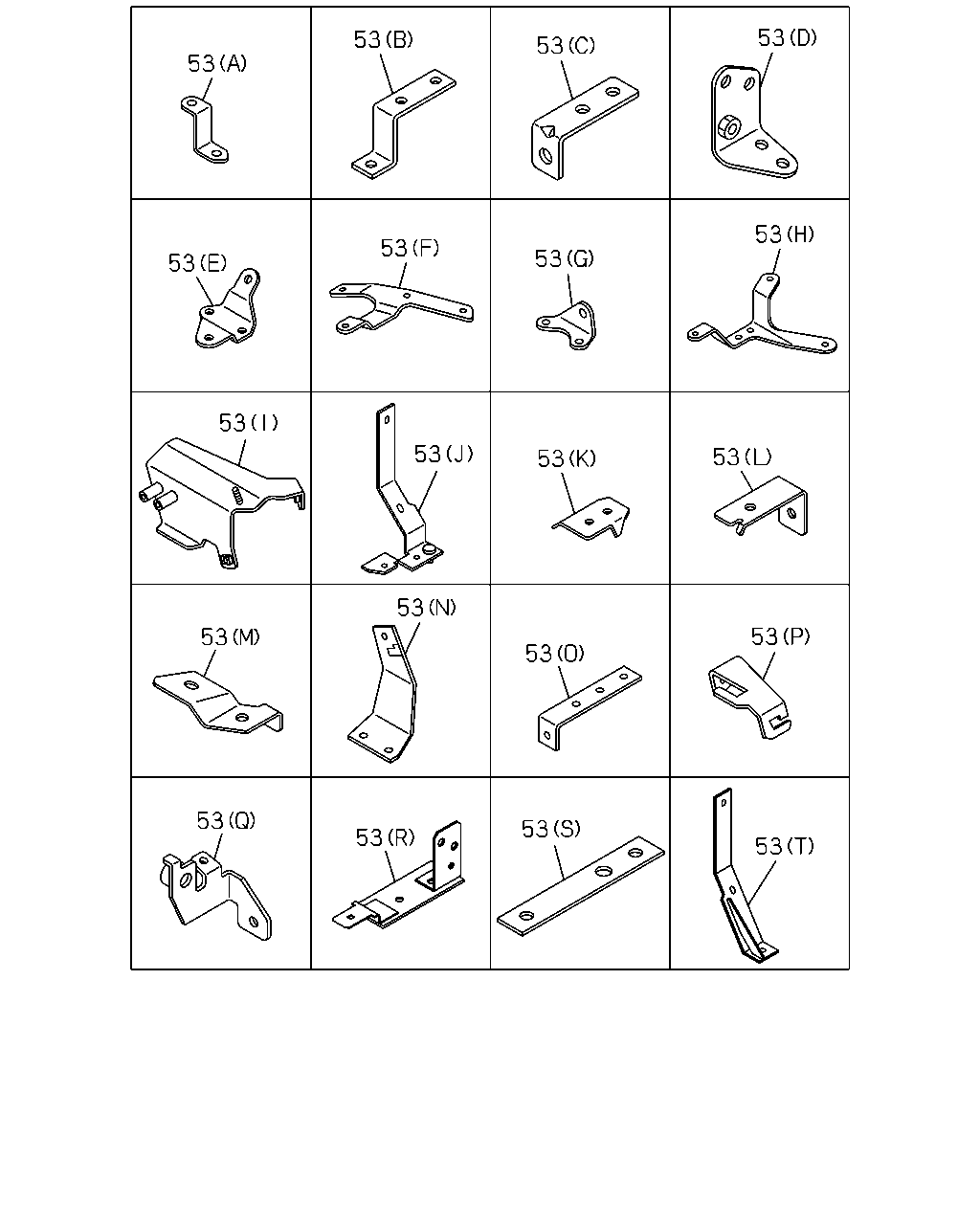

çizim 471338
53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(P) 		1-47479-537-0 05 1 1504-
53 BRACKET; HARNESS
(S) L=130 		1-47478-959-0 02 1 1504-
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1504-
53 BRACKET; HARNESS
(K) 		8-97625-412-0 02 1 1504-
53 BRACKET; HARNESS
(L) 		8-97625-794-0 01 1 1504-
53 BRACKET; HARNESS
(M) 		8-97630-437-0 01 1 1504-
53 BRACKET; HARNESS
(R) 		8-97638-190-0 01 1 1504-
53 BRACKET; HARNESS
(A) 		8-97640-913-0 02 1 1504-
53 BRACKET; HARNESS
(C) 		8-98021-694-1 01 1 1504-
53 BRACKET; HARNESS
(E) 		8-98122-986-0 01 1 1504-
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 1504-
53 BRACKET; HARNESS
(Q) 		8-98194-068-0 01 1 1504-
53 BRACKET; HARNESS
(F) 		8-98209-856-1 01 1 1504-
53 BRACKET; HARNESS
(G) 		8-98209-858-1 01 1 1504-
53 BRACKET; HARNESS
(H) 		8-98218-540-0 01 1 1504-
53 BRACKET; HARNESS
(I) 		8-98247-268-1 01 1 1504-
53 BRACKET; HARNESS
(J) 		8-98285-517-0 01 1 1504-
53 BRACKET; HARNESS
(T) 		8-98285-518-1 01 1 1504-
53 BRACKET; HARNESS
(N) 		8-98285-519-0 01 1 1504-
53 BRACKET; HARNESS
(O) 		8-98290-358-1 01 1 1504-
çizim 471360
423 82 119 294 524 219 294 515 515 340
BalonParca AdiParca NoAdetTipApplied Date
82 WASHER; PL BRKT,HARNESS
ID=10.5 OD=22 		0-91614-610-0 02 1 1504-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1504-
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 1504-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1504-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1504-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 10 1 1504-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1504-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1504-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1504-
294 NUT
HALOGEN HEADLAMPS<TT5> (B) M6 FLANGE 		0-91180-106-0 02 1 1504-
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 1504-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 1504-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1504-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1504-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1504-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 1504-

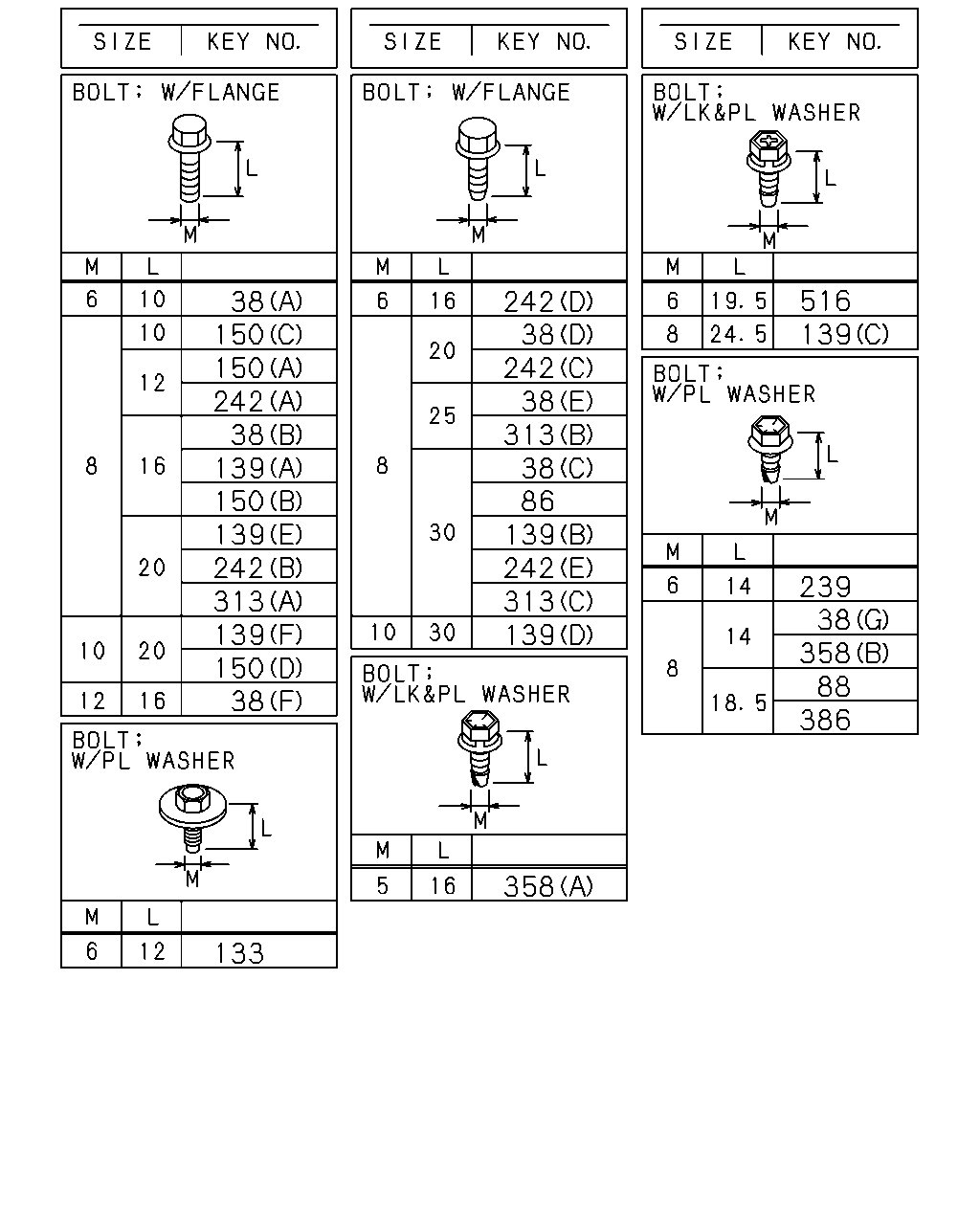

çizim 471764
38 150 150 242 139 38 150 242 139 313 150 38 139 133 358 139 242 139 86 38 313 38 242 38 242 313 516 239 139 38 88 386 358
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1504-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 1504-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1504-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1504-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1504-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1504-
38 BOLT; CLIP,HARNESS
(G) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1504-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1504-
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1504-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1504-
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1504-
139 BOLT; BRKT
(E) M8X20 FLANGE 		0-28050-820-0 02 1 1504-
139 BOLT; BRKT
(F) M10X20 FLANGE 		0-28151-020-0 02 1 1504-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1504-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1504-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1504-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1504-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1504-
150 BOLT; CLIP
(C) M8X10 FLANGE 		0-28050-810-0 01 1 1504-
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1504-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 10 1 1504-
150 BOLT; CLIP
(D) M10X20 FLANGE 		0-28151-020-0 01 1 1504-
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1504-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1504-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1504-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1504-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
242 BOLT; BRKT,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
242 BOLT; BRKT,HARNESS
HALOGEN HEADLAMPS<TT5> (D) M6X16 FLANGE 		0-28650-616-0 02 1 1504-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 03 1 1504-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1504-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1504-
358 BOLT; EARTH
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1504-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1504-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
