Isuzu WW
▶
TRUCKS
▶
CYH
▶
11677 - CYH RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#160143) — 99 parça
◀
[810A] CAB SIDE NO.4 (21 parça)
[810A] STARTER AND AIR TANK SIDE (2 parça)
[810A] FRAME SIDE NO.1 (15 parça)
[810A] CAB SIDE NO.2 (7 parça)
[810A] CAB SIDE NO.3 (14 parça)
[810A] ENGINE SIDE (3 parça)
[810A] CAB SIDE NO.5 (2 parça)
[810A] FRAME SIDE NO.3 (1 parça)
[810A] FRAME SIDE NO.2 (8 parça)
[810A] CAB SIDE NO.1 (21 parça)
[810A] REAR AXLE SIDE (1 parça)
[810A] TRANSMISSION SIDE (4 parça)
▶

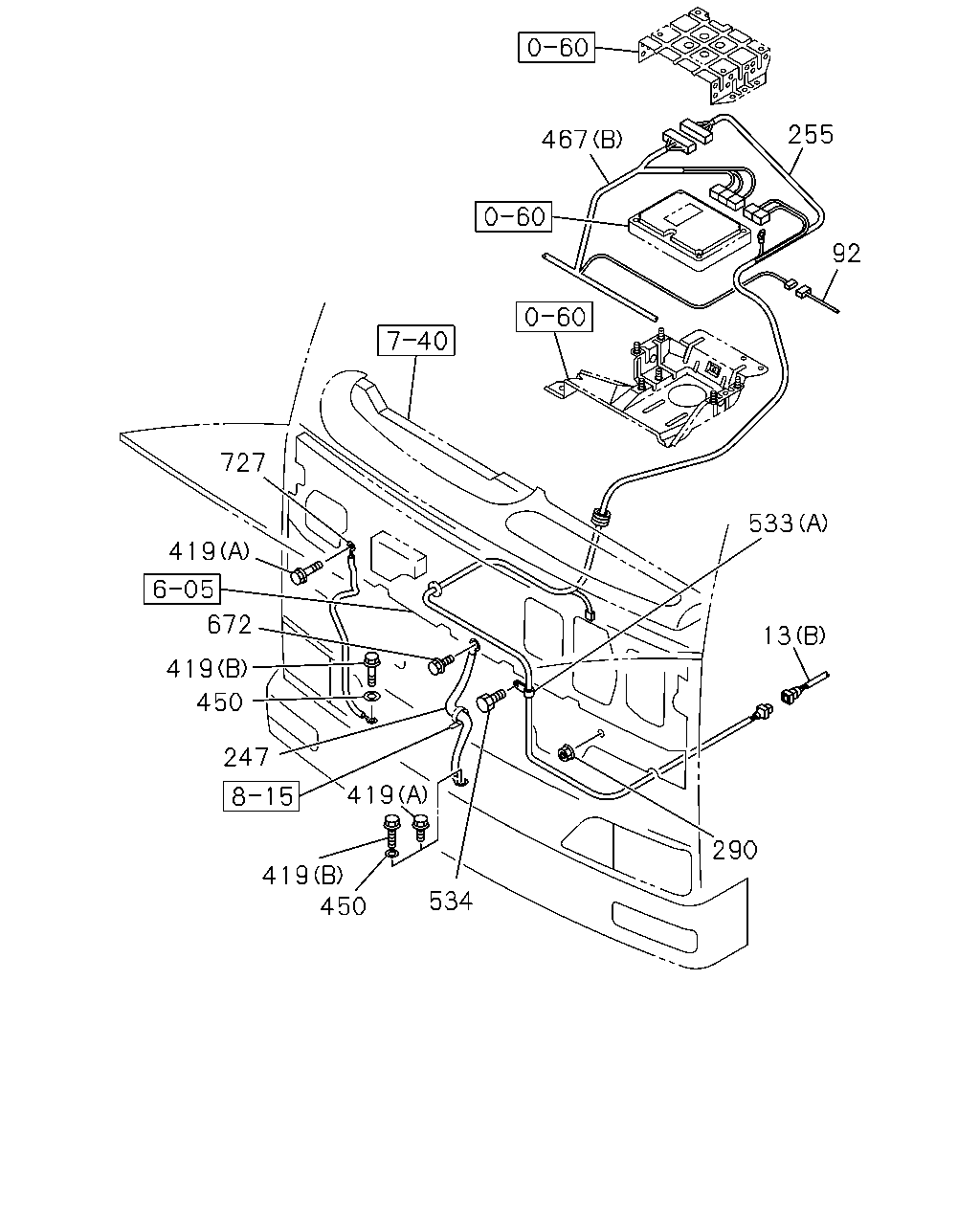

255
92
533
13
290
534
450
419
419
247
450
419
672
419
727
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
(A)
8-97646-554-3
01
1
1504-
13
HARNESS; ENG
(B)
8-98208-801-0
01
1
1504-
92
HARNESS; FLOOR
REMOTE CONT DOOR LOCK<SLG> CAN INTERFACE FMS STD<8PG> PASSENGER SIDE
8-98291-230-0
01
1
1504-
92
HARNESS; FLOOR
REMOTE CONT DOOR LOCK<SLG> EXC. CAN INTERFACE FMS STD<8PG> PASSENGER SIDE
8-98291-231-0
01
1
1504-
92
HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) DRIVER SIDE
8-98291-243-0
01
1
1504-
247
CABLE; BONDING,CAB
8-98285-591-0
01
1
1504-
255
HARNESS; ELEC GOV
8-98291-244-1
01
1
1504-
290
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1504-
419
BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1504-
419
BOLT; CAB EARTH
(B) M8X24 W/PL WASHER
8-98141-256-1
02
1
1504-
419
BOLT; CAB EARTH
(A) M8X14 W/PL WASHER
8-98164-837-0
01
1
1504-
419
BOLT; CAB EARTH
(A) M8X14 W/PL WASHER
8-98164-837-0
02
1
1504-
450
WASHER; PL,CAB EARTH
ID=8.4
1-09503-264-0
01
1
1504-
450
WASHER; PL,CAB EARTH
ID=8.4
1-09503-264-0
03
1
1504-
467
HARNESS; FACIA
(A)
8-98282-904-0
01
1
1504-
467
HARNESS; FACIA
(B)
8-98291-220-1
01
1
1504-
533
CLIP
(B) L=350
1-09707-183-0
01
1
1504-
533
CLIP
(A) ID=35 L=35
1-09700-684-0
01
1
1504-
534
BOLT
M8X16 FLANGE
0-28050-816-0
01
1
1504-
672
BOLT; BONDING
M8X14 W/PL WASHER
8-98164-837-0
01
1
1504-
727
HARNESS; CAB,EARTH
8-98285-125-0
01
1
1504-

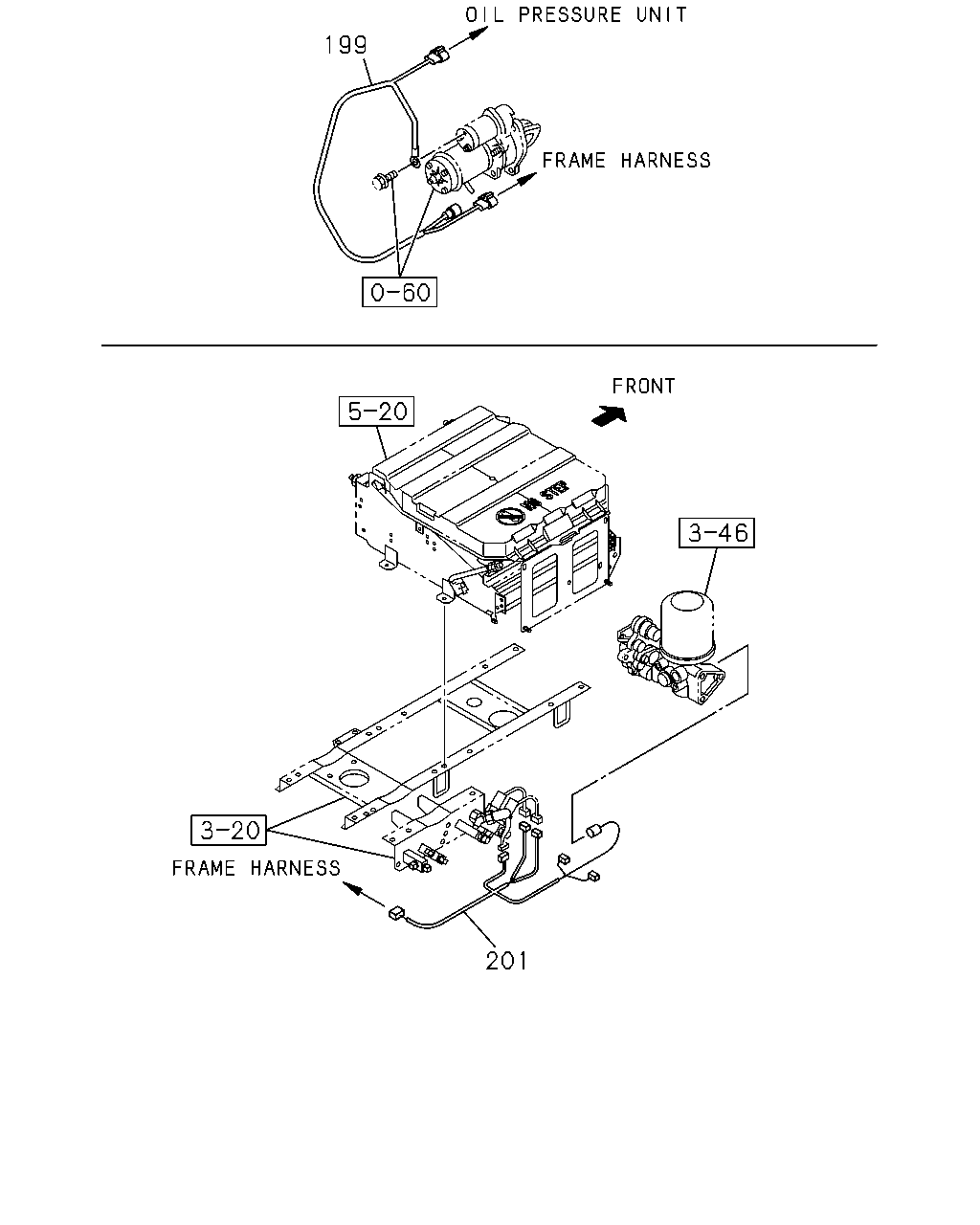

199
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
199
HARNESS; STARTER
8-97607-313-0
01
1
1504-
201
HARNESS; AIR TANK
8-98305-896-0
01
1
1504-

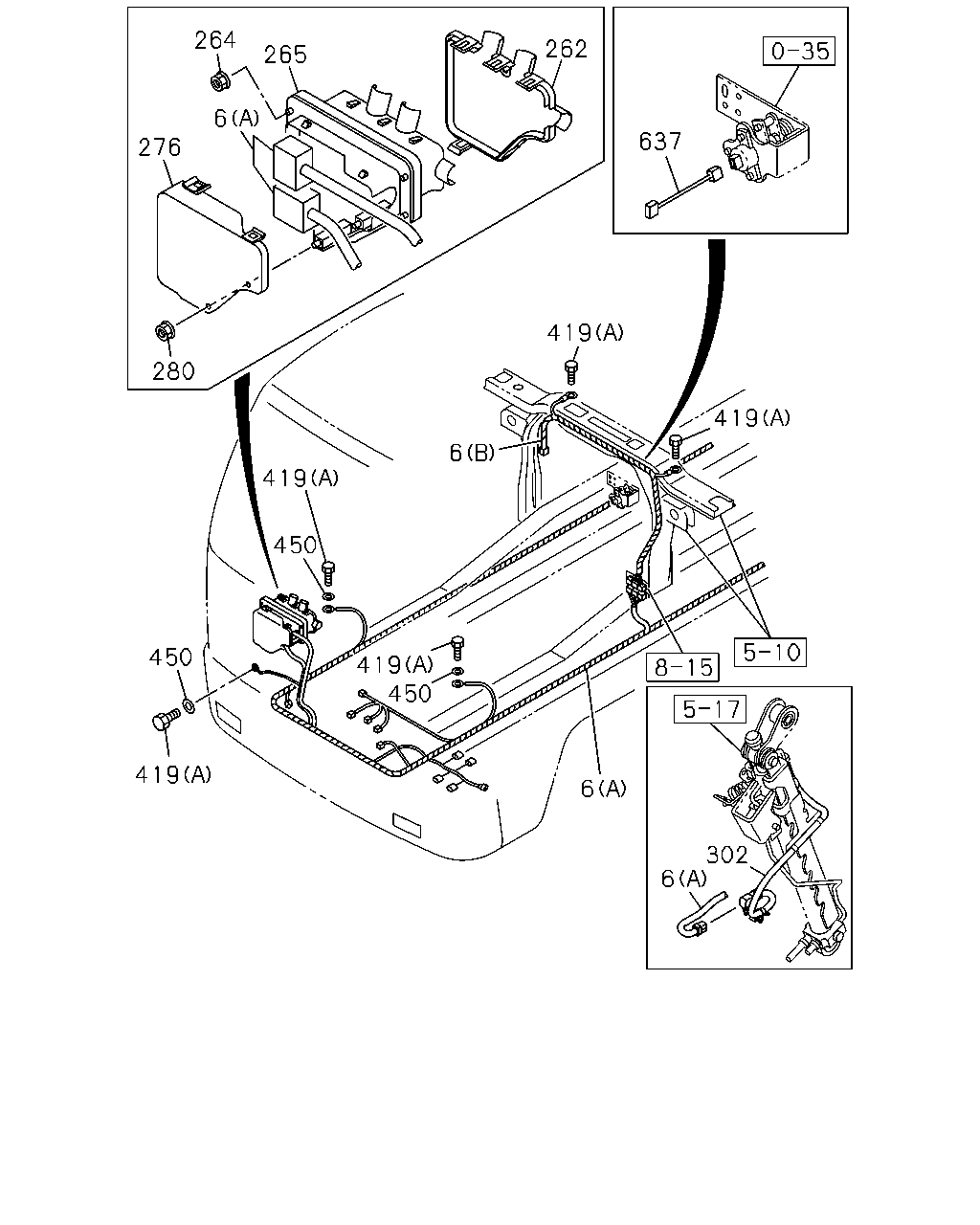

6
419
637
262
265
264
276
6
280
419
450
419
450
450
419
6
302
6
419
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(A)
8-98289-402-2
01
1
1504-
6
HARNESS; FRAME
(B)
8-98289-412-1
01
1
1504-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-582-1
01
1
1504-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
1504-
265
BOX; CONN,FRT PNL
1-82699-581-3
01
1
1504-
276
COVER; BOX,FRAME HARNESS
1-82699-585-2
01
1
1504-
280
NUT; BOX ASM FIX
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1504-
302
HARNESS; POWER CAB TILT
8-97636-525-0
01
1
1504-
419
BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1504-
419
BOLT; CAB EARTH
(B) M8X24 W/PL WASHER
8-98141-256-1
02
1
1504-
419
BOLT; CAB EARTH
(A) M8X14 W/PL WASHER
8-98164-837-0
01
1
1504-
419
BOLT; CAB EARTH
(A) M8X14 W/PL WASHER
8-98164-837-0
02
1
1504-
450
WASHER; PL,CAB EARTH
ID=8.4
1-09503-264-0
01
1
1504-
450
WASHER; PL,CAB EARTH
ID=8.4
1-09503-264-0
03
1
1504-
637
HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ>
1-82675-934-0
01
1
1504-

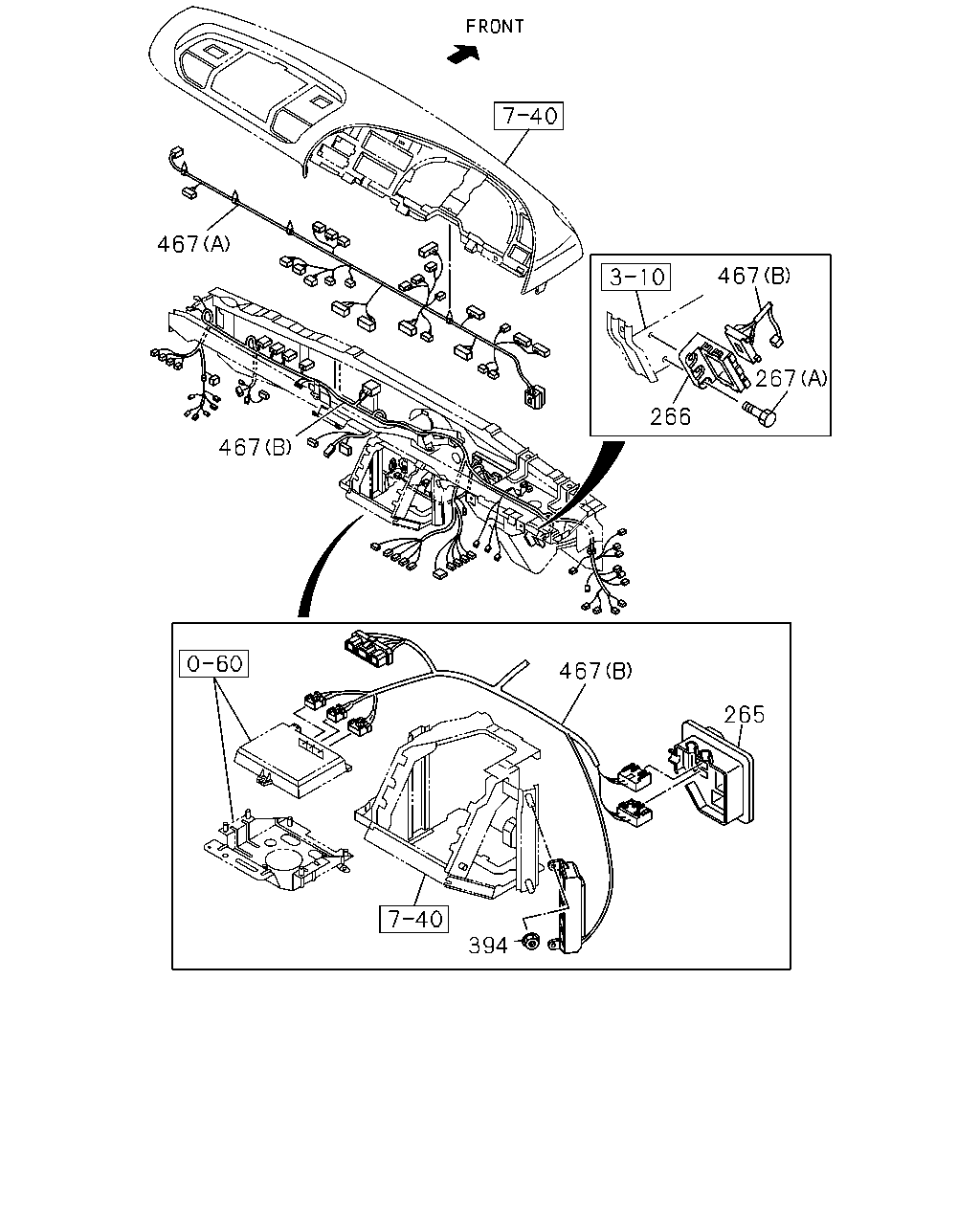

467
267
266
467
467
467
265
394
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
265
BOX; CONN,FRT PNL
1-82699-581-3
01
1
1504-
266
BRACKET; CONN BOX
1-82699-580-0
01
1
1504-
267
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
02
1
1504-
267
BOLT; BRKT
(A) M6X16 W/PL WASHER
1-09981-438-0
02
1
1504-
394
NUT; RELAY BOX TO BODY
M6 FLANGE
0-91180-106-0
01
1
1504-
467
HARNESS; FACIA
(A)
8-98282-904-0
01
1
1504-
467
HARNESS; FACIA
(B)
8-98291-220-1
01
1
1504-

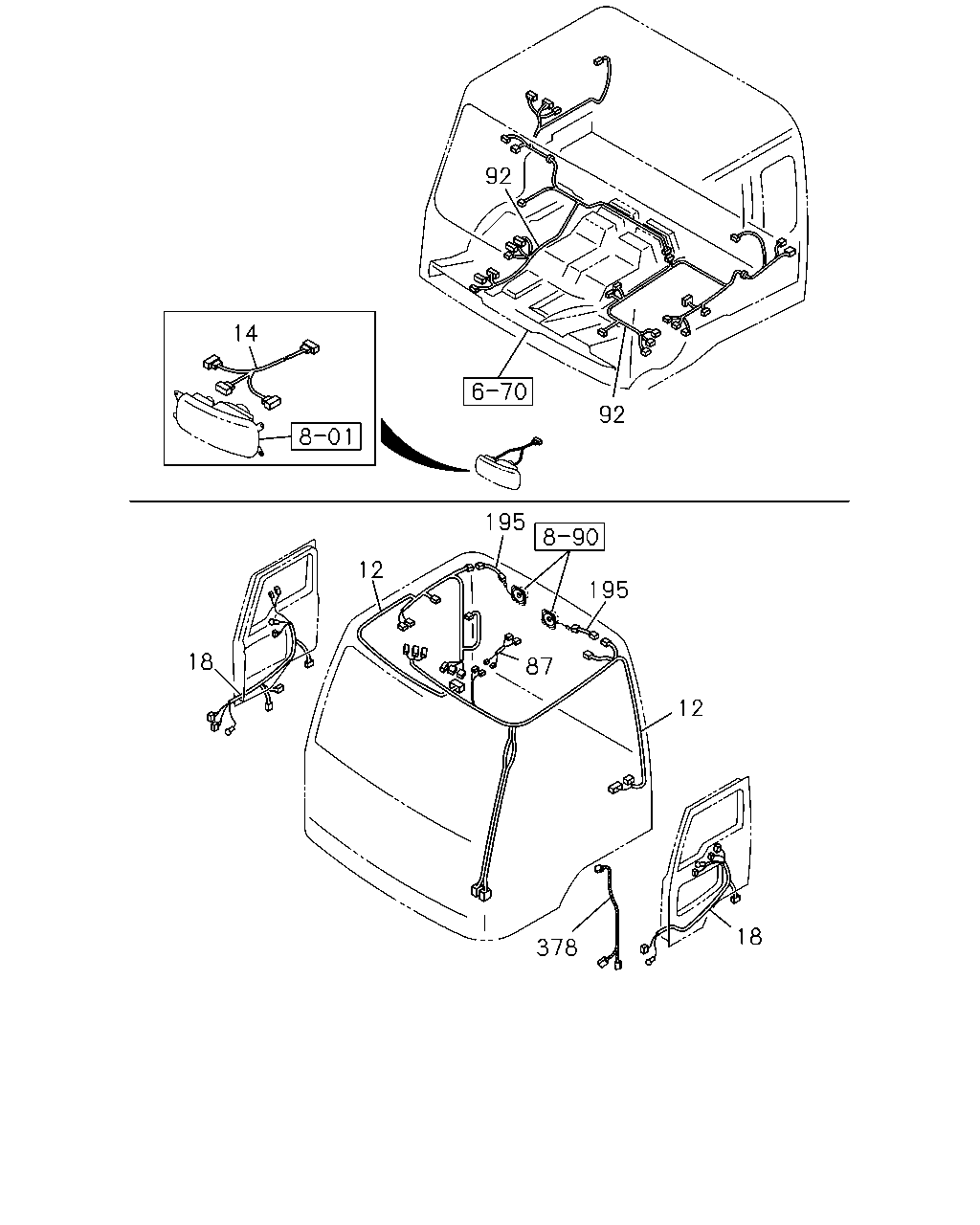

14
92
195
195
12
87
378
18
18
12
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
DRIVER SIDE
8-97611-862-0
01
1
1504-
12
HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> PASSENGER SIDE
8-98282-900-0
01
1
1504-
12
HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F> PASSENGER SIDE
8-98291-246-0
01
1
1504-
12
HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> LOW ROOF<6XQ> PASSENGER SIDE
8-98291-245-0
01
1
1504-
14
HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>
8-98289-468-0
02
1
1504-
14
HARNESS; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HALOGEN HEADLAMPS<TT5>
8-98198-290-1
02
1
1504-
18
HARNESS; DOOR
REMOTE CONT DOOR LOCK<SLG>
8-97632-130-0
01
1
1504-
18
HARNESS; DOOR
REMOTE CONT DOOR LOCK<SLG>
8-97632-131-0
01
1
1504-
87
HARNESS; EXT,ROOM LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>
1-82661-333-0
01
1
1504-
92
HARNESS; FLOOR
REMOTE CONT DOOR LOCK<SLG> CAN INTERFACE FMS STD<8PG> PASSENGER SIDE
8-98291-230-0
01
1
1504-
92
HARNESS; FLOOR
REMOTE CONT DOOR LOCK<SLG> EXC. CAN INTERFACE FMS STD<8PG> PASSENGER SIDE
8-98291-231-0
01
1
1504-
92
HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) DRIVER SIDE
8-98291-243-0
01
1
1504-
195
HARNESS; EXT
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>
1-82625-300-1
02
1
1504-
378
HARNESS; EXT,MIRROR
8-97621-787-0
02
1
1504-

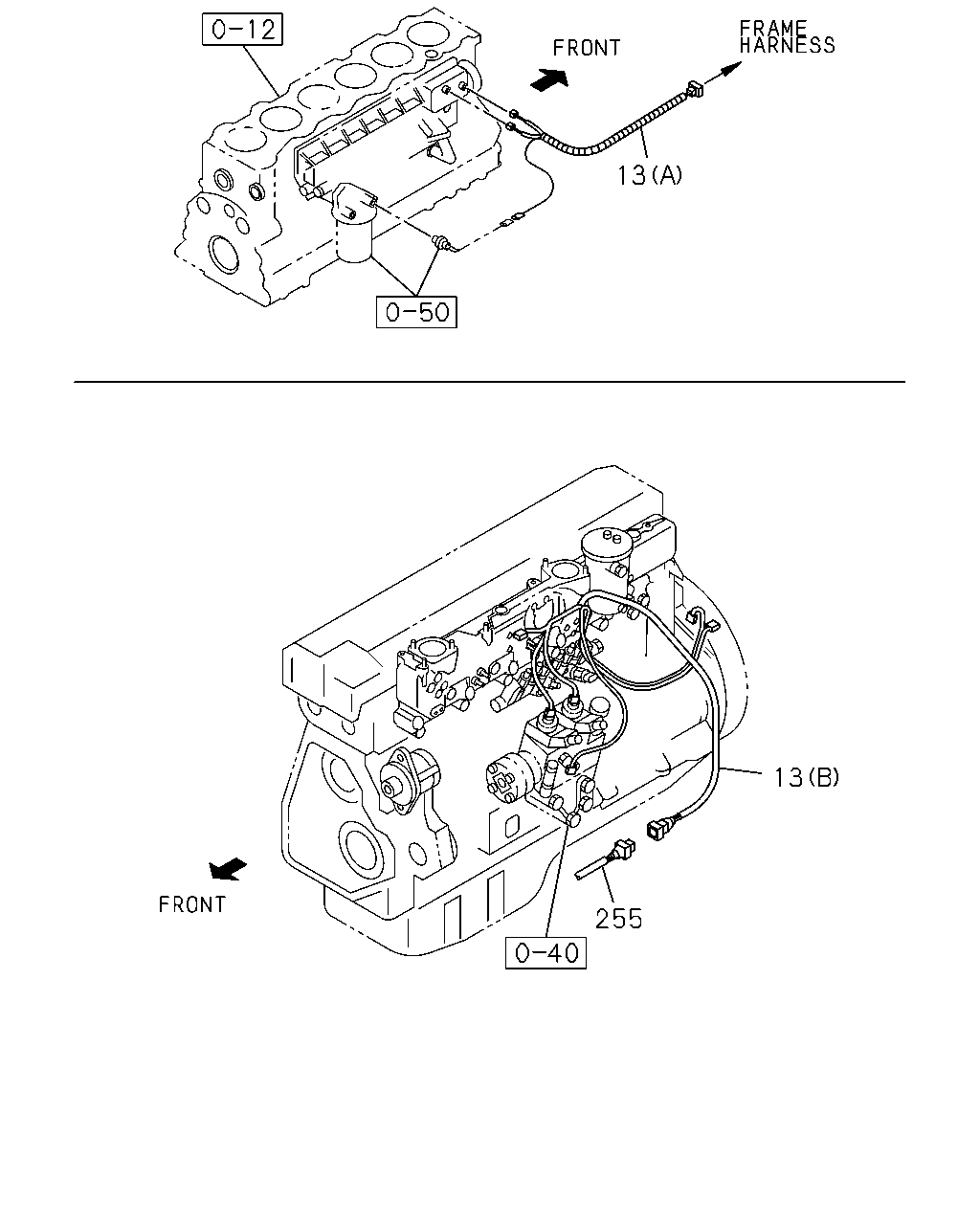

13
13
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
(A)
8-97646-554-3
01
1
1504-
13
HARNESS; ENG
(B)
8-98208-801-0
01
1
1504-
255
HARNESS; ELEC GOV
8-98291-244-1
01
1
1504-

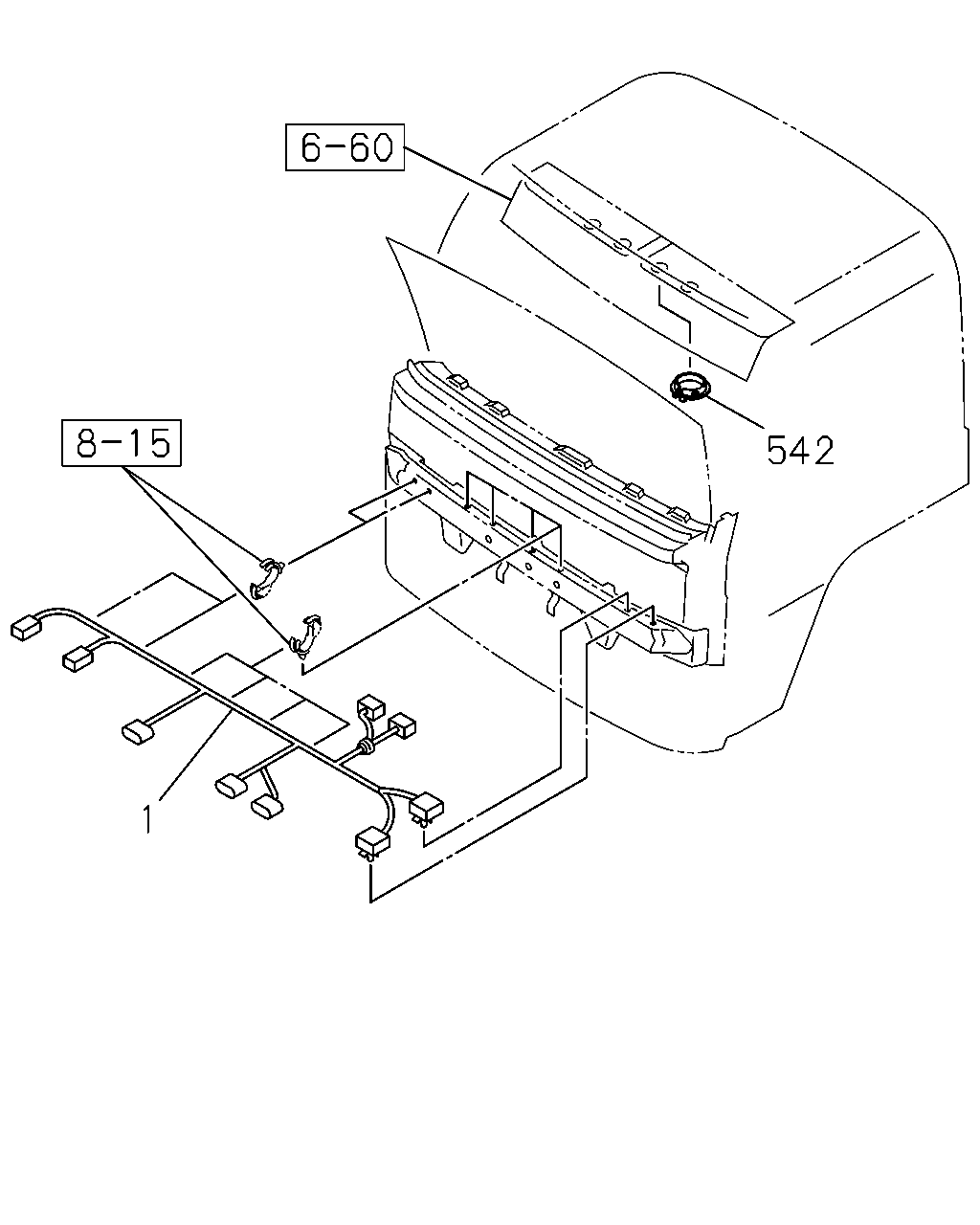

542
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
1-82629-234-1
01
1
1504-
542
GROMMET; HARNESS
HIGH ROOF<S2F> ID=36
8-94178-685-0
03
1
1506-

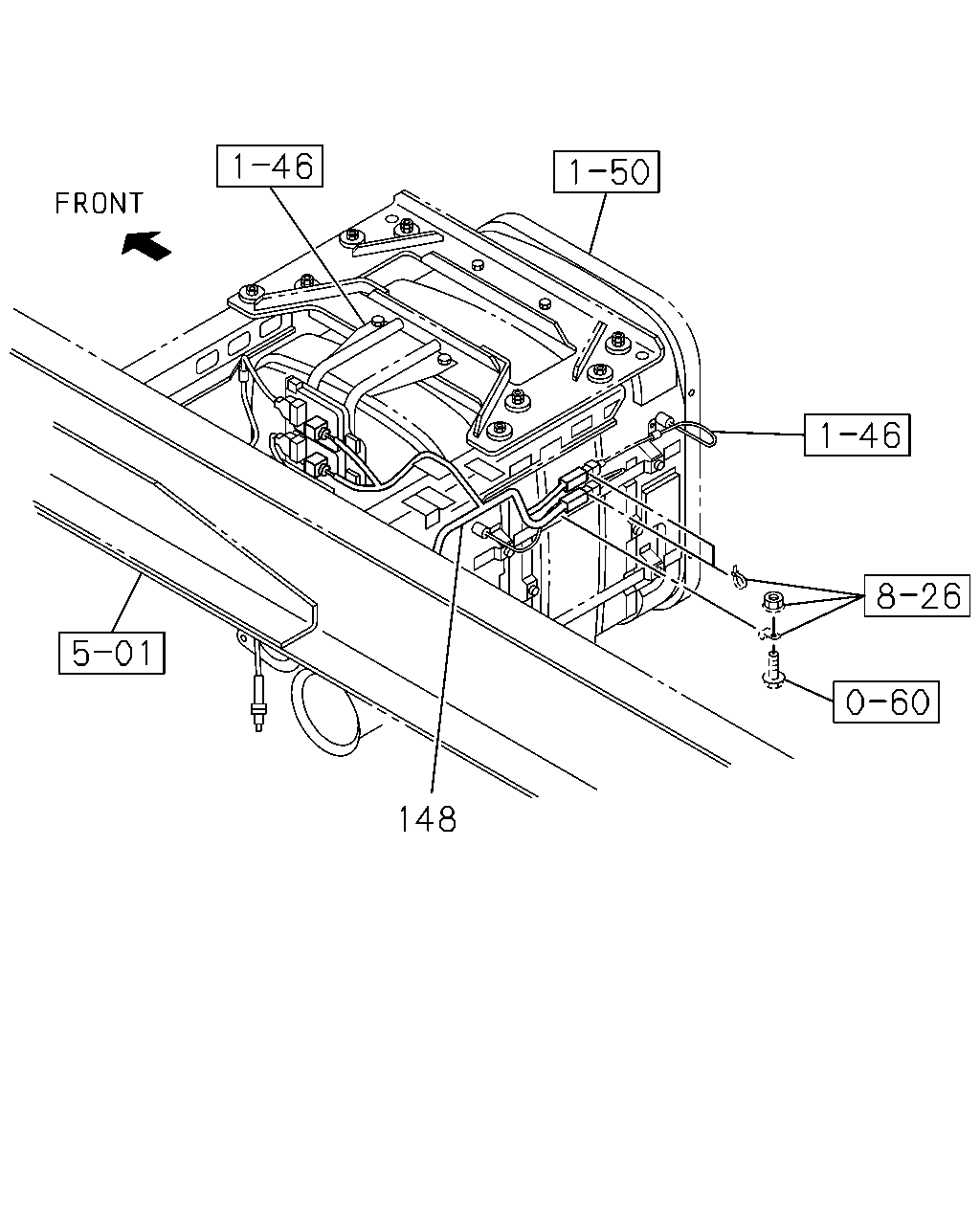

148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
148
HARNESS; EXH
8-98309-380-0
01
1
1504-

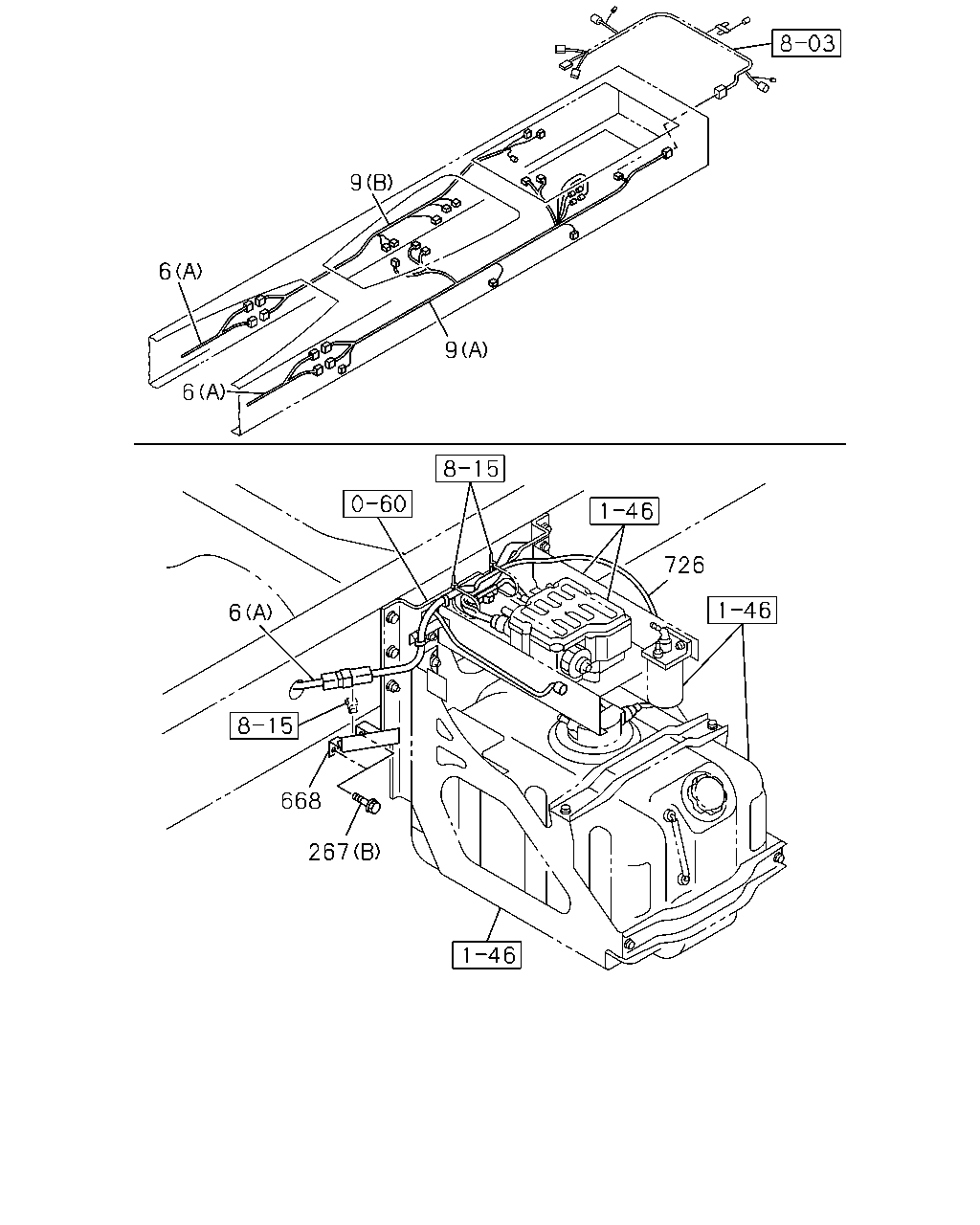

9
9
6
6
726
267
668
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(A)
8-98289-402-2
01
1
1504-
6
HARNESS; FRAME
(B)
8-98289-412-1
01
1
1504-
9
HARNESS; FRAME,RR
(A)
8-98289-405-0
01
1
1504-
9
HARNESS; FRAME,RR
(B)
8-98289-408-0
01
1
1504-
267
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
02
1
1504-
267
BOLT; BRKT
(A) M6X16 W/PL WASHER
1-09981-438-0
02
1
1504-
668
BRACKET; HARNESS
8-98290-359-1
01
1
1504-
726
HARNESS; EXT,DCU
8-98289-458-1
01
1
1504-

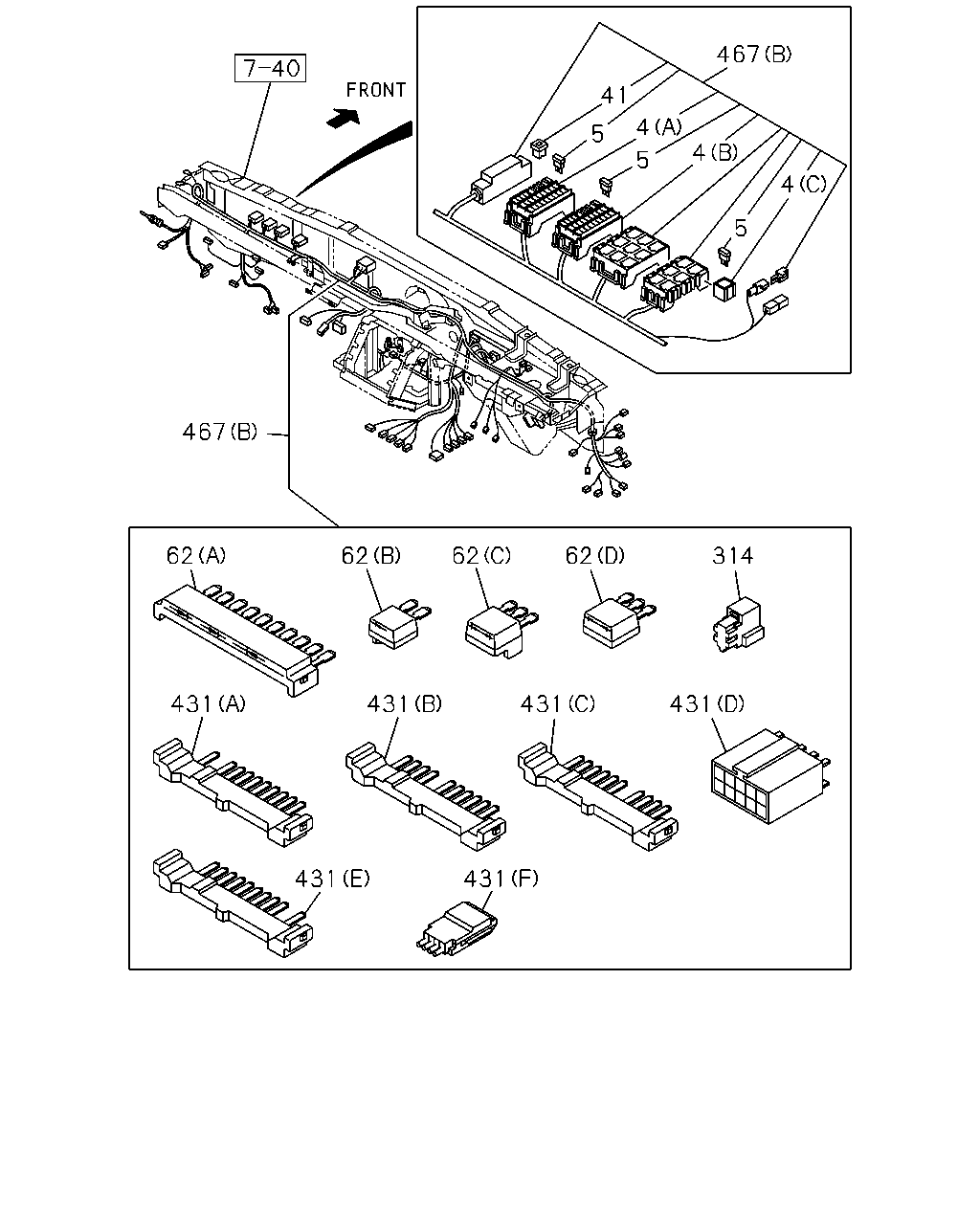

467
4
5
4
4
41
5
5
467
62
62
62
62
314
431
431
431
431
431
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX21 10AX4
1-82510-451-0
01
1
1504-
4
BOX ASM; FUSE,HARNESS
(B) 15AX24 25AX2
1-82510-601-0
01
1
1504-
4
BOX ASM; FUSE,HARNESS
(C) 15AX3
1-82510-638-0
01
1
1504-
5
FUSE; FACIA HARNESS
10A RED
5-82516-002-0
AR
1
1504-
5
FUSE; FACIA HARNESS
15A BLUE
5-82516-003-0
AR
1
1504-
5
FUSE; FACIA HARNESS
25A CLEAR
5-82516-005-0
AR
1
1504-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
AR
1
1504-
41
PULLER; FUSE
L=25.3 B=11.5
8-94121-482-0
01
1
1504-
62
DIODE; HARNESS
(A) BLACK 10P
1-82699-703-0
AR
1
1504-
62
DIODE; HARNESS
(C) BLACK 3P-1.5A
8-94416-438-1
AR
1
1504-
62
DIODE; HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
AR
1
1504-
62
DIODE; HARNESS
(D) BLACK 3P-1.5A
8-94422-640-1
AR
1
1504-
314
RESISTOR; HARNESS
BLUE
1-82691-204-0
01
1
1504-
431
CONNECTOR; JOINT
(E) 10P GREEN
1-82698-579-0
05
1
1504-
431
CONNECTOR; JOINT
(B) 10P BLUE
1-82699-598-0
13
1
1504-
431
CONNECTOR; JOINT
(C) 10P GREEN
1-82699-599-0
08
1
1504-
431
CONNECTOR; JOINT
(A) 10P BROWN
1-82699-601-0
10
1
1504-
431
CONNECTOR; JOINT
(D) 10P
8-97077-943-0
01
1
1504-
431
CONNECTOR; JOINT
(F) 4P
8-97376-776-0
17
1
1504-
467
HARNESS; FACIA
(A)
8-98282-904-0
01
1
1504-
467
HARNESS; FACIA
(B)
8-98291-220-1
01
1
1504-

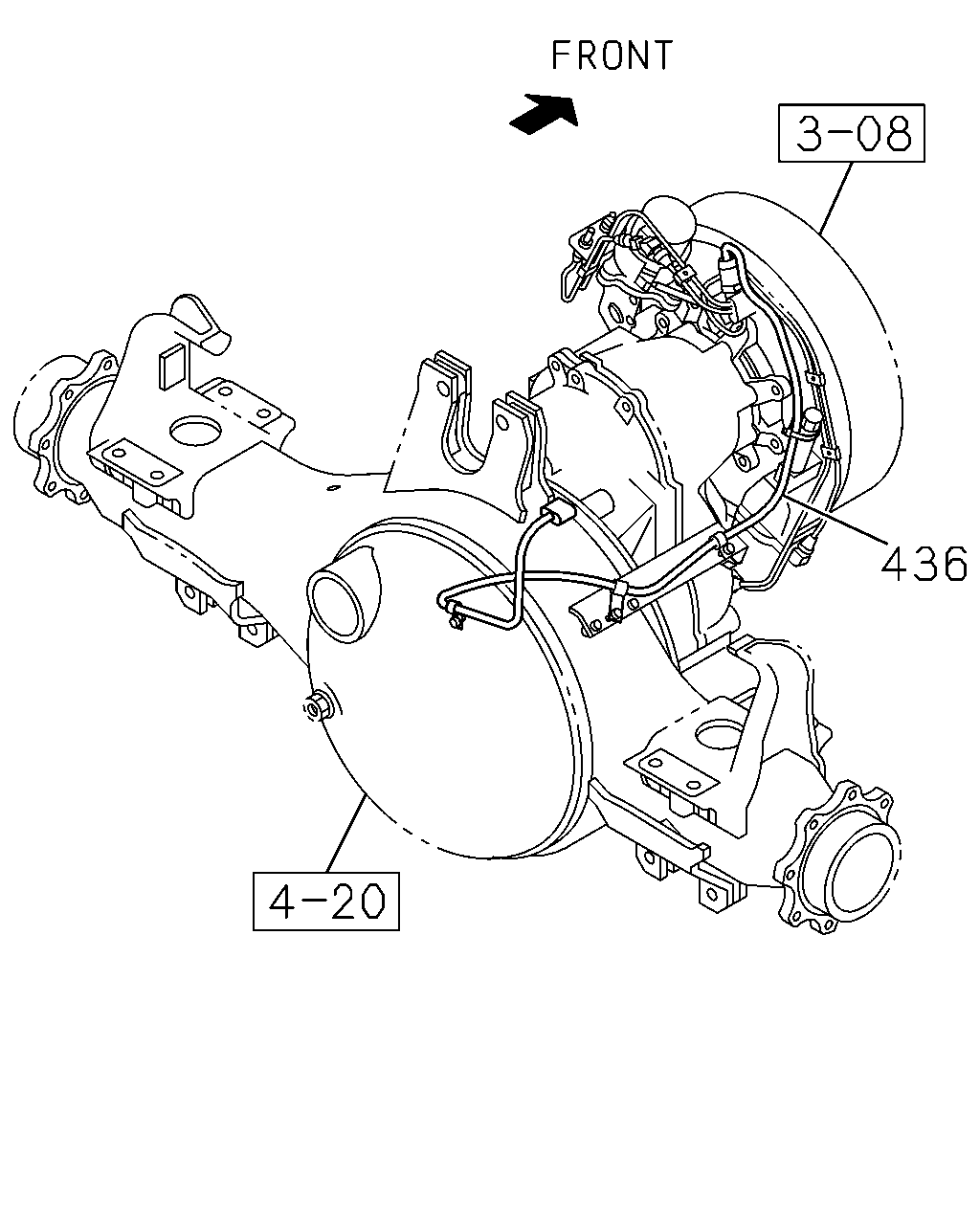

436
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
436
HARNESS; RETARDER
1-82677-629-0
01
1
1504-

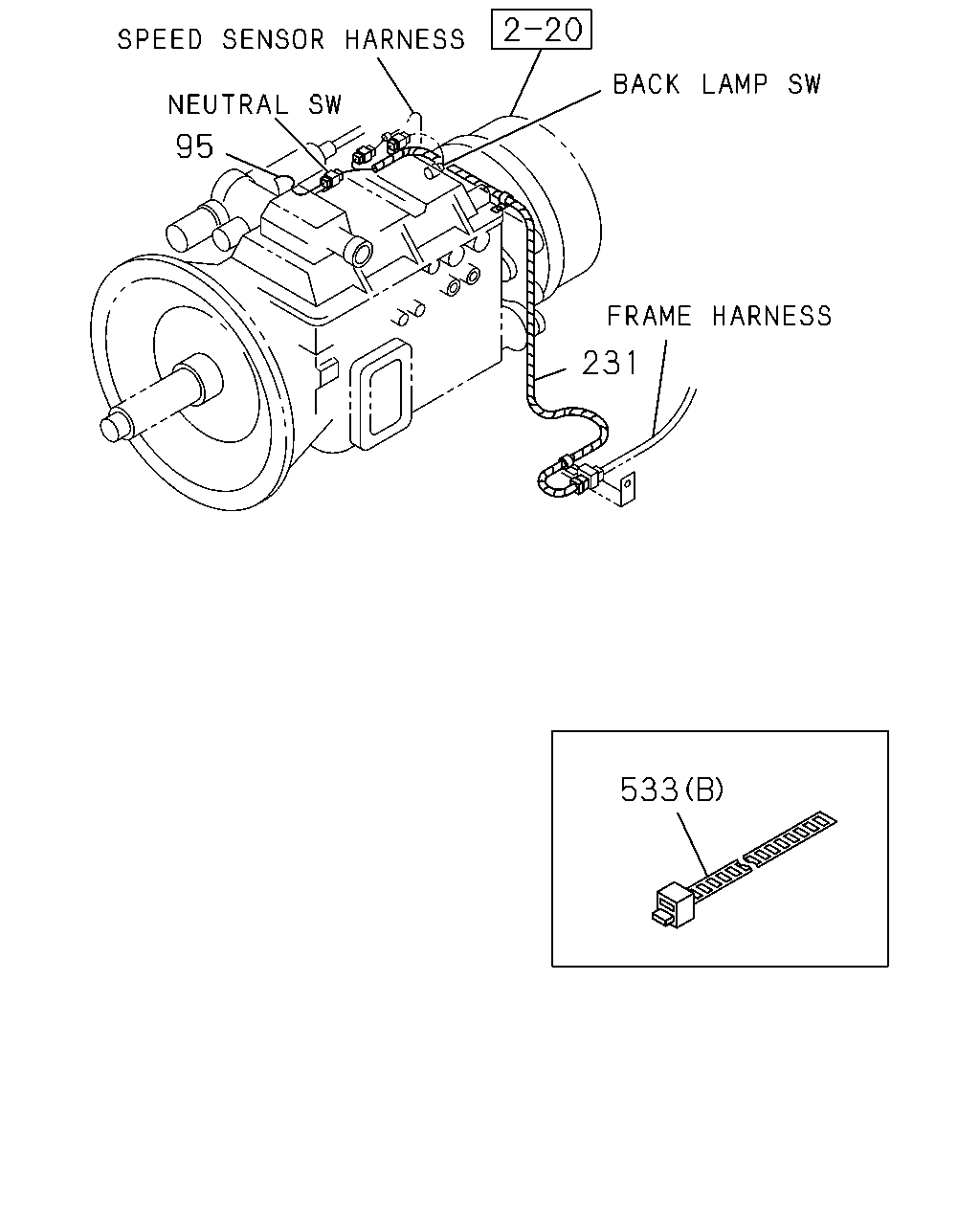

231
533
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
95
HARNESS; NEUTRAL SW
1-82639-626-0
01
1
1504-
231
HARNESS; TRANS
8-98214-252-0
01
1
1504-
533
CLIP
(B) L=350
1-09707-183-0
01
1
1504-
533
CLIP
(A) ID=35 L=35
1-09700-684-0
01
1
1504-
