◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11677 - CYH RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#160142) — 51 parça

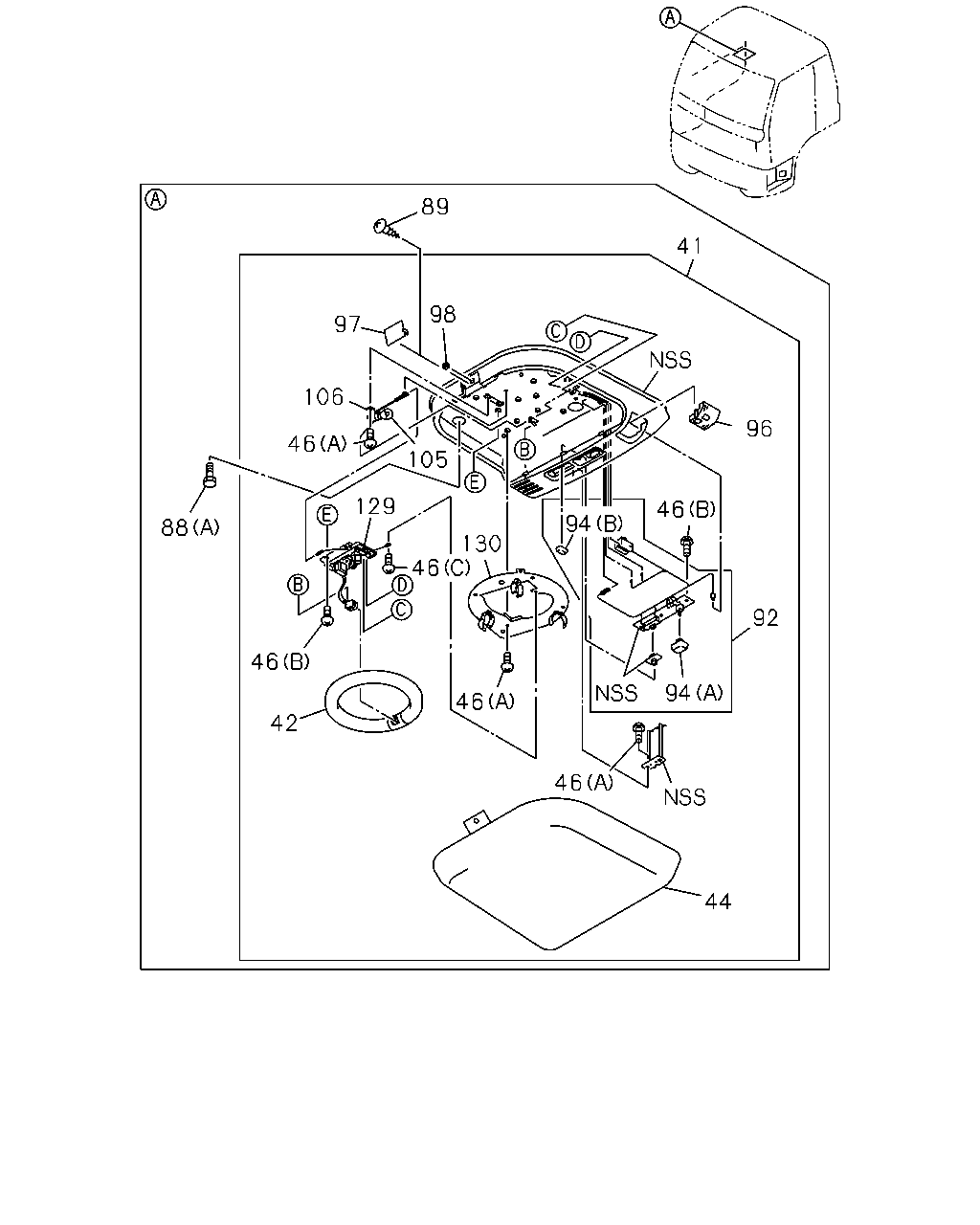

çizim 471701
41 96 92 94 44 46 46 94 46 89 98 97 106 46 105 130 46 129 88 46 42
BalonParca AdiParca NoAdetTipApplied Date
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-315-2 01 1 1504-
41 LAMP ASM; FLUORESCENT
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-323-1 01 1 1504-
42 LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-094-1 01 1 1504-
42 LAMP; FLUORESCENT
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-094-1 01 1 1504-
44 LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-092-0 01 1 1504-
44 LENS; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-092-0 01 1 1504-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1504-
46 SCREW; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1504-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (B) M4X12 		1-86830-202-0 07 1 1504-
46 SCREW; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (B) M4X12 		1-86830-202-0 07 1 1504-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1504-
46 SCREW; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1504-
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1504-
88 BOLT; LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1504-
88 BOLT; LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93>,LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> ROOM LAMP FLUORESCENT<NGG> LOW ROOF<6XQ> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1504-
89 SCREW; LENS,FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> M5X10 TAPPING 		0-71240-510-0 01 1 1504-
89 SCREW; LENS,FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93>,LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> ROOM LAMP FLUORESCENT<NGG> LOW ROOF<6XQ> M5X10 TAPPING 		0-71240-510-0 01 1 1504-
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-306-0 01 1 1504-
92 SWITCH ASM; FLUORESCENT
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-341-0 01 1 1504-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (A) 		1-86830-312-0 01 1 1504-
94 KNOB; ROOM LAMP SW
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (A) 		1-86830-312-0 01 1 1504-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (B) 		1-86830-313-0 01 1 1504-
94 KNOB; ROOM LAMP SW
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (B) 		1-86830-313-0 01 1 1504-
96 CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-385-0 01 1 1504-
96 CAP; SPOT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-385-0 01 1 1504-
97 CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-311-0 01 1 1504-
97 CAP; LENS FIX
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-311-0 01 1 1504-
98 GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-102-0 01 1 1504-
98 GROMMET; SCREW,LENS FIX
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-102-0 01 1 1504-
105 BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 28V 20W 		1-86830-200-0 01 1 1504-
105 BULB; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 28V 20W 		1-86830-200-0 01 1 1504-
106 SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-201-0 01 1 1504-
106 SOCKET; BULB
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-201-0 01 1 1504-
129 INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-338-0 01 1 1504-
129 INVERTER ASM; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-338-0 01 1 1504-
130 PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-339-0 01 1 1504-
130 PLATE ASM; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-339-0 01 1 1504-
çizim 471705
24 33 25 35 27 33 56 33 15 88 15 87 113 16
BalonParca AdiParca NoAdetTipApplied Date
15 LAMP; INSPECTION 1-82140-052-1 01 1 1504-
16 BULB; INSPECTION LAMP
24V 5W 		1-82194-042-0 01 1 1504-
24 LAMP; STEP 1-82140-052-1 01 1 1504-
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 1504-
27 LENS; STEP LAMP 1-82145-019-0 01 1 1504-
33 GROMMET; SCREW,LAMP
(B) 		1-09983-182-0 02 1 1504-
33 GROMMET; SCREW,LAMP
(A) M4 		5-09470-002-0 02 1 1504-
35 SCREW; STEP LAMP
M4X20 		1-82149-006-0 02 1 1504-
56 BRACKET; LAMP 8-98121-191-0 01 1 1504-
87 LENS; INSPECTION LAMP 1-82145-019-0 01 1 1504-
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1504-
88 BOLT; LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1504-
88 BOLT; LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93>,LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> ROOM LAMP FLUORESCENT<NGG> LOW ROOF<6XQ> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1504-
113 SCREW; LAMP
M4X20 		1-82149-006-0 02 1 1504-
