◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11677 - CYH RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#160139) — 39 parça

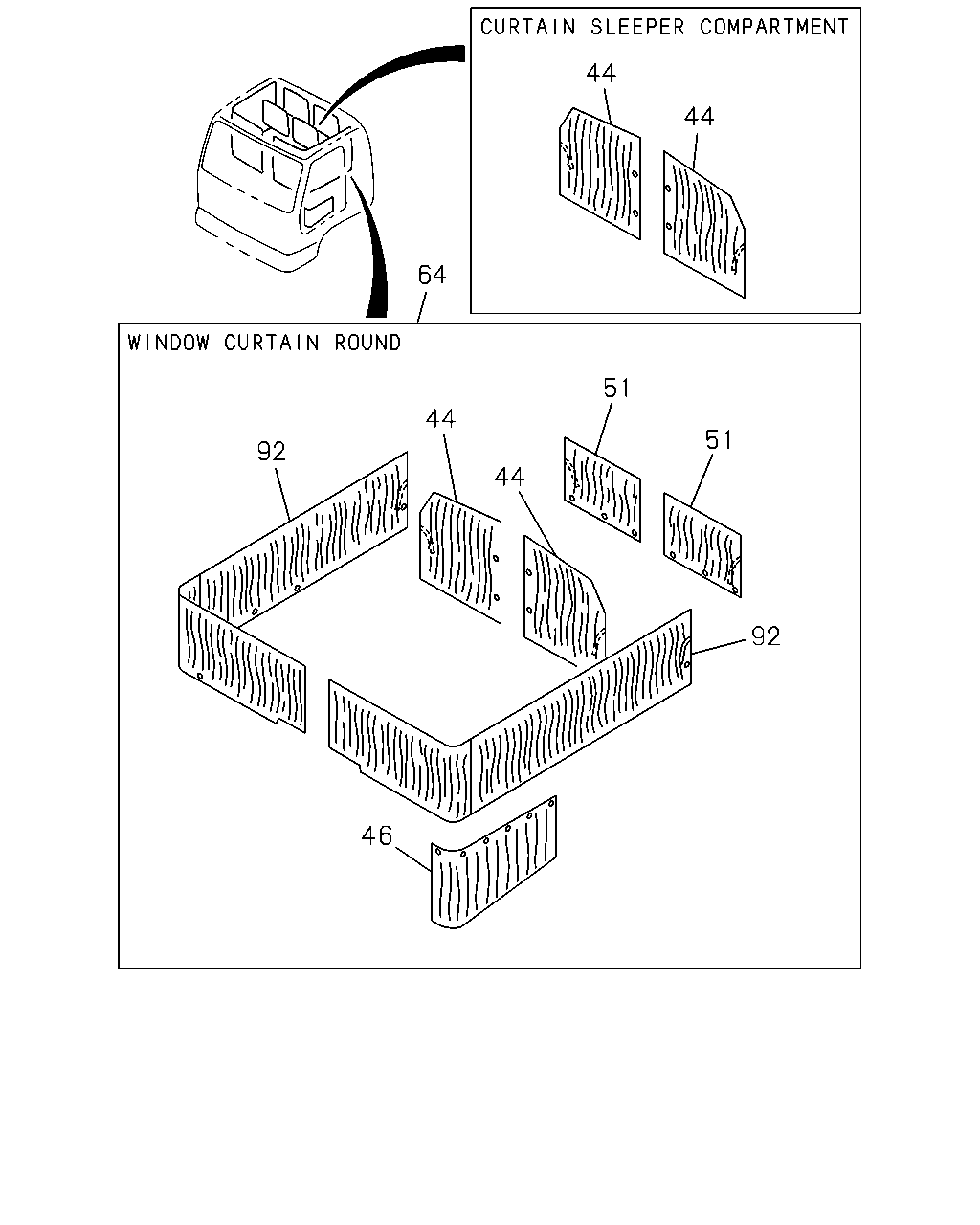

çizim 471267
92 51 51 44 44 92 46 64 44 44
BalonParca AdiParca NoAdetTipApplied Date
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-504-1 01 1 1504-
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-505-1 01 1 1504-
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-480-1 01 1 1504-
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-481-1 01 1 1504-
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-426-0 01 1 1504-
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-482-1 01 1 1504-
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-483-1 01 1 1504-
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-578-1 01 1 1504-
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-479-1 01 1 1504-
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-484-1 01 1 1504-
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-485-1 01 1 1504-

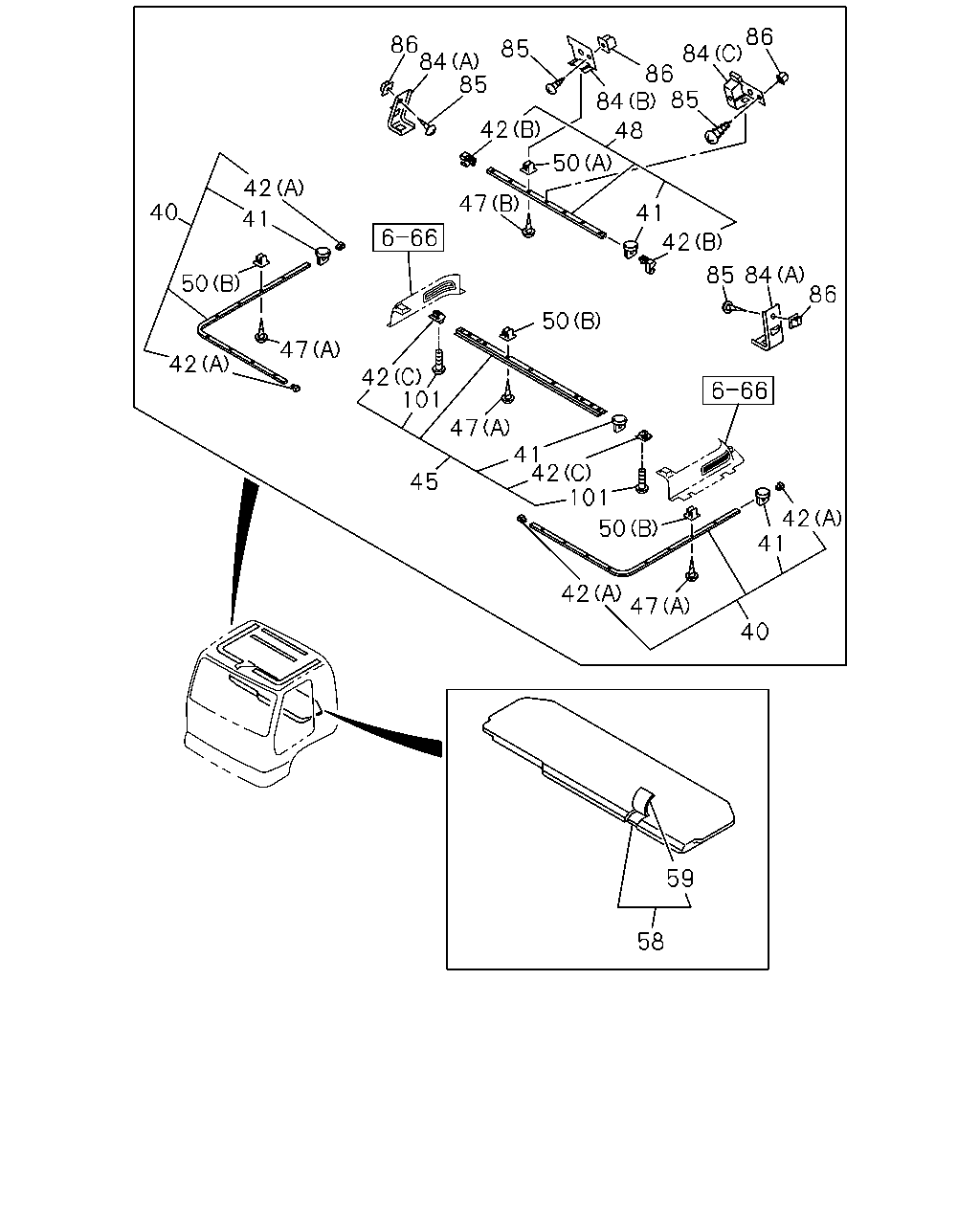

çizim 471931
58 59 40 47 42 50 41 42 101 42 41 47 45 42 47 42 50 40 42 47 50 41 85 42 85 84 50 84 42 86 48 86 84 86 85 85 84 86 41 101
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-536-1 01 1 1504-
40 RAIL; CURTAIN,SIDE
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-535-1 01 1 1504-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1504-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1504-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 1504-
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 14 1 1504-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73996-393-0 02 1 1504-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73996-399-0 01 1 1504-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 04 1 1504-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1504-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73907-657-0 02 1 1504-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 1504-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-546-3 01 1 1504-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1504-
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1504-
48 RAIL; CURTAIN,BACK
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73996-385-1 01 1 1504-
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1504-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1504-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1504-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 1504-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 1504-
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1504-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 1504-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 1504-
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1504-
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1504-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1504-
101 SCREW; STOPPER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-400-0 02 1 1504-
