7-43 — SUN VISOR AND ASSIST GRIP (#160135) — 90 parça

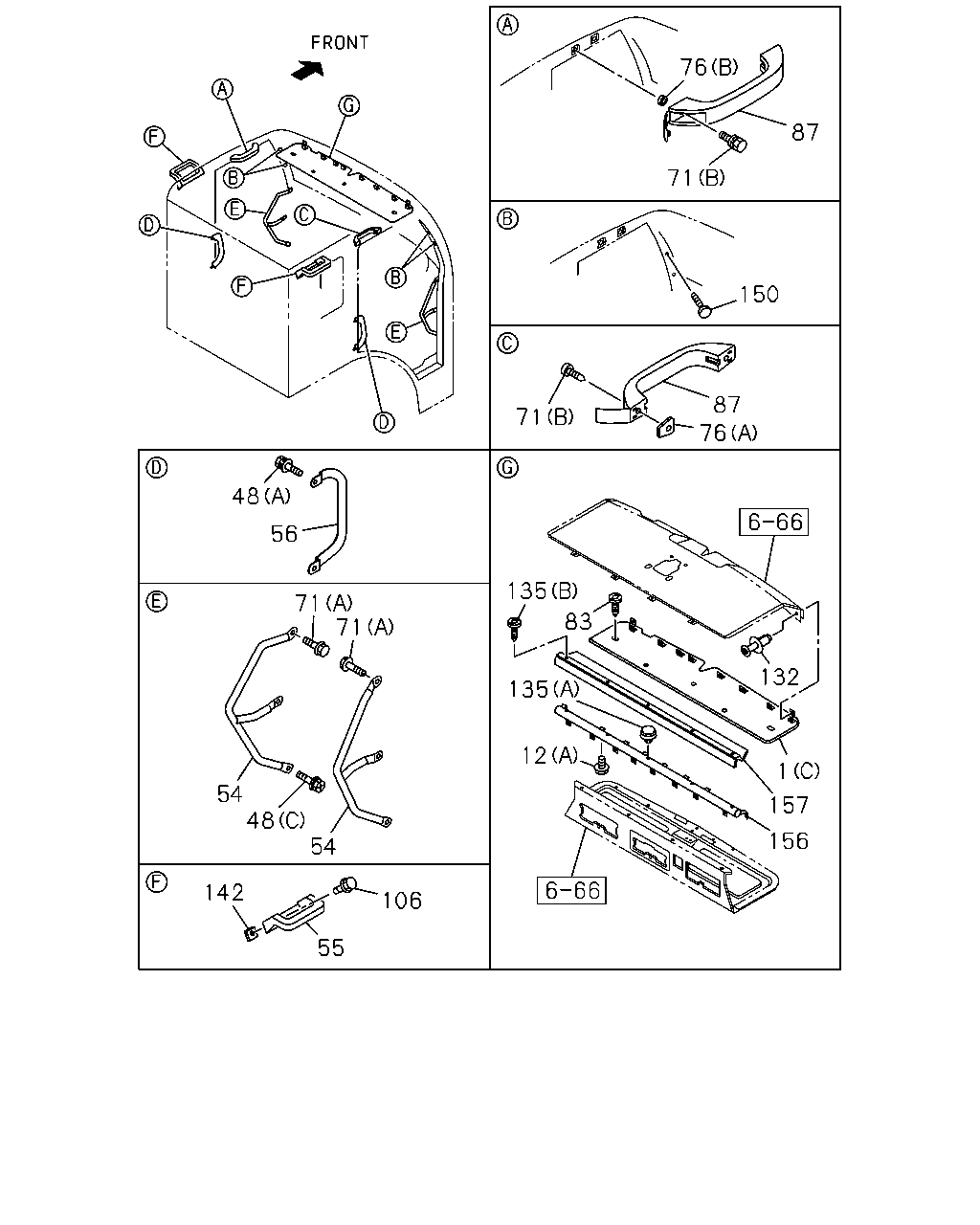

çizim 471668
76 87 71 150 87 76 71 48 56 71 71 54 48 54 106 55 142 12 135 156 157 1 132 83 135
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
(B) 		1-72447-968-0 01 1 1504-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 1504-
1 BOARD; HEADER SHELF
(D) 		1-72447-876-4 01 1 1504-
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 1504-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 1504-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 1504-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 1504-
48 BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 1504-
48 BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 1504-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1504-
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 1504-
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1504-
54 GRIP; ASSIST,QUARTER SIDE 8-98139-071-2 01 1 1504-
54 GRIP; ASSIST,QUARTER SIDE 8-98153-870-1 01 1 1504-
55 GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52> 		1-73618-169-1 01 1 1504-
55 GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE,DRIVER & PASSENGER<W63> 		1-73618-169-1 02 1 1504-
56 GRIP; ASSIST,SIDE SILL 8-98139-073-1 01 1 1504-
56 GRIP; ASSIST,SIDE SILL 8-98139-072-1 01 1 1504-
71 SCREW
(A) M6X34 W/LK&PL WASHER 		8-94279-411-0 05 1 1504-
71 SCREW
ASSIST GRIP A POST<NBK> (B) M6X30 W/LK WASHER 		5-09981-064-0 04 1 1504-
76 SPACER; ASSIST GRIP
ASSIST GRIP A POST<NBK> LOW ROOF<6XQ> (B) OD=13 T=4.5 		8-94230-464-1 02 1 1504-
76 SPACER; ASSIST GRIP
LOW ROOF<6XQ> (A) 		1-73618-180-0 02 1 1504-
83 PLUG
HIGH ROOF<S2F> D6X23 LIGHT GRAY 		1-73318-629-0 03 1 1504-
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP A POST<NBK> DARK GRAY 		8-97098-476-2 02 1 1504-
106 SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER 		8-94279-210-0 02 1 1504-
106 SCREW; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 1504-
132 FASTENER; BOARD,HEADER SHELF
HIGH ROOF<S2F> D8X13.5 		1-09987-276-0 08 1 1504-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) D8X13.5 		1-09987-248-1 01 1 1504-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 05 1 1504-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> 25X25 		8-94272-533-0 02 1 1504-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> 25X25 		8-94272-533-0 04 1 1504-
150 CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 1504-
156 PIPE; HEADER SHELF
HIGH ROOF<S2F> 		1-72447-864-2 01 1 1504-
157 FINISHER; PIPE
HIGH ROOF<S2F> 		1-72447-885-5 01 1 1504-

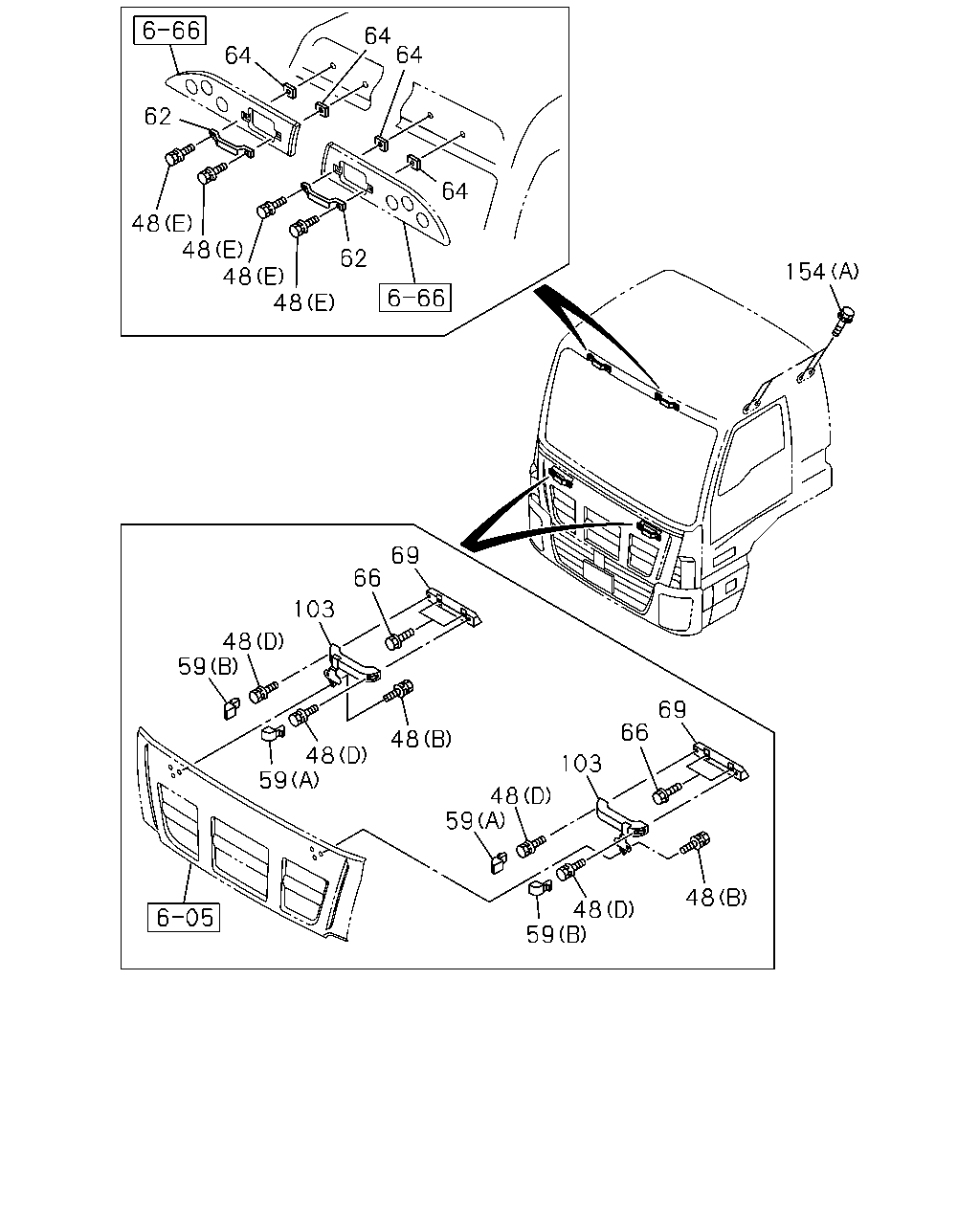

çizim 471674
64 64 64 62 48 48 48 48 62 64 154 69 66 103 48 59 59 48 48 69 66 103 48 59 59 48 48
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 1504-
48 BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 1504-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1504-
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 1504-
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1504-
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 1504-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 1504-
62 GRIP; ASSIST,ROOF PANEL 8-97630-819-0 02 1 1504-
64 SHEET; ASSIST GRIP
25X25 		8-94272-533-0 04 1 1504-
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 1504-
69 BRACKET; ASSIST GRIP 1-65570-243-0 01 1 1504-
69 BRACKET; ASSIST GRIP 1-65570-242-0 01 1 1504-
103 GRIP; ASSIST,FRT PNL 1-71998-939-3 01 1 1504-
103 GRIP; ASSIST,FRT PNL 1-71998-940-3 01 1 1504-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 1504-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER 		1-79198-003-2 06 1 1504-
154 BOLT; SUPPORT
GRIP OUT SIDE,DRIVER & PASSENGER<W63> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 1504-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 10 1 1504-
154 BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER 		1-79198-003-2 12 1 1504-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 1504-
154 BOLT; SUPPORT
LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 1504-

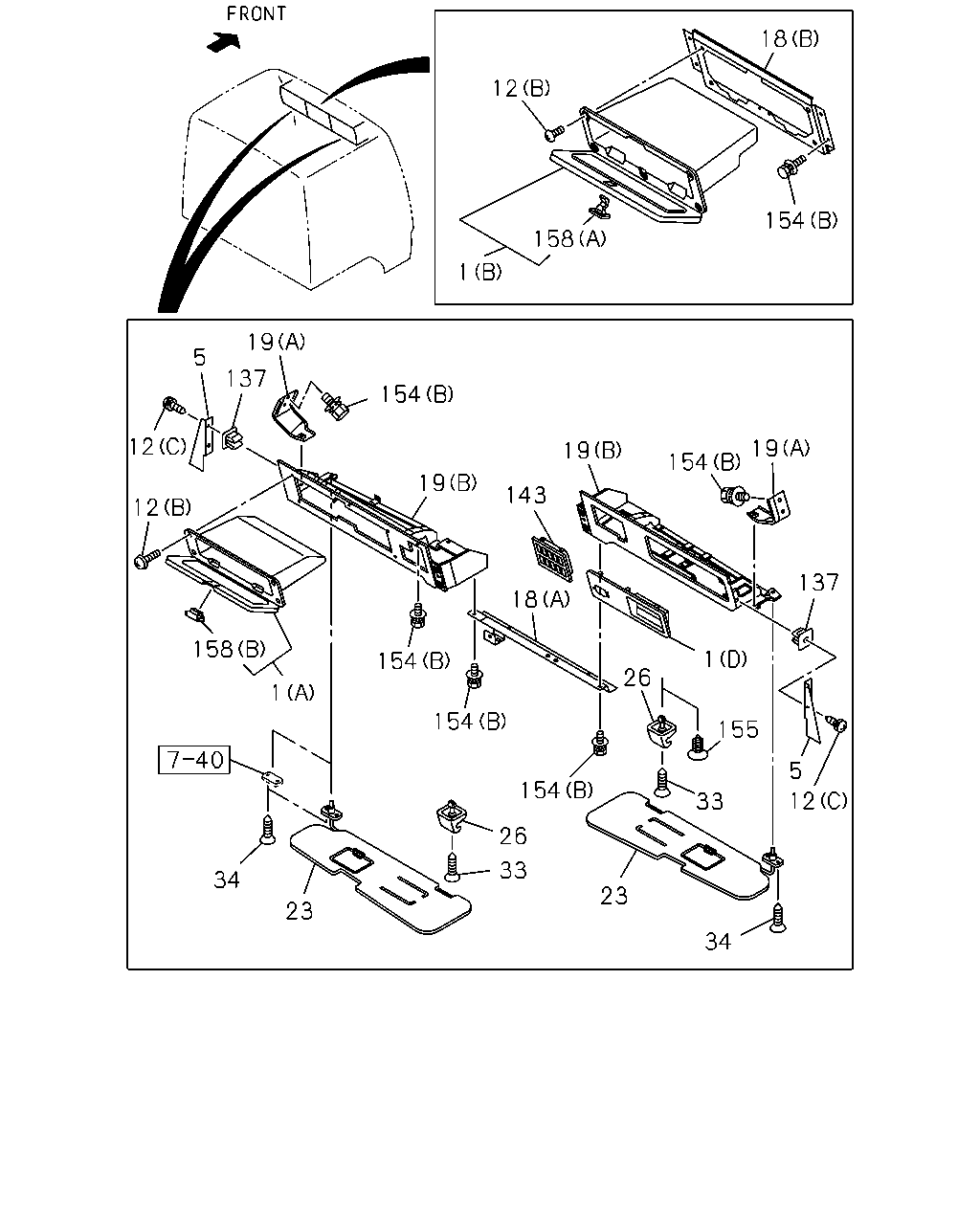

çizim 471855
18 154 158 1 12 19 137 5 12 12 158 1 34 23 33 23 34 26 154 154 154 18 143 19 154 19 154 19 137 1 26 155 5 12 33
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
(B) 		1-72447-968-0 01 1 1504-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 1504-
1 BOARD; HEADER SHELF
(D) 		1-72447-876-4 01 1 1504-
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 1504-
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-933-0 01 1 1504-
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-932-0 01 1 1504-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 1504-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 1504-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 1504-
18 SUPPORT; HEADER SHELF CENTER
(B) 		1-72447-824-2 01 1 1504-
18 SUPPORT; HEADER SHELF CENTER
(A) 		8-98118-217-1 01 1 1504-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-879-7 01 1 1504-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-324-1 01 1 1504-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-878-4 01 1 1504-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-323-1 01 1 1504-
23 SUN VISOR
SUN VISOR DRIVER,W/MIRROR<TBT> 		1-73138-162-0 01 1 1504-
23 SUN VISOR
EXC. SUN VISOR DRIVER,W/MIRROR<TBT> 		1-73138-156-1 01 1 1504-
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-157-1 01 1 1504-
26 HOLDER; SUN VISOR 1-73137-175-0 01 1 1504-
26 HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73137-175-0 01 1 1504-
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 01 1 1504-
33 SCREW; HOLDER,SUN VISOR
SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 01 1 1504-
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 1504-
137 GROMMET; SCREW,HEADER SHELF
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1504-
143 BEZEL 1-72447-768-2 01 1 1504-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 1504-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER 		1-79198-003-2 06 1 1504-
154 BOLT; SUPPORT
GRIP OUT SIDE,DRIVER & PASSENGER<W63> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 1504-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 10 1 1504-
154 BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER 		1-79198-003-2 12 1 1504-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 1504-
154 BOLT; SUPPORT
LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 1504-
155 FASTENER; HOLDER
EXC. SUN VISOR PASSENGER<D20> 		1-09983-181-0 01 1 1504-
158 LOCK; HEADER SHELF
(A) 		1-72538-312-0 01 1 1504-
158 LOCK; HEADER SHELF
(B) 		1-72448-376-0 01 1 1504-
