7-40 — INSTRUMENT PANEL AND BOX (#160134) — 98 parça

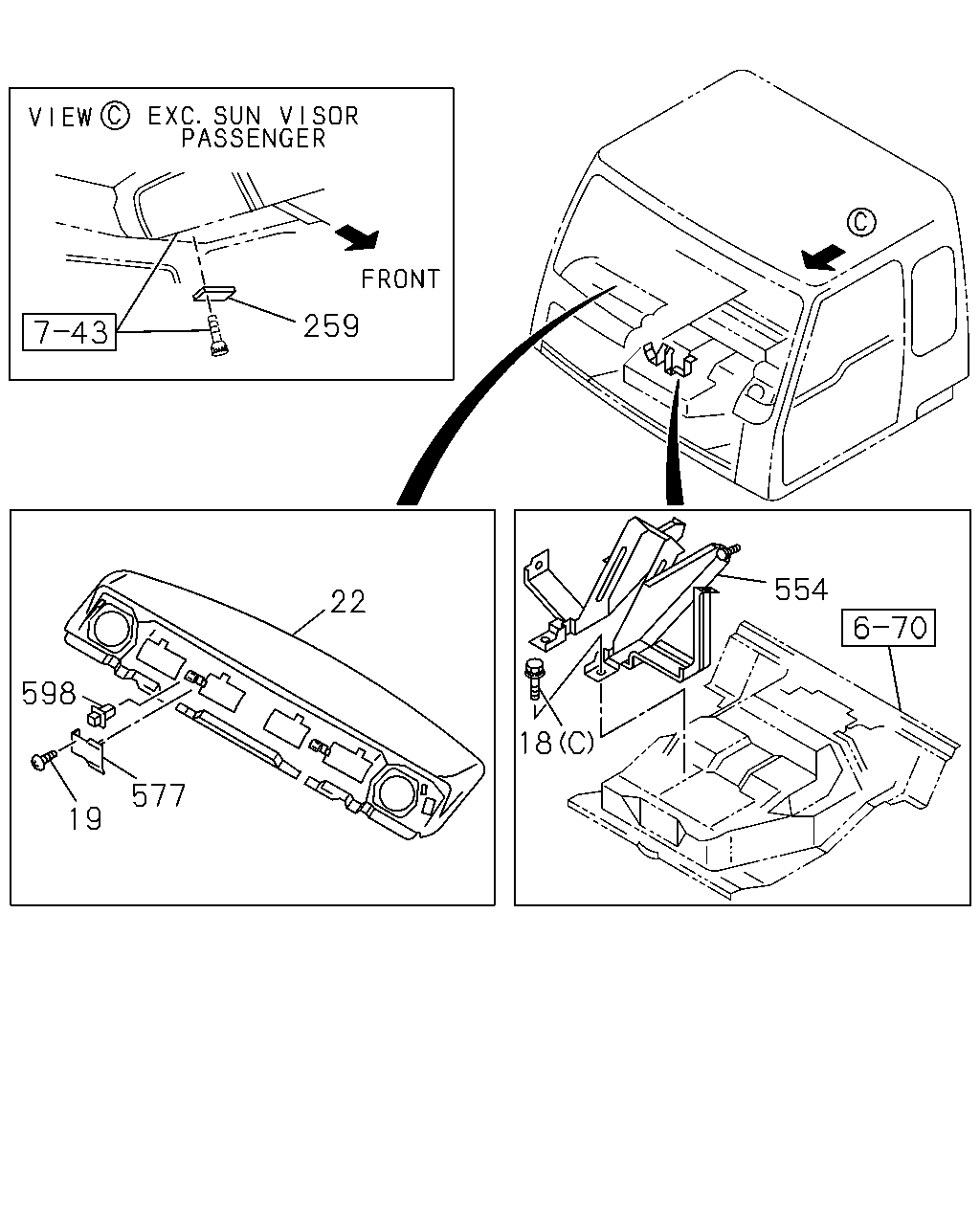

çizim 471234
259 22 577 19 598 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1504-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1504-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1504-
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1504-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1504-
22 PAD; INST 1-72317-372-1 01 1 1504-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1504-
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1504-
577 BRACKET; SENSOR 1-72318-413-0 01 1 1504-
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 1504-

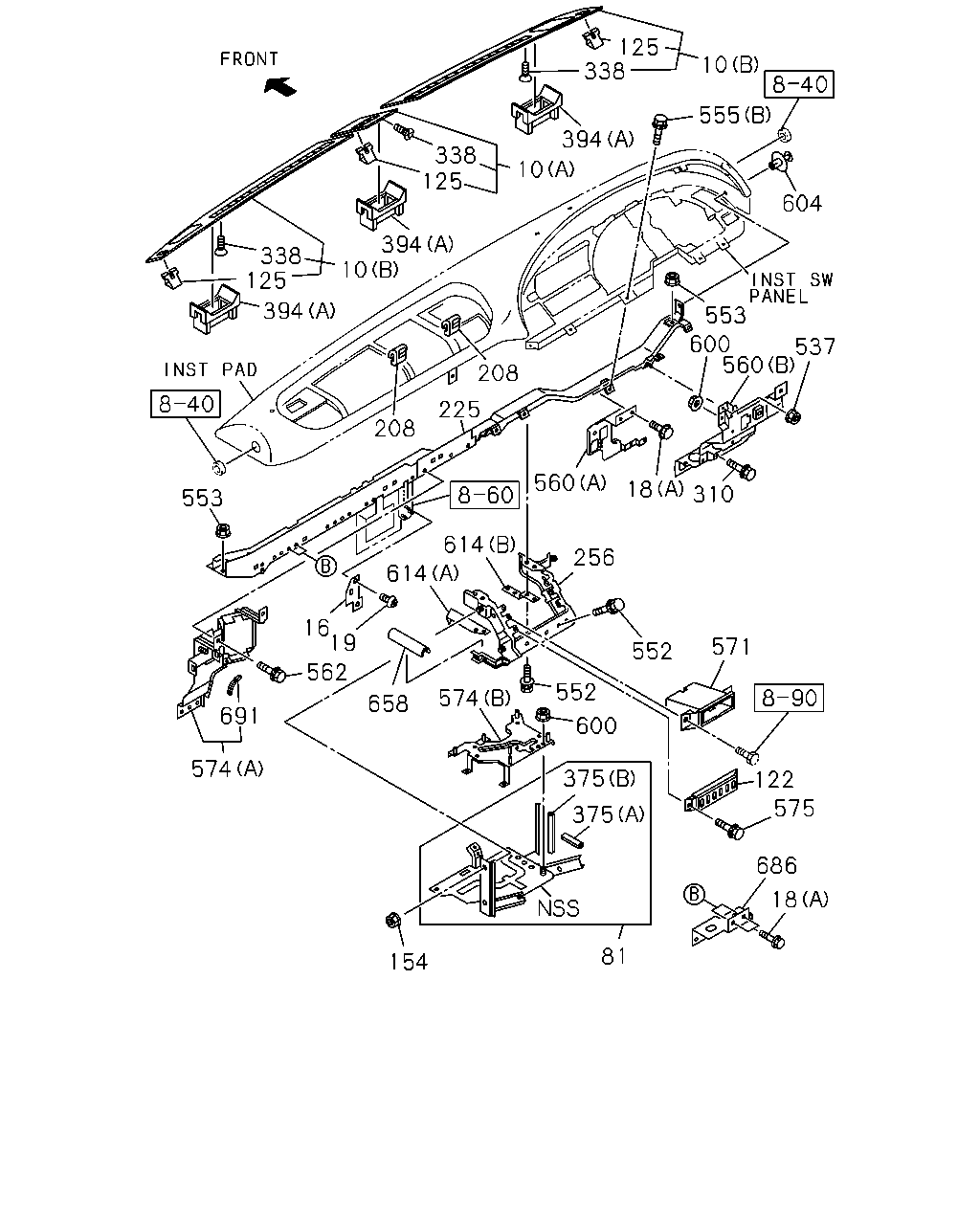

çizim 471772
552 600 375 571 552 122 575 686 208 225 560 18 310 560 537 553 600 604 555 10 125 338 338 125 394 10 338 125 394 208 614 614 16 19 574 658 562 691 574 375 18 10 81 154 553 394 256
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1504-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1504-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 1504-
16 BRACKET; INST PNL 1-73908-023-2 01 1 1504-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1504-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1504-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1504-
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1504-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1504-
81 BRACKET; ELEC CONT UNIT 8-98160-932-0 01 1 1504-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1504-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1504-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1504-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1504-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1504-
225 FRAME; FACIA 1-65671-725-8 01 1 1504-
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1504-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1504-
338 SCREW; COVER
M5X14 		8-94279-325-0 07 1 1504-
338 SCREW; COVER
M5X14 		8-94279-325-0 05 1 1504-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1504-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1504-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1504-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1504-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1504-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1504-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1504-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1504-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1504-
560 BRACKET
TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-65681-197-2 01 1 1504-
560 BRACKET
TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> (B) 		1-65681-223-2 01 1 1504-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1504-
571 BEZEL; POCKET 1-72438-151-3 02 1 1504-
574 PANEL; RELAY BOX
FULL FLOATING CAB(W16) (B) 		1-73907-690-2 01 1 1504-
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1504-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
600 NUT; PANEL
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 03 1 1504-
604 CLIP; INST PAD 1-09983-123-0 01 1 1504-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1504-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1504-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1504-
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 1504-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1504-

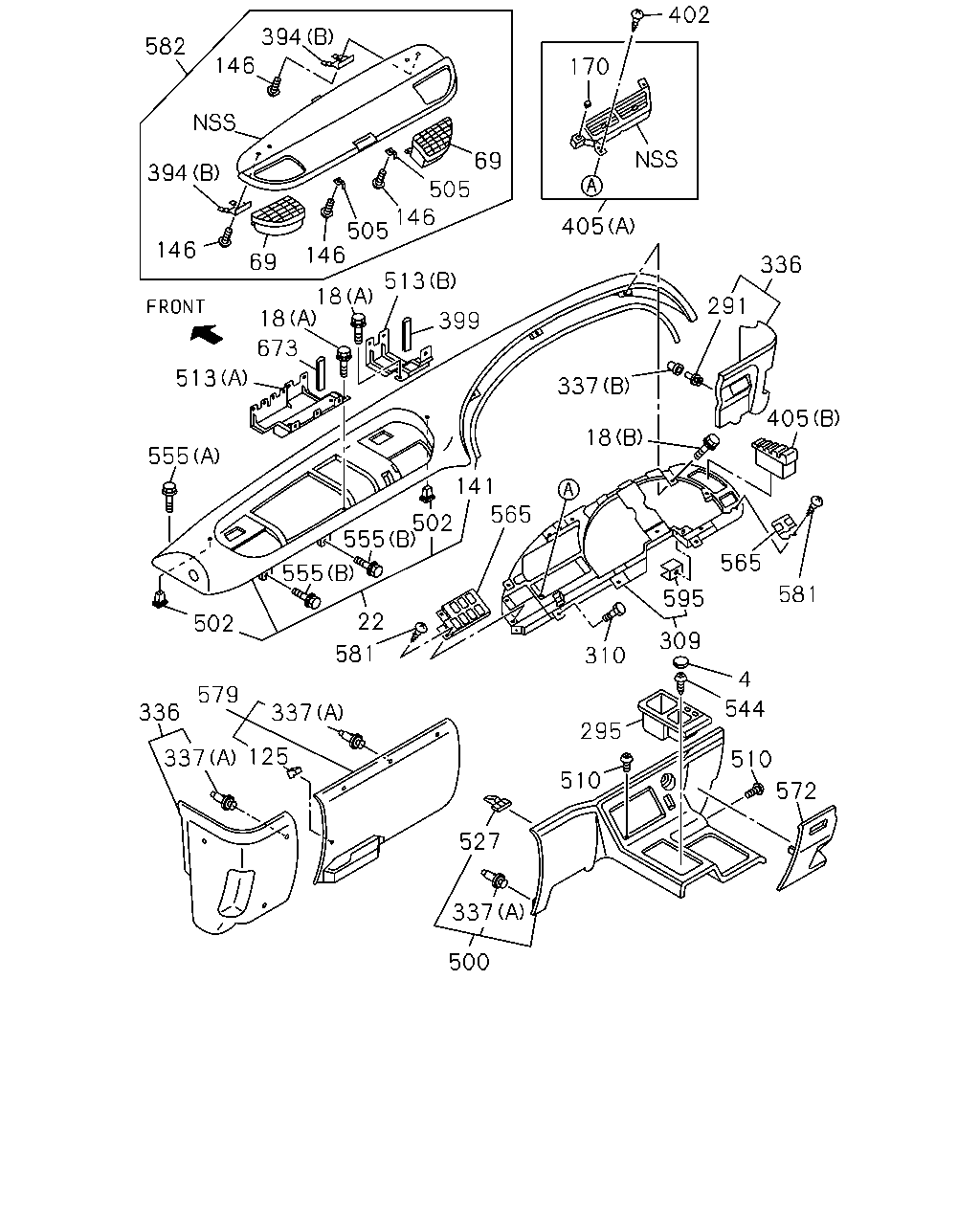

çizim 471951
18 337 336 291 405 565 581 4 544 510 572 295 310 565 141 502 555 555 502 581 22 337 579 336 337 125 527 510 69 505 146 505 146 69 146 394 582 394 146 402 170 405 337 500 18 673 18 513 399 513 555 595 309
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 1504-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1504-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1504-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1504-
22 PAD; INST 1-72317-372-1 01 1 1504-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1504-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1504-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1504-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1504-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1504-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1504-
170 COVER; HOLE 1-76367-068-0 01 1 1504-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1504-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1504-
309 PANEL; SW,INST 1-72418-009-6 01 1 1504-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1504-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1504-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1504-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1504-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1504-
337 FASTENER; COVER
INST PANEL CARBON<EGW> (A) 		1-72438-124-2 02 1 1504-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1504-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1504-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1504-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1504-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 1504-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 1504-
500 CLUSTER; INST CENTER
INST PANEL CARBON<EGW> 		8-98217-875-0 01 1 1504-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1504-
505 LOCK; LID 1-72558-024-2 02 1 1504-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1504-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1504-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1504-
527 CLIP; INST CLUSTER
INST PANEL CARBON<EGW> 		8-97217-066-0 04 1 1504-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1504-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1504-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1504-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1504-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1504-
572 COVER; INSPECTION 1-72437-634-0 01 1 1504-
579 COVER; INST PNL 1-72437-626-0 01 1 1504-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1504-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1504-
595 NUT; HOOK 1-72418-013-0 11 1 1504-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1504-
