Sayfa 7-10 - Isuzu EPC

7-10 — CAUTION PLATE AND LABEL (#160131) — 21 parça

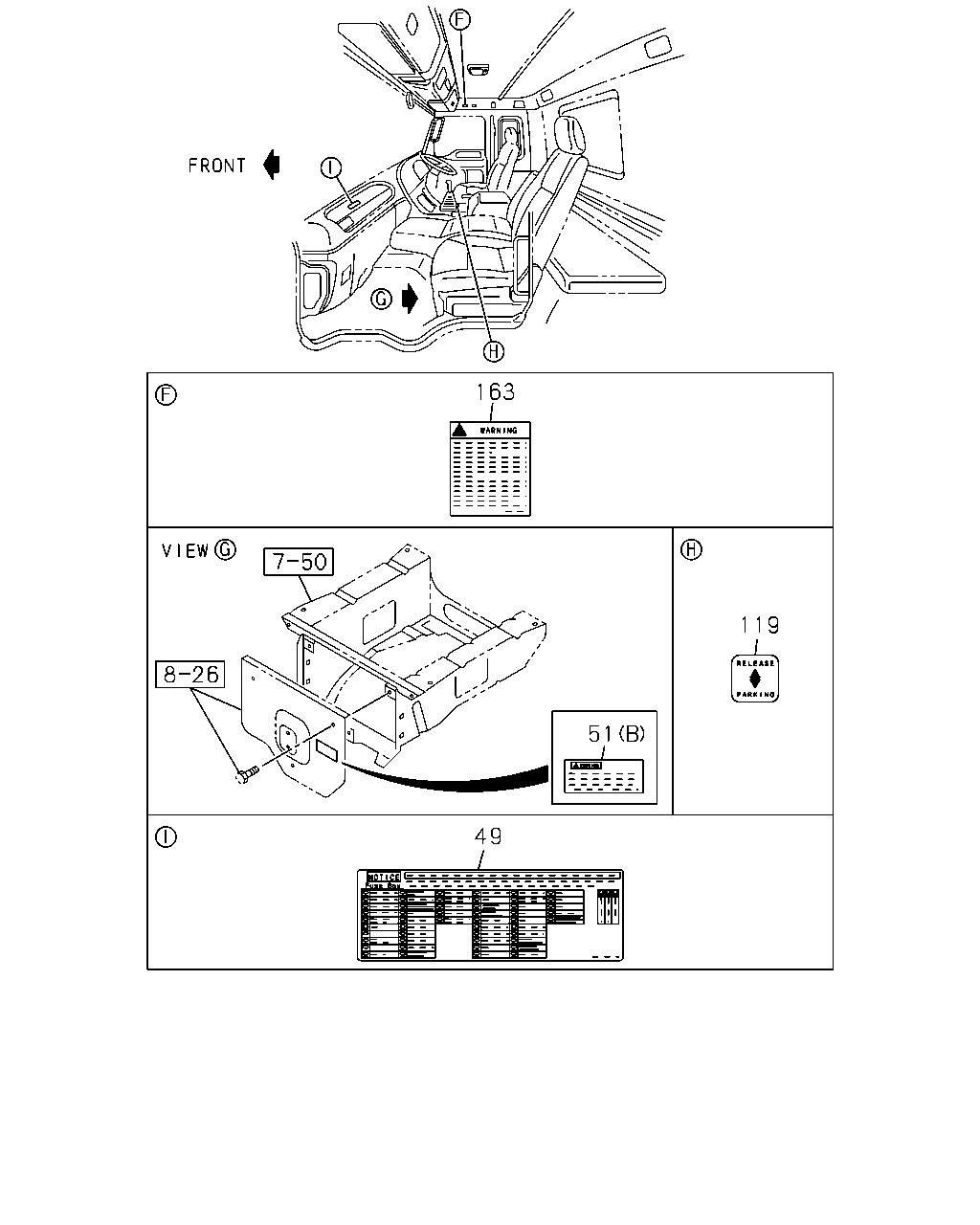

181 181 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
175	LABEL; STRG,AIR BAG SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	1-85878-116-0	02	1	1504-
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	1504-
181	PLATE; CAUTION,AIR CLEANER (B)	1-85886-813-1	01	1	1504-

163 49 51 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX	8-98290-502-0	01	1	1504-
51	PLATE; CAUTION,WARNING (B)	1-85878-544-0	01	1	1504-
51	PLATE; CAUTION,WARNING (A)	1-85880-725-0	01	1	1504-
119	PLATE; CAUTION,HAND BRK LEVER FULL TRACTOR TRUCK<RD6>	1-85881-791-0	01	1	1504-1509
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-791-0	01	1	1510-
119	PLATE; CAUTION,HAND BRK LEVER TRUCK LOGGING<XP4>	1-85881-759-0	01	1	1504-1509
163	PLATE; NAME,AIR BAG SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	1-85878-485-0	01	1	1504-

60 60 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE (A)	1-85875-350-2	01	1	1504-
4	LABEL; ENG MAINTENANCE (B)	8-94391-524-0	01	1	1504-
60	PLATE; CAUTION,CAB TILT (A)	8-98174-581-0	01	1	1504-
60	PLATE; CAUTION,CAB TILT (B)	8-98174-582-0	01	1	1504-

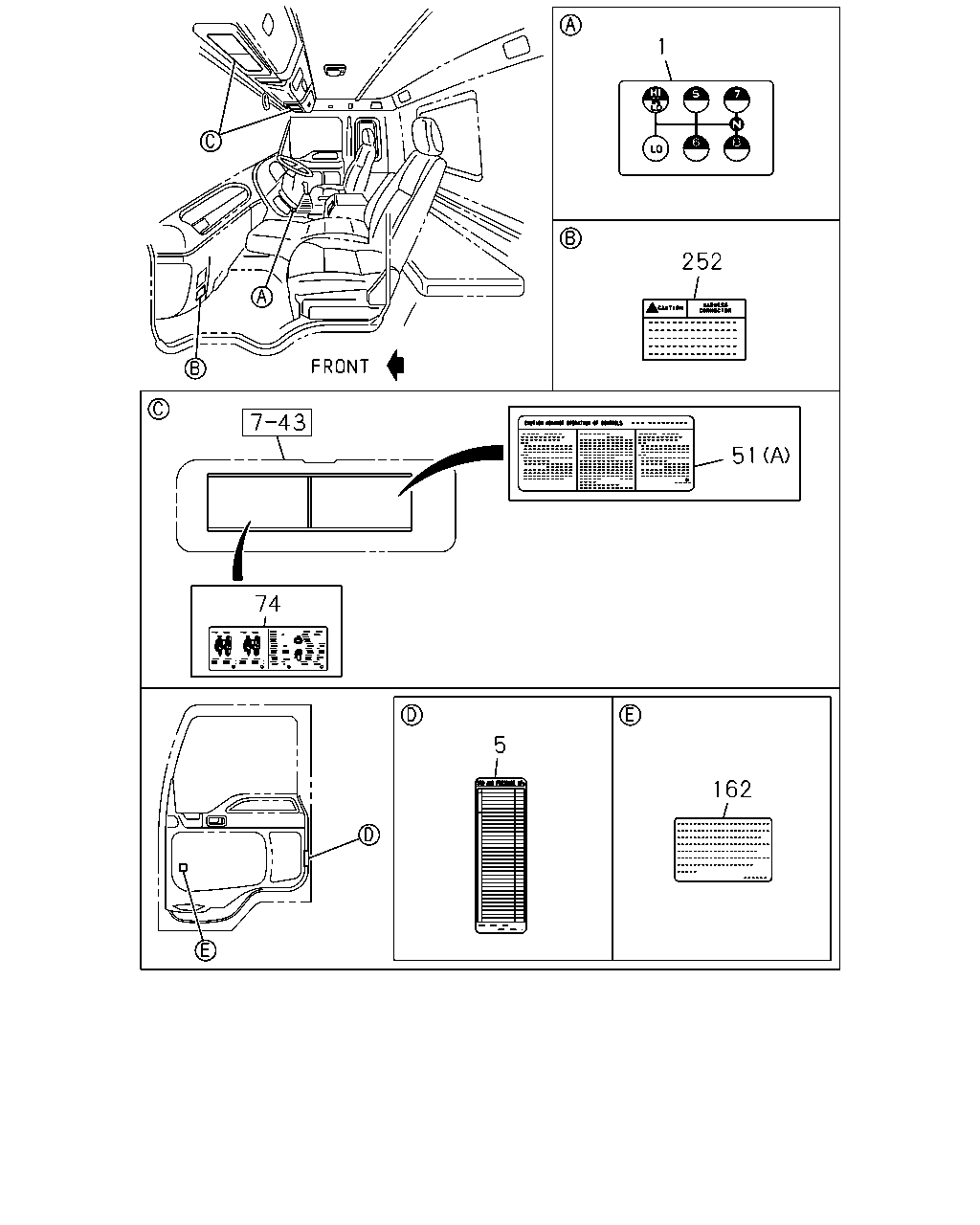

74 5 162 51 252 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PLATE; CAUTION,SHIFT PATTERN FULL FLOATING CAB(W16)	1-85881-519-0	01	1	1504-
5	LABEL; TIRE AIR PRESSURE	1-85880-778-0	01	1	1504-
51	PLATE; CAUTION,WARNING (B)	1-85878-544-0	01	1	1504-
51	PLATE; CAUTION,WARNING (A)	1-85880-725-0	01	1	1504-
74	PLATE; CAUTION,CHANGE LEV	1-85881-786-0	01	1	1504-
162	PLATE; CAUTION,FUEL	8-97623-712-0	01	1	1504-
252	PLATE; CAUTION,HARNESS	1-85878-488-1	01	1	1504-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
