Isuzu WW
▶
TRUCKS
▶
FTR
▶
11194 - FTR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#16013) — 23 parça
◀

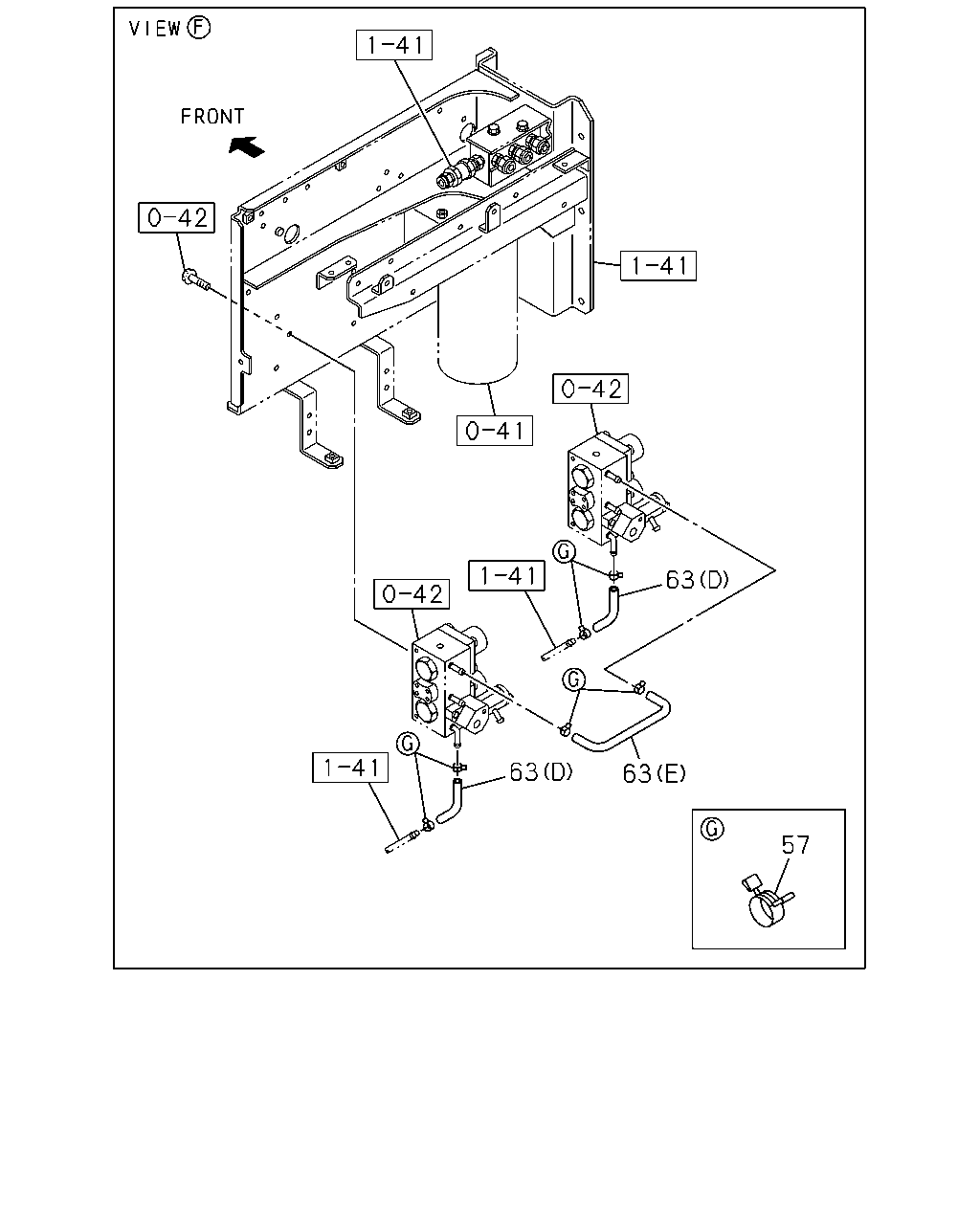

[845A] NO.2 (6 parça)

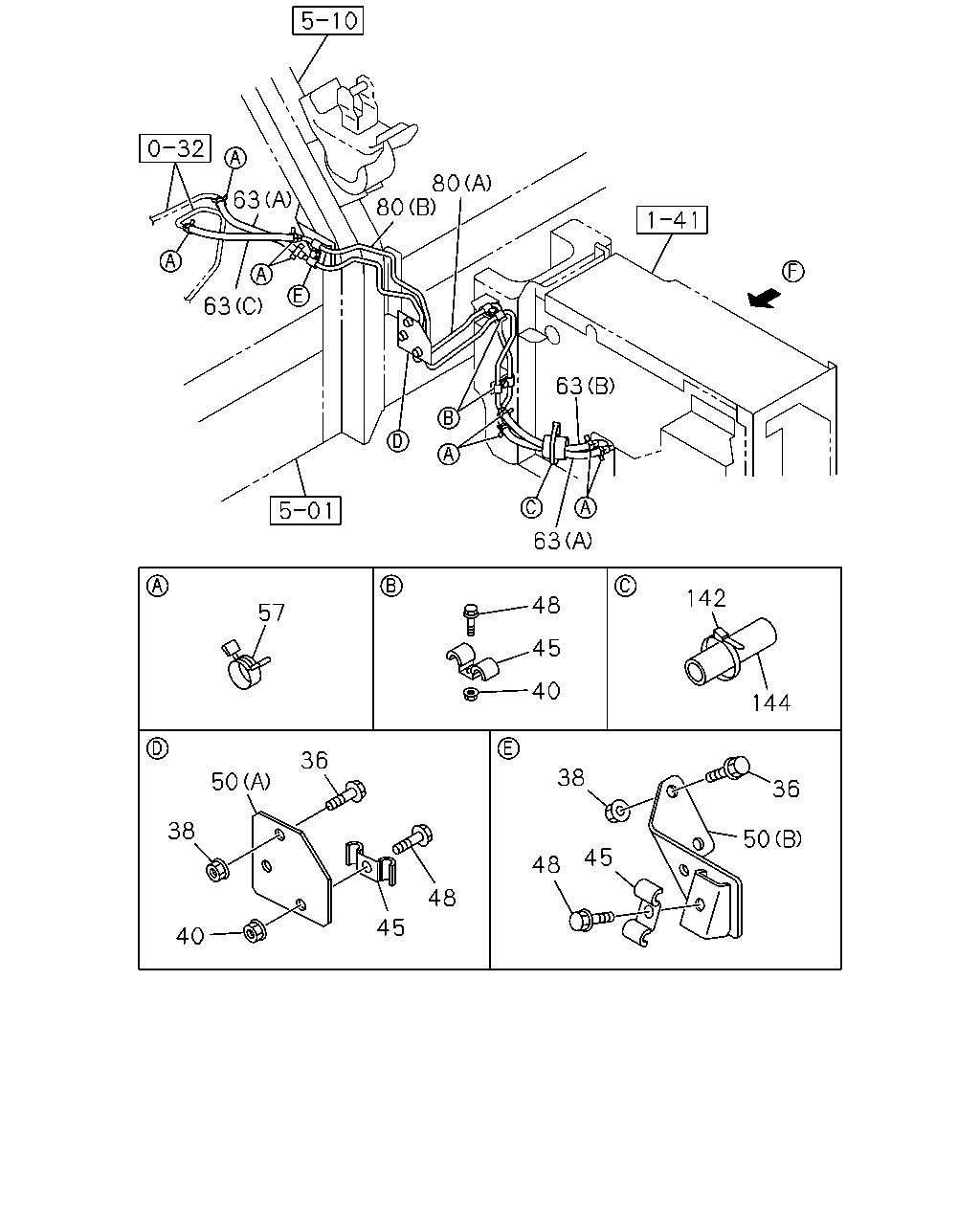

[845A] NO.1 (17 parça)
▶
63
63
63
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; HOSE
ID=13 THA
8-94238-571-0
14
1
1005-
63
HOSE; WATER
(B) L=200 SERVICED BY L=3000
0-03557-300-0
01
1
1005-
63
HOSE; WATER
(A) L=230 SERVICED BY L=3000
0-03257-300-0
02
1
1005-
63
HOSE; WATER
(C) L=260 SERVICED BY L=3000
0-03557-300-0
01
1
1005-
63
HOSE; WATER
(D) THA
8-97630-852-0
02
1
1005-
63
HOSE; WATER
(E) THA
8-97631-292-1
01
1
1005-
80
80
63
63
63
63
142
48
57
45
40
144
36
38
50
36
38
50
45
48
48
45
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
04
1
1005-
38
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
04
1
1005-
40
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1005-
45
CLIP; WATER PIPE
ID=9 & 9 L=17 & 17
1-09700-651-0
04
1
1005-
48
BOLT; CLIP FIX
M8X20 FLANGE THA
0-28650-820-0
04
1
1005-
50
BRACKET
(A)
8-98162-817-0
01
1
1005-
50
BRACKET
(B) THA
8-97635-439-0
01
1
1005-
57
CLIP; HOSE
ID=13 THA
8-94238-571-0
14
1
1005-
63
HOSE; WATER
(B) L=200 SERVICED BY L=3000
0-03557-300-0
01
1
1005-
63
HOSE; WATER
(A) L=230 SERVICED BY L=3000
0-03257-300-0
02
1
1005-
63
HOSE; WATER
(C) L=260 SERVICED BY L=3000
0-03557-300-0
01
1
1005-
63
HOSE; WATER
(D) THA
8-97630-852-0
02
1
1005-
63
HOSE; WATER
(E) THA
8-97631-292-1
01
1
1005-
80
PIPE; WATER
(A) THA
8-97631-259-0
01
1
1005-
80
PIPE; WATER
(B) THA
8-97631-260-1
01
1
1005-
142
CLIP; BAND
L=250 THA
5-09707-030-1
01
1
1005-
144
SLEEVE; RUBBER
ID=29 OD=39 L=40
1-09337-013-0
01
1
1005-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
