6-75 — MAT AND CARPET (#160122) — 24 parça

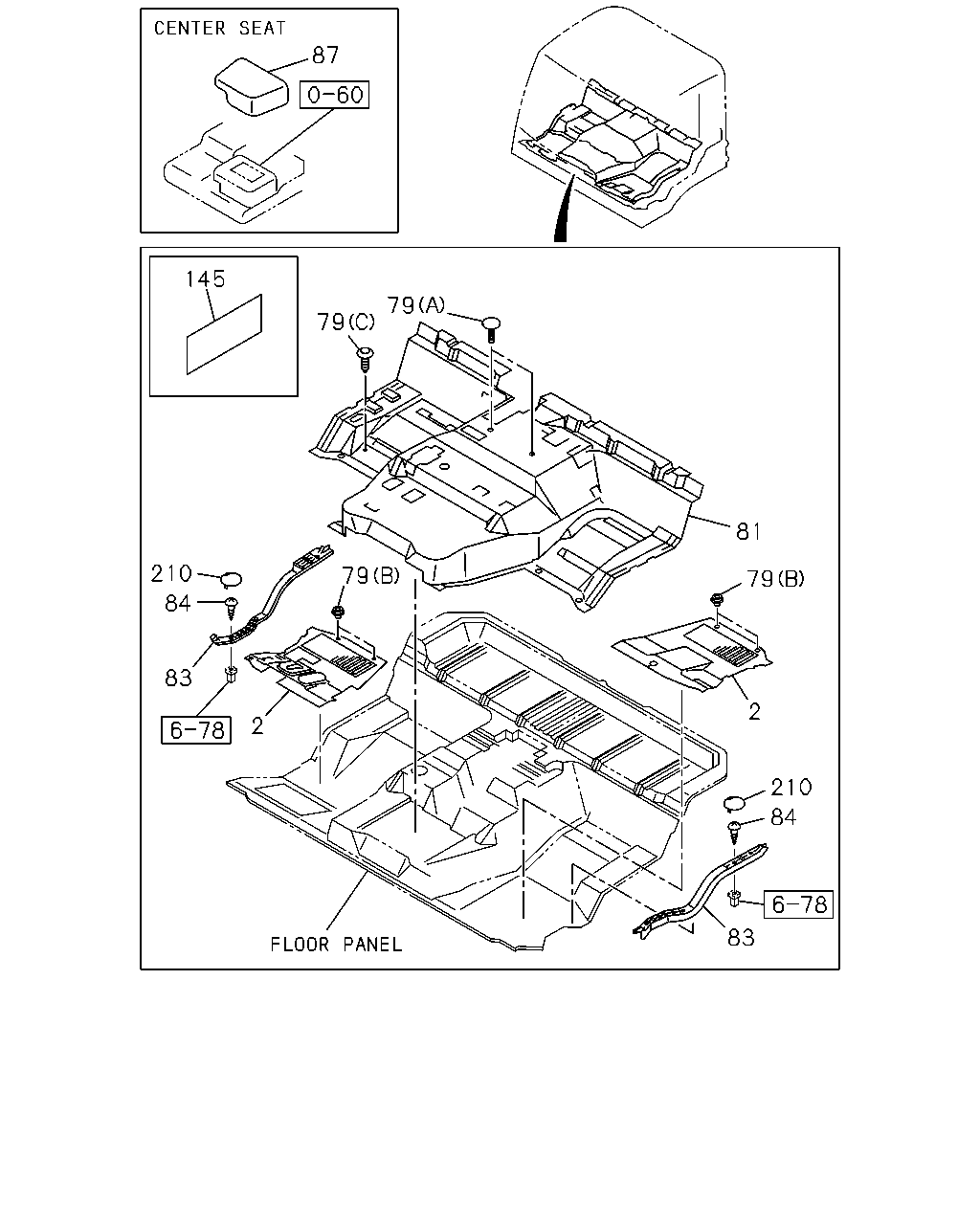

çizim 471570
79 79 145 87 79 210 84 83 2 79 81 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73237-784-1 01 1 1504-
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73237-786-1 01 1 1504-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1504-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1504-
79 HOOK; MALE
VINYL CARPET<B30> (C) OD=16 L=11 		1-76378-155-0 01 1 1504-
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		8-98299-387-0 01 1 1504-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1504-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1504-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1504-
87 MAT; FLOOR
VINYL CARPET<B30> 		1-73237-779-1 01 1 1504-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1504-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1504-

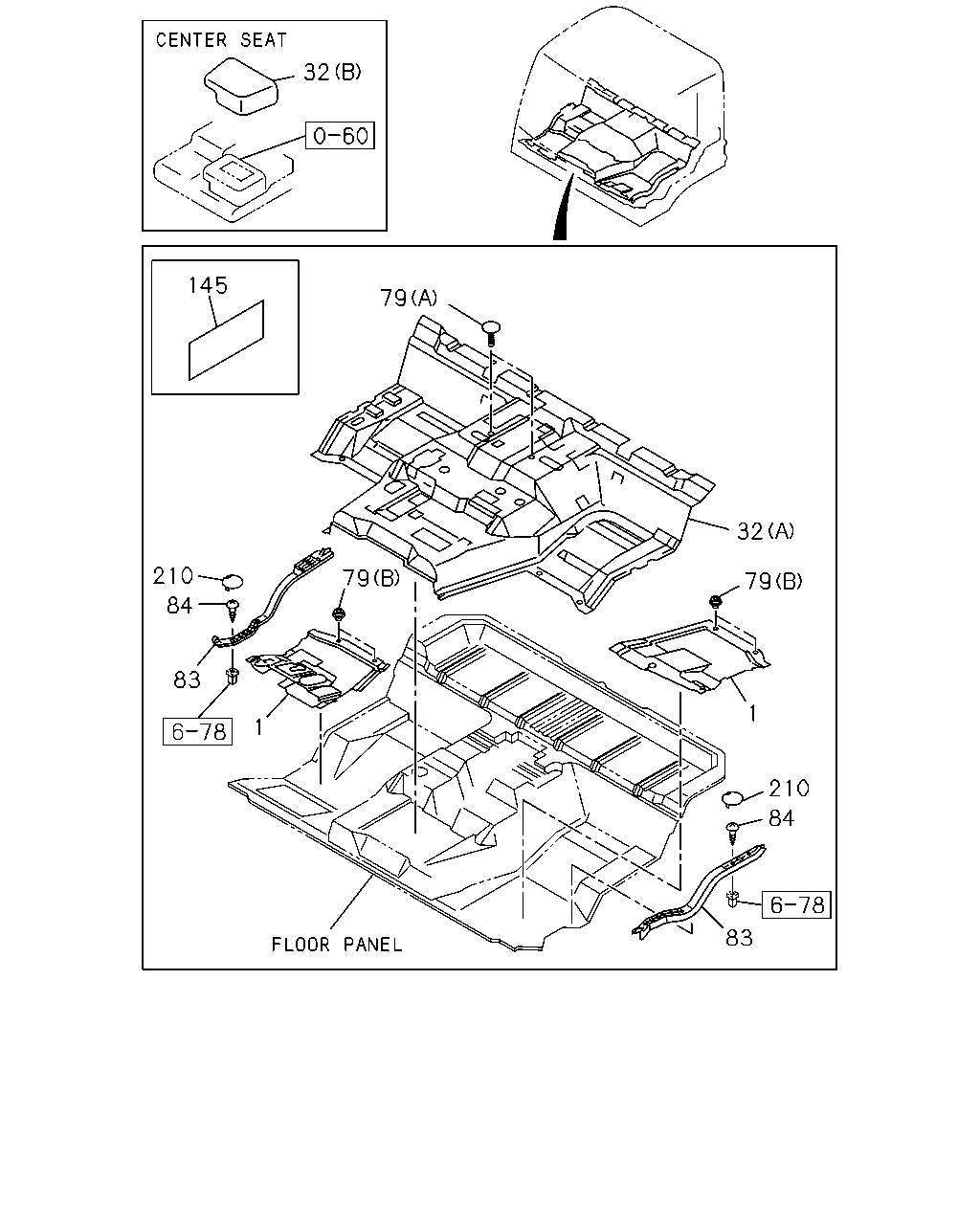

çizim 471595
79 32 145 210 84 83 79 1 79 32 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 1504-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 1504-
32 CARPET; FLOOR
DELUXE CARPET<BF2> (B) 		1-73237-835-1 01 1 1504-
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		8-98299-389-0 01 1 1504-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1504-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1504-
79 HOOK; MALE
VINYL CARPET<B30> (C) OD=16 L=11 		1-76378-155-0 01 1 1504-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1504-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1504-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1504-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1504-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1504-
