◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11677 - CYH RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#160118) — 109 parça

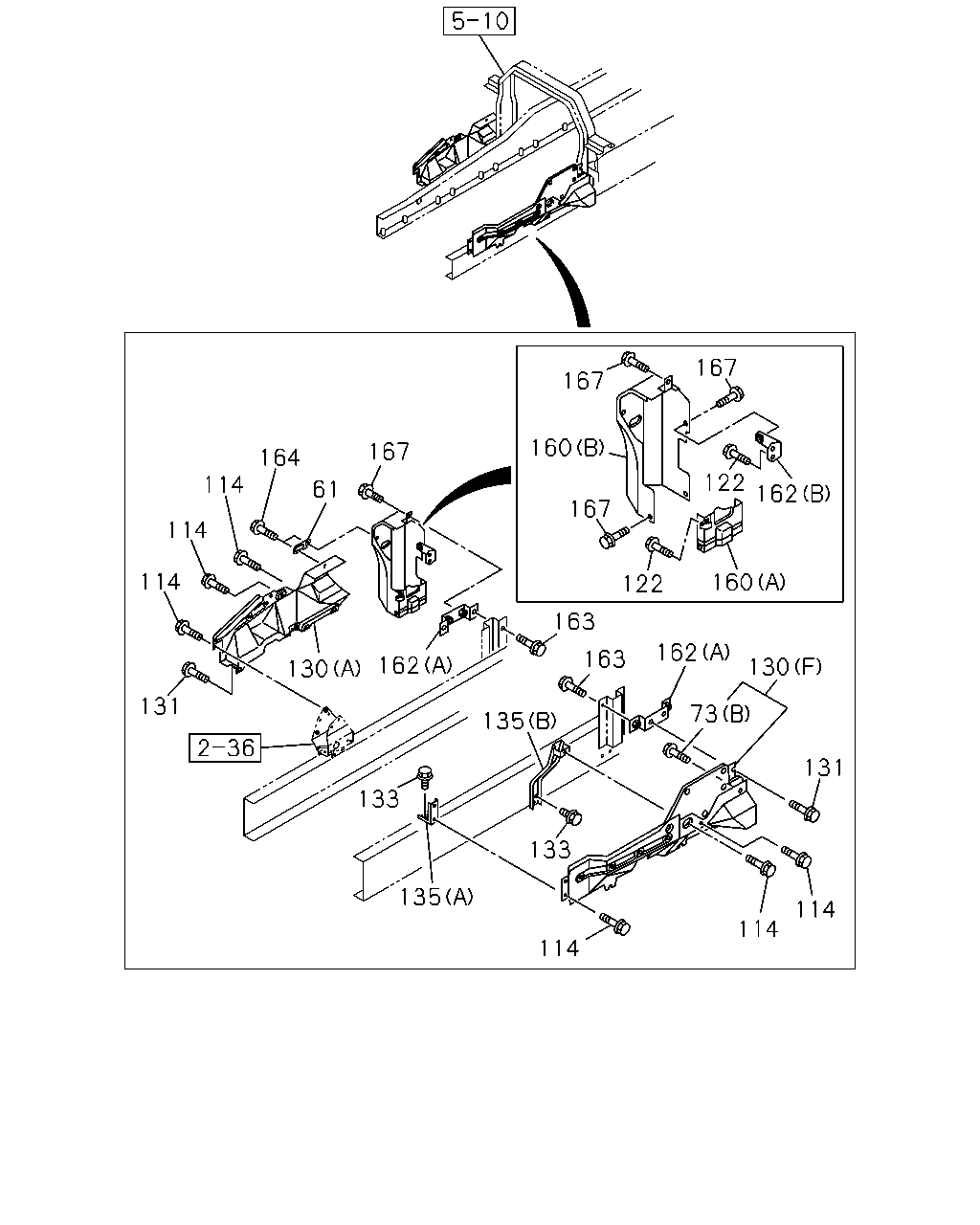

çizim 471619
167 61 164 114 114 114 131 130 162 133 135 114 133 135 114 114 131 73 130 162 163 163 122 160 162 122 167 167 160 167
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 8-98039-501-1 01 1 1504-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1504-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1504-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1504-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
122 BOLT
M8X30 FLANGE 		0-28650-830-0 04 1 1504-
130 PANEL; SHUTTER NOISE
(F) 		8-98240-672-0 01 1 1504-
130 PANEL; SHUTTER NOISE
(B) 		8-98295-974-0 01 1 1504-
130 PANEL; SHUTTER NOISE
(C) 		8-98295-975-0 01 1 1504-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1504-
130 PANEL; SHUTTER NOISE
(D) 		8-98198-654-2 01 1 1504-
130 PANEL; SHUTTER NOISE
(E) 		8-98285-217-0 01 1 1504-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1504-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1504-
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 1504-
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1504-
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 1504-
160 COVER ASM; EXH
(B) 		8-98297-108-0 01 1 1504-
162 BRACKET
(A) 		1-53441-520-0 02 1 1504-
162 BRACKET
(B) 		8-98297-109-0 01 1 1504-
162 BRACKET
FULL FLOATING CAB(W16) (C) 		1-71907-815-0 01 1 1504-
163 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1504-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 1504-

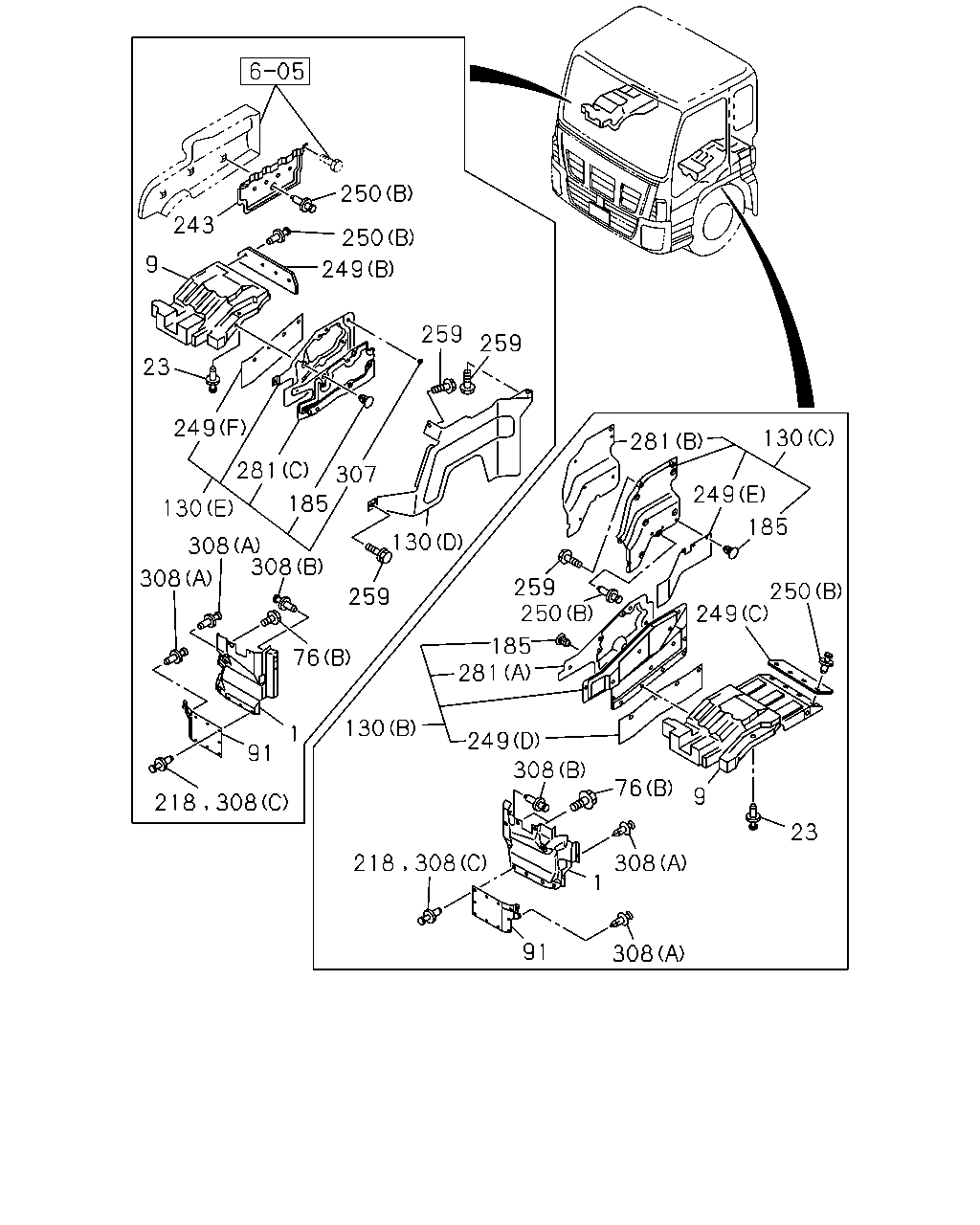

çizim 471909
243 9 23 249 281 130 308 308 308 76 1 91 218 308 218 308 130 259 130 307 185 259 259 249 250 250 281 249 259 250 185 281 249 308 76 308 1 91 308 23 9 249 185 130 250
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1504-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1504-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1504-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1504-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1504-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1504-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1504-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1504-
91 COVER; MUD,FRT 8-98200-908-1 01 1 1504-
91 COVER; MUD,FRT 8-98200-907-1 01 1 1504-
130 PANEL; SHUTTER NOISE
(F) 		8-98240-672-0 01 1 1504-
130 PANEL; SHUTTER NOISE
(B) 		8-98295-974-0 01 1 1504-
130 PANEL; SHUTTER NOISE
(C) 		8-98295-975-0 01 1 1504-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1504-
130 PANEL; SHUTTER NOISE
(D) 		8-98198-654-2 01 1 1504-
130 PANEL; SHUTTER NOISE
(E) 		8-98285-217-0 01 1 1504-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 34 1 1504-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1504-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1504-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1504-
249 RUBBER; SHUTTER
(C) 		8-98198-743-0 01 1 1504-
249 RUBBER; SHUTTER
(D) 		8-98285-475-0 01 1 1504-
249 RUBBER; SHUTTER
(E) 		8-98285-476-0 01 1 1504-
249 RUBBER; SHUTTER
(B) 		8-98198-741-0 01 1 1504-
249 RUBBER; SHUTTER
(F) 		8-98285-474-0 01 1 1504-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1504-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1504-
250 FASTENER; SHUTTER
FULL FLOATING CAB(W16) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1504-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1504-
281 INSULATOR; NOISE
(E) 		1-73237-931-0 01 1 1504-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1504-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1504-
281 INSULATOR; NOISE
(C) 		1-71907-170-1 01 1 1504-
281 INSULATOR; NOISE
DELUXE CARPET<BF2>,VINYL CARPET<B30> MATTRESS SLEEPER CAB<E40> (F) 		1-73237-445-4 01 1 1504-
281 INSULATOR; NOISE
FULL FLOATING CAB(W16) (D) 		8-98227-396-0 01 1 1504-
307 RETAINER 8-98164-293-0 01 1 1504-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 04 1 1504-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1504-
308 FASTENER; MUD GUARD
(C) D8X13.5 		1-09987-248-1 04 1 1504-

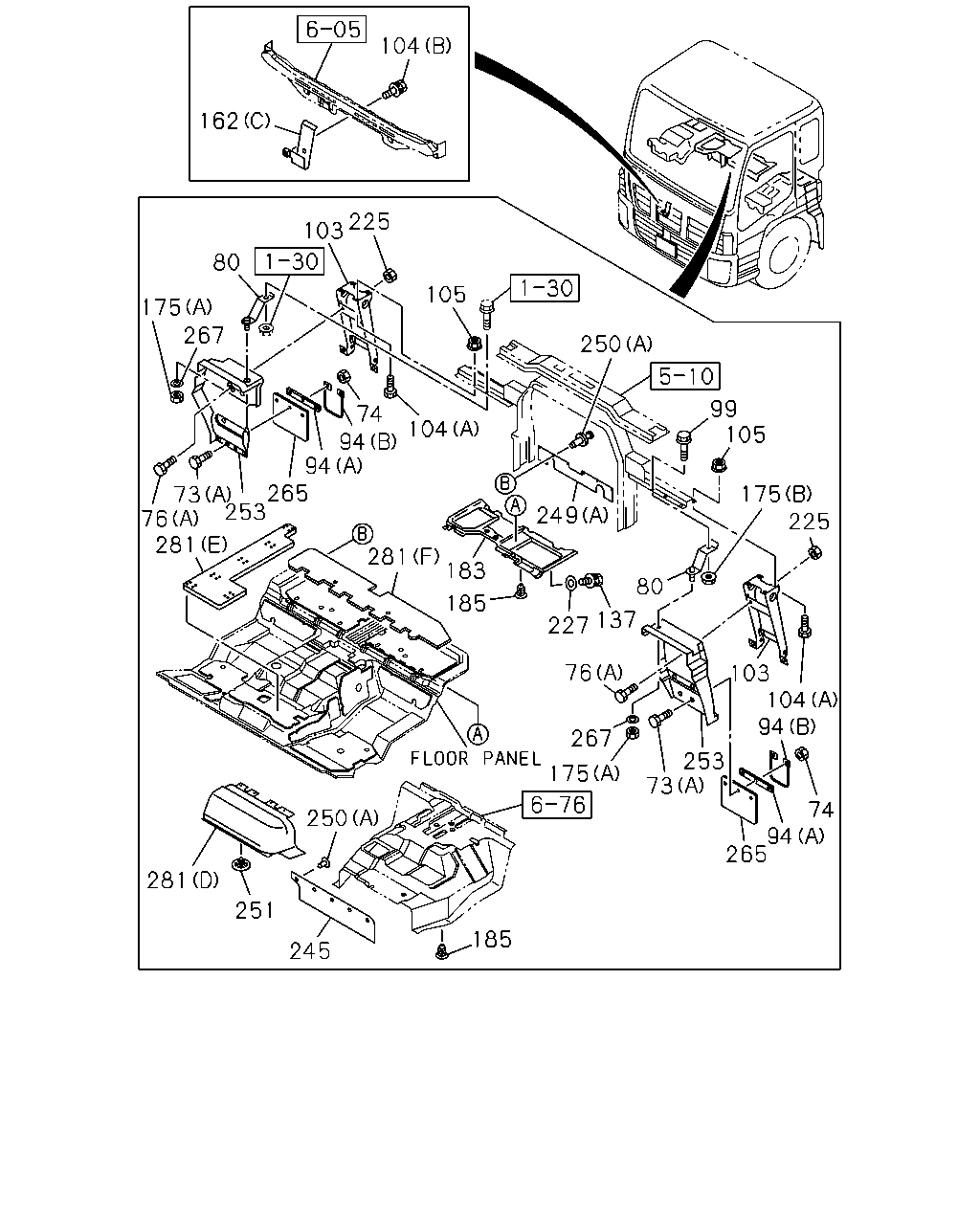

çizim 471983
104 162 225 103 80 175 267 73 76 281 253 265 94 94 74 104 105 250 249 183 185 281 250 281 251 245 185 175 267 76 227 137 80 73 253 265 94 74 94 104 103 225 175 105 99
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1504-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1504-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1504-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1504-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1504-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1504-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1504-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1504-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1504-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 01 1 1504-
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1504-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1504-
104 BOLT; BRKT
FULL FLOATING CAB(W16) (B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 1504-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1504-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1504-
162 BRACKET
(A) 		1-53441-520-0 02 1 1504-
162 BRACKET
(B) 		8-98297-109-0 01 1 1504-
162 BRACKET
FULL FLOATING CAB(W16) (C) 		1-71907-815-0 01 1 1504-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1504-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 01 1 1504-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 1504-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 34 1 1504-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1504-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1504-
245 RUBBER; SHUTTER,RAD
FULL FLOATING CAB(W16) 		8-98227-395-0 01 1 1504-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1504-
249 RUBBER; SHUTTER
(C) 		8-98198-743-0 01 1 1504-
249 RUBBER; SHUTTER
(D) 		8-98285-475-0 01 1 1504-
249 RUBBER; SHUTTER
(E) 		8-98285-476-0 01 1 1504-
249 RUBBER; SHUTTER
(B) 		8-98198-741-0 01 1 1504-
249 RUBBER; SHUTTER
(F) 		8-98285-474-0 01 1 1504-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1504-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1504-
250 FASTENER; SHUTTER
FULL FLOATING CAB(W16) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1504-
251 CLIP; NOISE INSULATOR
FULL FLOATING CAB(W16) ID=6.2 L=11.4 		8-97808-623-0 04 1 1504-
253 GUARD; MUD 8-98134-766-1 01 1 1504-
253 GUARD; MUD 8-98134-759-0 01 1 1504-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1504-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1504-
281 INSULATOR; NOISE
(E) 		1-73237-931-0 01 1 1504-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1504-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1504-
281 INSULATOR; NOISE
(C) 		1-71907-170-1 01 1 1504-
281 INSULATOR; NOISE
DELUXE CARPET<BF2>,VINYL CARPET<B30> MATTRESS SLEEPER CAB<E40> (F) 		1-73237-445-4 01 1 1504-
281 INSULATOR; NOISE
FULL FLOATING CAB(W16) (D) 		8-98227-396-0 01 1 1504-
