◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11677 - CYH RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#160107) — 146 parça

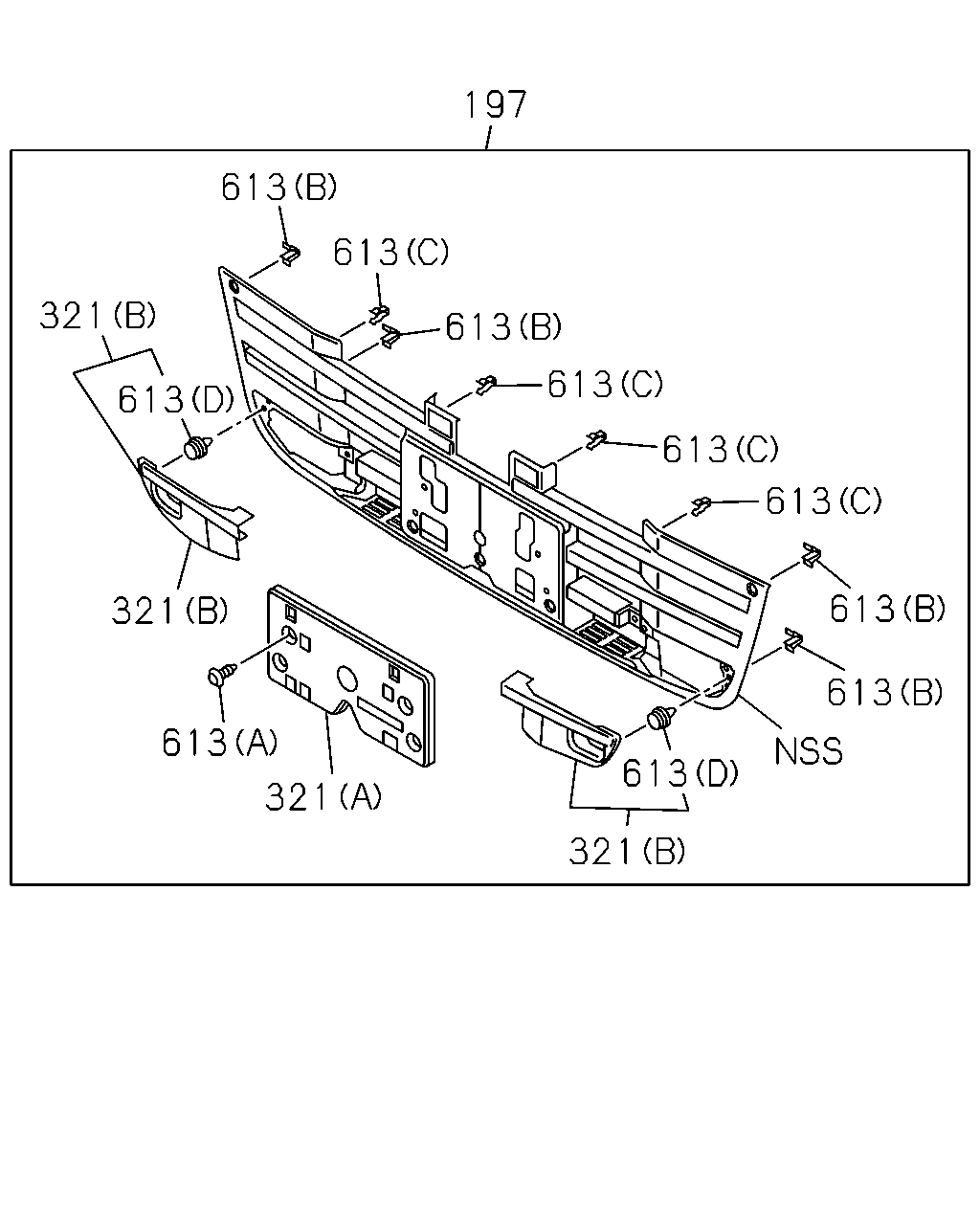

çizim 471632
197 613 613 613 613 613 613 613 613 613 613 321 321 613 321 321
BalonParca AdiParca NoAdetTipApplied Date
197 GRILLE; BUMPER 8-98144-188-4 01 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(A) 		8-98132-737-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-455-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-456-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-457-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-458-1 01 1 1504-
613 CLIP
(D) 		8-97581-651-2 04 1 1504-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1504-
613 CLIP
(B) 		8-98025-698-0 08 1 1504-
613 CLIP
(C) 		8-98144-173-1 06 1 1504-

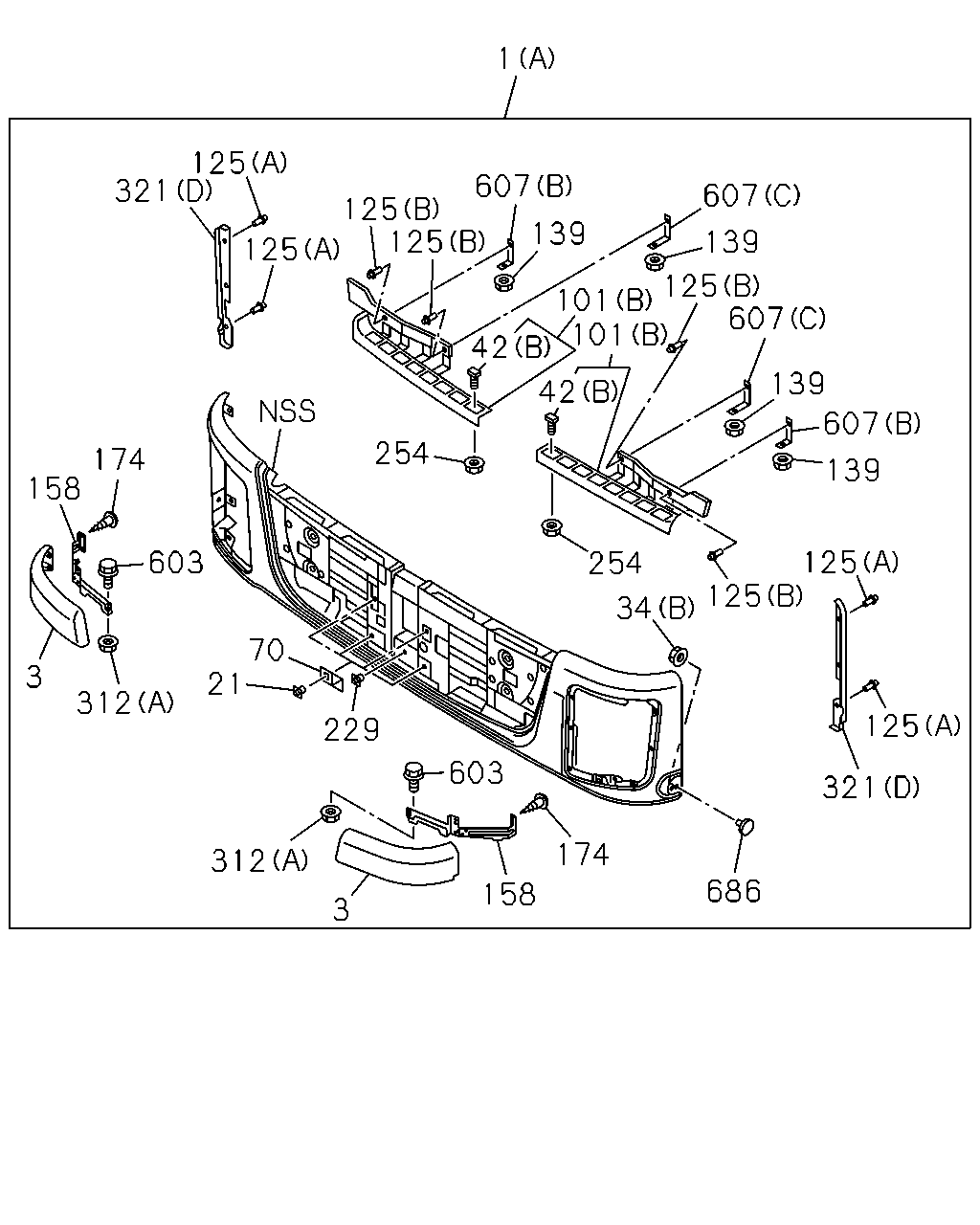

çizim 471709
1 125 607 125 125 321 174 158 603 312 3 70 21 229 603 312 3 158 686 174 34 254 254 125 139 101 607 125 139 607 139 139 607 125 125 125 321 101 42 42
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		8-97466-242-1 01 1 1504-
1 BUMPER ASM; FRT
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-97465-409-0 01 1 1504-
3 BUMPER; FRT,SIDE 8-98200-941-0 01 1 1504-
3 BUMPER; FRT,SIDE 8-98200-942-0 01 1 1504-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1504-
34 NUT; BRKT,BUMPER
(B) M6 FLANGE 		0-91180-106-0 02 1 1504-
34 NUT; BRKT,BUMPER
(A) M10 FLANGE 		0-91180-110-0 04 1 1504-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1504-
42 BOLT; BUMPER
(A) M10X30 FLANGE 		8-98055-942-0 12 1 1504-
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1504-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1504-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1504-
125 CLIP; STEP
FRONT SPOILER<VP1> (A) 		8-98157-186-0 08 1 1504-
125 CLIP; STEP
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-98157-186-0 06 1 1504-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1504-
158 EXTENSION; FRT BUMPER 8-98200-935-1 01 1 1504-
158 EXTENSION; FRT BUMPER 8-98200-936-1 01 1 1504-
174 SCREW; EXT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 10 1 1504-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1504-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1504-
312 NUT; BRKT
(B) M16 		0-91110-516-0 02 1 1504-
312 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 06 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(A) 		8-98132-737-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-455-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-456-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-457-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-458-1 01 1 1504-
603 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 06 1 1504-
607 BRACKET
(A) 		8-98300-238-0 01 1 1504-
607 BRACKET
(A) 		8-98300-239-0 01 1 1504-
607 BRACKET
(D) 		8-98304-441-0 01 1 1504-
607 BRACKET
(D) 		8-98304-442-0 01 1 1504-
607 BRACKET
(C) 		8-98147-053-0 02 1 1504-
607 BRACKET
(B) 		8-98147-054-0 02 1 1504-
686 REFLECTOR; REFLEX 8-98121-023-0 02 1 1504-

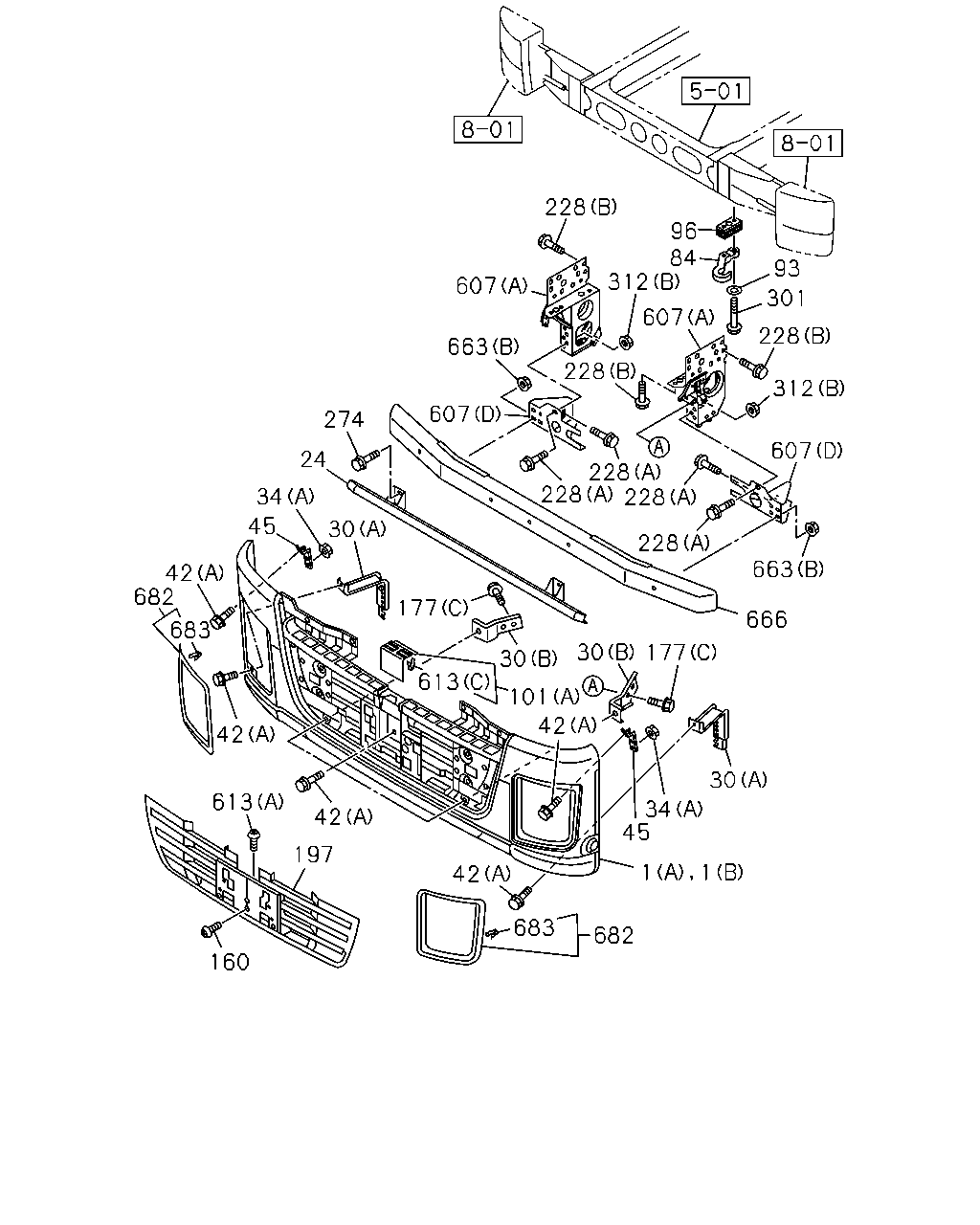

çizim 471953
228 607 663 607 228 228 228 228 228 607 312 96 84 93 228 301 312 607 663 666 177 30 101 30 177 30 24 274 34 45 42 682 683 42 613 42 197 42 683 682 45 1 1 34 30 42 613 160
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		8-97466-242-1 01 1 1504-
1 BUMPER ASM; FRT
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-97465-409-0 01 1 1504-
24 BAR; FRT BUMPER 8-98285-568-0 01 1 1504-
30 BRACKET; FRT BUMPER
(A) 		8-98302-073-0 01 1 1504-
30 BRACKET; FRT BUMPER
(A) 		8-98302-074-0 01 1 1504-
30 BRACKET; FRT BUMPER
(B) 		8-98236-332-0 01 1 1504-
30 BRACKET; FRT BUMPER
(B) 		8-98236-334-0 01 1 1504-
34 NUT; BRKT,BUMPER
(B) M6 FLANGE 		0-91180-106-0 02 1 1504-
34 NUT; BRKT,BUMPER
(A) M10 FLANGE 		0-91180-110-0 04 1 1504-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1504-
42 BOLT; BUMPER
(A) M10X30 FLANGE 		8-98055-942-0 12 1 1504-
45 BRACKET; BRKT TO BUMPER 8-98126-935-2 02 1 1504-
84 HOOK 8-98126-930-0 01 1 1504-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1504-
96 PLATE; DIST,HOOK 8-98218-989-0 01 1 1504-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1504-
160 SCREW
M5X16 		8-94380-268-0 01 1 1504-
177 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 04 1 1504-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1504-
177 BOLT
FRONT SPOILER<VP1> (B) M10X20 FLANGE 		0-28051-020-0 02 1 1504-
197 GRILLE; BUMPER 8-98144-188-4 01 1 1504-
228 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 06 1 1504-
228 BOLT; BRKT
(B) M16X40 FLANGE 		0-28851-640-0 10 1 1504-
274 BOLT; EXT TO FRAME
M10X30 FLANGE 		8-98055-942-0 02 1 1504-
301 BOLT; HOOK TO FRAME
M16X110 		8-98074-591-0 02 1 1504-
312 NUT; BRKT
(B) M16 		0-91110-516-0 02 1 1504-
312 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 06 1 1504-
607 BRACKET
(A) 		8-98300-238-0 01 1 1504-
607 BRACKET
(A) 		8-98300-239-0 01 1 1504-
607 BRACKET
(D) 		8-98304-441-0 01 1 1504-
607 BRACKET
(D) 		8-98304-442-0 01 1 1504-
607 BRACKET
(C) 		8-98147-053-0 02 1 1504-
607 BRACKET
(B) 		8-98147-054-0 02 1 1504-
613 CLIP
(D) 		8-97581-651-2 04 1 1504-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1504-
613 CLIP
(B) 		8-98025-698-0 08 1 1504-
613 CLIP
(C) 		8-98144-173-1 06 1 1504-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1504-
663 NUT
FRONT SPOILER<VP1> (A) M6 FLANGE 		0-91180-106-0 13 1 1504-
666 PROTECTOR; UNDER
FRONT SPOILER<VP1> 		8-98172-164-0 01 1 1504-
666 PROTECTOR; UNDER
FRONT UNDER SPOILER DELETE<SGA> 		8-98220-526-0 01 1 1504-
682 BEZEL; BUMPER 8-98123-444-2 01 1 1504-
682 BEZEL; BUMPER 8-98123-445-2 01 1 1504-
683 CLIP; BEZEL,BUMPER 8-98144-173-1 16 1 1504-

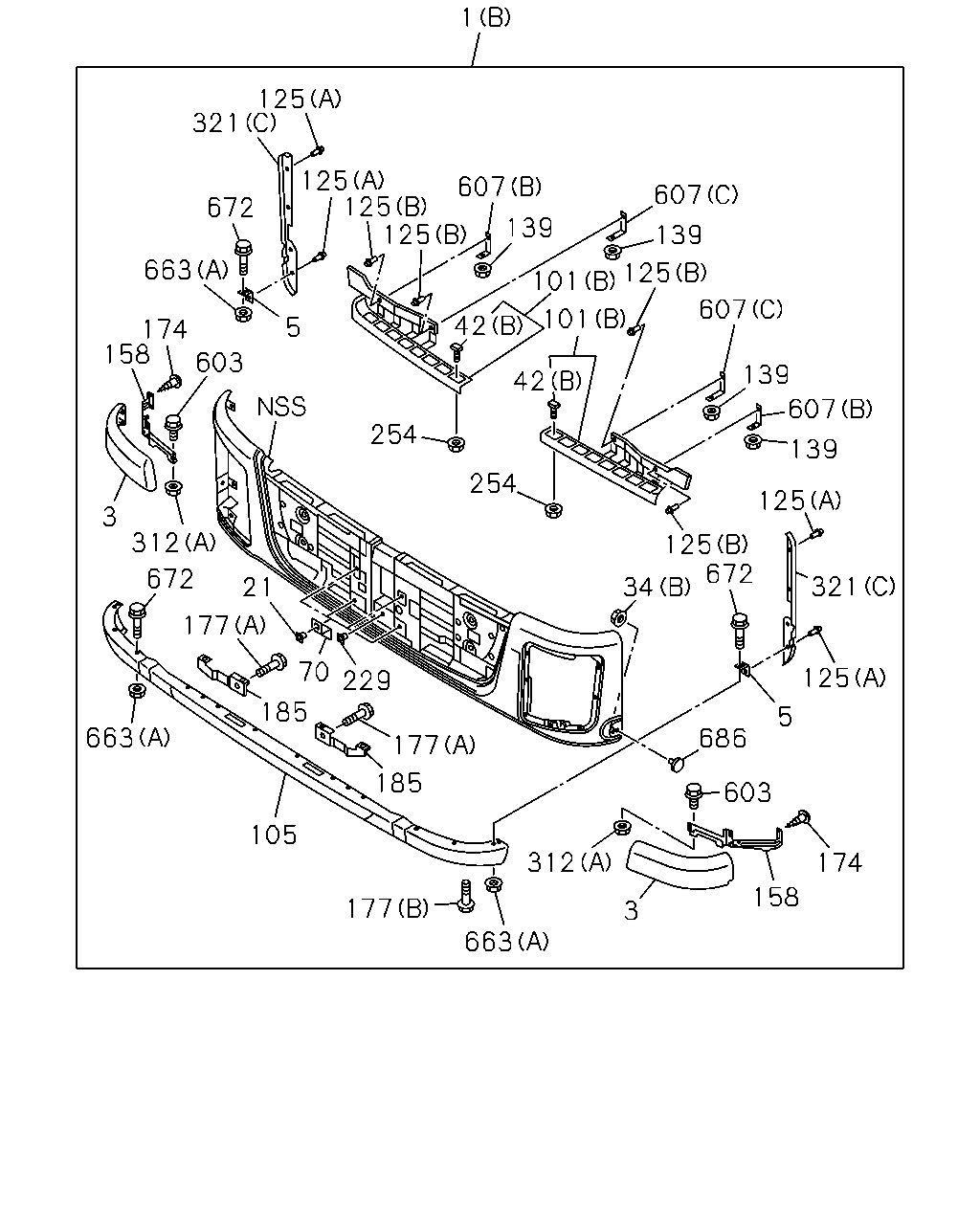

çizim 472023
1 125 321 125 125 607 139 607 125 139 101 42 101 607 139 139 125 607 321 125 5 686 603 174 158 3 312 663 177 177 185 105 185 177 663 21 70 229 254 42 254 5 672 663 158 174 3 603 312 672 34 125 672 125
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		8-97466-242-1 01 1 1504-
1 BUMPER ASM; FRT
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-97465-409-0 01 1 1504-
3 BUMPER; FRT,SIDE 8-98200-941-0 01 1 1504-
3 BUMPER; FRT,SIDE 8-98200-942-0 01 1 1504-
5 BRACKET; AIR DAM
FRONT SPOILER<VP1> 		8-98154-762-0 02 1 1504-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1504-
34 NUT; BRKT,BUMPER
(B) M6 FLANGE 		0-91180-106-0 02 1 1504-
34 NUT; BRKT,BUMPER
(A) M10 FLANGE 		0-91180-110-0 04 1 1504-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1504-
42 BOLT; BUMPER
(A) M10X30 FLANGE 		8-98055-942-0 12 1 1504-
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1504-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1504-
105 AIR DAM
FRONT SPOILER<VP1> WHITE 		8-97417-859-4 01 1 1504-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1504-
125 CLIP; STEP
FRONT SPOILER<VP1> (A) 		8-98157-186-0 08 1 1504-
125 CLIP; STEP
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-98157-186-0 06 1 1504-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1504-
158 EXTENSION; FRT BUMPER 8-98200-935-1 01 1 1504-
158 EXTENSION; FRT BUMPER 8-98200-936-1 01 1 1504-
174 SCREW; EXT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 10 1 1504-
177 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 04 1 1504-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1504-
177 BOLT
FRONT SPOILER<VP1> (B) M10X20 FLANGE 		0-28051-020-0 02 1 1504-
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> 		8-98302-730-0 01 1 1504-
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> 		8-98302-731-0 01 1 1504-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1504-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1504-
312 NUT; BRKT
(B) M16 		0-91110-516-0 02 1 1504-
312 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 06 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(A) 		8-98132-737-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-455-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-456-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-457-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-458-1 01 1 1504-
603 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 06 1 1504-
607 BRACKET
(A) 		8-98300-238-0 01 1 1504-
607 BRACKET
(A) 		8-98300-239-0 01 1 1504-
607 BRACKET
(D) 		8-98304-441-0 01 1 1504-
607 BRACKET
(D) 		8-98304-442-0 01 1 1504-
607 BRACKET
(C) 		8-98147-053-0 02 1 1504-
607 BRACKET
(B) 		8-98147-054-0 02 1 1504-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1504-
663 NUT
FRONT SPOILER<VP1> (A) M6 FLANGE 		0-91180-106-0 13 1 1504-
672 STUD; STEP
FRONT SPOILER<VP1> BOLT M6X16 FLANGE 		0-28050-616-0 13 1 1504-
686 REFLECTOR; REFLEX 8-98121-023-0 02 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
