Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#160102) — 230 parça

202 203 202 205 204 65 204 203 70 69 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB(W16)	1-51630-604-1	02	1	1504-
69	BOLT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) (A) M12X60	0-20801-260-0	02	1	1504-
69	BOLT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) (B) M10X105	1-79198-008-1	08	1	1504-
70	BRACKET; S/ABS,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53458-492-1	01	1	1504-
70	BRACKET; S/ABS,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53458-493-1	01	1	1504-
72	WASHER; PL,BRKT TO FRAME FULL FLOATING CAB(W16) ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1504-
202	NUT; S/ABS FULL FLOATING CAB(W16) (C) M10 FLANGE	0-91180-110-0	02	1	1504-
202	NUT; S/ABS FULL FLOATING CAB(W16) (A) M10	9-09110-410-0	04	1	1504-
202	NUT; S/ABS FULL FLOATING CAB(W16) (B) M10	9-09111-410-0	02	1	1504-
202	NUT; S/ABS FULL FLOATING CAB(W16) (B) M10	9-09111-410-0	04	1	1504-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	1504-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	1504-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1504-
204	RUBBER; CUSHION,SHOCK FULL FLOATING CAB(W16)	1-51631-004-0	04	1	1504-
204	RUBBER; CUSHION,SHOCK FULL FLOATING CAB(W16)	1-51631-004-0	08	1	1504-
205	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16)	1-51631-079-0	02	1	1504-
205	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16)	1-51631-079-0	06	1	1504-

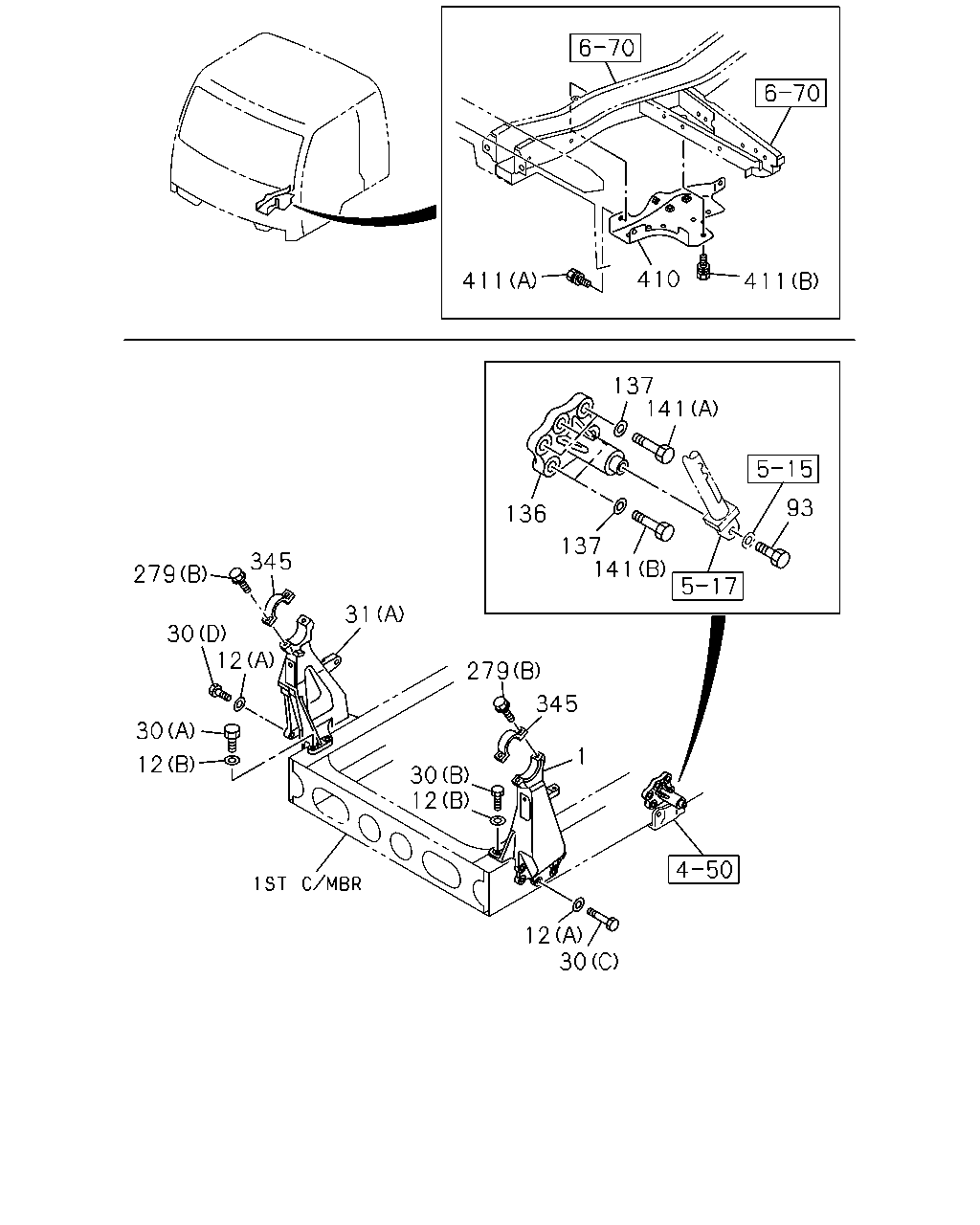

411 410 411 137 141 93 137 141 136 31 279 345 1 30 12 12 30 30 12 345 279 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	8-98260-973-0	01	1	1504-
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-316-0	12	1	1504-
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1504-
30	BOLT; CAB FRT FOOT (B) M14X50	0-20951-450-0	02	1	1504-
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	1504-
30	BOLT; CAB FRT FOOT (D) M16X50	0-20951-650-0	06	1	1504-
30	BOLT; CAB FRT FOOT (C) M16X60	0-20951-660-0	06	1	1504-
31	BRACKET; CAB (A)	8-98260-980-0	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1504-
93	BOLT; PIN FULL FLOATING CAB(W16) M10X30	1-09000-283-0	01	1	1504-
136	BRACKET; OIL CYL	8-98260-982-0	01	1	1504-
137	WASHER; PL,BRKT ID=16.2	1-09503-316-0	05	1	1504-
141	BOLT; BRKT FULL TRACTOR TRUCK<RD6> (A) M16X45	0-20951-645-0	03	1	1504-
141	BOLT; BRKT FULL TRACTOR TRUCK<RD6> (B) M16X50	0-20951-650-0	02	1	1504-
141	BOLT; BRKT EXC. FULL TRACTOR TRUCK<RD6> (A) M16X50	0-20951-650-0	05	1	1504-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1504-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1504-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1504-
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28050-860-0	02	1	1504-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	04	1	1504-
345	CAP; CAB	1-53458-336-3	02	1	1504-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	1504-
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	1504-
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1504-

294 202 202 203 205 204 204 203 201 203 173 204 205 66 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BRACKET; S/ABS FULL FLOATING CAB(W16)	8-98214-572-0	01	1	1504-
66	BRACKET; S/ABS FULL FLOATING CAB(W16)	8-98268-796-0	01	1	1504-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	8-98268-779-2	01	1	1504-
174	OUTRIGGER FULL FLOATING CAB(W16) (A)	8-97614-275-1	01	1	1504-
174	OUTRIGGER FULL FLOATING CAB(W16) (B)	8-98260-975-1	01	1	1504-
174	OUTRIGGER FULL FLOATING CAB(W16) (A)	8-98158-646-0	01	1	1504-
201	ABSORBER ASM; SHOCK,RR MTG FULL FLOATING CAB(W16)	1-51630-728-1	02	1	1504-
202	NUT; S/ABS FULL FLOATING CAB(W16) (C) M10 FLANGE	0-91180-110-0	02	1	1504-
202	NUT; S/ABS FULL FLOATING CAB(W16) (A) M10	9-09110-410-0	04	1	1504-
202	NUT; S/ABS FULL FLOATING CAB(W16) (B) M10	9-09111-410-0	02	1	1504-
202	NUT; S/ABS FULL FLOATING CAB(W16) (B) M10	9-09111-410-0	04	1	1504-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	1504-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	1504-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1504-
204	RUBBER; CUSHION,SHOCK FULL FLOATING CAB(W16)	1-51631-004-0	04	1	1504-
204	RUBBER; CUSHION,SHOCK FULL FLOATING CAB(W16)	1-51631-004-0	08	1	1504-
205	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16)	1-51631-079-0	02	1	1504-
205	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16)	1-51631-079-0	06	1	1504-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1504-

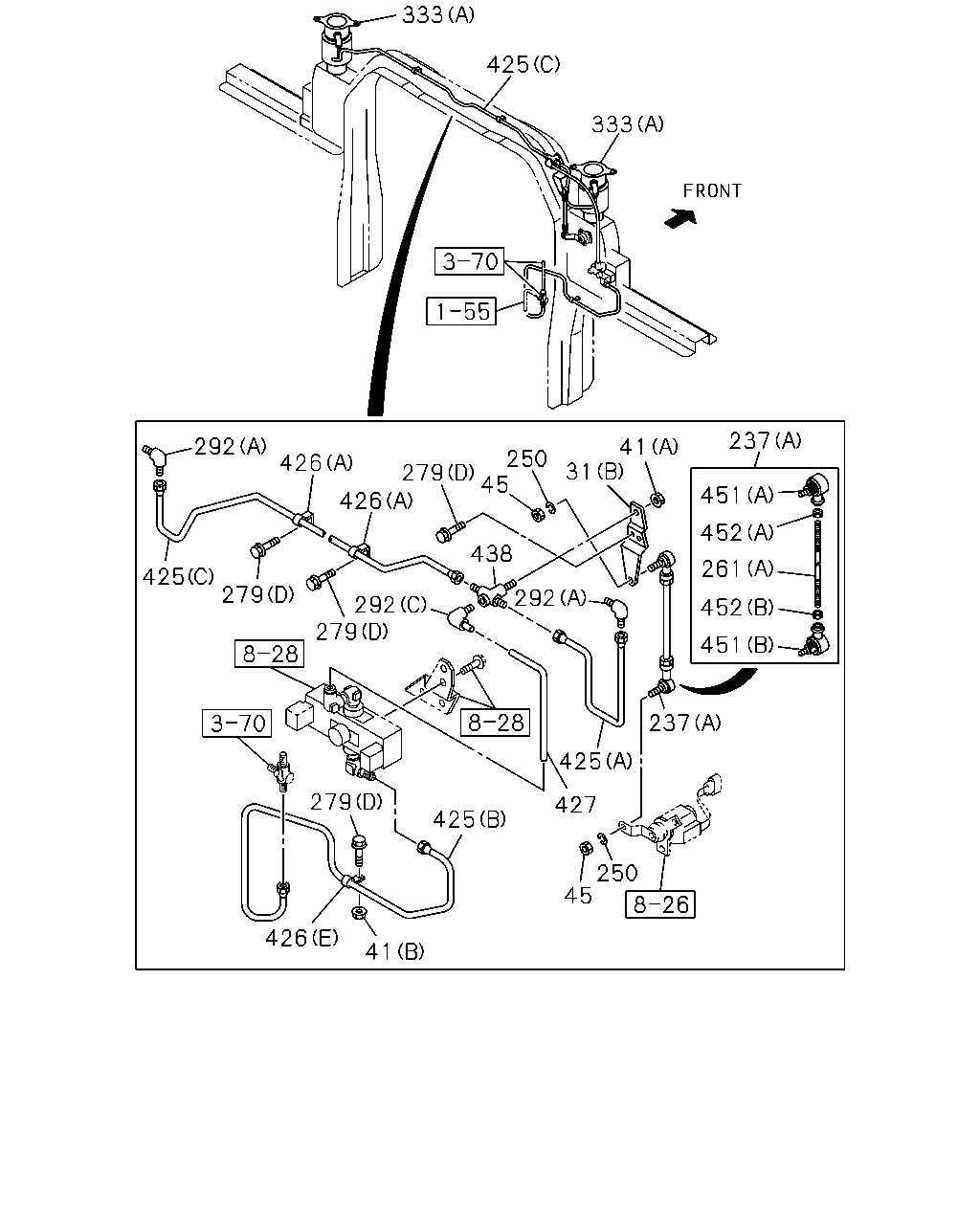

333 425 333 426 292 425 279 292 279 279 41 426 425 292 438 279 426 45 250 31 41 237 451 452 261 452 451 237 425 427 250 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB (A)	8-98260-980-0	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1504-
41	NUT (B) M8 FLANGE	0-91180-108-0	01	1	1504-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	1504-
45	NUT M5	0-91110-505-0	02	1	1504-
45	NUT M5	0-91110-505-0	02	1	1504-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1504-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1504-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (B)	1-53458-343-0	01	1	1504-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1504-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1504-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1504-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1504-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1504-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1504-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1504-
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28050-860-0	02	1	1504-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	04	1	1504-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1504-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) M12	1-53458-941-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1504-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1504-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1504-
425	PIPE ASM; AIR (B)	8-98293-278-0	01	1	1504-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1504-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=291	8-98095-656-0	01	1	1504-
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1504-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1504-
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1504-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1504-
426	CLIP FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	02	1	1504-
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1504-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1504-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1504-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1504-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1504-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1504-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1504-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1504-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1504-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1504-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1504-

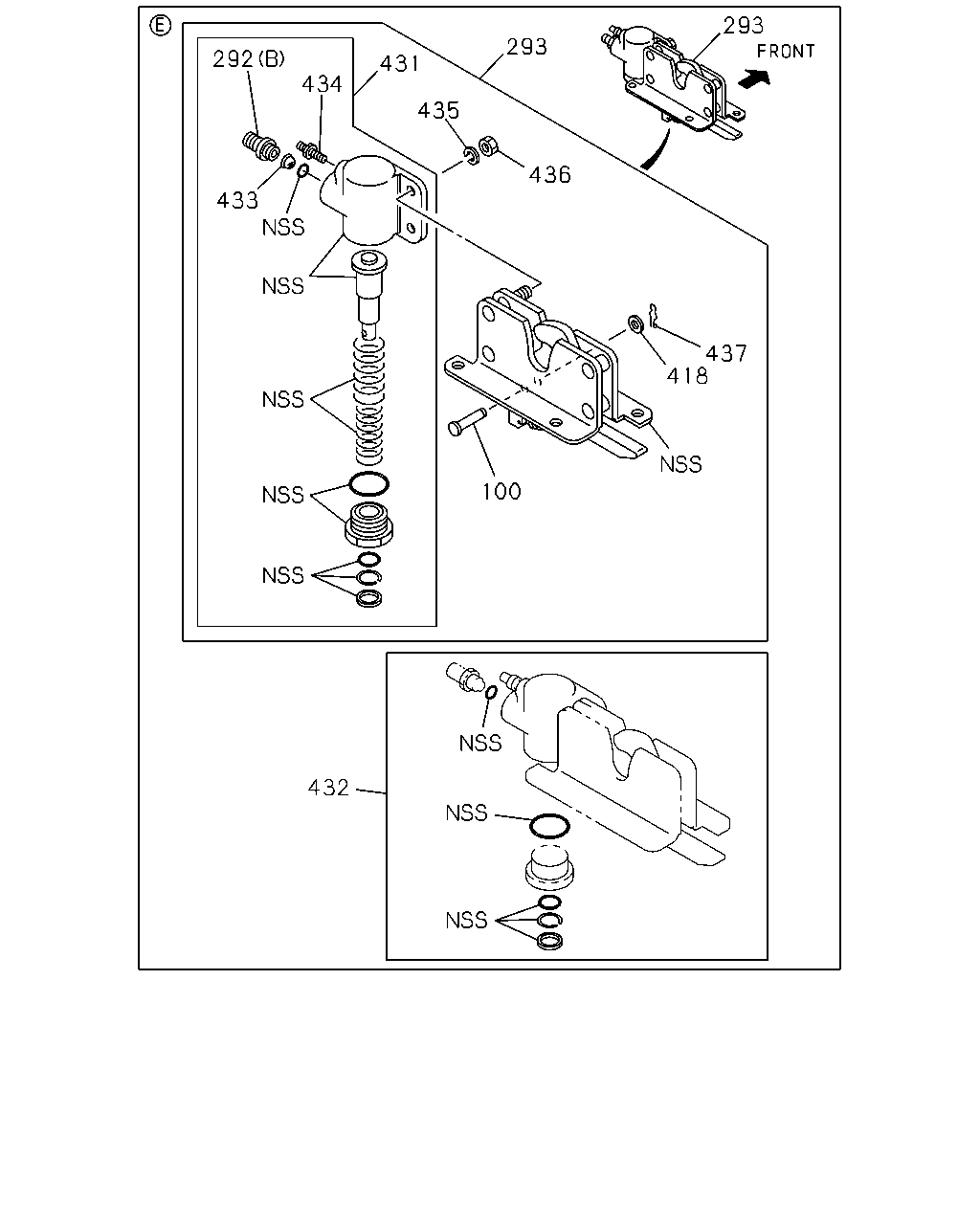

292 433 434 432 100 418 437 436 435 431 293 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT FULL FLOATING CAB(W16)	1-53458-831-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1504-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) M12	1-53458-941-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1504-
293	RATCH; CAB SUSP,RR FULL FLOATING CAB(W16)	1-53458-918-0	01	1	1504-
418	WASHER; PL,PIN FULL FLOATING CAB(W16)	1-53458-059-0	01	1	1504-
431	CYLINDER; AIR,RATCH FULL FLOATING CAB(W16)	1-53457-013-0	01	1	1504-
432	REPAIR KIT; AIR CYL FULL FLOATING CAB(W16)	1-85579-052-0	01	1	1504-
433	FILTER; AIR CYL FULL FLOATING CAB(W16)	1-53458-048-0	01	1	1504-
434	SCREW; AIR BLEEDER FULL FLOATING CAB(W16)	1-53458-529-0	01	1	1504-
435	WASHER; LK,AIR CYL FULL FLOATING CAB(W16) ID=10.2	9-09150-510-0	02	1	1504-
436	NUT; AIR CYL FULL FLOATING CAB(W16)	1-53458-528-0	02	1	1504-
437	PIN; SNAP FULL FLOATING CAB(W16)	1-53458-526-0	01	1	1504-

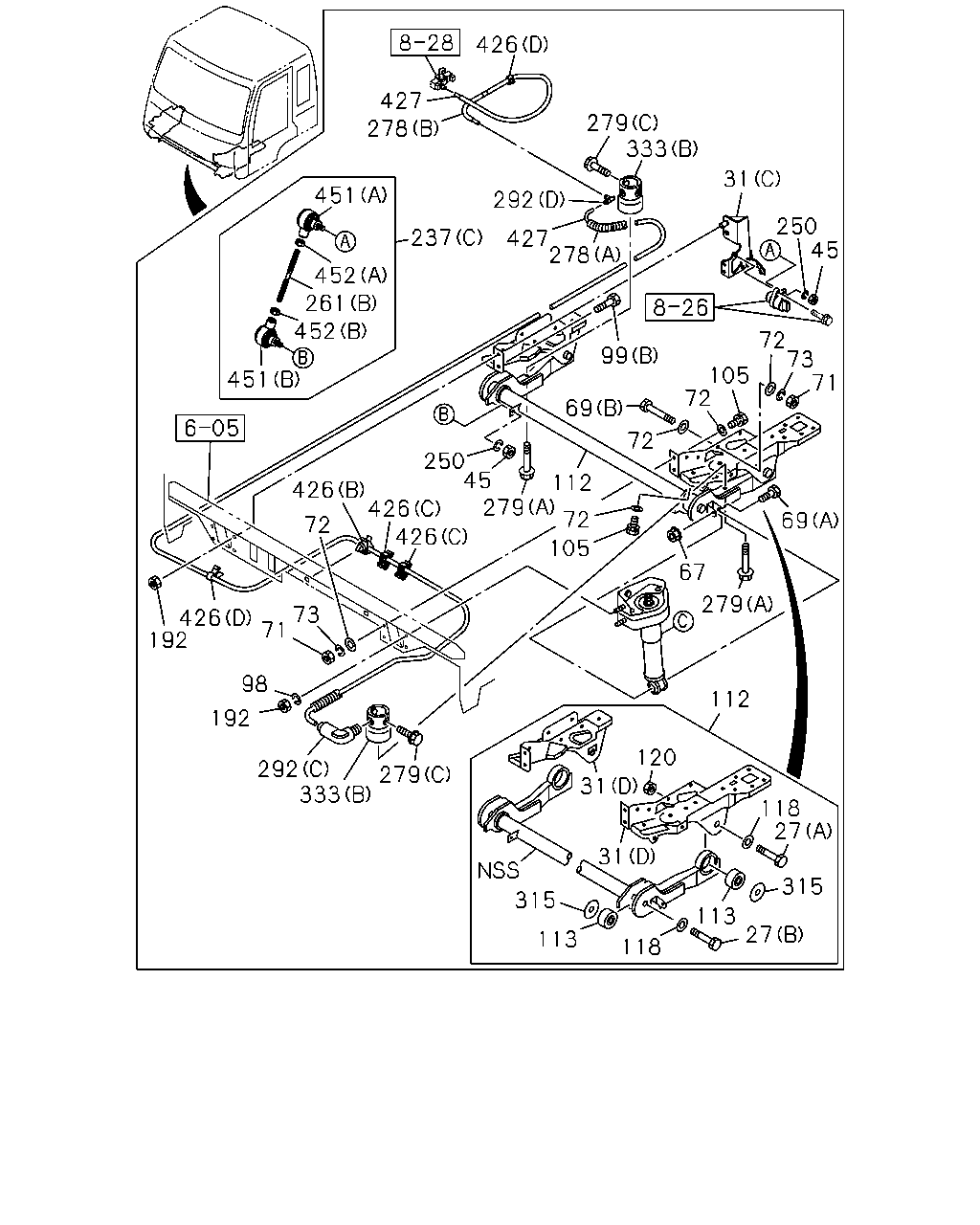

426 427 278 279 333 31 250 45 72 71 73 105 72 99 69 69 279 67 112 72 72 105 279 45 250 426 426 426 72 73 71 98 292 333 279 192 192 426 451 452 261 452 451 237 427 292 278 120 112 31 31 315 113 118 315 27 113 118 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING FULL FLOATING CAB(W16) (B) M18X120	1-09000-442-1	02	1	1504-
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	1504-
31	BRACKET; CAB (A)	8-98260-980-0	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1504-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1504-
45	NUT M5	0-91110-505-0	02	1	1504-
45	NUT M5	0-91110-505-0	02	1	1504-
67	NUT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) M12 FLANGE	0-91180-212-0	02	1	1504-
69	BOLT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) (A) M12X60	0-20801-260-0	02	1	1504-
69	BOLT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) (B) M10X105	1-79198-008-1	08	1	1504-
71	NUT; BRKT TO CAB FRAME FULL FLOATING CAB(W16) M10	1-09984-142-0	06	1	1504-
72	WASHER; PL,BRKT TO FRAME FULL FLOATING CAB(W16) ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1504-
73	WASHER; LK,BRKT TO CAB FRAME FULL FLOATING CAB(W16) ID=10	1-09985-185-0	12	1	1504-
98	WASHER; LK,BRKT FULL FLOATING CAB(W16) ID=10	1-09985-185-0	04	1	1504-
99	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	06	1	1504-
99	BOLT; BRKT FULL FLOATING CAB(W16) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1504-
105	BOLT; BRKT TO CAB FRAME FULL FLOATING CAB(W16) M10X30 W/SP WASHER	1-09980-546-0	08	1	1504-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-684-1	01	1	1504-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI FULL FLOATING CAB(W16)	1-53458-714-0	04	1	1504-
118	WASHER; PL,STOPPER RUBBER,LINK ARM FULL FLOATING CAB(W16) ID=19 OD=30	1-09503-279-0	04	1	1504-
120	NUT; STOPPER RUBBER,LINK ARM FULL FLOATING CAB(W16) M18	0-91110-518-0	02	1	1504-
192	NUT; BRKT FIX FULL FLOATING CAB(W16) M10	1-09984-142-0	05	1	1504-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1504-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1504-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (B)	1-53458-343-0	01	1	1504-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1504-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1504-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1504-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1504-
278	COVER FULL FLOATING CAB(W16) (B)	1-83129-031-1	01	1	1504-
278	COVER FULL FLOATING CAB(W16) (A)	1-83129-031-1	01	1	1504-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1504-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1504-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1504-
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28050-860-0	02	1	1504-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	04	1	1504-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1504-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) M12	1-53458-941-0	01	1	1504-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1504-
315	WASHER; CAB MTG FULL FLOATING CAB(W16) ID=34.5	1-53458-281-1	04	1	1504-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1504-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1504-
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1504-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1504-
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1504-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1504-
426	CLIP FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	02	1	1504-
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1504-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1504-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1504-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1504-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1504-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1504-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1504-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1504-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1504-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1504-

298 297 244 243 240 294 237 301 189 99 174 174 449 188 188 173 295 188 191 191 183 175 195 174 66 220 300 333 325 274 296 291 321 309 99 300 299 299 55 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER FULL FLOATING CAB(W16) M8 FLANGE	0-91180-108-0	06	1	1504-
66	BRACKET; S/ABS FULL FLOATING CAB(W16)	8-98214-572-0	01	1	1504-
66	BRACKET; S/ABS FULL FLOATING CAB(W16)	8-98268-796-0	01	1	1504-
99	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	06	1	1504-
99	BOLT; BRKT FULL FLOATING CAB(W16) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1504-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	8-98268-779-2	01	1	1504-
174	OUTRIGGER FULL FLOATING CAB(W16) (A)	8-97614-275-1	01	1	1504-
174	OUTRIGGER FULL FLOATING CAB(W16) (B)	8-98260-975-1	01	1	1504-
174	OUTRIGGER FULL FLOATING CAB(W16) (A)	8-98158-646-0	01	1	1504-
175	BOLT; MEMBER TO FRAME FULL FLOATING CAB(W16) M14X40	0-20951-440-0	08	1	1504-
183	WASHER; PL,MEMBER FULL FLOATING CAB(W16) ID=15	8-98010-627-1	08	1	1504-
188	BOLT; OUTRIGGER FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	06	1	1504-
188	BOLT; OUTRIGGER FULL FLOATING CAB(W16) (A) M10X25 FLANGE	0-28651-025-0	14	1	1504-
189	NUT; OUTRIGGER FULL FLOATING CAB(W16) M10 FLANGE	0-91180-210-0	06	1	1504-
191	BOLT; BRKT FIX FULL FLOATING CAB(W16) M10X25 FLANGE	0-28651-025-0	08	1	1504-
195	NUT; BRKT FIX FULL FLOATING CAB(W16) M10 FLANGE	0-91180-210-0	04	1	1504-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	1504-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1504-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1504-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (B)	1-53458-343-0	01	1	1504-
240	WASHER; PL,BRKT FULL FLOATING CAB(W16) ID=12.5 OD=22	0-91610-512-0	02	1	1504-
243	WASHER; LK,LATERAL ROD FULL FLOATING CAB(W16) ID=12.2	0-91510-512-0	02	1	1504-
244	NUT; LATERAL ROD FULL FLOATING CAB(W16) M12	0-91110-512-0	02	1	1504-
274	PIN FULL FLOATING CAB(W16)	1-53458-996-0	01	1	1504-
291	BOLT; RATCH FULL FLOATING CAB(W16) M10X25 FLANGE	0-28651-025-0	04	1	1504-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1504-
295	BOLT; STOPPER,UPR FULL FLOATING CAB(W16) M10X20 FLANGE	0-28651-020-0	02	1	1504-
296	STOPPER; UPR FULL FLOATING CAB(W16)	1-53458-973-1	01	1	1504-
297	BRACKET; LIMIT SW FULL FLOATING CAB(W16)	1-53458-782-0	01	1	1504-
298	BOLT; BRKT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	01	1	1504-
299	RUBBER; MTG FULL FLOATING CAB(W16) (B)	1-53366-155-0	02	1	1504-
299	RUBBER; MTG FULL FLOATING CAB(W16) (A)	1-53366-194-0	02	1	1504-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28050-816-0	04	1	1504-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1504-
301	PIN; LATERAL ROD FULL FLOATING CAB(W16) M12X57.5	1-53459-498-1	02	1	1504-
309	NUT FULL FLOATING CAB(W16) M10 FLANGE	0-91180-210-0	04	1	1504-
321	SHIM; FRT CAB MTG FULL FLOATING CAB(W16)	1-53458-629-1	04	1	1504-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	1504-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1504-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1504-
449	BRACKET; OUTRIGGER FULL FLOATING CAB(W16)	1-53456-279-0	01	1	1504-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
