5-01 — FRAME AND OTHER PARTS (#160101) — 90 parça

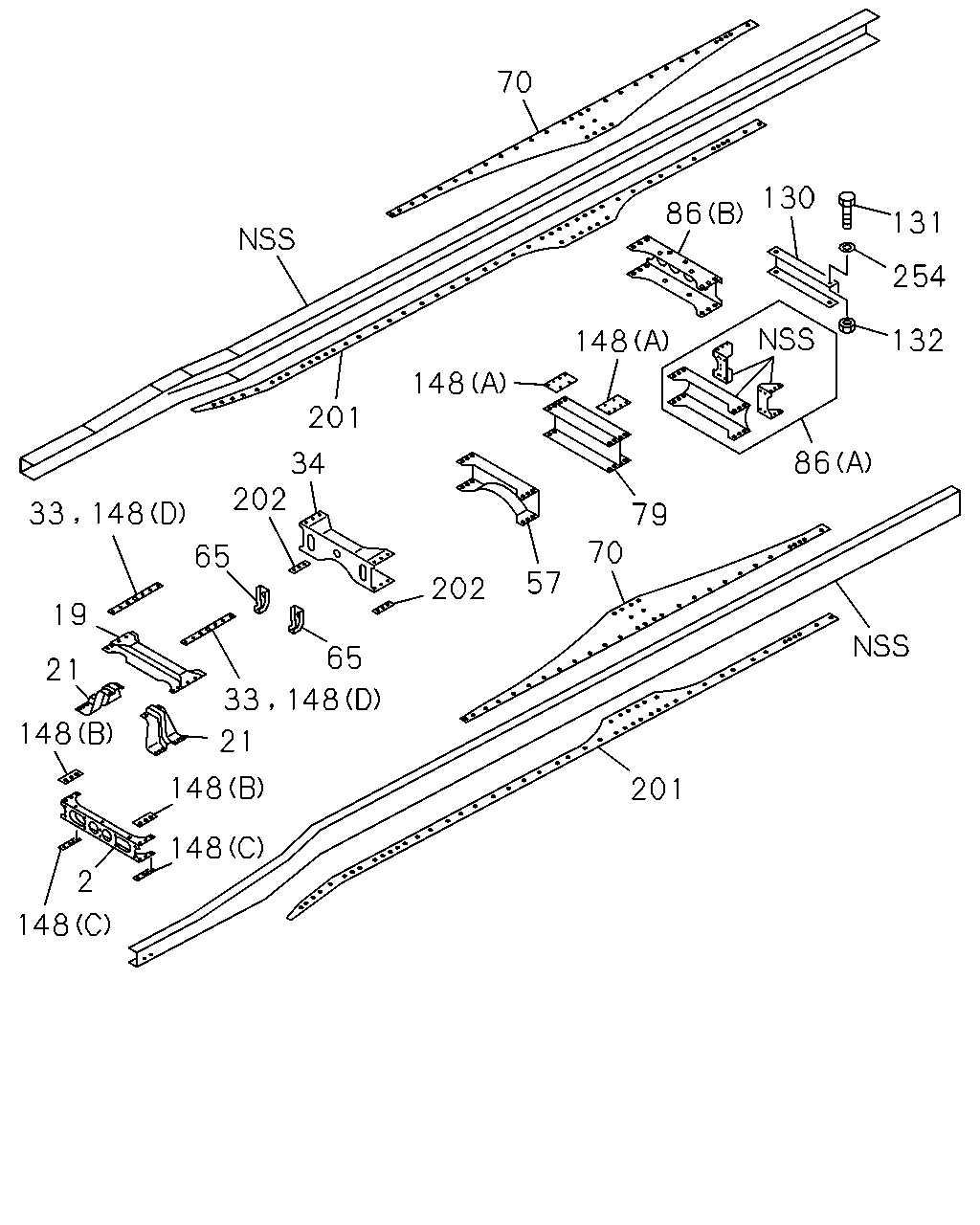

70 201 148 148 86 130 131 254 132 79 70 57 202 65 202 34 148 33 19 21 148 33 65 148 148 21 148 2 148 201 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-98232-274-1	01	1	1504-
19	MEMBER; CROSS,2ND FULL TRACTOR TRUCK<RD6>	8-98098-303-0	01	1	1504-
19	MEMBER; CROSS,2ND EXC. FULL TRACTOR TRUCK<RD6>	8-98098-302-0	01	1	1504-
21	GUSSET; 2ND CROSS FULL TRACTOR TRUCK<RD6>	8-98098-306-0	02	1	1504-
21	GUSSET; 2ND CROSS EXC. FULL TRACTOR TRUCK<RD6>	8-98098-309-0	02	1	1504-
33	SPACER; 2ND C/MBR,UPR FULL TRACTOR TRUCK<RD6>	8-98226-916-0	02	1	1504-
34	MEMBER; CROSS,3RD FULL TRACTOR TRUCK<RD6>	8-98191-627-0	01	1	1504-
34	MEMBER; CROSS,3RD EXC. FULL TRACTOR TRUCK<RD6>	8-98154-174-1	01	1	1504-
57	MEMBER; CROSS,RR SUSP FRT FULL TRACTOR TRUCK<RD6>	8-98100-869-0	01	1	1504-
57	MEMBER; CROSS,RR SUSP FRT EXC. FULL TRACTOR TRUCK<RD6>	8-98101-103-0	01	1	1504-
65	BRACKET; CENTER BRG FULL TRACTOR TRUCK<RD6>	8-97614-134-0	02	1	1504-
65	BRACKET; CENTER BRG EXC. FULL TRACTOR TRUCK<RD6>	8-97614-139-0	02	1	1504-
70	GUSSET; TRUNNION,UPR FULL TRACTOR TRUCK<RD6>	8-98191-623-0	02	1	1504-
70	GUSSET; TRUNNION,UPR EXC. FULL TRACTOR TRUCK<RD6>	8-98226-956-0	02	1	1504-
79	MEMBER; CROSS,TRUNNION ASM FULL TRACTOR TRUCK<RD6>	8-98191-629-0	01	1	1504-
79	MEMBER; CROSS,TRUNNION ASM EXC. FULL TRACTOR TRUCK<RD6>	8-98224-537-0	01	1	1504-
86	MEMBER; CROSS,RR SUSP RR FULL TRACTOR TRUCK<RD6> (B)	8-98105-054-1	01	1	1504-
86	MEMBER; CROSS,RR SUSP RR EXC. FULL TRACTOR TRUCK<RD6> (A)	8-98224-542-0	01	1	1504-
130	MEMBER; CROSS,END FULL TRACTOR TRUCK<RD6>	8-98105-203-0	01	1	1504-
130	MEMBER; CROSS,END EXC. FULL TRACTOR TRUCK<RD6>	8-98103-326-1	01	1	1504-
131	BOLT; END C/MBR EXC. FULL TRACTOR TRUCK<RD6> M14X40	0-20951-440-0	04	1	1504-
132	NUT; END C/MBR EXC. FULL TRACTOR TRUCK<RD6> M14	0-91110-514-0	04	1	1504-
148	SPACER; C/MBR (B)	8-98118-884-2	02	1	1504-
148	SPACER; C/MBR (C)	8-98118-885-0	02	1	1504-
148	SPACER; C/MBR FULL TRACTOR TRUCK<RD6> (A)	8-97623-189-0	02	1	1504-
148	SPACER; C/MBR EXC. FULL TRACTOR TRUCK<RD6> (D)	8-98098-110-0	02	1	1504-
201	GUSSET; C/MBR FULL TRACTOR TRUCK<RD6>	8-98236-964-0	02	1	1504-
201	GUSSET; C/MBR EXC. FULL TRACTOR TRUCK<RD6>	8-98226-964-0	02	1	1504-
202	SPACER; 3RD C/MBR EXC. FULL TRACTOR TRUCK<RD6>	8-98226-911-0	02	1	1504-
254	WASHER; PL,C/MBR EXC. FULL TRACTOR TRUCK<RD6> ID=15	8-98010-627-1	04	1	1504-

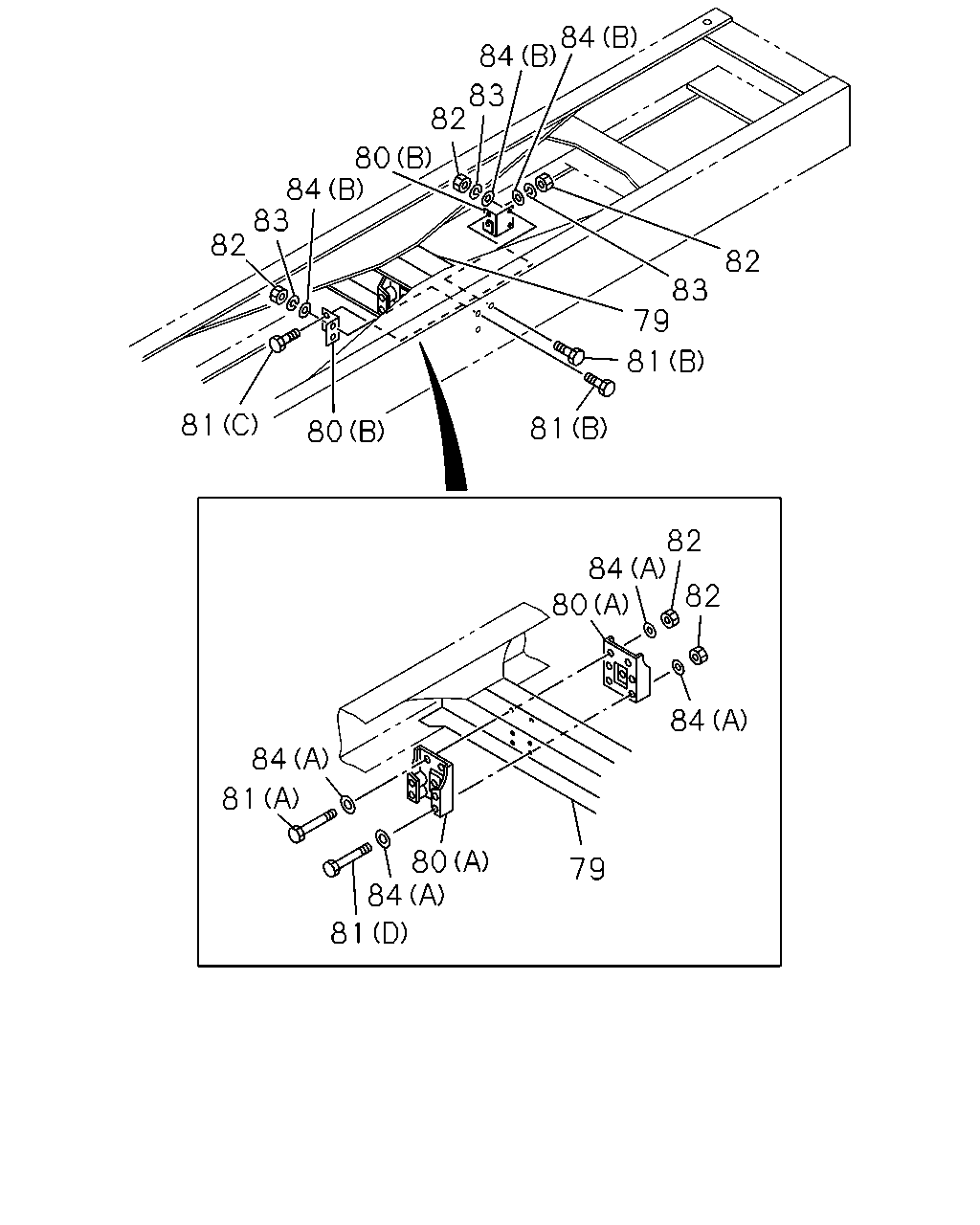

84 84 83 82 80 84 83 82 81 80 81 81 79 83 82 82 82 84 84 80 79 80 84 81 84 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	MEMBER; CROSS,TRUNNION ASM FULL TRACTOR TRUCK<RD6>	8-98191-629-0	01	1	1504-
79	MEMBER; CROSS,TRUNNION ASM EXC. FULL TRACTOR TRUCK<RD6>	8-98224-537-0	01	1	1504-
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1504-
80	BRACKET; C/MBR FULL TRACTOR TRUCK<RD6> (B)	1-53167-610-0	04	1	1504-
80	BRACKET; C/MBR EXC. FULL TRACTOR TRUCK<RD6> (B)	1-53167-665-1	02	1	1504-
80	BRACKET; C/MBR EXC. FULL TRACTOR TRUCK<RD6> (B)	1-53167-666-1	02	1	1504-
81	BOLT; BRKT (A) M14X50	0-20951-450-0	07	1	1504-
81	BOLT; BRKT (C) M14X60	0-20951-460-0	04	1	1504-
81	BOLT; BRKT (D) M14X205	1-09000-147-0	02	1	1504-
81	BOLT; BRKT FULL TRACTOR TRUCK<RD6> (B) M14X40	0-20951-440-0	08	1	1504-
81	BOLT; BRKT EXC. FULL TRACTOR TRUCK<RD6> (B) M14X45	1-09000-764-0	08	1	1504-
82	NUT; BRKT M14	0-91110-514-0	12	1	1504-
82	NUT; BRKT M14	0-91110-514-0	13	1	1504-
83	WASHER; LK,BRKT FULL TRACTOR TRUCK<RD6> ID=14.2	0-91510-814-0	12	1	1504-
83	WASHER; LK,BRKT EXC. FULL TRACTOR TRUCK<RD6> ID=14.2	0-91510-614-0	12	1	1504-
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1504-
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1504-

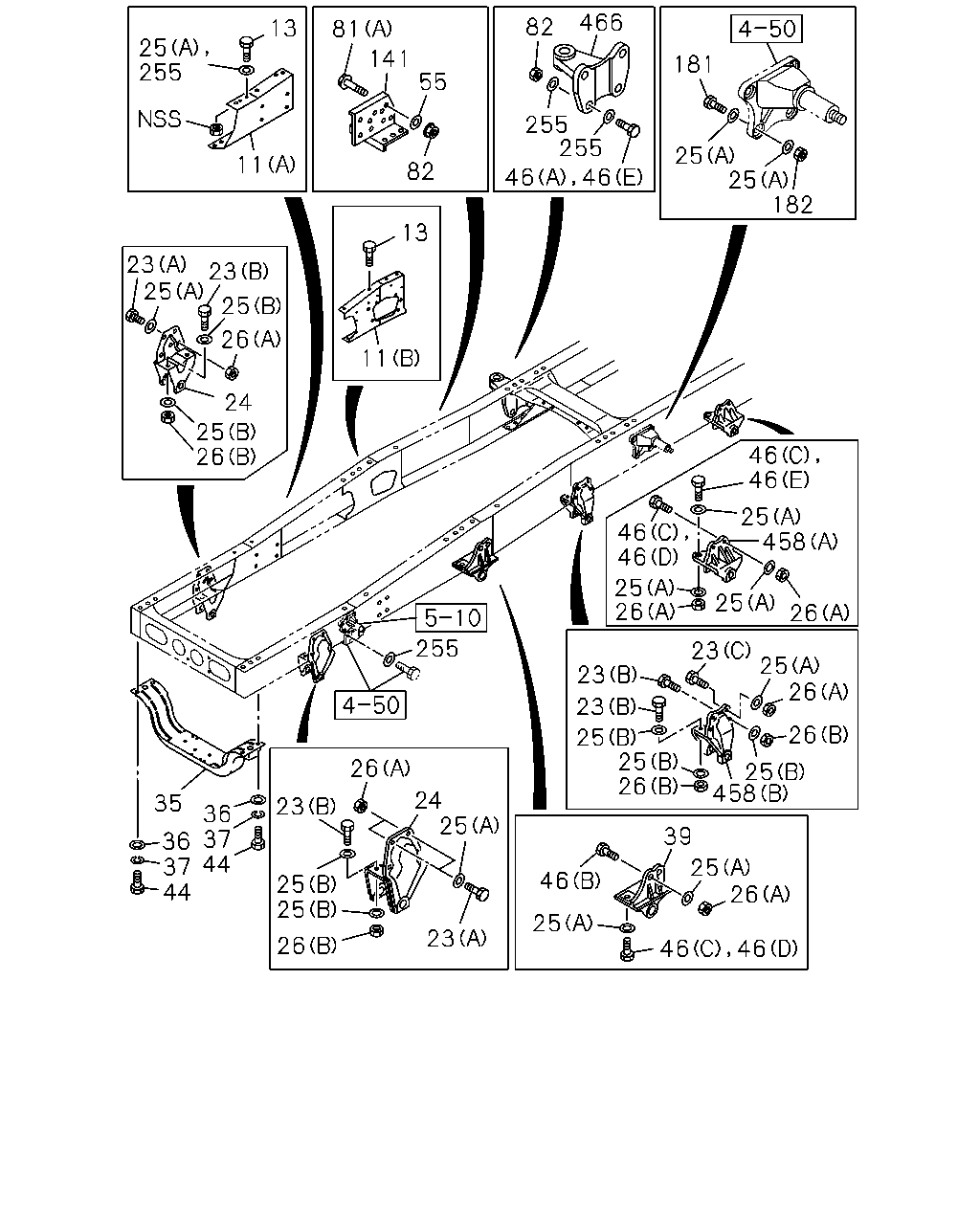

13 81 55 141 82 13 11 255 255 46 46 466 82 181 25 25 182 46 46 25 458 25 26 46 46 25 26 255 26 24 23 36 37 44 37 44 36 35 26 25 24 26 25 23 23 25 255 25 25 23 46 25 39 25 26 46 46 25 25 26 11 23 25 26 26 25 458 26 25 25 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	1504-
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	1504-
11	BRACKET; ENG MTG FULL TRACTOR TRUCK<RD6> (B)	8-98056-612-0	01	1	1504-
11	BRACKET; ENG MTG FULL TRACTOR TRUCK<RD6> (B)	8-98268-607-0	01	1	1504-
11	BRACKET; ENG MTG EXC. FULL TRACTOR TRUCK<RD6> (B)	1-53221-227-4	01	1	1504-
11	BRACKET; ENG MTG EXC. FULL TRACTOR TRUCK<RD6> (B)	8-98273-528-0	01	1	1504-
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	1504-
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	08	1	1504-
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	04	1	1504-
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	1504-
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1504-
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1504-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	20	1	1504-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	48	1	1504-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	1504-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	1504-
35	MEMBER; UNDER	8-98242-237-0	01	1	1504-
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1504-
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1504-
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1504-
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1504-
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1504-
46	BOLT; BRKT FIX (B) M14X40	0-20951-440-0	04	1	1504-
46	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (C) M14X50	0-20951-450-0	12	1	1504-
46	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M14X60	0-20951-460-0	04	1	1504-
46	BOLT; BRKT FIX EXC. FULL TRACTOR TRUCK<RD6> (D) M14X50	0-20951-450-0	08	1	1504-
46	BOLT; BRKT FIX EXC. FULL TRACTOR TRUCK<RD6> (E) M14X60	0-20951-460-0	08	1	1504-
55	WASHER; PL ID=15	8-98010-627-1	10	1	1504-
81	BOLT; BRKT (A) M14X50	0-20951-450-0	07	1	1504-
81	BOLT; BRKT (C) M14X60	0-20951-460-0	04	1	1504-
81	BOLT; BRKT (D) M14X205	1-09000-147-0	02	1	1504-
81	BOLT; BRKT FULL TRACTOR TRUCK<RD6> (B) M14X40	0-20951-440-0	08	1	1504-
81	BOLT; BRKT EXC. FULL TRACTOR TRUCK<RD6> (B) M14X45	1-09000-764-0	08	1	1504-
82	NUT; BRKT M14	0-91110-514-0	12	1	1504-
82	NUT; BRKT M14	0-91110-514-0	13	1	1504-
141	STIFFENER	8-98100-160-0	01	1	1504-
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	1504-
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	1504-
255	WASHER; PL,BRKT ID=15	8-98010-627-1	20	1	1504-
458	BRACKET; LEAF SPRING (B)	1-53351-217-0	01	1	1504-
458	BRACKET; LEAF SPRING (B)	1-53351-218-0	01	1	1504-
458	BRACKET; LEAF SPRING (A)	1-53352-067-3	02	1	1504-
466	BRACKET; BOOSTER	1-44515-073-0	01	1	1504-
