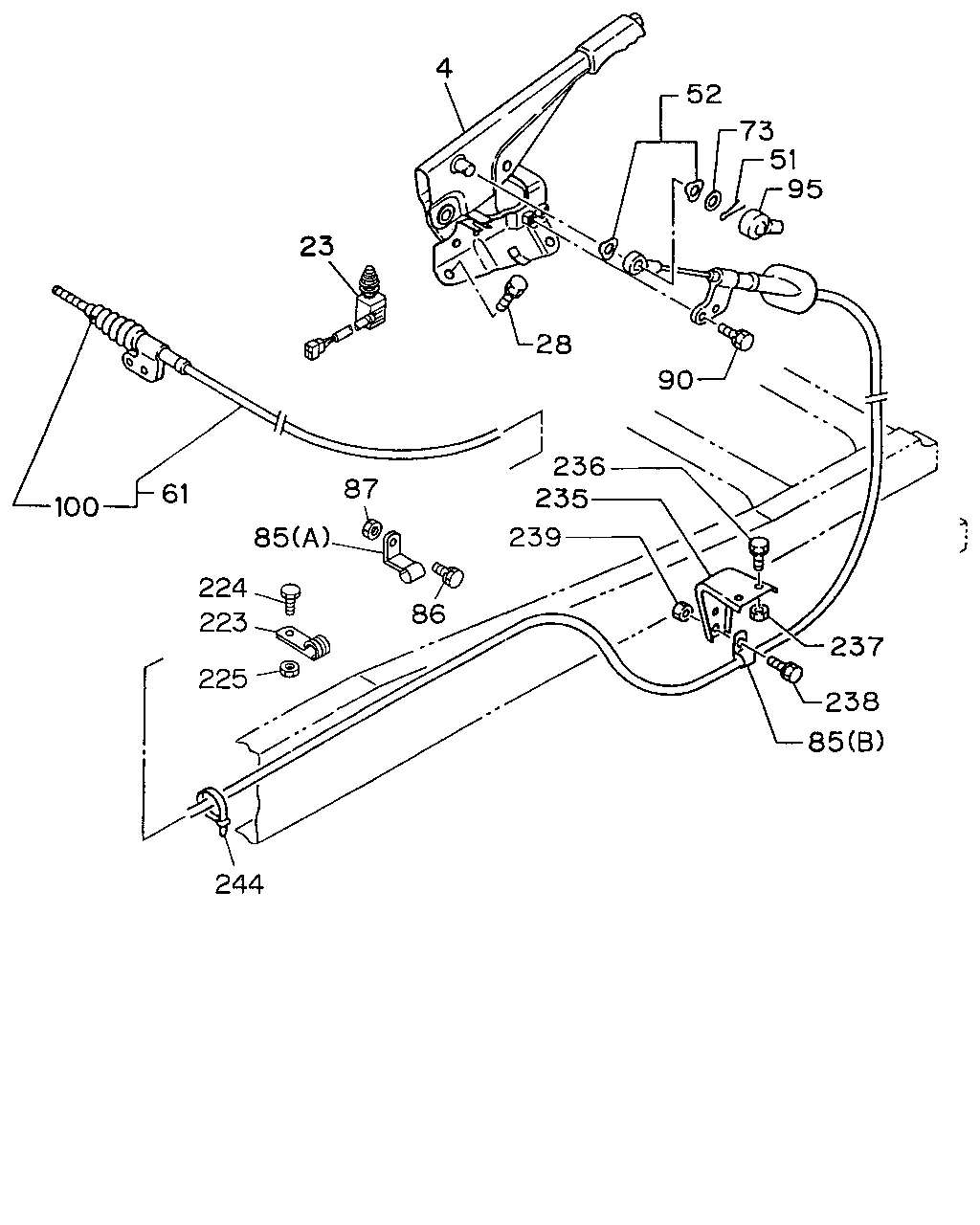

3-11 — PARKING BRAKE CONTROL (#1601) — 92 parça

46 45 307 85 86 87 324 89 46 45 97 298 299 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING(B3A) (B) M6X16	1-09980-492-0	01	1	9207-	●	●	●	●	●
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING(B3A) (A) M8X16	1-09980-498-0	01	1	9207-	●	●	●	●	●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING(B3A) (A) ID=13.0	9-09525-276-0	01	1	9207-	●	●	●	●	●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING(B3A) (B) ID=15.5	9-09916-962-0	01	1	9207-9302	●	●	●	●	●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING(B3A) (B) ID=16.0	9-09527-015-0	01	1	9303-	●	●	●	●	●
67	PLUG; UNDER FRAME EXC. REAR WHEEL PARKING(B3A) D4.7X11	1-76378-154-0	04	1	9207-	●	●	●	●	●
67	PLUG; UNDER FRAME REAR WHEEL PARKING(B3A) D4.7X11	1-76378-154-0	02	1	9207-		●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (B) W/NUT	1-09700-895-0	01	1	9207-	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (A) ID=12.0	1-09700-605-0	01	1	9207-	●	●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=14.5 L=20	1-09701-012-0	02	1	9207-9302	●	●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=14.5 L=40	1-09701-014-0	01	1	9207-9302	●	●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=14.5 L=40	1-09701-014-0	03	1	9303-	●	●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=14.5 L=20	1-09701-012-0	01	1	9207-			●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=13.0	9-09525-236-0	01	1	9207-			●	●	●
86	BOLT EXC. REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9207-	●	●	●	●	●
86	BOLT EXC. REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9207-			●	●	●
86	BOLT EXC. REAR WHEEL PARKING(B3A) M8X30 FLANGE	0-28080-830-0	03	1	9207-	●	●	●	●	●
87	NUT EXC. REAR WHEEL PARKING(B3A) M8	9-09110-408-0	04	1	9207-	●	●	●	●	●
89	BRACKET; CLIP EXC. REAR WHEEL PARKING(B3A)	1-34656-009-0	01	1	9207-	●	●	●	●	●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING(B3A)	1-09983-078-0	02	1	9207-		●	●	●	●
298	GROMMET; RR,AIR PIPE EXC. REAR WHEEL PARKING(B3A) OD=32 T=5	5-09983-018-0	01	1	9207-	●	●	●	●	●
299	PLUG; RR PARTS EXC. REAR WHEEL PARKING(B3A) D4.7X11	1-76378-154-0	05	1	9207-	●	●	●	●	●
307	BOLT; BRKT,PARKING BRK CABLE M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9207-	●	●	●	●	●
324	BRACKET	1-79998-367-2	01	1	9207-	●	●	●	●	●

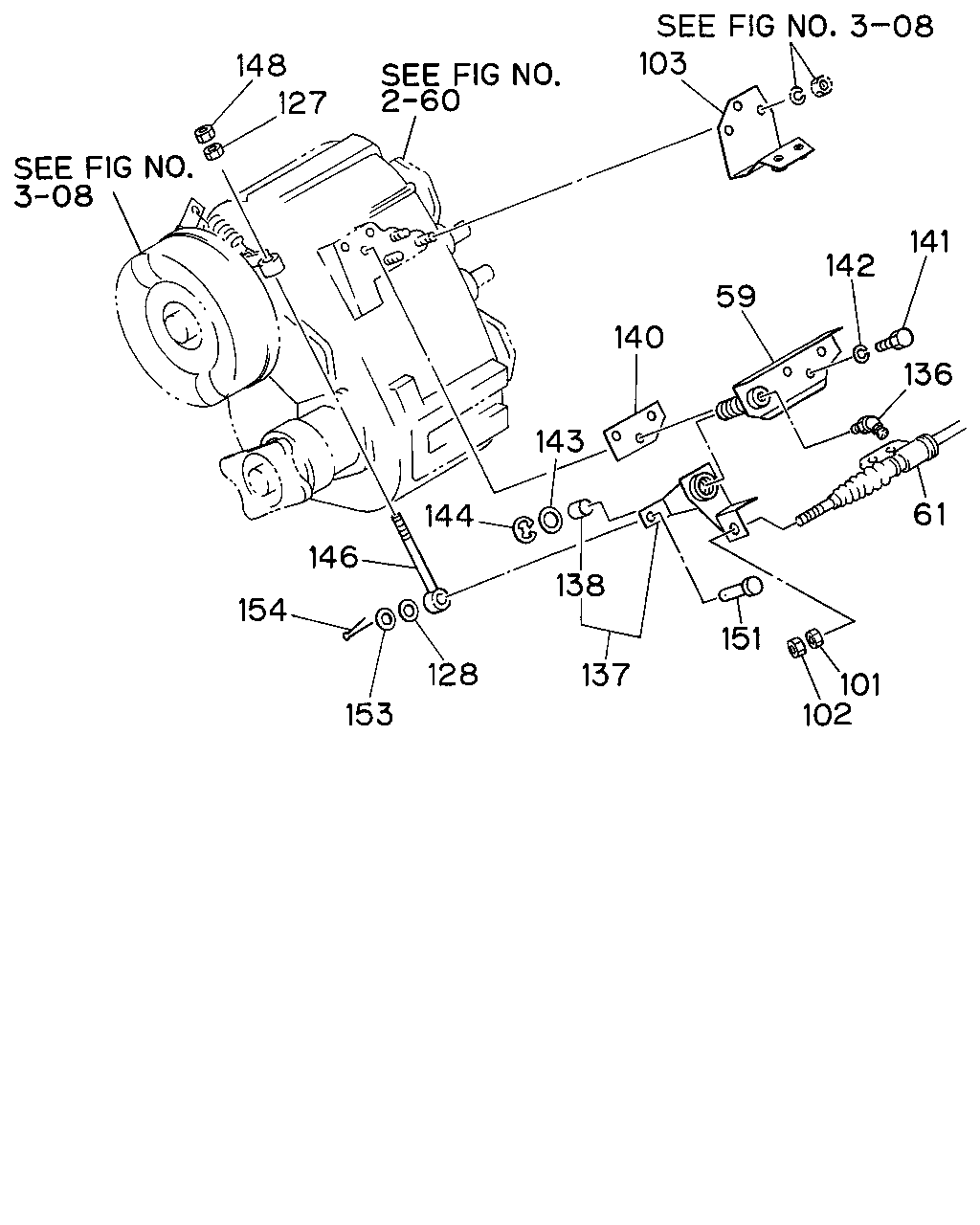

148 127 103 59 142 141 140 143 144 146 154 153 128 138 137 151 61 102 101 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
59	BRACKET; RELAY LEVER EXC. REAR WHEEL PARKING(B3A)	1-46276-030-1	01	1	9207-	●	●	●	●	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING(B3A) L=4800	1-46151-473-2	01	1	9207-9412	●	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING(B3A) L=4475	1-79907-023-0	01	1	9501-	●	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING(B3A),TRANSMISSION FRONTPTO<RC2> L=4525	1-46151-474-2	01	1	9207-9412			●	●	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING(B3A),TRANSMISSION FRONTPTO<RC2> L=4525	1-79907-024-0	01	1	9501-			●	●	●
61	CABLE; PARKING BRK TRANSMISSION FRONT PTO<RC2> EXC. REAR WHEEL PARKING(B3A) L=4575	1-46151-475-2	01	1	9207-9412				●	●
61	CABLE; PARKING BRK TRANSMISSION FRONT PTO<RC2> EXC. REAR WHEEL PARKING(B3A) L=4725	1-79907-025-0	01	1	9501-				●	●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING(B3A) M8 FLANGE	9-46259-016-0	01	1	9207-	●	●	●	●	●
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING(B3A) M8	9-09110-408-0	01	1	9207-	●	●	●	●	●
103	BRACKET; PARKING BRK CONT EXC. REAR WHEEL PARKING(B3A)	1-46147-052-1	01	1	9207-	●	●	●	●	●
127	NUT; LINK EXC. REAR WHEEL PARKING(B3A)	1-09445-001-0	01	1	9207-	●	●	●	●	●
128	WASHER; PL,LINK EXC. REAR WHEEL PARKING(B3A) ID=10.5 OD=18	9-09160-510-0	01	1	9207-	●	●	●	●	●
136	NIPPLE; GREASE EXC. REAR WHEEL PARKING(B3A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9207-	●	●	●	●	●
137	LEVER ASM; W/BUSHING EXC. REAR WHEEL PARKING(B3A)	1-46140-098-1	01	1	9207-	●	●	●	●	●
138	BUSHING; LEVER EXC. REAR WHEEL PARKING(B3A)	1-46149-003-0	01	1	9207-	●	●	●	●	●
140	PLATE; DIST PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-46149-016-0	01	1	9207-	●	●	●	●	●
141	BOLT; BRKT,RELAY LEVER EXC. REAR WHEEL PARKING(B3A) M12X38	0-23801-238-0	03	1	9207-	●	●	●	●	●
142	WASHER; LK,BRKT,RELAY LEVER EXC. REAR WHEEL PARKING(B3A) ID=12.2	9-09150-512-0	03	1	9207-	●	●	●	●	●
143	WASHER; PL,BRKT,RELAY LEVER EXC. REAR WHEEL PARKING(B3A) ID=19	9-09160-518-0	01	1	9207-	●	●	●	●	●
144	RING; SNAP,E TYPE,BRKT EXC. REAR WHEEL PARKING(B3A) ID=15	9-09185-015-0	01	1	9207-	●	●	●	●	●
146	ROD; LINK,PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-46142-048-0	01	1	9207-	●	●	●	●	●
148	NUT; LK,LINK EXC. REAR WHEEL PARKING(B3A) M10	9-09110-410-0	01	1	9207-	●	●	●	●	●
151	PIN; LINK TO LEVER EXC. REAR WHEEL PARKING(B3A) OD=10 L=31	9-08234-031-0	01	1	9207-	●	●	●	●	●
153	WASHER; WAVE,LINK EXC. REAR WHEEL PARKING(B3A)	9-09855-192-0	01	1	9207-	●	●	●	●	●
154	PIN; SPLIT,LINK EXC. REAR WHEEL PARKING(B3A) OD=2.8 L=18	9-08113-018-0	01	1	9207-	●	●	●	●	●

100 61 87 85 224 223 225 244 86 239 235 236 90 28 237 238 85 23 4 52 73 51 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	STEM; PARKING BRK	1-79998-716-1	01	1	9207-9305	●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3)	1-79998-716-1	01	1	9207-9305		●	●	●	●
4	STEM; PARKING BRK	1-46120-061-5	01	1	9306-	●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3)	1-46120-061-5	01	1	9306-		●	●	●	●
4	STEM; PARKING BRK AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A)	1-79998-717-1	01	1	9207-9305		●		●	●
4	STEM; PARKING BRK AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A)	1-46120-068-5	01	1	9306-		●		●	●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING(B3A) CONNECTOR 6PIN	1-82440-028-0	02	1	9207-9305	●	●	●	●	●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING(B3A) CONNECTOR 6PIN	1-82440-028-0	01	1	9306-	●	●	●	●	●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9207-	●	●	●	●	●
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING(B3A) OD=3.7 L=28	9-08114-028-0	01	1	9207-	●	●	●	●	●
52	WASHER; CURVED RELAY LEVER EXC. REAR WHEEL PARKING(B3A) ID=19	8-94206-429-1	02	1	9207-	●	●	●	●	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING(B3A) L=4800	1-46151-473-2	01	1	9207-9412	●	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING(B3A) L=4475	1-79907-023-0	01	1	9501-	●	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING(B3A),TRANSMISSION FRONTPTO<RC2> L=4525	1-46151-474-2	01	1	9207-9412			●	●	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING(B3A),TRANSMISSION FRONTPTO<RC2> L=4525	1-79907-024-0	01	1	9501-			●	●	●
61	CABLE; PARKING BRK TRANSMISSION FRONT PTO<RC2> EXC. REAR WHEEL PARKING(B3A) L=4575	1-46151-475-2	01	1	9207-9412				●	●
61	CABLE; PARKING BRK TRANSMISSION FRONT PTO<RC2> EXC. REAR WHEEL PARKING(B3A) L=4725	1-79907-025-0	01	1	9501-				●	●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING(B3A) ID=17	9-09160-516-0	01	1	9207-	●	●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (B) W/NUT	1-09700-895-0	01	1	9207-	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (A) ID=12.0	1-09700-605-0	01	1	9207-	●	●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=14.5 L=20	1-09701-012-0	02	1	9207-9302	●	●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=14.5 L=40	1-09701-014-0	01	1	9207-9302	●	●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=14.5 L=40	1-09701-014-0	03	1	9303-	●	●	●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=14.5 L=20	1-09701-012-0	01	1	9207-			●	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING(B3A) (C) ID=13.0	9-09525-236-0	01	1	9207-			●	●	●
86	BOLT EXC. REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9207-	●	●	●	●	●
86	BOLT EXC. REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9207-			●	●	●
86	BOLT EXC. REAR WHEEL PARKING(B3A) M8X30 FLANGE	0-28080-830-0	03	1	9207-	●	●	●	●	●
87	NUT EXC. REAR WHEEL PARKING(B3A) M8	9-09110-408-0	04	1	9207-	●	●	●	●	●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9207-	●	●	●	●	●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING(B3A) M10X30 W/LK WASHER	0-50041-030-0	02	1	9207-	●	●	●	●	●
95	CAP; CABLE,PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-79997-140-2	01	1	9207-	●	●	●	●	●
100	BELLOWS; CONT WIRE EXC. REAR WHEEL PARKING(B3A)	1-46159-004-0	01	1	9207-	●	●	●	●	●
223	CLIP; PARKING BRK CABLE EXC. REAR WHEEL PARKING(B3A) ID=14.5 L=28	1-09701-013-0	01	1	9207-	●	●	●	●	●
224	BOLT; CABLE CLIP EXC. REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9207-	●	●	●	●	●
225	NUT; CABLE CLIP EXC. REAR WHEEL PARKING(B3A) M8	9-09110-408-0	01	1	9207-	●	●	●	●	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING(B3A)	1-46147-133-1	01	1	9207-	●	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING(B3A)	1-46147-135-1	01	1	9207-			●	●	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9207-	●	●	●	●	●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING(B3A) M8	9-09110-408-0	03	1	9207-	●	●	●	●	●
238	BOLT; CLIP TO BRKT EXC. REAR WHEEL PARKING(B3A) M8X20 FLANGE	0-28080-820-0	01	1	9207-	●	●	●	●	●
239	NUT; CLIP TO BRKT EXC. REAR WHEEL PARKING(B3A) M8	9-09110-408-0	01	1	9207-	●	●	●	●	●
244	CLIP; BAND EXC. REAR WHEEL PARKING(B3A) L=140	5-09707-031-1	01	1	9207-	●	●	●	●	●
