8-80 — WINDSHIELD WIPER AND WASHER (#16009) — 50 parça

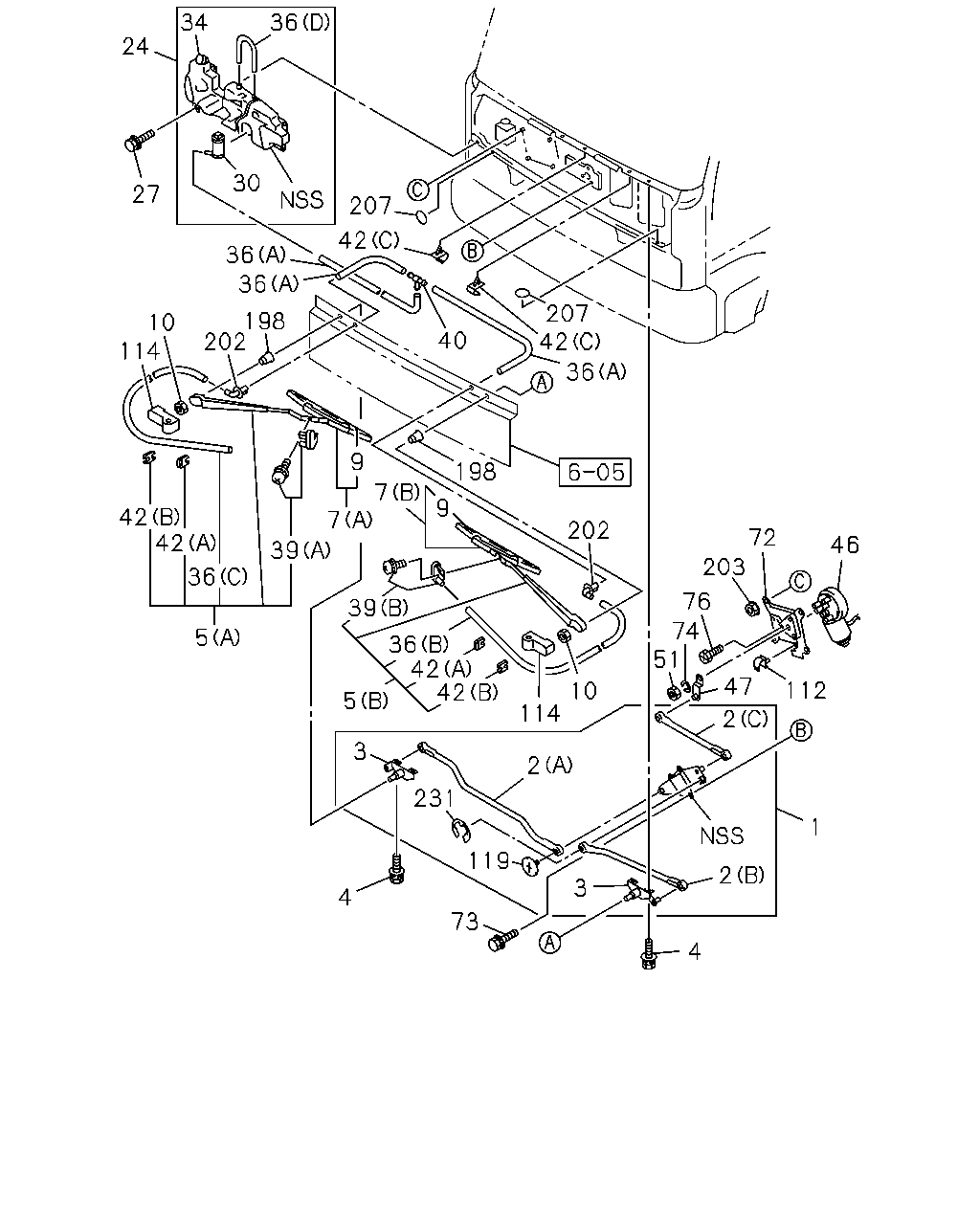

çizim 102684
34 36 24 30 27 207 42 36 36 207 42 198 202 10 114 40 36 198 9 7 9 42 42 7 202 72 46 39 203 36 76 39 74 51 5 36 42 42 47 112 10 5 114 2 3 2 231 1 119 2 3 4 73 4
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83312-137-3 01 1 9706-
2 LINK; FRT WIPER
(B) 		1-83312-142-2 01 1 9706-
2 LINK; FRT WIPER
(A) 		1-83312-143-2 01 1 9706-
2 LINK; FRT WIPER
(C) 		1-86810-066-2 01 1 9706-
3 PIVOT ASM; FRT WIPER 1-86810-067-2 02 1 9706-
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 04 1 9706-0904
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 04 1 0905-
5 ARM; WIPER
(B) 		1-86810-143-0 01 1 9706-0205
5 ARM; WIPER
(B) 		1-83315-087-0 01 1 0206-
5 ARM; WIPER
(A) 		1-86810-142-0 01 1 9706-0205
5 ARM; WIPER
(A) 		1-83315-089-0 01 1 0206-
7 BLADE; WIPER
(A),(B) BEST VALUE PARTS 		5-87610-035-0 02 1 0202-
7 BLADE; WIPER
(B) 		1-83315-046-2 01 1 9706-
7 BLADE; WIPER
(A) 		1-83315-045-2 01 1 9706-
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 9706-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 9706-
24 TANK ASM; WASHER
MAL 		1-86815-013-7 01 1 9706-
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9706-
30 MOTOR ASM; FRT WASHER TANK
MAL 		1-86815-016-1 01 1 9706-
34 CAP; WASHER TANK
MAL 		1-86815-018-0 01 1 9706-
36 HOSE; WASHER
(D) L=260 MAL 		1-86815-019-0 01 1 9706-
36 HOSE; WASHER
(A) SERVICED BY L=10000 MAL 		8-94389-303-0 01 1 9706-
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 9706-
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 9706-0011
36 HOSE; WASHER
(C) L=670 		1-86810-147-0 01 1 0012-
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-041-0 01 1 9706-0205
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-086-0 01 1 0206-
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-040-0 01 1 9706-0205
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-085-0 01 1 0206-
40 JOINT; WASHER HOSE
3WAY MAL 		1-83338-005-0 01 1 9706-
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9706-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 9706-
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 9706-
46 MOTOR ASM; FRT WINDSHIELD WIPER
MAL 		1-86810-059-2 01 1 9706-
47 ARM; CRANK,WIPER MOTOR
MAL 		1-86810-060-0 01 1 9706-
51 NUT; WIPER MOTOR LINK
M8 MAL 		1-83319-012-0 01 1 9706-
72 BRACKET; WIPER MOTOR
MAL 		1-86810-056-0 01 1 9706-
73 BOLT
M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 03 1 9706-0904
73 BOLT
M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 03 1 0905-
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 MAL 		1-83319-011-0 01 1 9706-
76 SCREW; BRKT TO WIPER MOTOR
M6X14 W/WASHER 		1-86810-062-0 03 1 9706-9802
76 SCREW; BRKT TO WIPER MOTOR
MAL 		1-83319-043-0 03 1 9803-
112 CLIP; HARNESS,WIPER MOTOR
MAL 		1-86810-061-0 01 1 9706-
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 9706-
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9706-0805
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 9706-
202 GROMMET; WIPER 1-86815-003-2 02 1 9706-
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE MAL 		1-09985-340-0 04 1 9706-
207 SEAL; HOLE
OD=25 BLACK MAL 		1-76798-019-0 02 1 9706-
231 RING; STOPPER 8-98120-195-0 02 1 0806-
