Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#160084) — 248 parça

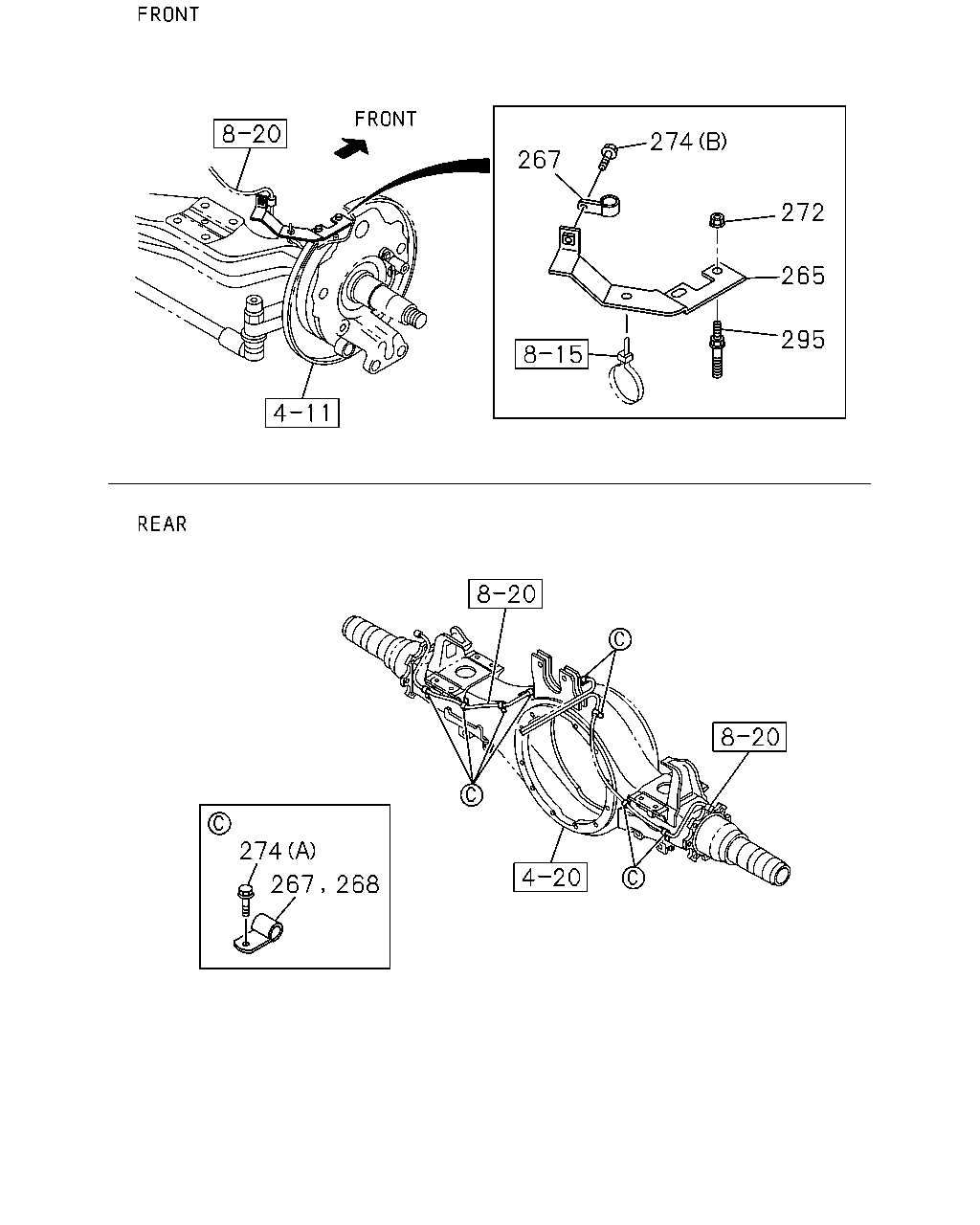

274 267 268 274 272 265 295 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1504-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1504-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1504-
267	CLIP; HARNESS REAR AXLE RT260<C2B> ID=11 L=20	0-95235-035-0	08	1	1504-
268	CLIP; HARNESS REAR AXLE RT210<C2A> ID=11 L=20	0-95235-035-0	08	1	1504-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1504-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	1504-
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1504-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1504-

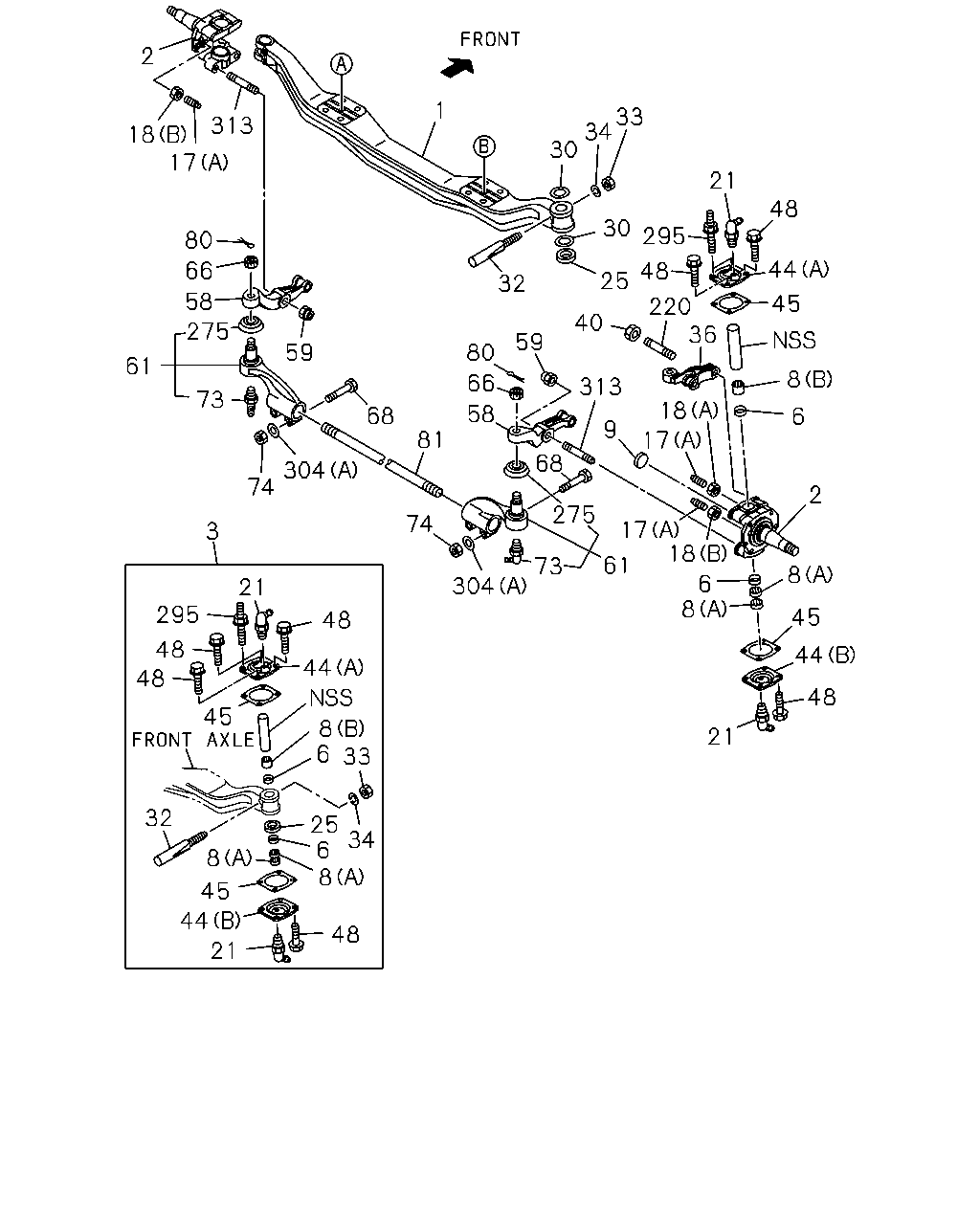

48 44 45 8 6 2 8 45 48 44 8 6 21 18 17 61 275 73 304 68 313 59 80 66 58 17 18 9 40 25 30 33 34 30 21 48 48 220 36 32 1 9 313 18 2 17 80 66 58 275 73 61 59 68 304 74 3 74 81 33 6 8 44 48 21 295 48 48 45 25 34 6 8 48 45 8 32 44 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-177-4	01	1	1504-
1	AXLE; FRT	1-43111-177-4	01	1	1504-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1504-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1504-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1504-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1504-
3	KING PIN SET	1-87831-349-2	02	1	1504-
3	KING PIN SET	1-87831-349-2	02	1	1504-
6	SEAL; KING PIN	9-09926-024-0	04	1	1504-
6	SEAL; KING PIN	9-09926-024-0	04	1	1504-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1504-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1504-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1504-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1504-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1504-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	02	1	1504-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1504-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1504-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1504-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1504-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1504-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1504-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1504-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1504-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1504-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1504-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1504-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1504-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1504-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1504-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1504-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1504-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1504-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1504-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1504-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1504-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1504-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1504-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1504-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1504-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1504-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1504-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1504-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1504-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1504-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	16	1	1504-
58	ARM; TIE ROD FORWARD	1-43134-049-4	01	1	1504-
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	1504-
58	ARM; TIE ROD FORWARD	1-43135-049-4	01	1	1504-
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	1504-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1504-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1504-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1504-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1504-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1504-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1504-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1504-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1504-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1504-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1504-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1504-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1504-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1504-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1504-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1504-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1504-
81	ROD; TIE	8-98105-064-0	01	1	1504-
81	ROD; TIE	8-98105-064-0	01	1	1504-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1504-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1504-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1504-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1504-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1504-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1504-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1504-
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1504-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1504-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1504-

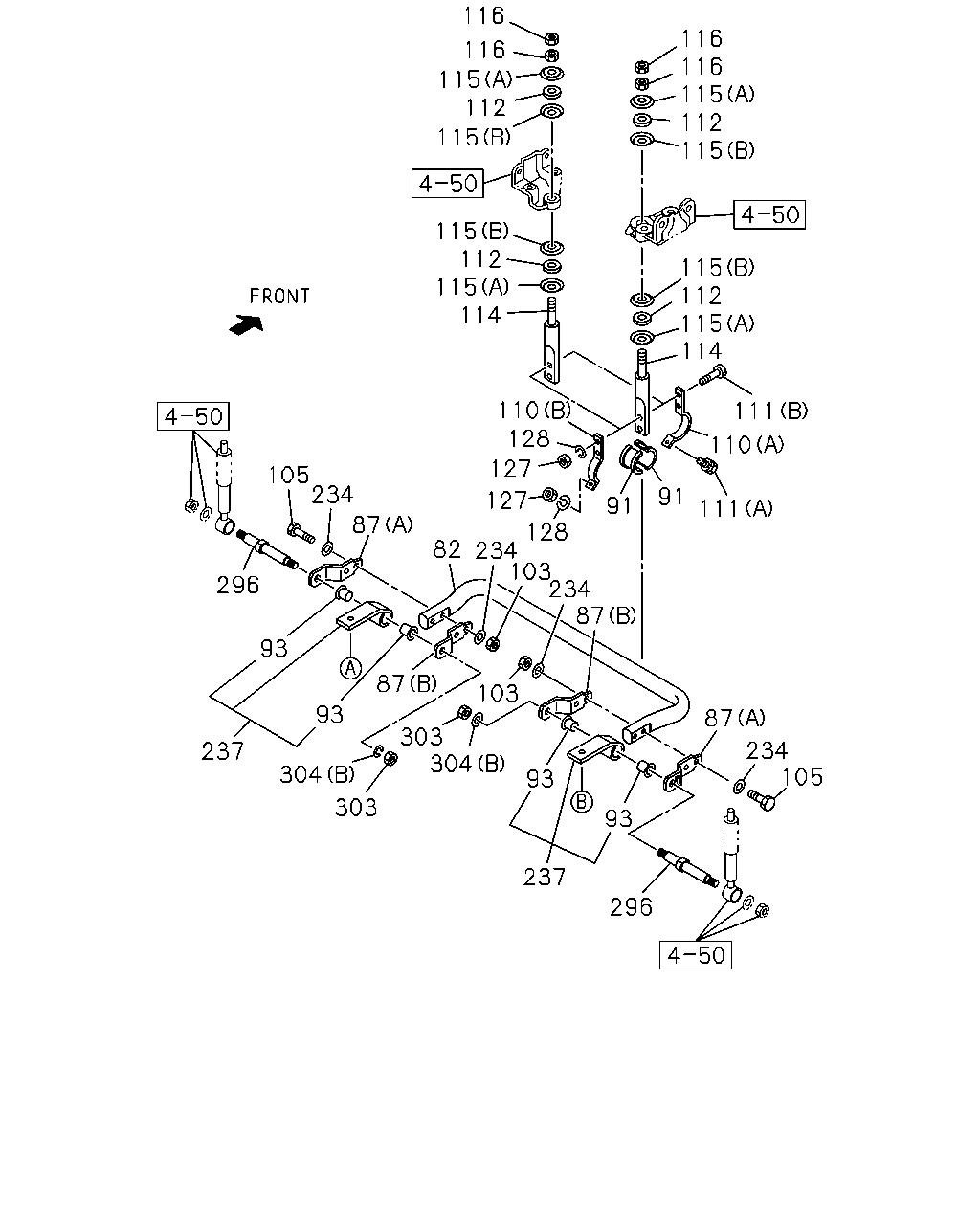

105 234 87 93 296 237 93 103 87 304 303 93 93 296 237 304 303 87 234 105 82 234 103 234 87 111 110 111 114 115 112 115 115 112 115 116 116 116 114 115 112 115 115 112 115 116 91 91 128 110 127 127 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP	1-51771-136-1	01	1	1504-
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1504-
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1504-
91	BUSHING; RUBBER,STAB BAR	1-51779-087-1	04	1	1504-
93	BUSHING; STABILIZER	1-51689-015-3	04	1	1504-
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	1504-
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	1504-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	1504-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	1504-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	1504-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	1504-
112	BUSHING; ROD	9-51631-039-0	04	1	1504-
114	ROD; STAB BAR	1-51773-083-2	02	1	1504-
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	1504-
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	1504-
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	1504-
127	NUT; CLAMP M12	0-91110-512-0	06	1	1504-
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1504-
234	WASHER; STAB ID=15	8-98010-627-1	08	1	1504-
237	SUPPORT; STAB BAR	1-51681-842-0	02	1	1504-
296	PIN; STAB	8-98022-874-1	02	1	1504-
303	NUT; PIN M20	0-91110-520-0	02	1	1504-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1504-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1504-
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1504-

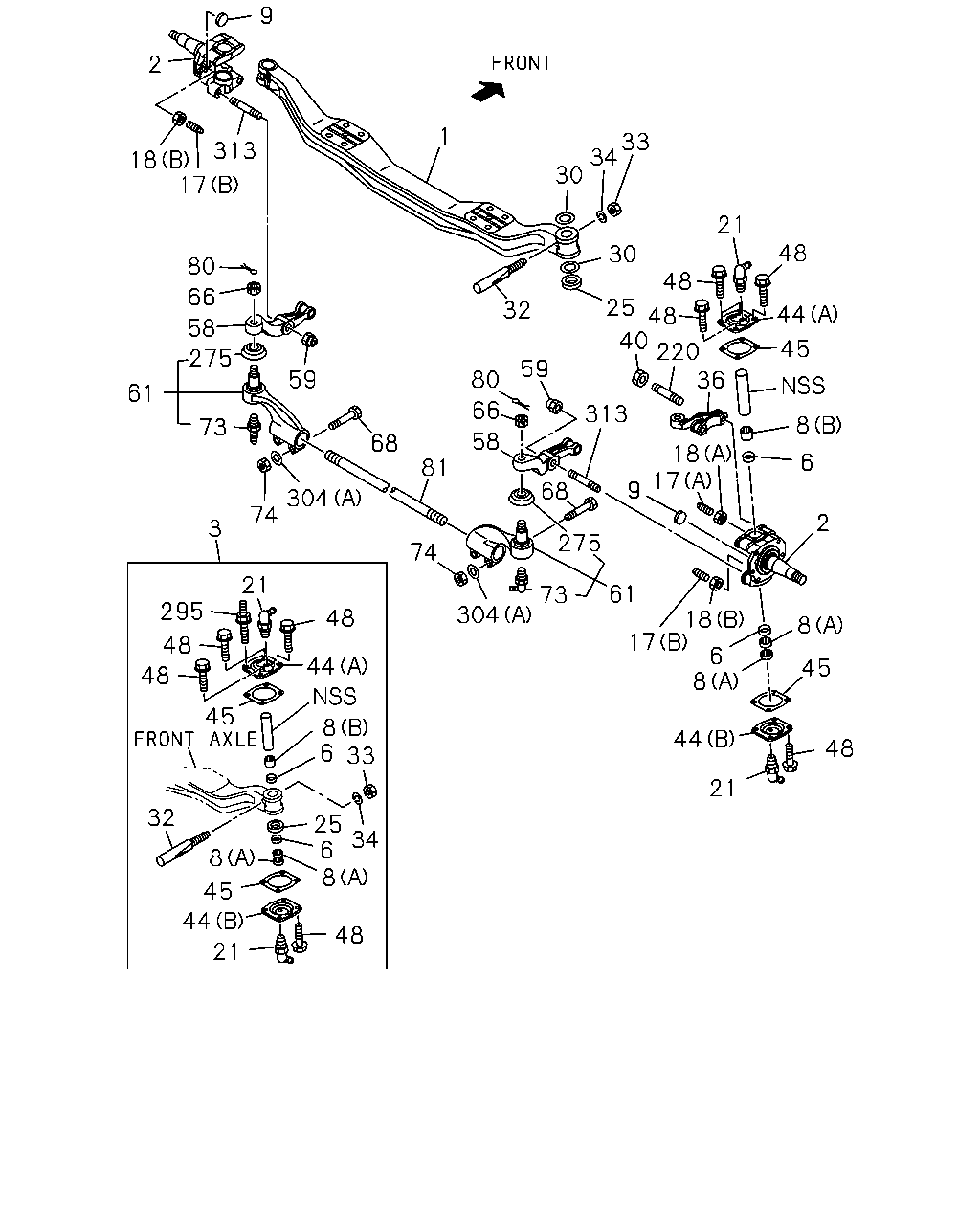

48 21 3 295 48 48 44 45 32 8 45 44 21 48 8 6 34 33 6 8 25 21 48 44 45 8 8 6 18 17 61 275 73 304 74 304 74 73 275 58 66 80 17 18 2 313 61 59 68 81 58 66 80 59 32 1 33 34 30 21 295 30 25 40 220 48 45 44 48 2 6 8 36 17 18 313 9 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-177-4	01	1	1504-
1	AXLE; FRT	1-43111-177-4	01	1	1504-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1504-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1504-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1504-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1504-
3	KING PIN SET	1-87831-349-2	02	1	1504-
3	KING PIN SET	1-87831-349-2	02	1	1504-
6	SEAL; KING PIN	9-09926-024-0	04	1	1504-
6	SEAL; KING PIN	9-09926-024-0	04	1	1504-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1504-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1504-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1504-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1504-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1504-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	02	1	1504-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1504-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1504-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1504-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1504-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1504-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1504-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1504-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1504-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1504-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1504-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1504-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1504-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1504-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1504-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1504-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1504-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1504-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1504-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1504-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1504-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1504-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1504-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1504-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1504-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1504-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1504-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1504-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1504-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1504-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1504-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	16	1	1504-
58	ARM; TIE ROD FORWARD	1-43134-049-4	01	1	1504-
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	1504-
58	ARM; TIE ROD FORWARD	1-43135-049-4	01	1	1504-
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	1504-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1504-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1504-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1504-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1504-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1504-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1504-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1504-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1504-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1504-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1504-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1504-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1504-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1504-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1504-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1504-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1504-
81	ROD; TIE	8-98105-064-0	01	1	1504-
81	ROD; TIE	8-98105-064-0	01	1	1504-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1504-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1504-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1504-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1504-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1504-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1504-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1504-
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1504-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1504-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1504-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
