◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11677 - CYH RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#160080) — 316 parça

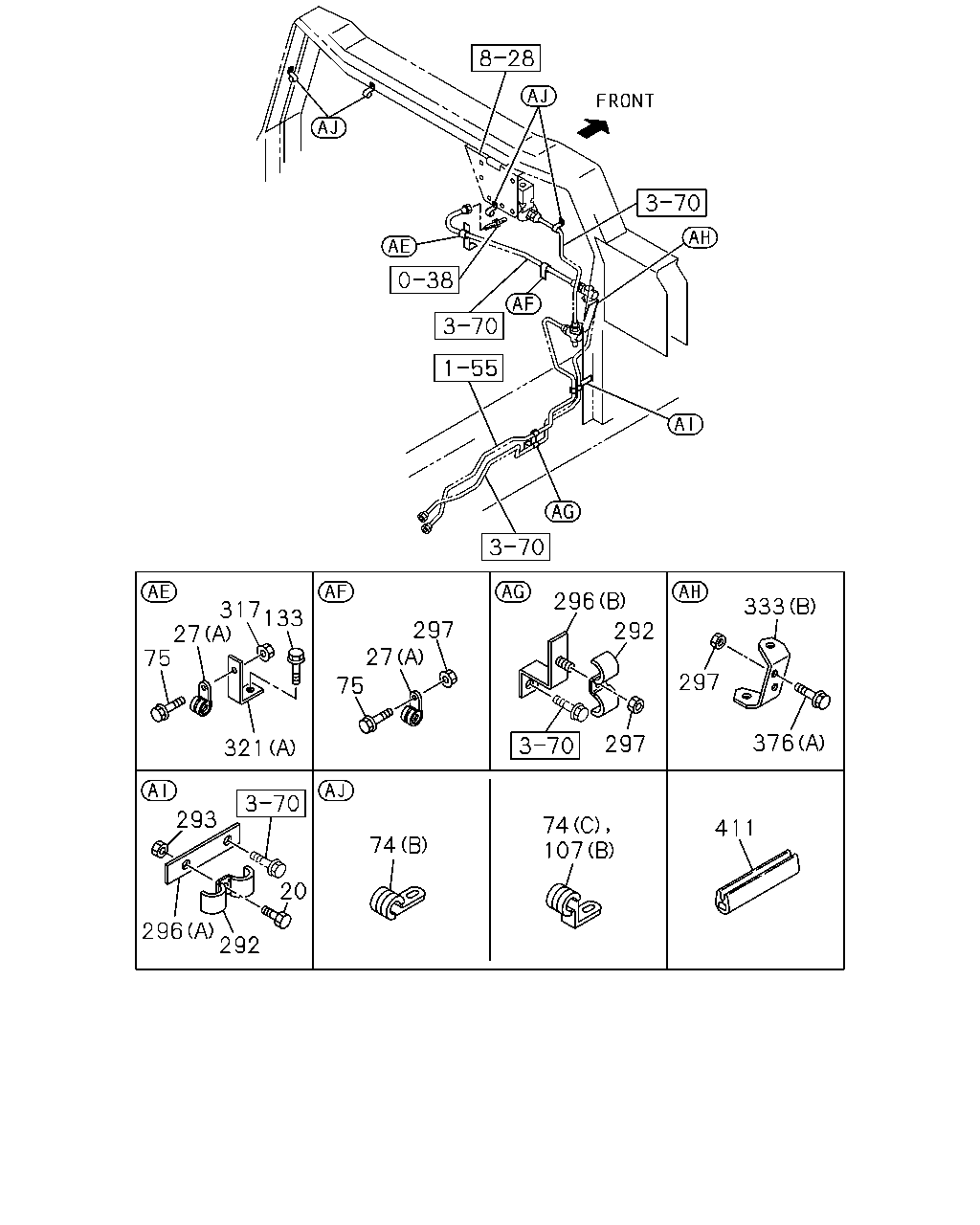

çizim 471457
296 292 297 333 376 411 74 107 297 297 27 75 74 293 296 292 20 321 133 317 27 75
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
EXC. FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1504-
27 CLIP; FLEX HOSE
(B) ID=19 L=20 		0-95235-836-0 03 1 1504-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 1504-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 1504-
74 CLIP; NYLON TUBE
(B) ID=33 L=30 		8-97619-250-0 01 1 1504-
74 CLIP; NYLON TUBE
(D) ID=11X2 L=42 		1-09701-306-0 03 1 1504-
74 CLIP; NYLON TUBE
FULL TRACTOR TRUCK<RD6> (C) ID=39 H=40 L=32 		1-09701-267-0 01 1 1504-
74 CLIP; NYLON TUBE
EXC. FULL TRACTOR TRUCK<RD6> (C) ID=39 H=40 L=32 		1-09701-267-0 02 1 1504-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1504-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1504-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1511-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 1504-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1504-
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X20 FLANGE 		0-28650-820-0 04 1 1504-
133 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> M8X20 FLANGE 		0-28650-820-0 02 1 1504-
133 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> M8X30 FLANGE 		0-28650-830-0 02 1 1504-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1504-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1504-
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 1504-
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1504-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1511-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 1504-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1504-1510
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1504-
321 BRACKET; CLIP
(A) L=75 		1-47478-328-0 01 1 1504-
321 BRACKET; CLIP
(B) L=59 B=20 		1-47479-048-0 01 1 1504-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 1504-
333 BRACKET; BRK AIR PIPE
(A) 		8-98169-062-0 01 1 1504-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1504-
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
411 SLEEVE; RUBBER
FULL TRACTOR TRUCK<RD6> L=60 		8-97865-346-0 01 1 1504-

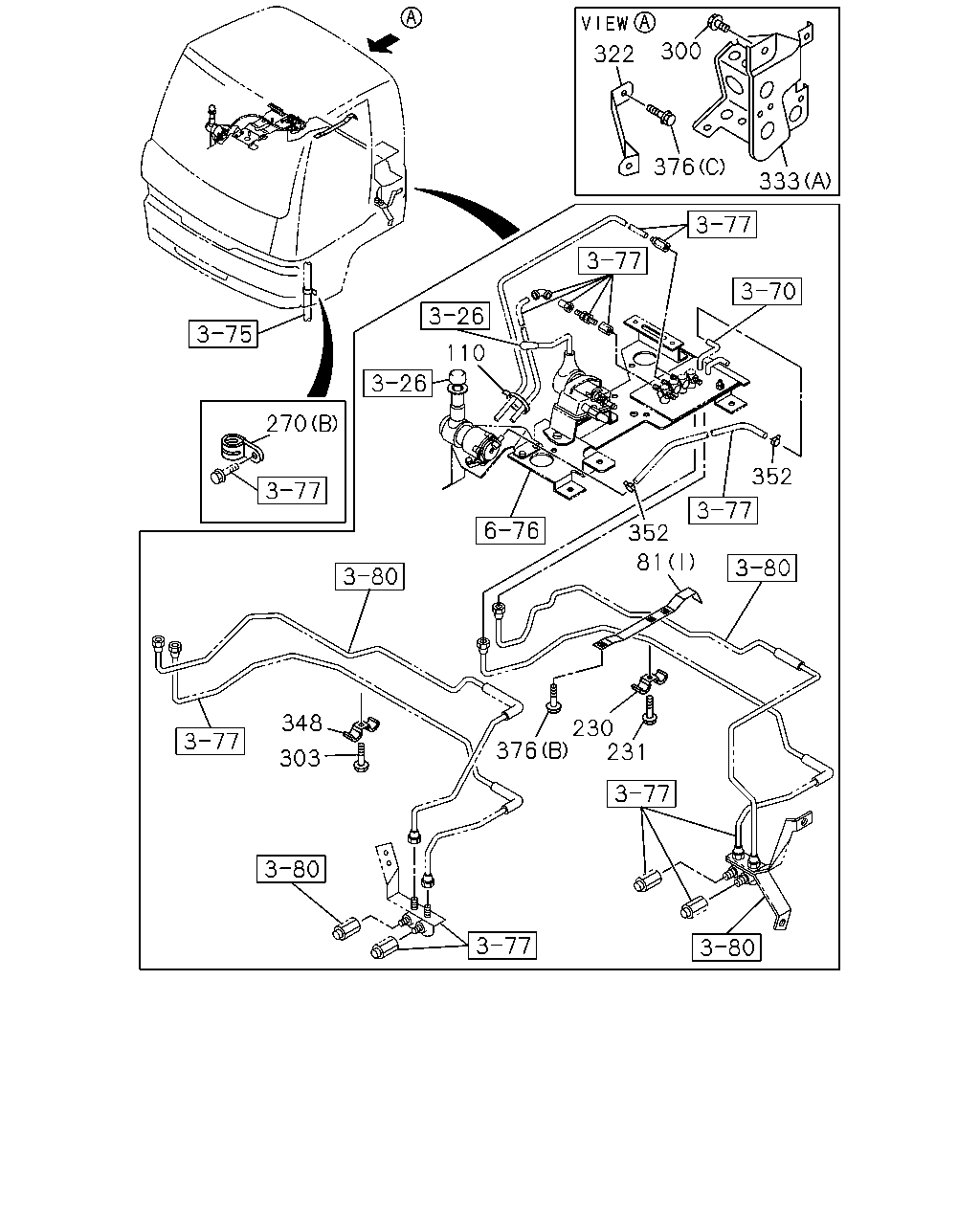

çizim 471600
322 300 376 333 110 352 81 230 231 376 303 348 352 270
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 1504-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 1504-
81 BRACKET; CLIP
(F) 		8-98052-413-0 01 1 1504-
81 BRACKET; CLIP
(C) 		8-98052-415-0 01 1 1504-
81 BRACKET; CLIP
(A) 		8-98061-758-0 02 1 1504-
81 BRACKET; CLIP
(I) 		1-47477-483-0 01 1 1504-
81 BRACKET; CLIP
FULL TRACTOR TRUCK<RD6> (H) 		8-98052-412-0 01 1 1504-
81 BRACKET; CLIP
FULL TRACTOR TRUCK<RD6> (G) 		8-98052-414-0 01 1 1504-
81 BRACKET; CLIP
EXC. FULL TRACTOR TRUCK<RD6> (E) 		8-98043-314-0 01 1 1504-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1504-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 02 1 1504-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 1504-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
270 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1504-
270 CLIP; NYLON TUBE
(A) ID=16 H=25 L=25 		1-09701-162-0 03 1 1504-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1504-
270 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 1504-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1504-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
322 BRACKET; CLIP 8-98227-231-0 01 1 1504-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 1504-
333 BRACKET; BRK AIR PIPE
(A) 		8-98169-062-0 01 1 1504-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 1504-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1504-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1504-
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-

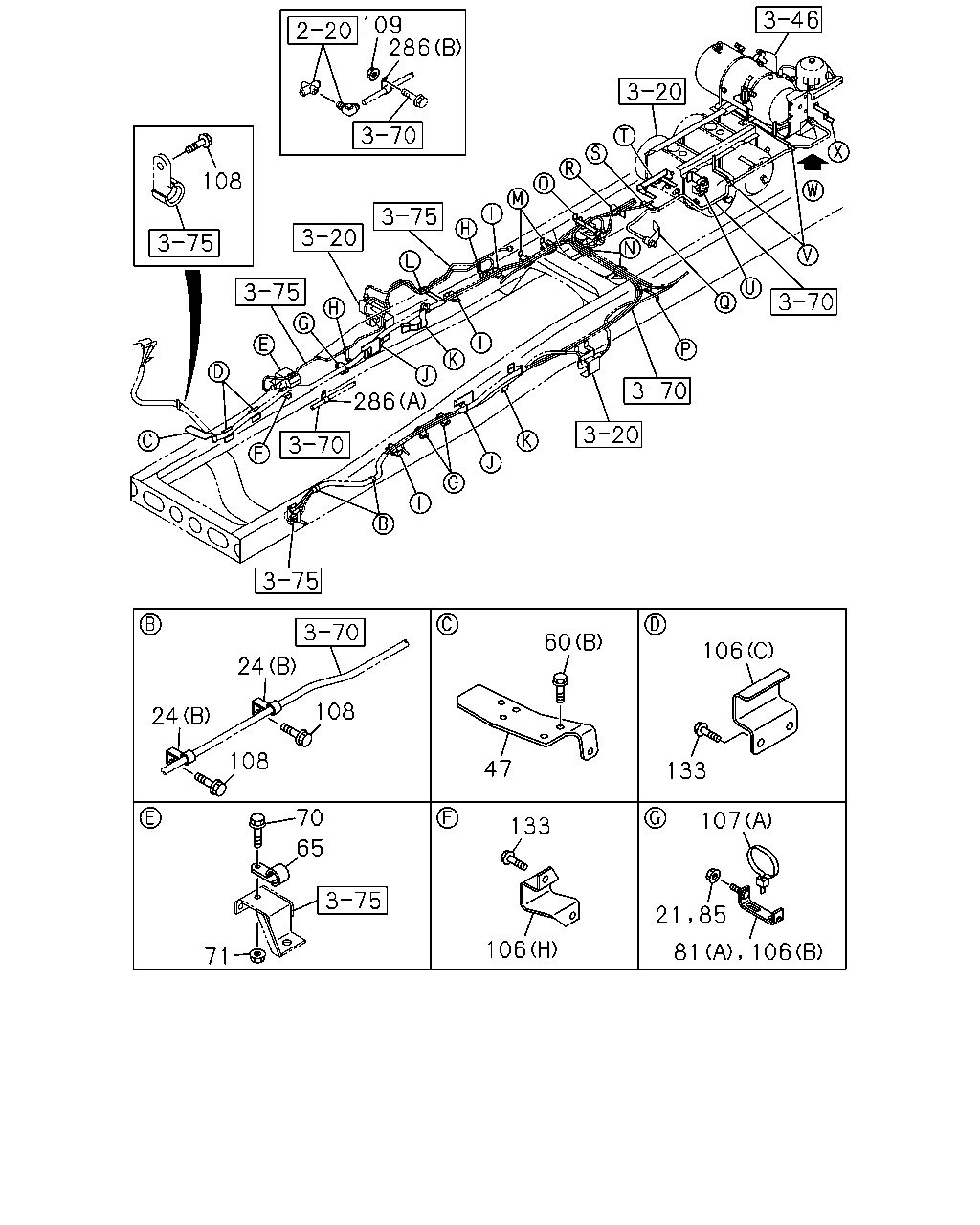

çizim 471626
109 286 108 286 60 47 133 106 21 85 81 107 133 106 108 108 24 24 70 65 106 71
BalonParca AdiParca NoAdetTipApplied Date
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1511-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1511-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1504-1510
24 CLIP; PIPE
(A) ID=19 L=20 		0-95235-836-0 01 1 1504-
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1504-
47 BRACKET; PIPE CLIP 8-98226-739-0 01 1 1504-
60 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
60 BOLT; CLIP FIX
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1504-
65 CLIP; AIR PIPE
ID=13 L=20 		0-95235-235-0 02 1 1504-
70 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1504-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 1504-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 1504-
81 BRACKET; CLIP
(F) 		8-98052-413-0 01 1 1504-
81 BRACKET; CLIP
(C) 		8-98052-415-0 01 1 1504-
81 BRACKET; CLIP
(A) 		8-98061-758-0 02 1 1504-
81 BRACKET; CLIP
(I) 		1-47477-483-0 01 1 1504-
81 BRACKET; CLIP
FULL TRACTOR TRUCK<RD6> (H) 		8-98052-412-0 01 1 1504-
81 BRACKET; CLIP
FULL TRACTOR TRUCK<RD6> (G) 		8-98052-414-0 01 1 1504-
81 BRACKET; CLIP
EXC. FULL TRACTOR TRUCK<RD6> (E) 		8-98043-314-0 01 1 1504-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1504-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1504-
106 BRACKET; TUBE CLIP
(H) 		8-97610-303-0 01 1 1504-
106 BRACKET; TUBE CLIP
(I) 		8-97637-446-0 02 1 1504-
106 BRACKET; TUBE CLIP
(D) 		8-98052-409-0 01 1 1504-
106 BRACKET; TUBE CLIP
(E) 		8-98052-411-0 01 1 1504-
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1504-
106 BRACKET; TUBE CLIP
(C) 		8-98199-563-0 02 1 1504-
106 BRACKET; TUBE CLIP
FULL TRACTOR TRUCK<RD6> (J) 		8-98052-410-0 01 1 1504-
106 BRACKET; TUBE CLIP
FULL TRACTOR TRUCK<RD6> (G) 		8-98297-188-0 01 1 1504-
106 BRACKET; TUBE CLIP
EXC. FULL TRACTOR TRUCK<RD6> (F) 		8-98043-312-0 01 1 1504-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1504-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1504-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1504-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1504-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1511-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 1504-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1504-
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X20 FLANGE 		0-28650-820-0 04 1 1504-
133 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> M8X20 FLANGE 		0-28650-820-0 02 1 1504-
133 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> M8X30 FLANGE 		0-28650-830-0 02 1 1504-
286 CLIP; NYLON TUBE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 1504-
286 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 02 1 1504-

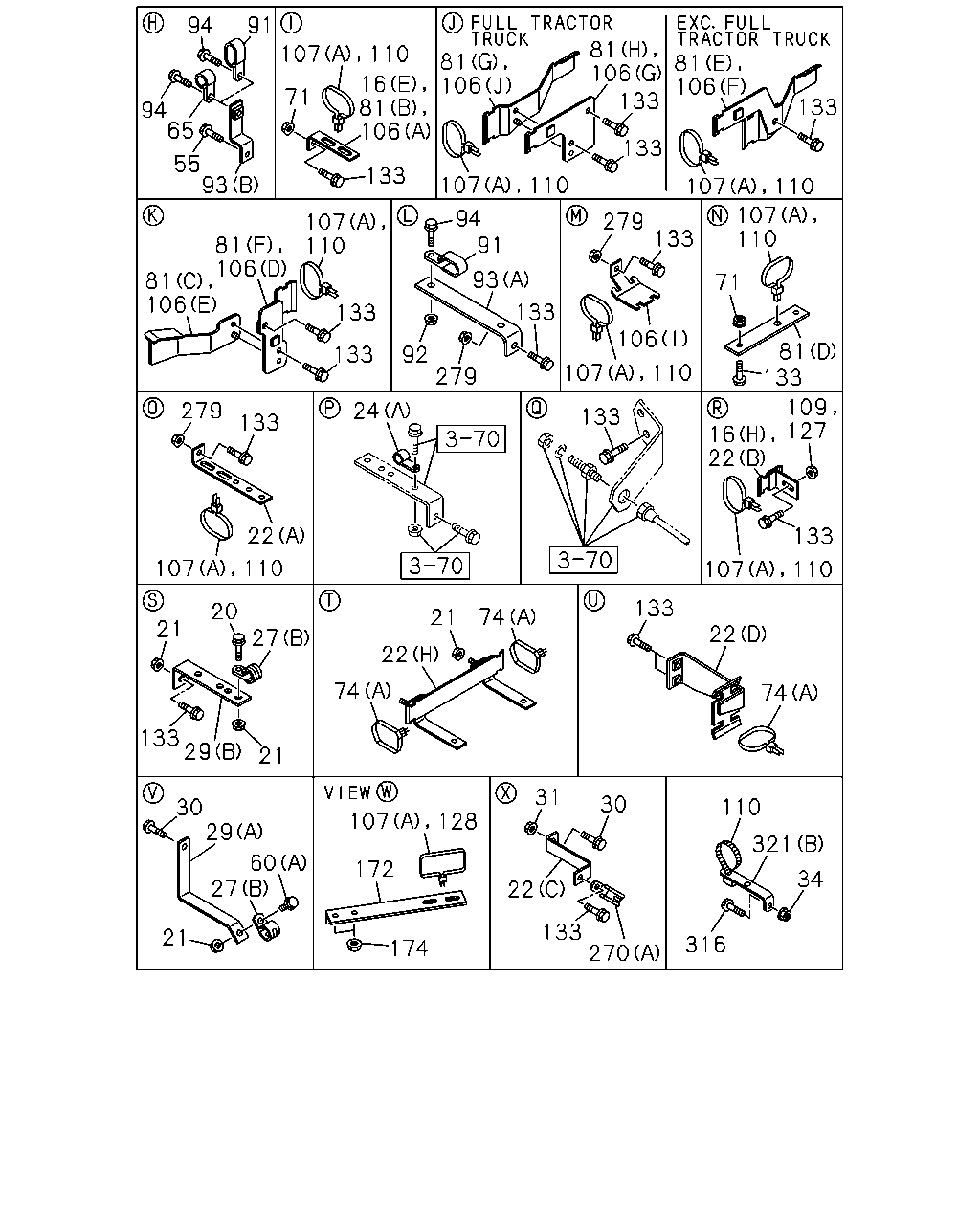

çizim 471731
94 91 94 55 65 71 107 110 81 133 106 16 81 81 133 106 81 107 110 133 106 133 279 107 110 71 81 109 127 16 133 110 106 107 133 93 91 94 110 107 93 81 81 106 106 133 133 110 107 92 279 133 22 24 133 279 22 110 107 21 27 20 133 29 21 74 21 74 22 133 22 107 110 133 74 110 321 34 316 270 133 22 31 30 128 107 172 174 27 29 60 30 21 106 133
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 1504-
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 01 1 1504-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 1504-
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 1504-
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 1504-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 1504-
16 BRACKET; PIPE CLIP
(I) 		1-47479-721-0 01 1 1504-
16 BRACKET; PIPE CLIP
(D) 		1-47479-722-1 01 1 1504-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 1504-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
EXC. FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1504-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1511-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1511-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1504-1510
22 BRACKET; CLIP
(C) L=110 		1-82699-589-0 01 1 1504-
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 1504-
22 BRACKET; CLIP
(J) 		1-47479-546-0 01 1 1504-
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 1504-
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 1504-
22 BRACKET; CLIP
(I) 		1-47479-720-0 01 1 1504-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 1504-
22 BRACKET; CLIP
(E) 		1-47479-898-0 01 1 1504-
22 BRACKET; CLIP
(D) 		8-98287-477-0 01 1 1504-
22 BRACKET; CLIP
(H) 		8-98293-452-0 01 1 1504-
24 CLIP; PIPE
(A) ID=19 L=20 		0-95235-836-0 01 1 1504-
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1504-
27 CLIP; FLEX HOSE
(B) ID=19 L=20 		0-95235-836-0 03 1 1504-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 1504-
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98257-070-0 02 1 1504-
29 BRACKET; CLIP,AIR PIPE
(B) 		1-82698-358-0 01 1 1504-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1504-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1504-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1504-
34 NUT; BRKT
FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91180-108-0 01 1 1504-
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
60 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
60 BOLT; CLIP FIX
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1504-
65 CLIP; AIR PIPE
ID=13 L=20 		0-95235-235-0 02 1 1504-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1504-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 1504-
74 CLIP; NYLON TUBE
(B) ID=33 L=30 		8-97619-250-0 01 1 1504-
74 CLIP; NYLON TUBE
(D) ID=11X2 L=42 		1-09701-306-0 03 1 1504-
74 CLIP; NYLON TUBE
FULL TRACTOR TRUCK<RD6> (C) ID=39 H=40 L=32 		1-09701-267-0 01 1 1504-
74 CLIP; NYLON TUBE
EXC. FULL TRACTOR TRUCK<RD6> (C) ID=39 H=40 L=32 		1-09701-267-0 02 1 1504-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 1504-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 1504-
81 BRACKET; CLIP
(F) 		8-98052-413-0 01 1 1504-
81 BRACKET; CLIP
(C) 		8-98052-415-0 01 1 1504-
81 BRACKET; CLIP
(A) 		8-98061-758-0 02 1 1504-
81 BRACKET; CLIP
(I) 		1-47477-483-0 01 1 1504-
81 BRACKET; CLIP
FULL TRACTOR TRUCK<RD6> (H) 		8-98052-412-0 01 1 1504-
81 BRACKET; CLIP
FULL TRACTOR TRUCK<RD6> (G) 		8-98052-414-0 01 1 1504-
81 BRACKET; CLIP
EXC. FULL TRACTOR TRUCK<RD6> (E) 		8-98043-314-0 01 1 1504-
91 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 1504-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-
93 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1504-
93 BRACKET; PIPE CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 1504-
93 BRACKET; PIPE CLIP
(B) L=80 H=20 		1-82699-304-0 01 1 1504-
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1504-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1504-
106 BRACKET; TUBE CLIP
(H) 		8-97610-303-0 01 1 1504-
106 BRACKET; TUBE CLIP
(I) 		8-97637-446-0 02 1 1504-
106 BRACKET; TUBE CLIP
(D) 		8-98052-409-0 01 1 1504-
106 BRACKET; TUBE CLIP
(E) 		8-98052-411-0 01 1 1504-
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1504-
106 BRACKET; TUBE CLIP
(C) 		8-98199-563-0 02 1 1504-
106 BRACKET; TUBE CLIP
FULL TRACTOR TRUCK<RD6> (J) 		8-98052-410-0 01 1 1504-
106 BRACKET; TUBE CLIP
FULL TRACTOR TRUCK<RD6> (G) 		8-98297-188-0 01 1 1504-
106 BRACKET; TUBE CLIP
EXC. FULL TRACTOR TRUCK<RD6> (F) 		8-98043-312-0 01 1 1504-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1504-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1504-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1504-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1504-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 02 1 1504-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 08 1 1504-
127 NUT; CLIP BRKT
FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91180-108-0 01 1 1504-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 16 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1504-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1511-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 1504-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1504-
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X20 FLANGE 		0-28650-820-0 04 1 1504-
133 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> M8X20 FLANGE 		0-28650-820-0 02 1 1504-
133 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> M8X30 FLANGE 		0-28650-830-0 02 1 1504-
172 BRACKET; TUBE CLIP 8-97636-284-1 01 1 1504-
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1504-
270 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1504-
270 CLIP; NYLON TUBE
(A) ID=16 H=25 L=25 		1-09701-162-0 03 1 1504-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1504-
270 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 1504-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1504-
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1504-
321 BRACKET; CLIP
(A) L=75 		1-47478-328-0 01 1 1504-
321 BRACKET; CLIP
(B) L=59 B=20 		1-47479-048-0 01 1 1504-

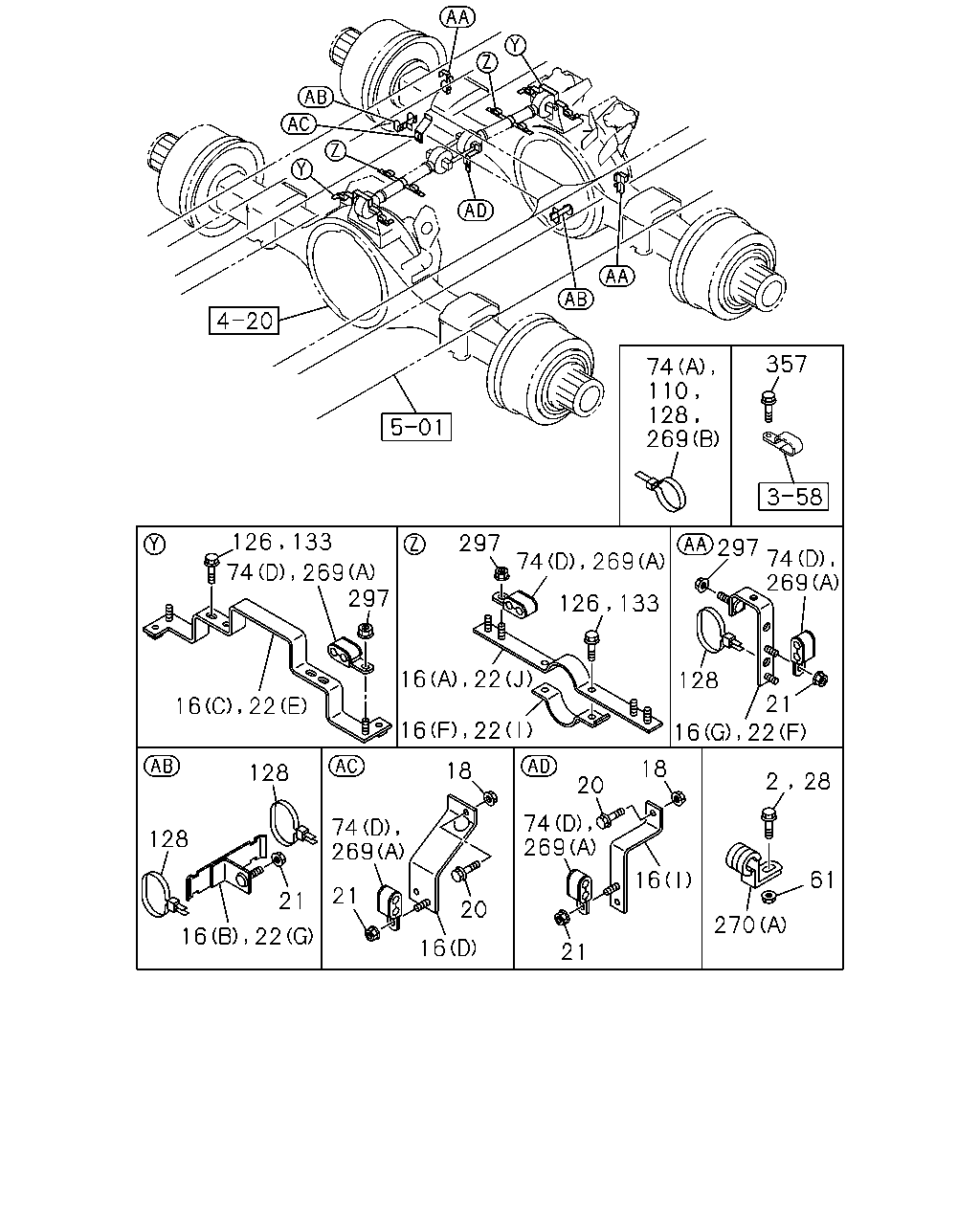

çizim 471985
74 128 110 357 269 297 74 269 21 128 16 22 22 16 74 297 269 126 133 126 74 133 269 297 16 22 16 22 128 2 28 270 61 18 16 74 269 21 20 18 20 16 21 74 269 21 22 16 128
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
16 BRACKET; PIPE CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 1504-
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 01 1 1504-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 1504-
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 1504-
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 1504-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 1504-
16 BRACKET; PIPE CLIP
(I) 		1-47479-721-0 01 1 1504-
16 BRACKET; PIPE CLIP
(D) 		1-47479-722-1 01 1 1504-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 1504-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-
18 NUT; CLIP
FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91180-108-0 01 1 1504-
18 NUT; CLIP
EXC. FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91180-108-0 02 1 1504-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
EXC. FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1504-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1511-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1511-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1504-1510
22 BRACKET; CLIP
(C) L=110 		1-82699-589-0 01 1 1504-
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 1504-
22 BRACKET; CLIP
(J) 		1-47479-546-0 01 1 1504-
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 1504-
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 1504-
22 BRACKET; CLIP
(I) 		1-47479-720-0 01 1 1504-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 1504-
22 BRACKET; CLIP
(E) 		1-47479-898-0 01 1 1504-
22 BRACKET; CLIP
(D) 		8-98287-477-0 01 1 1504-
22 BRACKET; CLIP
(H) 		8-98293-452-0 01 1 1504-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 03 1 1504-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1504-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 1504-
74 CLIP; NYLON TUBE
(B) ID=33 L=30 		8-97619-250-0 01 1 1504-
74 CLIP; NYLON TUBE
(D) ID=11X2 L=42 		1-09701-306-0 03 1 1504-
74 CLIP; NYLON TUBE
FULL TRACTOR TRUCK<RD6> (C) ID=39 H=40 L=32 		1-09701-267-0 01 1 1504-
74 CLIP; NYLON TUBE
EXC. FULL TRACTOR TRUCK<RD6> (C) ID=39 H=40 L=32 		1-09701-267-0 02 1 1504-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1504-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 02 1 1504-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 1504-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1504-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 16 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1504-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1511-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 1504-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1504-
133 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M8X20 FLANGE 		0-28650-820-0 04 1 1504-
133 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> M8X20 FLANGE 		0-28650-820-0 02 1 1504-
133 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> M8X30 FLANGE 		0-28650-830-0 02 1 1504-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 03 1 1504-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 1504-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 05 1 1504-
270 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1504-
270 CLIP; NYLON TUBE
(A) ID=16 H=25 L=25 		1-09701-162-0 03 1 1504-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1504-
270 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 1504-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1511-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 1504-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1504-1510
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
