Isuzu WW
▶
TRUCKS
▶
CYH
▶
11677 - CYH RHD EURO5
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#160079) — 55 parça
◀

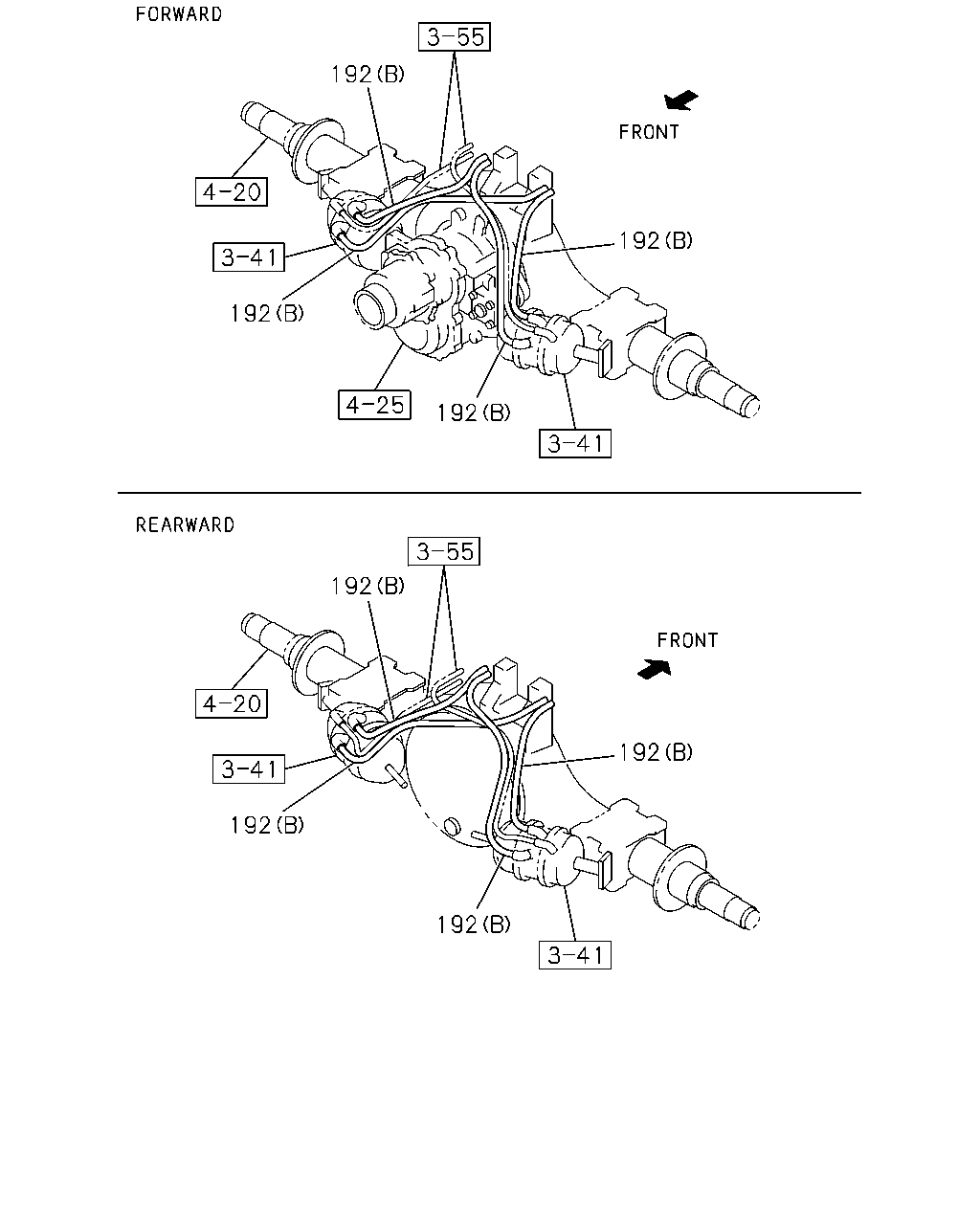

[377A] REAR AXLE SIDE NO.2 (7 parça)

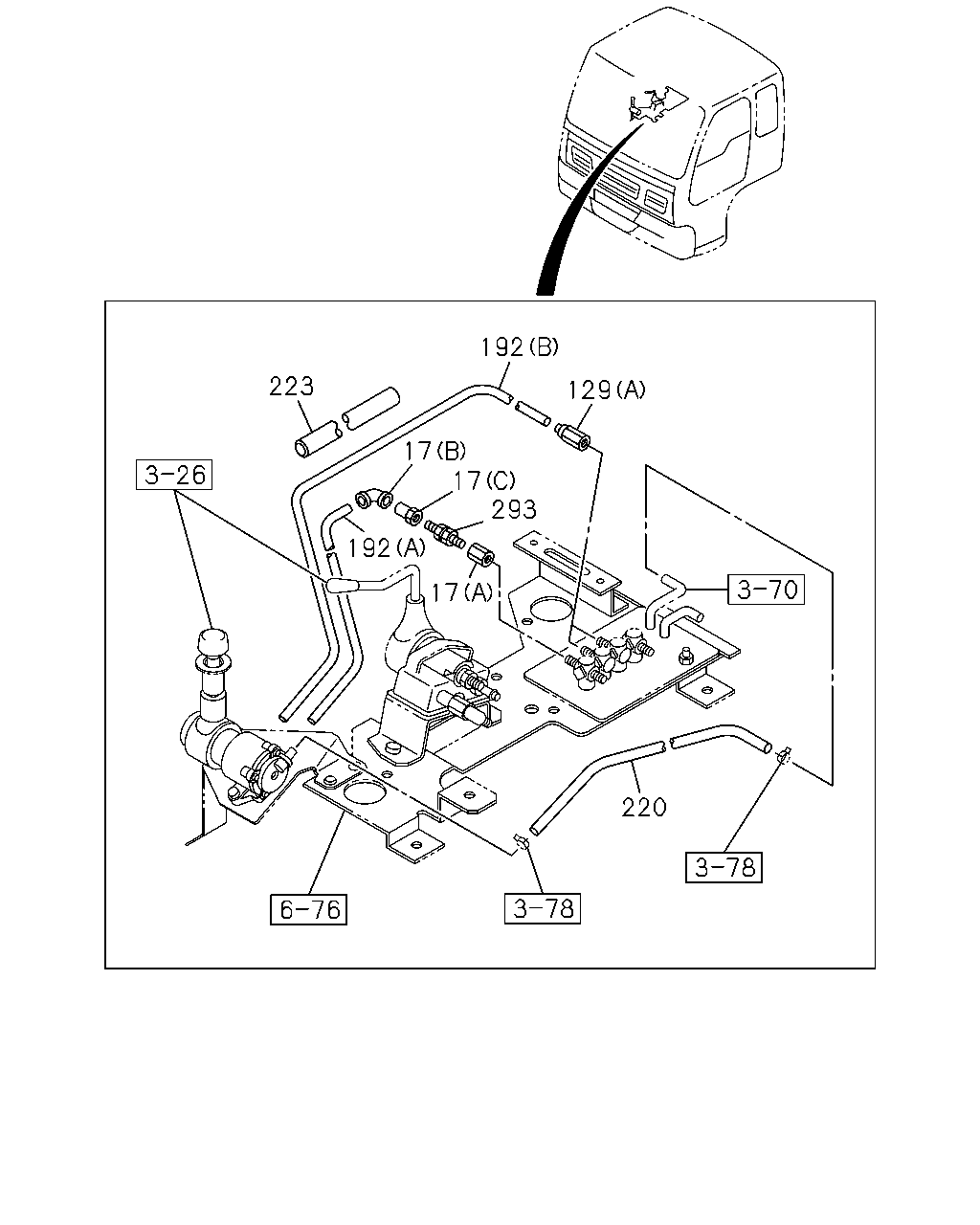

[377A] CAB SIDE (18 parça)

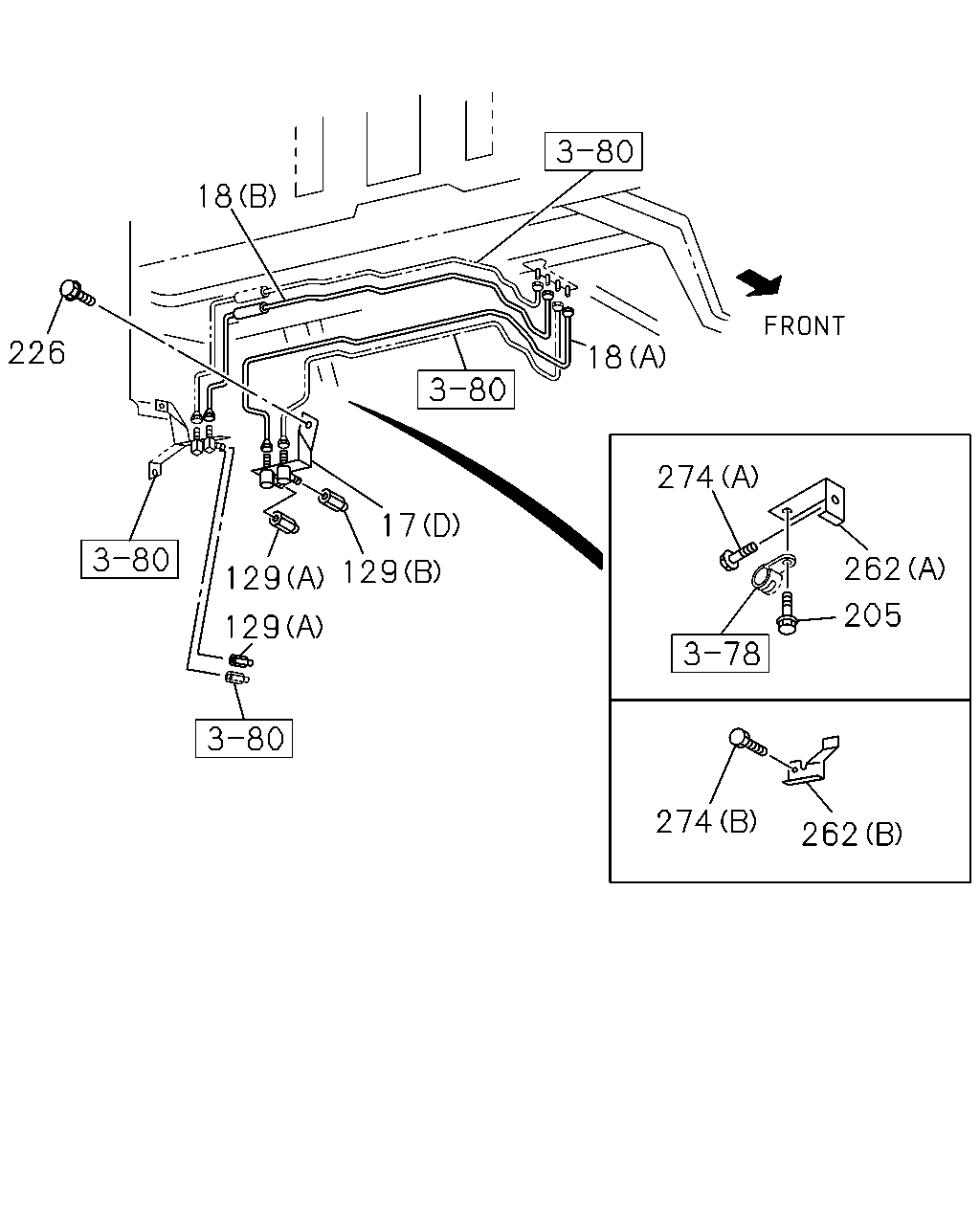

[377A] CAB UNDER (15 parça)

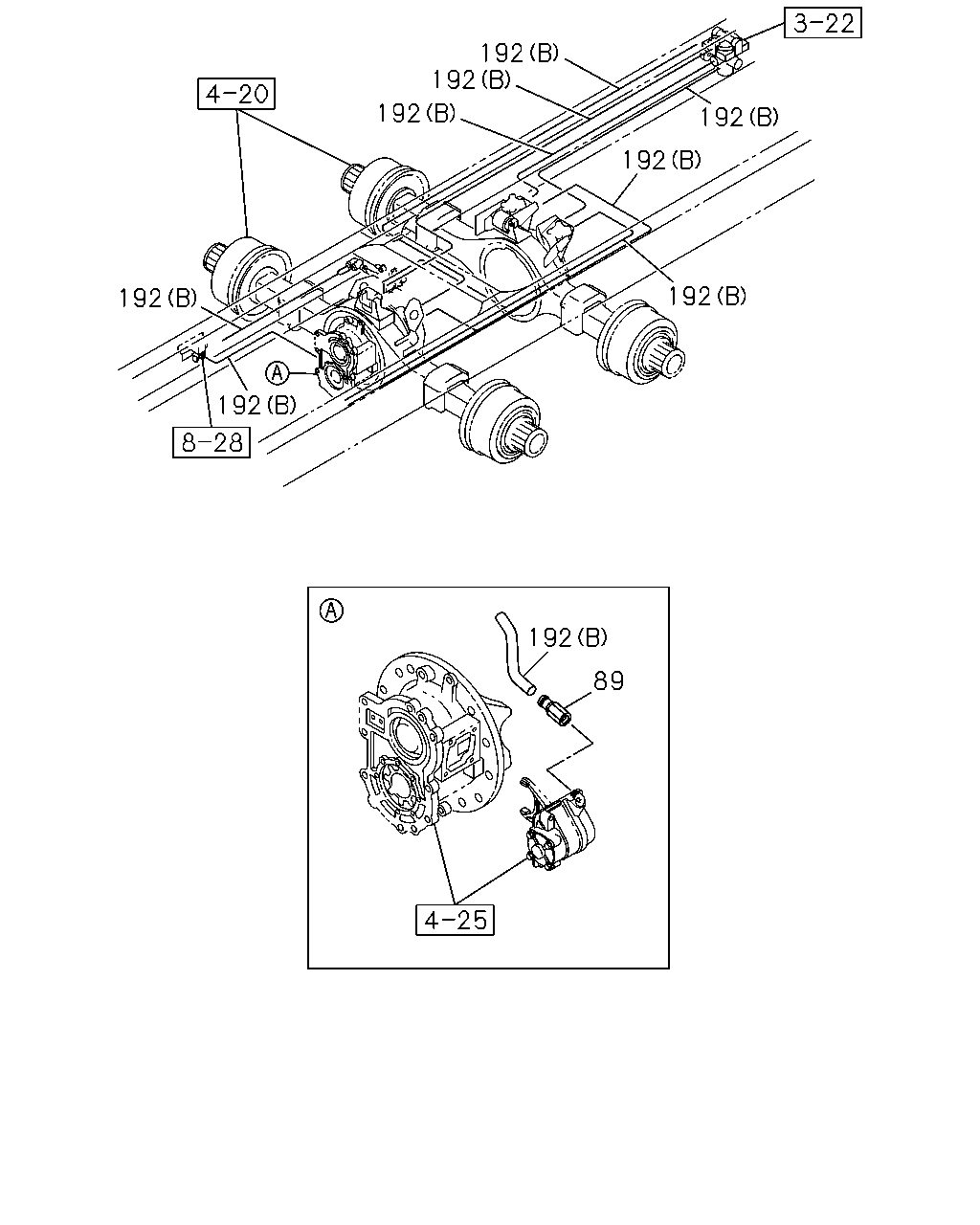

[377A] REAR AXLE SIDE NO.1 (8 parça)

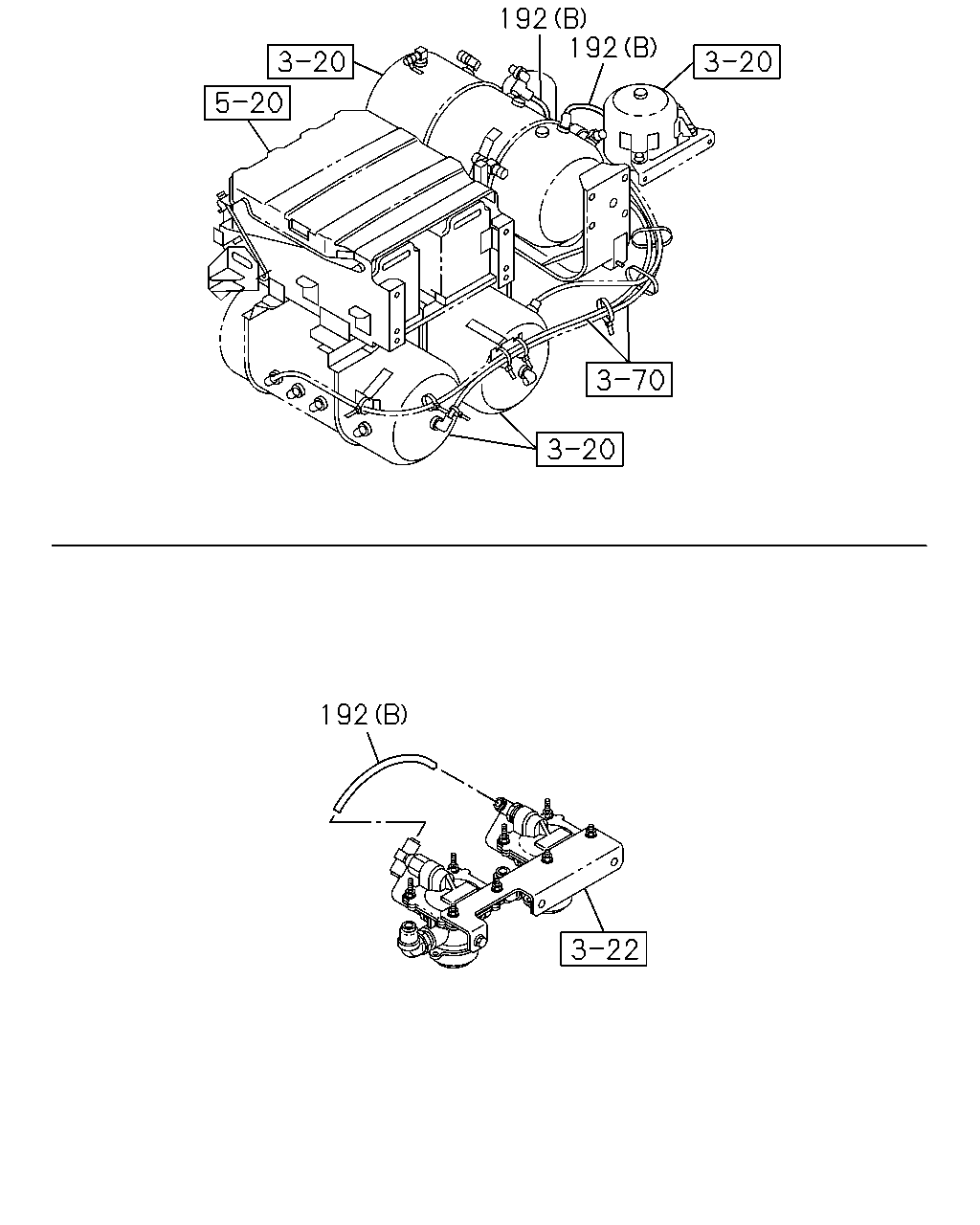

[377A] AIR TANK SIDE (7 parça)
▶
192
192
192
192
192
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
192
TUBE; NYLON
(A) L=200 OD=12
1-49216-861-1
01
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1504-
192
129
17
17
223
293
17
192
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1504-
17
UNION; AIR PIPE
(D)
1-47470-609-0
01
1
1504-
17
UNION; AIR PIPE
(B)
8-97633-775-0
01
1
1504-
17
UNION; AIR PIPE
(C)
8-97633-777-0
01
1
1504-
129
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
04
1
1504-
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1504-
192
TUBE; NYLON
(A) L=200 OD=12
1-49216-861-1
01
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1504-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=480 SERVICED BY L=10000
9-09914-701-0
01
1
1504-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1504-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1504-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1504-
293
VALVE; CHECK
1-48410-479-1
01
1
1504-
18
226
129
17
129
129
18
262
274
205
274
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1504-
17
UNION; AIR PIPE
(D)
1-47470-609-0
01
1
1504-
17
UNION; AIR PIPE
(B)
8-97633-775-0
01
1
1504-
17
UNION; AIR PIPE
(C)
8-97633-777-0
01
1
1504-
18
PIPE; AIR,UNION TO UNION
(A) L=1885
1-49121-759-1
01
1
1504-
18
PIPE; AIR,UNION TO UNION
(B) L=1937
1-49122-060-1
01
1
1504-
129
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
04
1
1504-
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1504-
205
BOLT; TUBE CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1504-
205
BOLT; TUBE CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1504-
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1504-
262
BRACKET
(A)
1-79996-143-0
01
1
1504-
262
BRACKET
(B)
1-79996-144-0
01
1
1504-
274
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
1504-
274
BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1504-
192
192
192
192
192
192
192
89
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1504-
192
TUBE; NYLON
(A) L=200 OD=12
1-49216-861-1
01
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1504-
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
192
TUBE; NYLON
(A) L=200 OD=12
1-49216-861-1
01
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1504-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1504-
