5 |

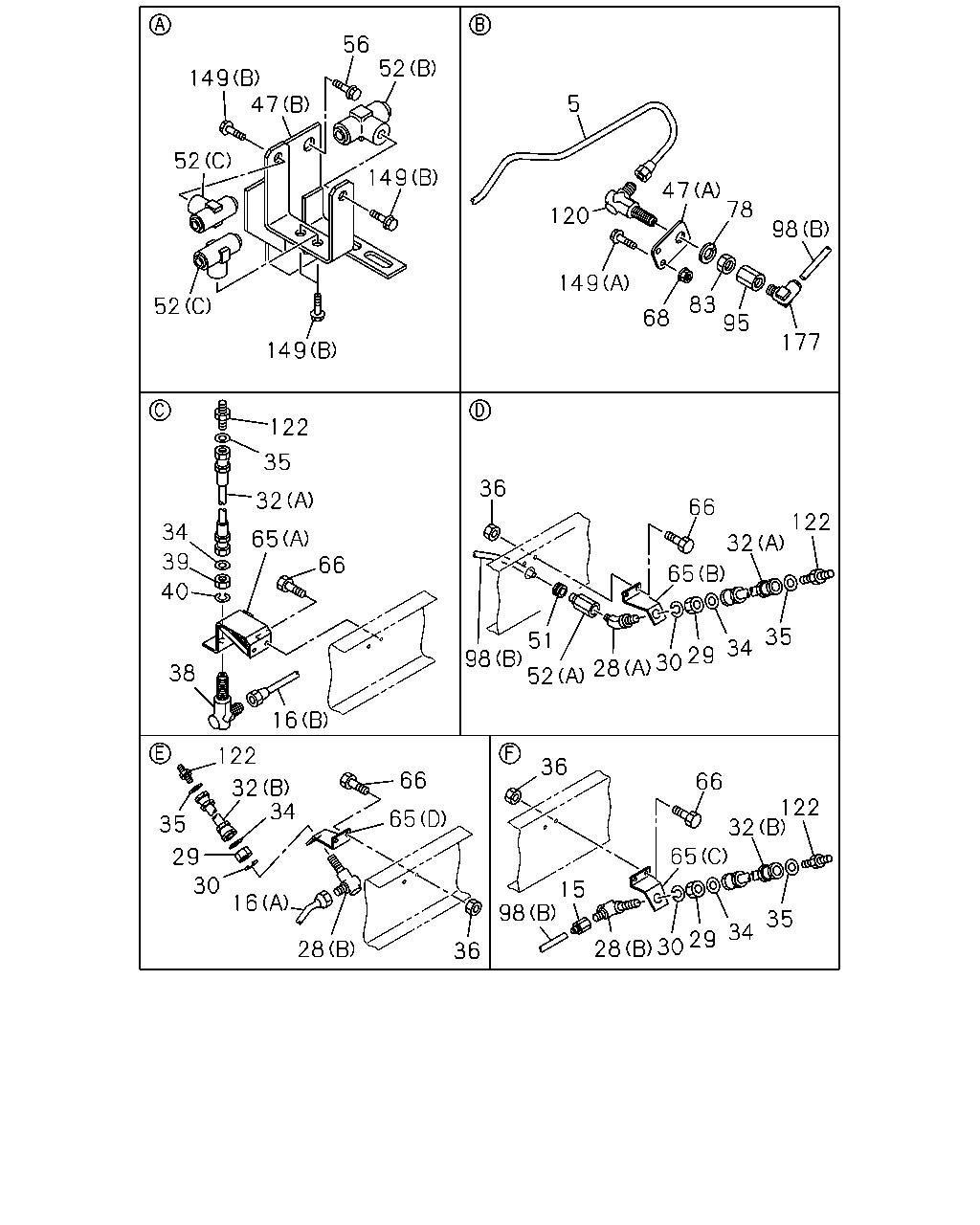

PIPE; AIR,UNION TO UNION
L=1394
SERVICED BY L=1450
|
1-49115-489-0 |
01 |
1 |
1504- |
| |
15 |
CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
01 |
1 |
1504- |
| |
16 |
PIPE; AIR,UNION TO MODULATOR
(B)
L=1205
SERVICED BY L=1300
|
1-49115-465-0 |
01 |
1 |
1504- |
| |
16 |
PIPE; AIR,UNION TO MODULATOR
(A)
L=1590
SERVICED BY L=1600
|
1-49115-467-0 |
01 |
1 |
1504-1504 |
| |
16 |
PIPE; AIR,UNION TO MODULATOR
(A)
L=1592
SERVICED BY L=1600
|
1-49115-490-0 |
01 |
1 |
1505- |
| |
28 |
NIPPLE; AIR PIPE
(B)
M20 & M20 ELBOW
|
1-09654-128-1 |
02 |
1 |
1504- |
| |
28 |
NIPPLE; AIR PIPE
(A)
M20
|
1-09654-199-2 |
01 |
1 |
1504- |
| |
29 |
NUT; NIPPLE
M20
|
0-91111-520-0 |
03 |
1 |
1504- |
| |
30 |
WASHER; LK,NIPPLE
ID=20.2
|
0-91510-520-0 |
03 |
1 |
1504- |
| |
32 |
HOSE; FLEX,FRT
(B)
L=450 W/SPRING
|
0-57847-450-1 |
02 |
1 |
1504- |
| |
32 |
HOSE; FLEX,FRT
(A)
L=500
|
0-57847-500-1 |
02 |
1 |
1504- |
| |
34 |
GASKET; FLEX HOSE
ID=11 OD=18
|
9-09572-510-0 |
04 |
1 |
1504- |
| |
35 |
GASKET; FLEX HOSE
ID=11 OD=18
|
9-09572-510-0 |
04 |
1 |
1504- |
| |
36 |
NUT; HOSE BRKT
M8 FLANGE
|
0-91180-108-0 |
06 |
1 |
1504- |
| |
38 |
UNION; AIR PIPE
M20 & M20 ELBOW
|
1-09654-128-1 |
01 |
1 |
1504- |
| |
39 |
NUT; PIPE UNION
M20
|
0-91111-520-0 |
01 |
1 |
1504- |
| |
40 |
WASHER; LK,PIPE UNION
ID=20.2
|
0-91510-520-0 |
01 |
1 |
1504- |
| |
47 |
BRACKET; PIPE UNION
(A)
|
8-98287-556-0 |
01 |
1 |
1504-1507 |
| |
47 |
BRACKET; PIPE UNION
(A)
|
8-98322-582-0 |
01 |
1 |
1508- |
| |
47 |
BRACKET; PIPE UNION
(B)
|
8-98298-063-0 |
01 |
1 |
1504- |
| |
51 |
GROMMET; NYLON TUBE
ID=24 OD=30 T=17
|
9-09956-092-1 |
01 |
1 |
1504- |
| |
52 |
CONNECTOR; NYLON TUBE
(A)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
01 |
1 |
1504- |
| |
52 |
CONNECTOR; NYLON TUBE
(B)
DIN7.5X2 & M8 2WAY
|
1-09661-128-0 |
01 |
1 |
1504- |
| |
52 |
CONNECTOR; NYLON TUBE
(C)
DIN8X2 & M8 2WAY
|
1-09661-133-0 |
03 |
1 |
1504- |
| |
56 |
BOLT; UNION BRKT
M12X30 FLANGE
|
0-28051-230-0 |
02 |
1 |
1504- |
| |
65 |
BRACKET; FLEX HOSE
(B)
|
1-47477-369-1 |
01 |
1 |
1504- |
| |
65 |
BRACKET; FLEX HOSE
(D)
|
1-47479-605-0 |
01 |
1 |
1504- |
| |
65 |
BRACKET; FLEX HOSE
(C)
|
1-47479-676-0 |
01 |
1 |
1504- |
| |
65 |
BRACKET; FLEX HOSE
(A)
|
8-98241-468-0 |
01 |
1 |
1504- |
| |
66 |
BOLT; HOSE BRKT
M8X30 FLANGE
|
0-28650-830-0 |
08 |
1 |
1504- |
| |
68 |
NUT; UNION
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1504- |
| |
78 |
WASHER; LK,PIPE UNION
ID=20.2
|
0-91510-520-0 |
01 |
1 |
1504- |
| |
83 |
NUT; PIPE UNION
M20
|
0-91111-520-0 |
01 |
1 |
1504- |
| |
95 |
ADAPTER; BRKT
M20 & RC3/8 STRAIGHT
|
1-09660-883-0 |
01 |
1 |
1504- |
| |
98 |

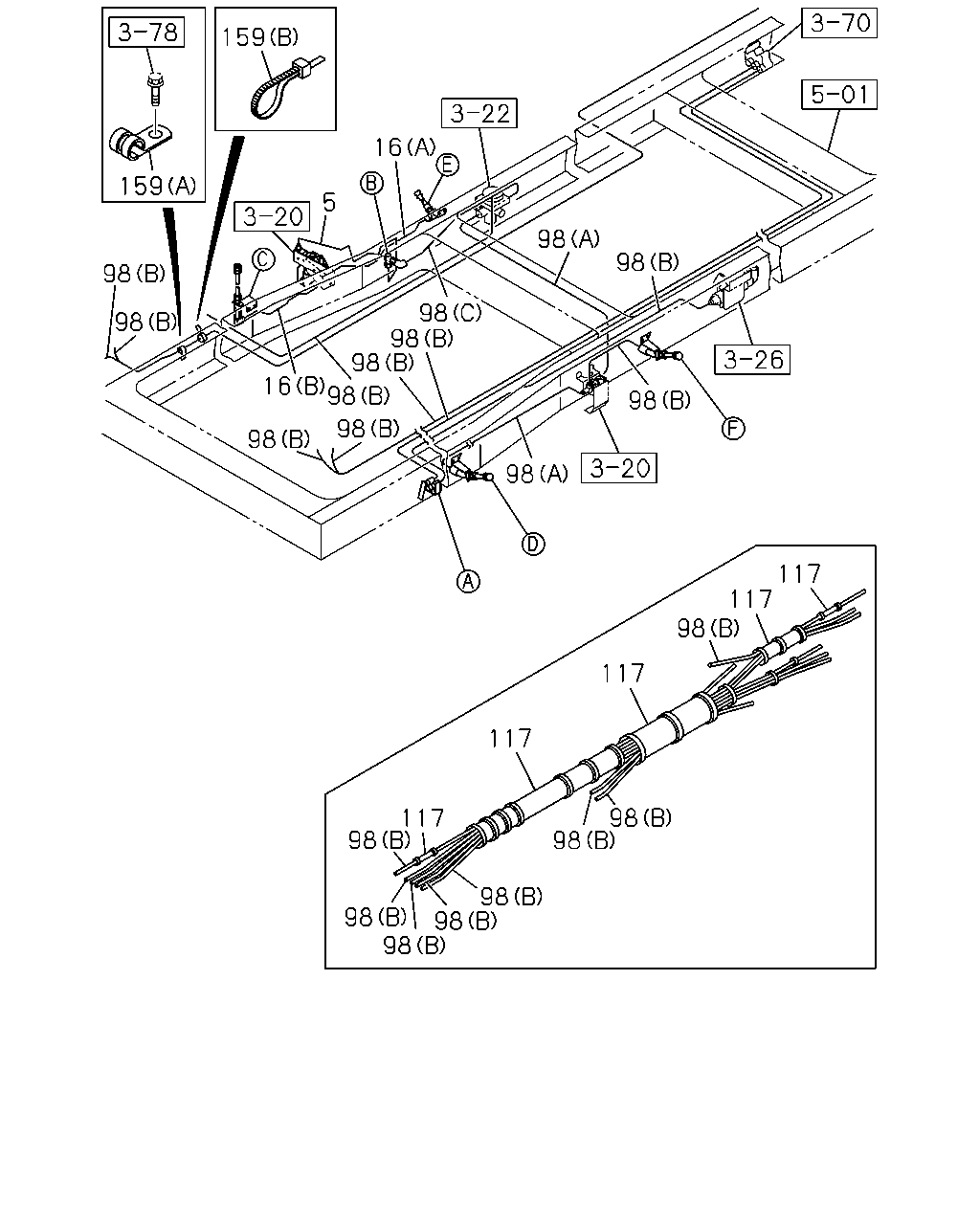

TUBE; NYLON
FULL TRACTOR TRUCK<RD6>
(A)
|
8-98310-256-0 |
01 |
1 |
1504- |
| |
98 |
TUBE; NYLON
(C)
|
8-98310-254-0 |
01 |
1 |
1504- |
| |
98 |
TUBE; NYLON
EXC. FULL TRACTOR TRUCK<RD6>
(A)
|
8-98310-255-0 |
01 |
1 |
1504- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=6000 OD=6
|
1-87411-003-0 |
AR |
1 |
1504- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=6000 OD=8
|
1-87411-008-0 |
AR |
1 |
1504- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=4000 OD=8
|
1-87411-007-0 |
AR |
1 |
1504- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=12000 OD=8
|
1-87411-010-0 |
AR |
1 |
1504- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=2000 OD=12
|
1-87411-011-0 |
AR |
1 |
1504- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=8000 OD=12
|
1-87411-014-0 |
AR |
1 |
1504- |
| |
120 |
UNION; AIR PIPE
M20
|
0-92135-212-0 |
01 |
1 |
1504- |
| |
122 |
CONNECTOR; FLEX HOSE
M20 & PT3/8
|
1-09660-731-1 |
02 |
1 |
1504- |
| |
122 |
CONNECTOR; FLEX HOSE
M20 & PT3/8
|
1-09660-731-1 |
02 |
1 |
1504- |
| |
149 |
BOLT; UNION
(B)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1504- |
| |
149 |
BOLT; UNION
(A)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
1504- |
| |
177 |
CONNECTOR
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
1504- |
