◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11364 - FSR(MALAYSIA)W/B4200 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶

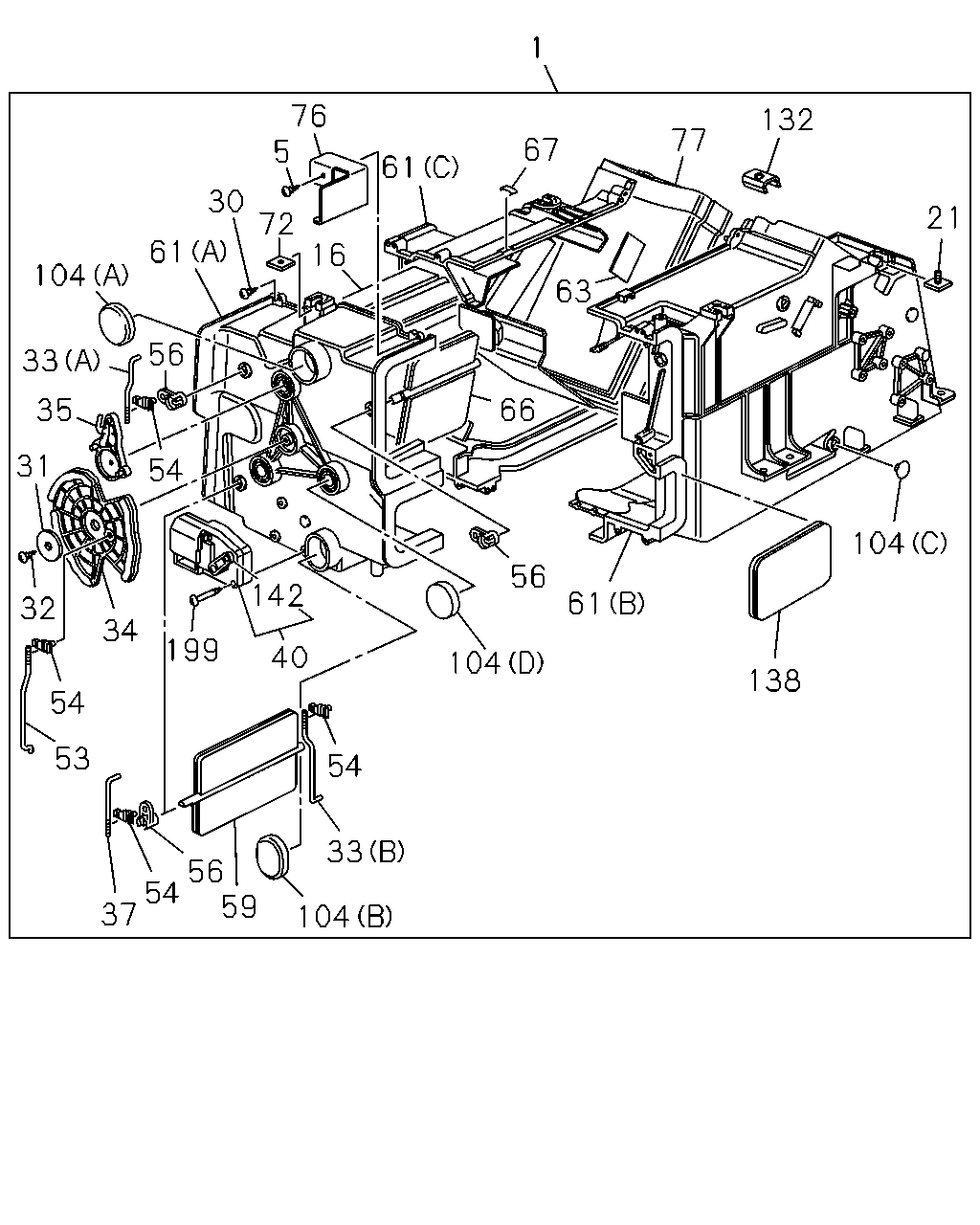

8-60 — HEATER UNIT; FRONT (#16007) — 41 parça
çizim 102682
1 76 5 132 77 67 61 30 21 72 61 16 104 63 56 33 35 66 31 54 104 56 142 61 32 34 199 40 104 138 54 53 54 33 56 54 59 37 104
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-139-3 01 1 9706-
5 SCREW; BRKT
M4X16 MAL 		8-94324-850-0 01 1 0012-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9706-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 9706-
30 SCREW; HTR UNIT
M4X16 MAL 		8-94324-850-0 12 1 9706-0011
30 SCREW; HTR UNIT
M4X16 MAL 		8-94324-850-0 11 1 0012-
31 WASHER; HTR UNIT
MAL 		8-94129-950-0 01 1 9706-
32 SCREW; HTR UNIT
M5X20 MAL 		9-09829-324-1 02 1 9706-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9706-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9706-0011
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9706-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9706-0011
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 02 1 0012-
37 ROD; LEVER 1-83579-620-1 01 1 9706-
40 ACTUATOR; HTR UNIT 1-83579-649-1 01 1 9706-
53 ROD; SHUTTER LEVER 1-83579-622-0 01 1 9706-
54 CLIP; SHUTTER LEVER 1-83579-488-0 04 1 9706-0011
54 CLIP; SHUTTER LEVER 8-94248-794-0 03 1 0012-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9706-0011
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 02 1 0012-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 9706-
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 9706-0011
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0012-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9706-
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 9706-0011
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0012-
63 LINING; HTR UNIT 1-83578-033-0 01 1 0012-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9706-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9706-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 9706-
76 BRACKET; HTR UNIT 1-83573-194-0 01 1 0012-
77 COVER; HTR CASE 1-83579-802-0 01 1 9706-0011
77 COVER; HTR CASE
MAL 		8-97102-661-0 01 1 0012-
104 CAP; CASE,HTR UNIT
(A) 		1-83579-617-0 01 1 9706-
104 CAP; CASE,HTR UNIT
(B) 		1-83579-618-0 01 1 9706-
104 CAP; CASE,HTR UNIT
(C) MAL 		8-94328-657-0 04 1 9706-
104 CAP; CASE,HTR UNIT
(D) MAL 		8-94387-703-0 01 1 0012-
132 BRACKET; HTR CORE 1-83573-195-0 01 1 0012-
138 COVER; HTR CASE 1-83579-599-2 01 1 9706-0011
142 LEVER; ACTUATOR 1-83564-345-1 01 1 0012-
199 SCREW; ACTUATOR 8-94348-809-0 02 1 9706-
