◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11677 - CYH RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#160068) — 154 parça

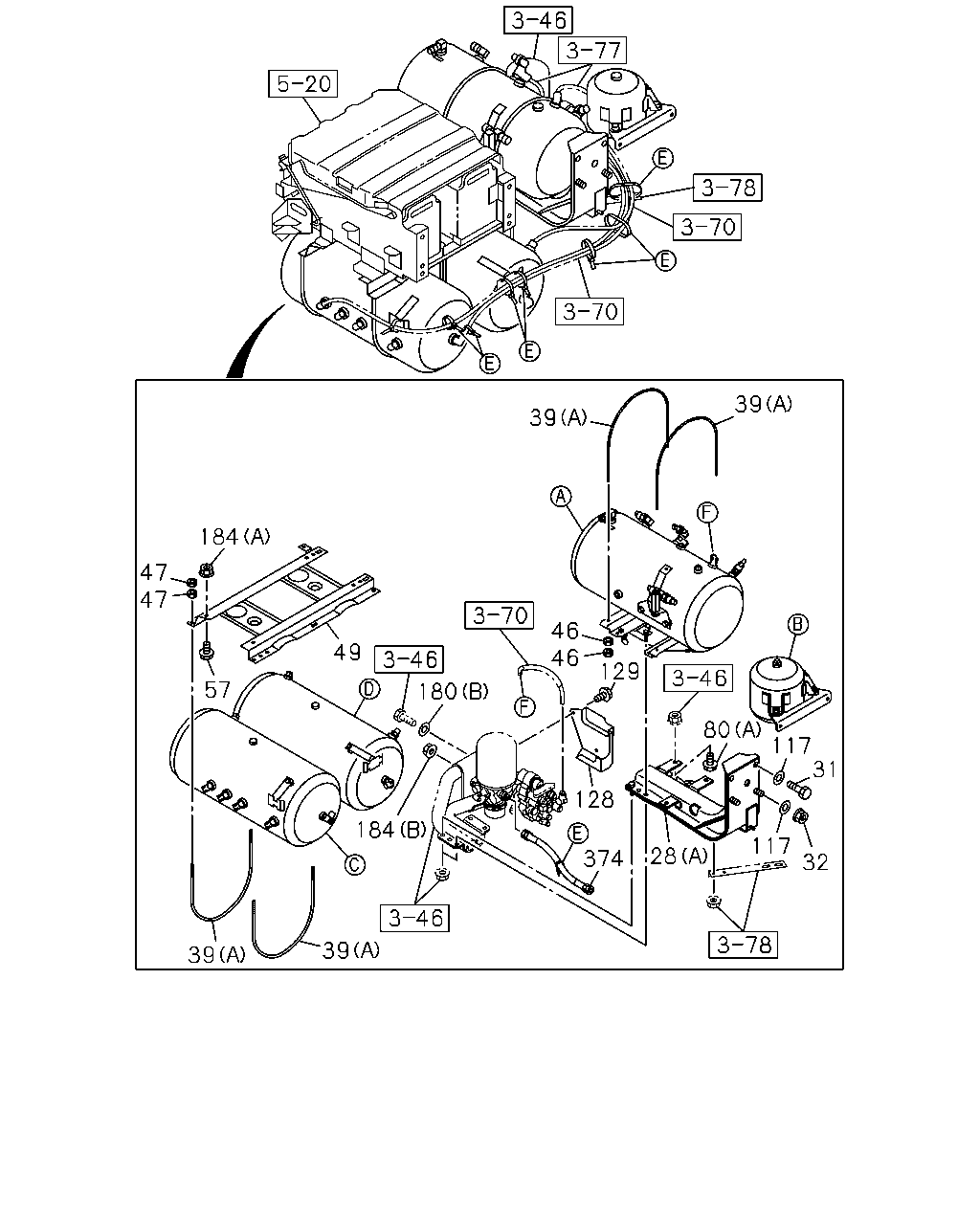

çizim 471624
32 117 31 117 80 39 39 129 46 46 128 28 374 180 49 57 184 47 47 39 39 184
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		8-98306-092-1 01 1 1504-
28 BRACKET; AIR TANK
(B) 		8-98306-117-0 01 1 1504-
28 BRACKET; AIR TANK
(C) 		1-48317-473-2 01 1 1504-
28 BRACKET; AIR TANK
(D) 		8-98300-162-0 02 1 1504-
31 BOLT; BRKT TO FRAME
M14X45 		1-09000-764-0 02 1 1504-
32 NUT; BRKT TO FRAME
M14 		1-09440-072-0 02 1 1504-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1504-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1504-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1504-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1504-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1504-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1504-
49 BRACKET; AIR TANK 8-98293-598-0 01 1 1504-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1504-
80 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 03 1 1504-
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1504-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1504-
128 PROTECTOR 8-97634-977-2 01 1 1504-
129 BOLT; PROTECTOR FIX
M8X20 FLANGE 		0-28050-820-0 02 1 1504-
180 WASHER; LK
(A) ID=18.2 		0-91510-518-0 01 1 1504-
180 WASHER; LK
(B) ID=12.5 OD=22 		0-91610-512-0 02 1 1504-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1504-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1504-
374 HOSE; RUBBER 1-09363-911-0 01 1 1504-

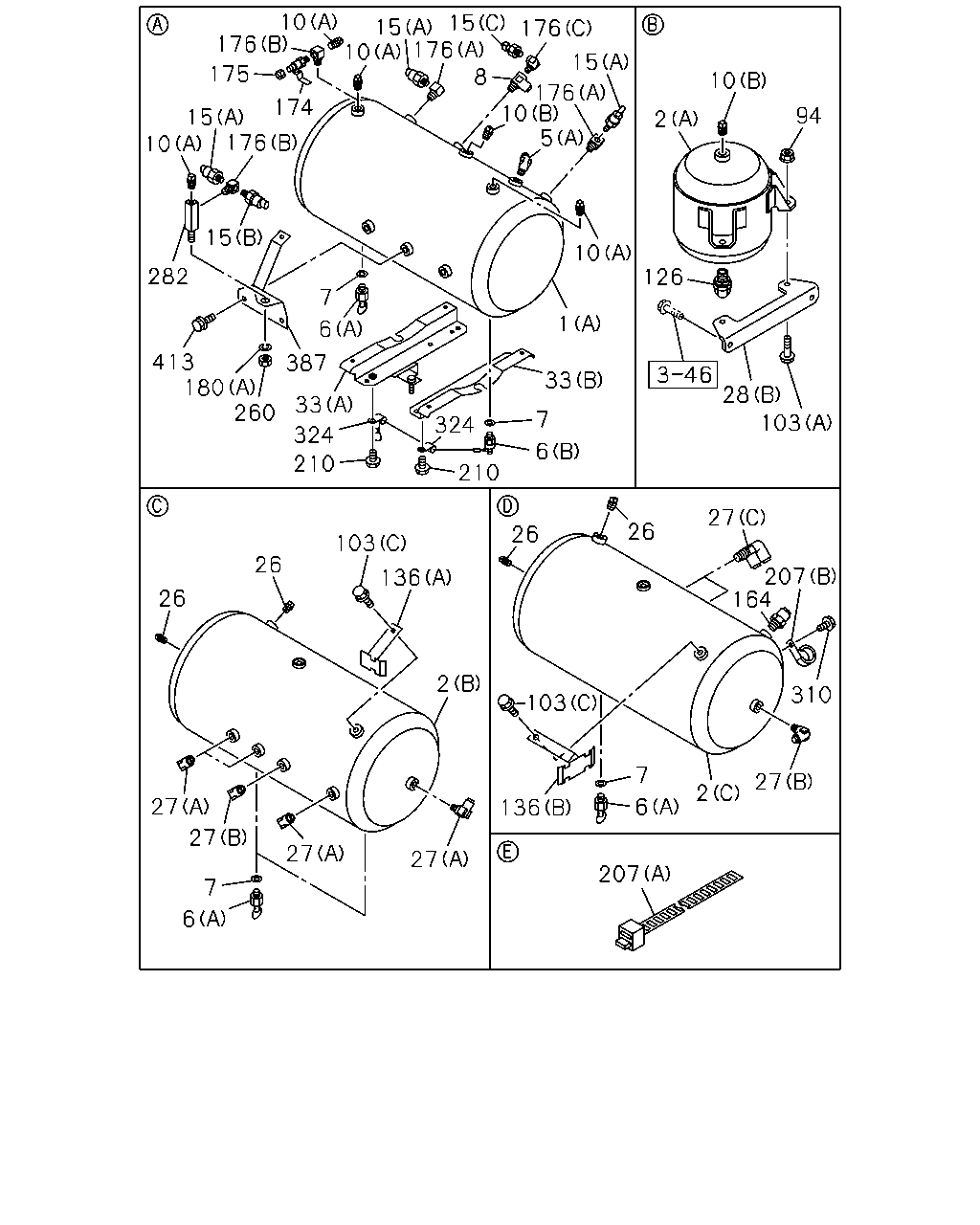

çizim 471735
26 26 103 136 2 27 27 27 27 7 6 207 136 103 6 7 2 310 27 164 27 26 26 207 103 28 126 2 10 94 7 6 33 1 10 210 324 33 210 324 387 6 7 260 180 413 282 15 10 176 15 175 176 10 174 10 15 15 176 176 176 10 8 5 15
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-97633-046-0 01 1 1504-
1 TANK ASM; AIR
(B) 		8-97626-720-0 01 1 1504-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1504-
2 TANK; AIR
(B) 		8-98294-884-0 01 1 1504-
2 TANK; AIR
(C) 		8-98294-885-1 01 1 1504-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1504-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1504-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-006-1 01 1 1504-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 01 1 1504-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 04 1 1504-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1504-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1504-
8 CONNECTOR; AIR TANK
DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1504-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1504-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1504-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1504-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1504-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 1504-
15 SWITCH; LOW PRESS,AIR TANK
(C) THREAD R1/4 		1-80220-023-1 01 1 1504-
15 SWITCH; LOW PRESS,AIR TANK
(A) STAMP 5.5 		8-97609-249-0 03 1 1504-
15 SWITCH; LOW PRESS,AIR TANK
(B) STAMP 6.5 		8-97609-252-0 01 1 1504-
26 PLUG; SUB AIR TANK
PT1/4 		9-99204-513-0 04 1 1504-
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1504-
27 UNION; ELBOW,AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1504-
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1504-
28 BRACKET; AIR TANK
(A) 		8-98306-092-1 01 1 1504-
28 BRACKET; AIR TANK
(B) 		8-98306-117-0 01 1 1504-
28 BRACKET; AIR TANK
(C) 		1-48317-473-2 01 1 1504-
28 BRACKET; AIR TANK
(D) 		8-98300-162-0 02 1 1504-
33 BRACKET; BRKT,AIR TANK
(A) 		8-97628-606-3 01 1 1504-
33 BRACKET; BRKT,AIR TANK
(B) 		8-97632-329-1 01 1 1504-
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 1504-
103 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1504-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28051-030-0 02 1 1504-
103 BOLT; BRKT
(D) M12X30 FLANGE 		0-28651-230-0 04 1 1504-
126 CONNECTOR; ELBOW
DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1504-
136 BRACKET; CLIP
(A) 		8-98293-617-0 01 1 1504-
136 BRACKET; CLIP
(B) 		8-98293-630-0 01 1 1504-
164 CONNECTOR; SUB AIR TANK
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1504-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1504-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1504-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 02 1 1504-
176 ADAPTER
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1504-
176 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1504-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1504-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1504-
176 ADAPTER
(F) PT3/8 ELBOW 		1-09660-696-0 02 1 1504-
176 ADAPTER
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1504-
176 ADAPTER
(G) PT3/8 3WAY 		1-09661-300-0 02 1 1504-
176 ADAPTER
(H) PT3/8 		1-48319-058-0 01 1 1504-
180 WASHER; LK
(A) ID=18.2 		0-91510-518-0 01 1 1504-
180 WASHER; LK
(B) ID=12.5 OD=22 		0-91610-512-0 02 1 1504-
207 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 10 1 1504-
207 CLIP; AIR PIPE
(B) ID=33 L=30 		8-97619-250-0 01 1 1504-
210 BOLT; STRING GUIDE
M8X16 FLANGE 		0-28050-816-0 02 1 1504-
260 NUT; UNION
M18 		0-91110-518-0 01 1 1504-
282 UNION; 2 WAY 1-09661-593-0 01 1 1504-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
324 GUIDE; STRING
ID=11 L=36.5 		9-09915-274-1 02 1 1504-
387 BRACKET; UNION 8-98306-091-1 01 1 1504-
413 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1504-

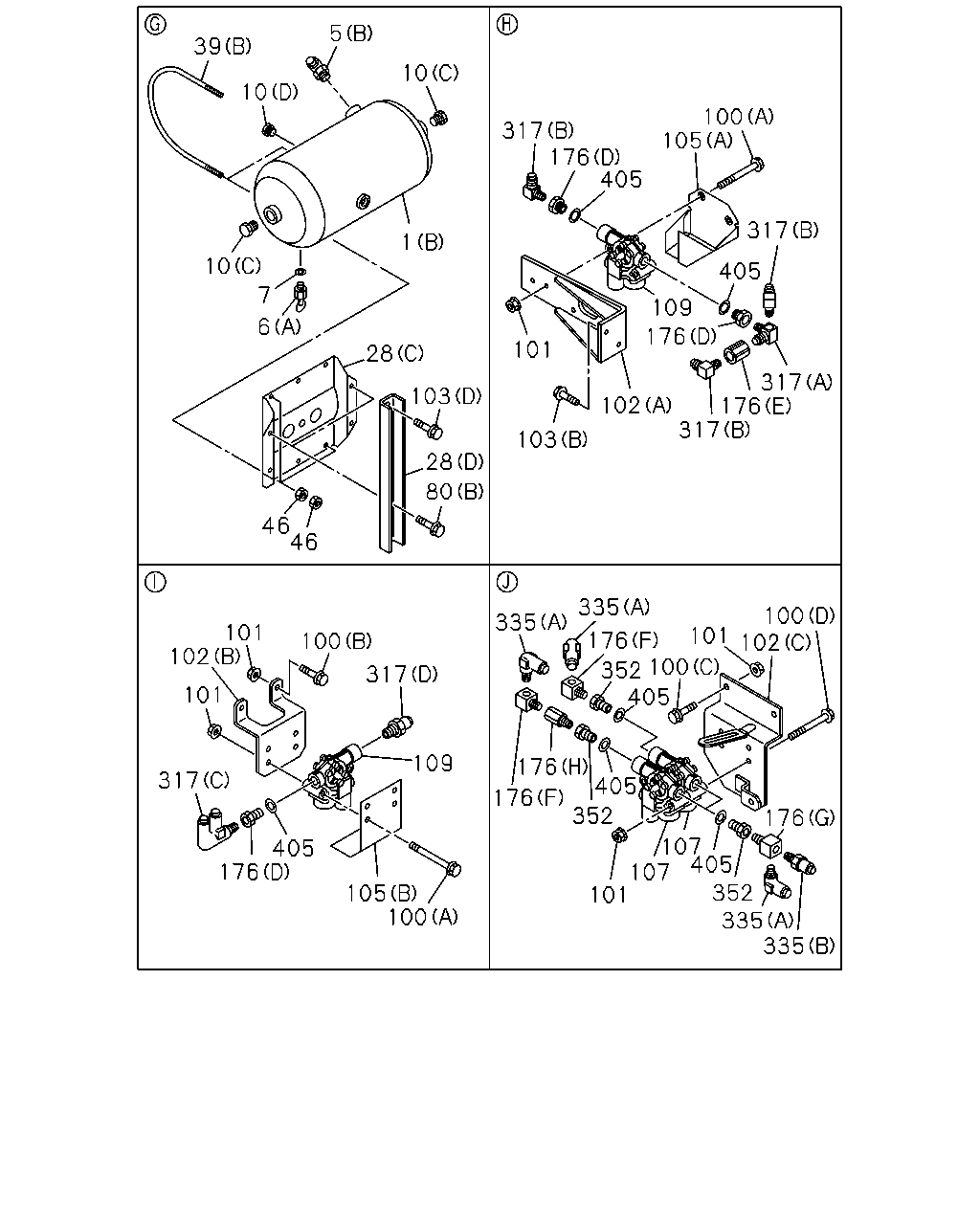

çizim 471738
101 100 317 109 105 100 176 317 102 101 335 335 176 352 100 101 102 100 176 176 405 352 107 405 352 335 335 101 107 80 28 103 103 102 317 176 317 176 109 405 317 405 176 317 105 100 10 39 10 10 1 28 6 7 405 101 405 176 46 46 5
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-97633-046-0 01 1 1504-
1 TANK ASM; AIR
(B) 		8-97626-720-0 01 1 1504-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1504-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1504-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-006-1 01 1 1504-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 01 1 1504-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 04 1 1504-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1504-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1504-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1504-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1504-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1504-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1504-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 1504-
28 BRACKET; AIR TANK
(A) 		8-98306-092-1 01 1 1504-
28 BRACKET; AIR TANK
(B) 		8-98306-117-0 01 1 1504-
28 BRACKET; AIR TANK
(C) 		1-48317-473-2 01 1 1504-
28 BRACKET; AIR TANK
(D) 		8-98300-162-0 02 1 1504-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1504-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1504-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1504-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1504-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1504-
80 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 03 1 1504-
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1504-
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1504-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
(D) M8X140 FLANGE 		0-28055-814-0 02 1 1504-
100 BOLT; MODULATOR
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
100 BOLT; MODULATOR
FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
100 BOLT; MODULATOR
EXC. FULL TRACTOR TRUCK<RD6> (C) M8X35 FLANGE 		0-28650-835-0 02 1 1504-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 10 1 1504-
102 BRACKET; MODULATOR
(A) 		1-22131-995-1 01 1 1504-1504
102 BRACKET; MODULATOR
(B) 		8-98302-581-0 01 1 1505-
102 BRACKET; MODULATOR
(B) 		8-97609-108-1 01 1 1504-1504
102 BRACKET; MODULATOR
(A) 		8-98302-583-0 01 1 1505-
102 BRACKET; MODULATOR
(C) 		8-98296-995-0 01 1 1504-1504
102 BRACKET; MODULATOR
(C) 		8-98302-986-0 01 1 1505-
103 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1504-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28051-030-0 02 1 1504-
103 BOLT; BRKT
(D) M12X30 FLANGE 		0-28651-230-0 04 1 1504-
105 COVER; MODULATOR
(B) 		1-47479-434-1 01 1 1504-1504
105 COVER; MODULATOR
(B) 		8-97648-209-0 01 1 1505-
105 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 1504-1504
105 COVER; MODULATOR
(A) 		8-98273-494-0 01 1 1505-
107 MODULATOR; RR 1-48240-115-0 02 1 1504-1504
107 MODULATOR; RR 8-98215-454-0 02 1 1505-
109 MODULATOR; FRT 1-48240-115-0 02 1 1504-1504
109 MODULATOR; FRT 8-98215-454-0 02 1 1505-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 02 1 1504-
176 ADAPTER
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1504-
176 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1504-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1504-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1504-
176 ADAPTER
(F) PT3/8 ELBOW 		1-09660-696-0 02 1 1504-
176 ADAPTER
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1504-
176 ADAPTER
(G) PT3/8 3WAY 		1-09661-300-0 02 1 1504-
176 ADAPTER
(H) PT3/8 		1-48319-058-0 01 1 1504-
317 CONNECTOR; MODULATOR
(B) M20 & PT3/8 ELBOW 		0-92134-312-0 03 1 1504-
317 CONNECTOR; MODULATOR
(A) PT3/8X3 3WAY 		1-09656-722-0 01 1 1504-
317 CONNECTOR; MODULATOR
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1504-
317 CONNECTOR; MODULATOR
(D) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1504-
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1504-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1504-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1504-
405 GASKET
ID=22.5 		9-09571-422-0 07 1 1504-
çizim 471930
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1504-
