3-08 — PARKING BRAKE (#160065) — 64 parça

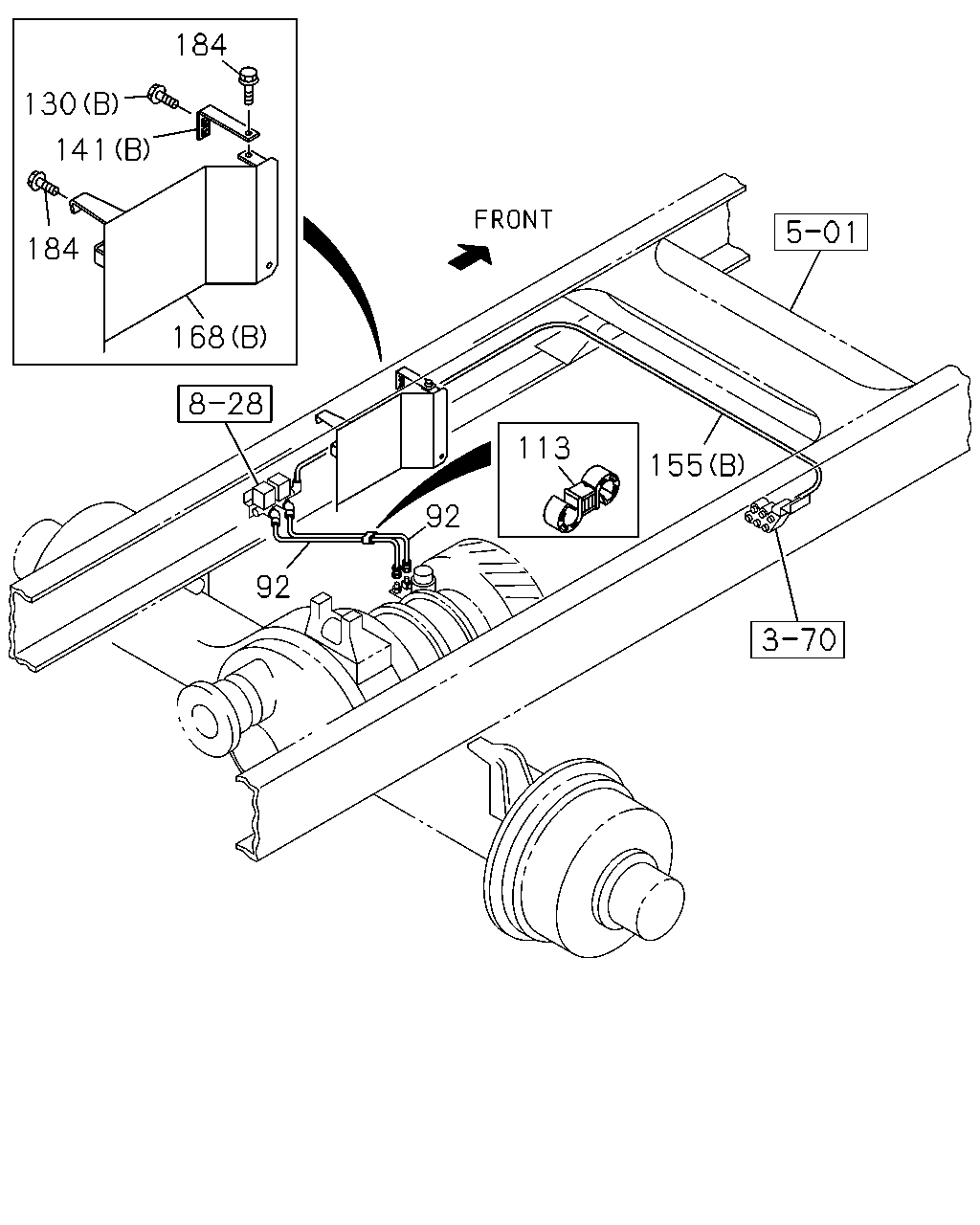

çizim 471790
155 113 92 92 168 184 141 130 184
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; FLEX,RETARDER
L=390 		1-09363-616-0 02 1 1504-
113 CLIP; HOSE
ID=10 & 10 		1-09709-277-1 01 1 1504-
130 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
130 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
130 BOLT; BRKT
(A) M6X14 HEX SOCKET 		1-48629-145-0 01 1 1504-
141 BRACKET
(B) 		8-98310-272-0 01 1 1504-
141 BRACKET
(A) 		1-48629-111-2 01 1 1504-
155 TUBE
(A) 		1-48629-092-0 01 1 1504-
155 TUBE
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 01 1 1504-
168 PROTECTOR; HEAT
FULL TRACTOR TRUCK<RD6> (B) 		8-98309-070-0 01 1 1504-
168 PROTECTOR; HEAT
EXC. FULL TRACTOR TRUCK<RD6> (B) 		8-98309-071-0 01 1 1504-
168 PROTECTOR; HEAT
(A) 		1-48629-190-0 02 1 1504-
184 BOLT; HEAT PROTECTOR
FULL TRACTOR TRUCK<RD6> M8X25 FLANGE 		0-28650-825-0 07 1 1504-
184 BOLT; HEAT PROTECTOR
EXC. FULL TRACTOR TRUCK<RD6> M8X30 FLANGE 		0-28650-830-0 09 1 1504-

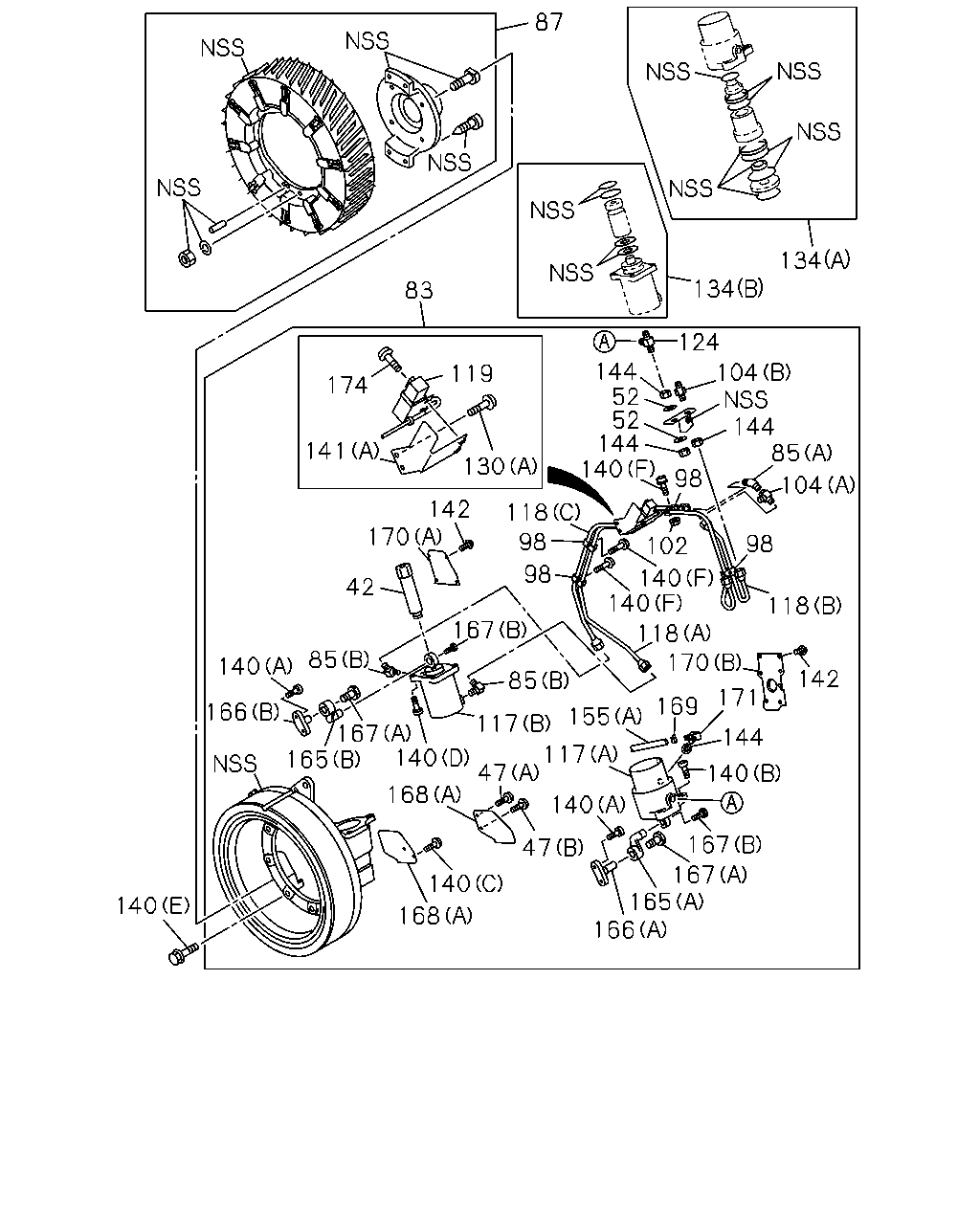

çizim 472073
166 165 167 167 140 144 171 142 118 170 169 155 118 140 140 102 98 104 85 144 104 124 144 52 52 144 140 98 118 98 98 167 85 117 117 140 47 140 168 47 168 140 167 165 140 166 140 85 42 170 142 130 119 83 174 141 87 134 134
BalonParca AdiParca NoAdetTipApplied Date
42 SPRING; RETURN,LEVER 1-48629-071-1 01 1 1504-
47 BOLT; SUPPORT PLATE
(B) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1504-
47 BOLT; SUPPORT PLATE
(A) M6X14 HEX SOCKET 		1-48629-145-0 01 1 1504-
52 WASHER; PL
ID=12.5 OD=26 		0-91610-612-0 02 1 1504-
83 RETARDER ASM; PARKING BRK 1-46200-245-5 01 1 1504-
85 CONNECTOR; RETARDER
(B) M12 & PT1/8 		0-92124-306-0 02 1 1504-
85 CONNECTOR; RETARDER
(A) 		1-48629-150-0 01 1 1504-
87 DRUM; RETARDER,PARKING BRK 1-48610-460-2 01 1 1504-
98 CLIP; AIR PIPE 1-48629-131-0 06 1 1504-
102 NUT; CLIP,AIR PIPE
M6 FLANGE 		5-09440-004-0 01 1 1504-
104 CONNECTOR
(A) 		1-48629-149-0 01 1 1504-
104 CONNECTOR
(B) 		1-48629-187-0 01 1 1504-
117 CYLINDER ASM; AIR
(A) 		1-48629-142-0 01 1 1504-
117 CYLINDER ASM; AIR
(B) 		1-48629-146-0 01 1 1504-
118 PIPE ASM; AIR CYL
(A) 		1-49115-875-0 01 1 1504-
118 PIPE ASM; AIR CYL
(C) 		1-49115-877-0 01 1 1504-
118 PIPE ASM; AIR CYL
(B) 		1-49118-551-0 01 1 1504-
119 SWITCH; THERMO 1-82450-054-0 01 1 1504-
124 CONNECTOR; FLEX HOSE 1-48629-188-0 01 1 1504-
130 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
130 BOLT; BRKT
EXC. FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
130 BOLT; BRKT
(A) M6X14 HEX SOCKET 		1-48629-145-0 01 1 1504-
134 REPAIR KIT; AIR CYL
(A) 		1-48629-137-0 01 1 1504-
134 REPAIR KIT; AIR CYL
(B) 		1-48629-138-0 01 1 1504-
140 BOLT
(E) M12X35 FLANGE 		0-28761-235-0 08 1 1504-
140 BOLT
(A) M10X20 		1-48629-070-0 04 1 1504-
140 BOLT
(B) 		1-48629-104-0 03 1 1504-
140 BOLT
(C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1504-
140 BOLT
(F) M6X18 		1-48629-134-0 03 1 1504-
140 BOLT
(D) 		1-48629-148-0 04 1 1504-
141 BRACKET
(B) 		8-98310-272-0 01 1 1504-
141 BRACKET
(A) 		1-48629-111-2 01 1 1504-
142 SCREW
M5X10 PAN-HD 		9-93490-510-0 11 1 1504-
144 NUT
M12 		9-09840-280-0 04 1 1504-
155 TUBE
(A) 		1-48629-092-0 01 1 1504-
155 TUBE
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 01 1 1504-
165 LINK; RETARDER
(A) 		1-48629-140-0 01 1 1504-
165 LINK; RETARDER
(B) 		1-48629-141-0 01 1 1504-
166 ATTACHMENT; YOKE
(A) 		1-48629-066-0 01 1 1504-
166 ATTACHMENT; YOKE
(B) 		1-48629-067-0 01 1 1504-
167 STOPPER; LINKAGE
(A) 		1-48629-069-0 02 1 1504-
167 STOPPER; LINKAGE
(B) 		1-48629-127-0 02 1 1504-
168 PROTECTOR; HEAT
FULL TRACTOR TRUCK<RD6> (B) 		8-98309-070-0 01 1 1504-
168 PROTECTOR; HEAT
EXC. FULL TRACTOR TRUCK<RD6> (B) 		8-98309-071-0 01 1 1504-
168 PROTECTOR; HEAT
(A) 		1-48629-190-0 02 1 1504-
169 CLAMP 1-48629-126-0 01 1 1504-
170 COVER; CASE
(A) 		1-48629-063-0 01 1 1504-
170 COVER; CASE
(B) 		1-48629-240-0 01 1 1504-
171 BREATHER 1-48629-144-0 01 1 1504-
174 BOLT; SWITCH
M6X10 HEX SOCKET 		1-48629-133-0 02 1 1504-
