2-30 — GEAR SHIFTER AND QUADRANT BOX (#160056) — 33 parça

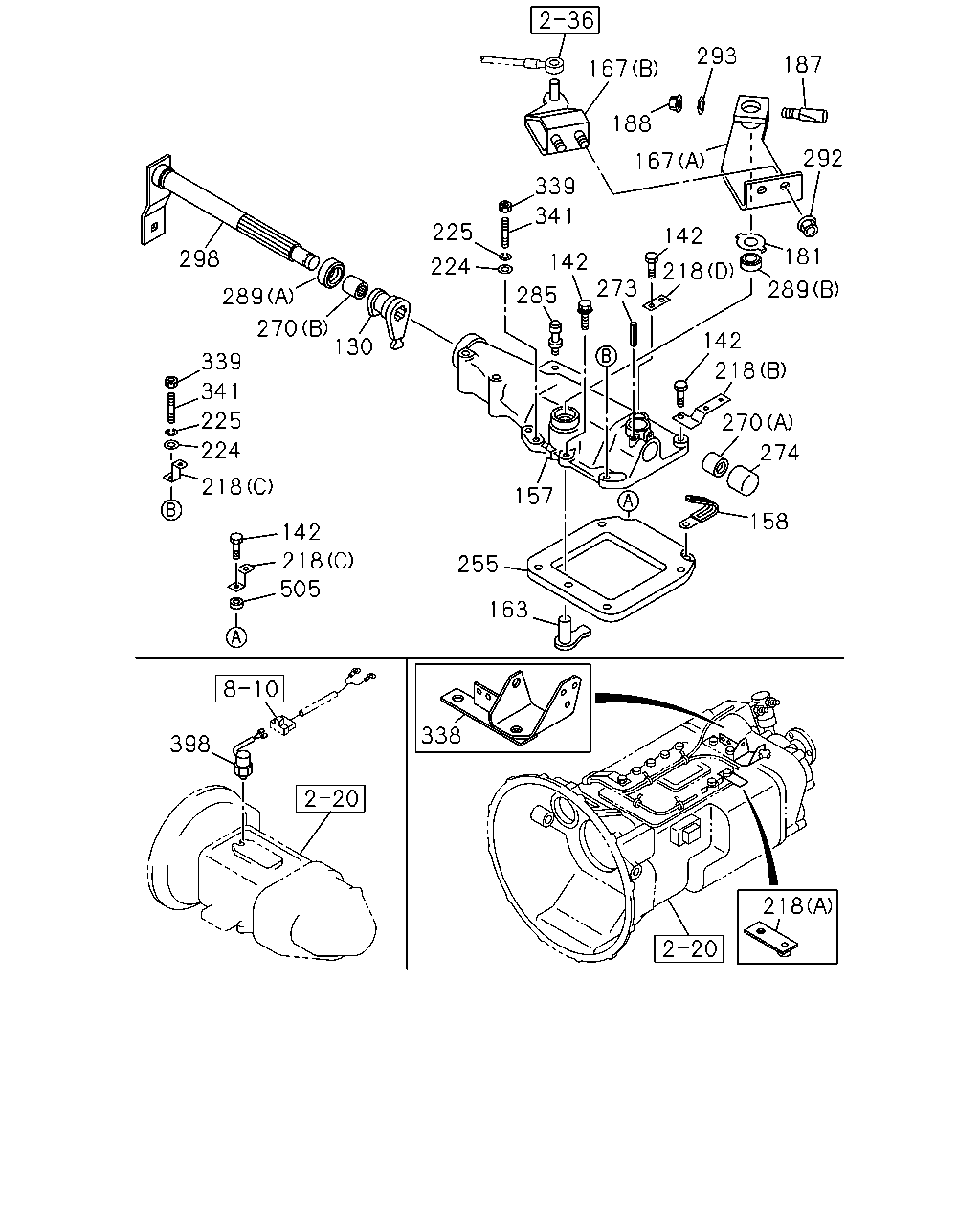

çizim 471906
167 188 293 187 292 167 142 181 289 218 273 142 285 341 339 225 224 130 270 289 298 339 341 225 224 218 142 218 505 255 157 163 158 274 270 218 142 398 338 218
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 1504-
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 1504-
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 1504-
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 1504-
163 LEVER; SELECT,INTERNAL 8-98211-001-0 01 1 1504-
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-192-1 01 1 1504-
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-193-1 01 1 1504-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1504-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1504-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1504-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) L=65 		1-47476-513-0 01 1 1504-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82569-341-0 01 1 1504-
218 BRACKET; HARNESS CLIP,QUAD BOX
(D) ID=12.5 & 9 		1-82699-179-0 01 1 1504-
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-425-0 02 1 1504-
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 1504-
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 1504-
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 1504-
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 1504-
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 1504-
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 1504-
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 1504-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1504-
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1504-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(B) OD=30 		1-09625-386-0 01 1 1504-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(A) OD=41 		1-09625-647-0 01 1 1504-
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1504-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1504-
298 SHAFT; SHIFT LEVER 1-33522-141-0 01 1 1504-
338 BRACKET; FLEX TUBE 1-47478-877-0 01 1 1504-
339 NUT; QUAD BOX
M10 		0-91110-510-0 02 1 1504-
341 STUD; QUAD BOX 1-09305-004-0 02 1 1504-
398 SWITCH; REV LAMP 1-82440-102-0 01 1 1504-
505 SPACER; BRKT 1-53459-587-0 01 1 1504-
