Isuzu WW
▶
TRUCKS
▶
CYH
▶
11677 - CYH RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶
2-20 — MANUAL TRANSMISSION ASM AND CASE
(#160053) — 34 parça
◀
[220A] CLIP AND BRACKET;NO.1 (13 parça)
[220A] HOSE (13 parça)
[220A] HOUSING (7 parça)
[220A] BRACKET;NO.2 (1 parça)
▶

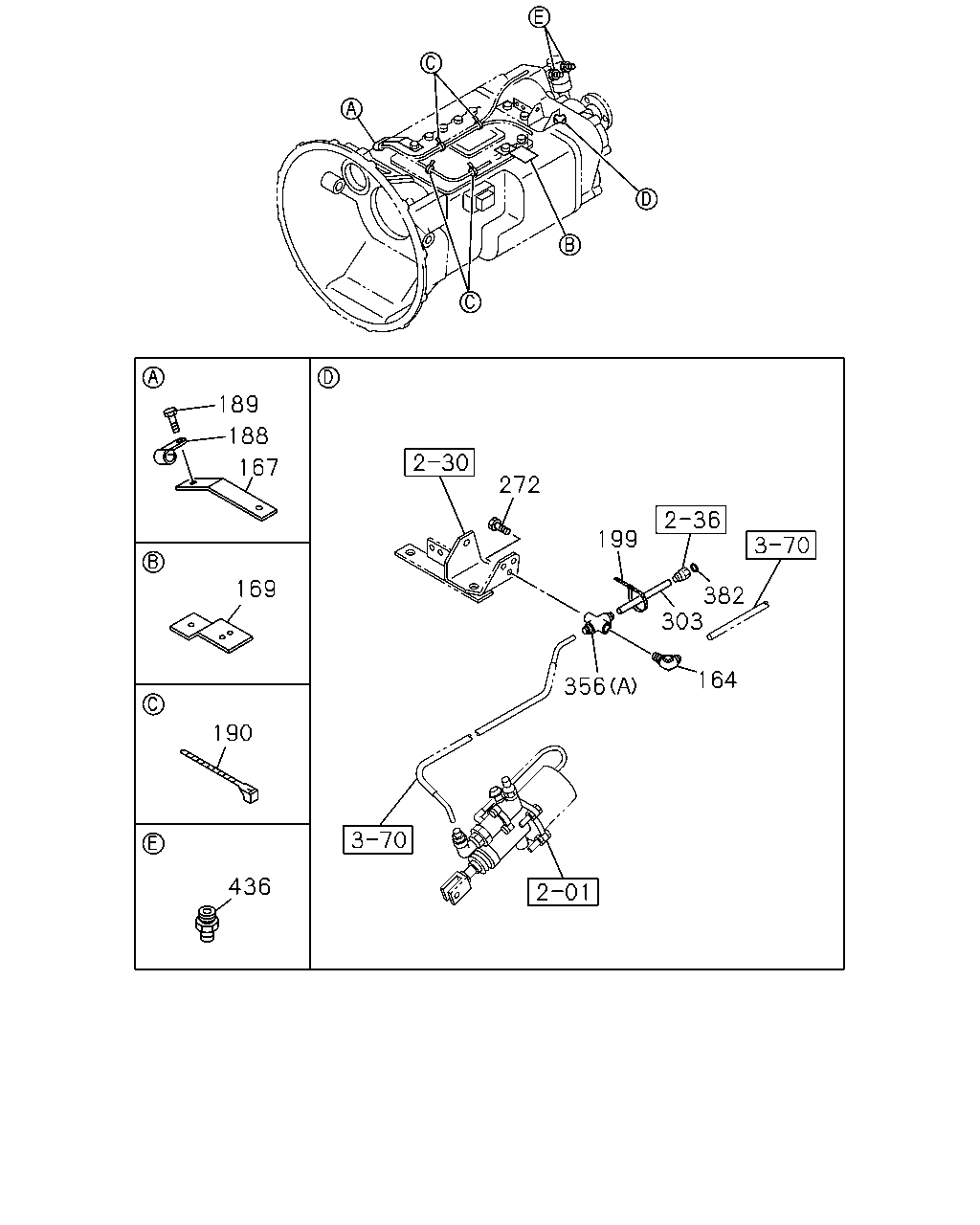

189
188
167
169
190
436
272
199
382
303
164
356
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
CONNECTOR; ELBOW
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1504-
167
BRACKET; CLIP,AIR TUBE
1-82699-123-1
01
1
1504-
169
BRACKET; CLIP,PIPE HOSE
1-47475-633-0
01
1
1504-
188
CLIP; PIPE,BRKT
ID=16 L=28
0-95235-556-0
01
1
1504-
189
BOLT; PIPE CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1504-
190
CLIP; BAND,CONT TUBE
L=350
1-09707-183-0
05
1
1504-
199
CLIP; NYLON TUBE
L=350
1-09707-183-0
01
1
1504-
272
BOLT
M8X16 FLANGE
0-28050-816-0
01
1
1504-
303
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1504-
356
UNION
(A) DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
1504-
356
UNION
(B)
1-09664-020-1
02
1
1504-
382
GASKET; ADAPTER
ID=11 OD=18
9-09572-510-0
01
1
1504-
436
CONNECTOR; AIR HOSE,SUPPLY
L=35
1-09660-039-0
01
1
1504-

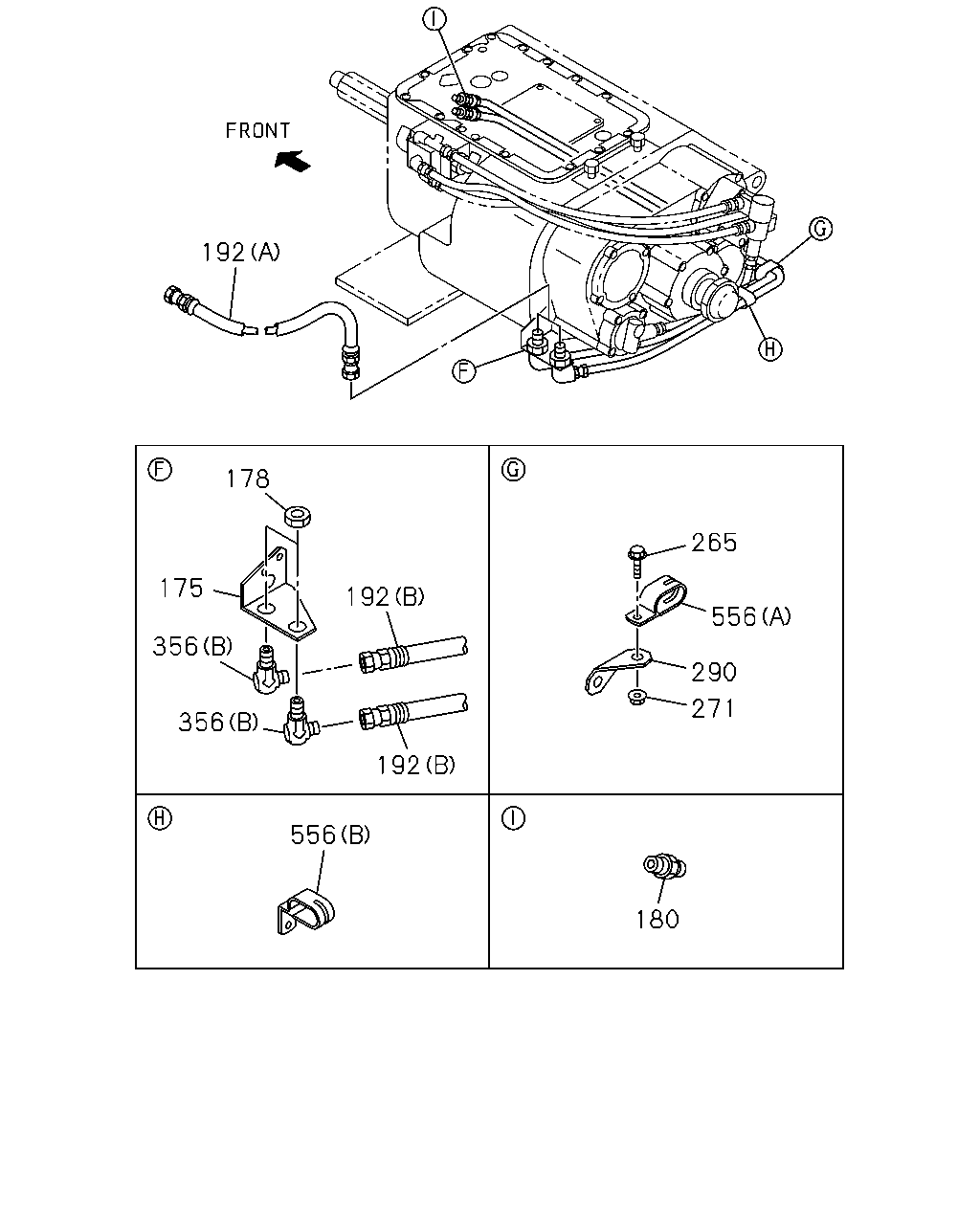

192
265
556
290
271
192
192
178
175
356
356
556
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
175
BRACKET; UNION
1-47478-084-0
01
1
1504-
178
NUT; UNION
M22
0-91111-522-0
02
1
1504-
180
CONNECTOR; NYLON TUBE
1-09661-055-0
02
1
1504-
192
HOSE; FLEX,TRANS
(B) L=1120
1-09365-010-0
02
1
1504-
192
HOSE; FLEX,TRANS
(A) L=400
1-09365-279-0
01
1
1504-
192
HOSE; FLEX,TRANS
(A) L=450
1-09365-280-0
01
1
1504-
265
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1504-
271
NUT; CLIP
M8 FLANGE
0-91180-208-0
01
1
1504-
290
BRACKET; CLIP
1-38329-074-0
01
1
1504-
356
UNION
(A) DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
1504-
356
UNION
(B)
1-09664-020-1
02
1
1504-
556
CLIP; OIL HOSE
(A) ID=24X2 L=35
1-09701-121-0
01
1
1504-
556
CLIP; OIL HOSE
(B)
8-97019-083-0
01
1
1504-

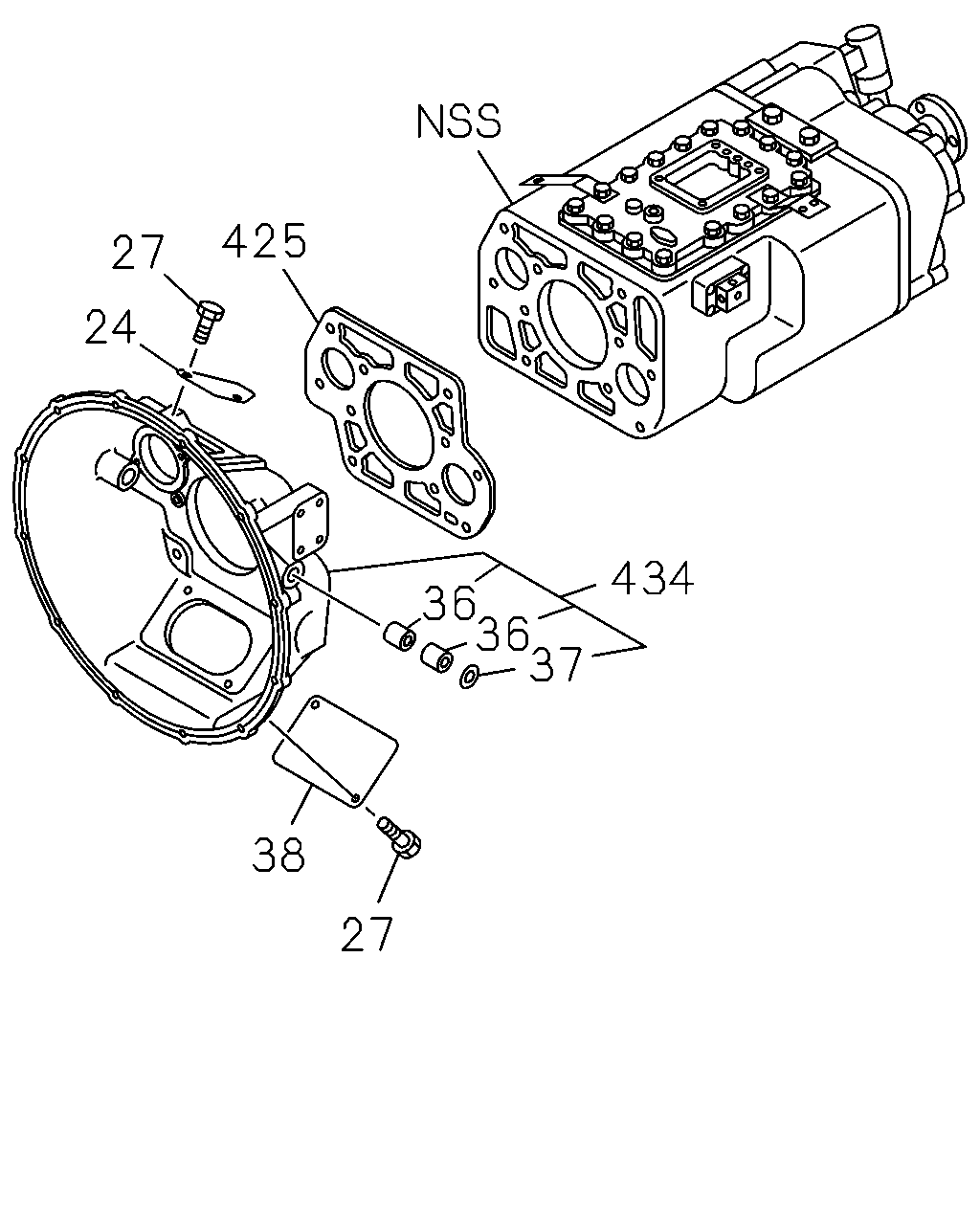

425
434
36
36
37
27
38
27
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
COVER; CHECK HOLE,DUST
1-31131-003-0
01
1
1504-
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28050-816-0
04
1
1504-
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-181-0
04
1
1504-
37
SEAL; DUST,CLU HSG
1-09625-215-0
02
1
1504-
38
COVER; CHECK HOLE,LWR
1-31131-044-1
01
1
1504-
425
GASKET; CLU HSG TO TRANS CASE
1-31121-011-0
01
1
1504-
434
HOUSING; CLU
8-98181-241-0
01
1
1504-
351
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
351
BRACKET; UNION,FLEX HOSE
8-98298-064-1
01
1
1504-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
