◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11677 - CYH RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#160046) — 85 parça
çizim 471132
570
BalonParca AdiParca NoAdetTipApplied Date
570 ADAPTER; EXH PIPE
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1504-

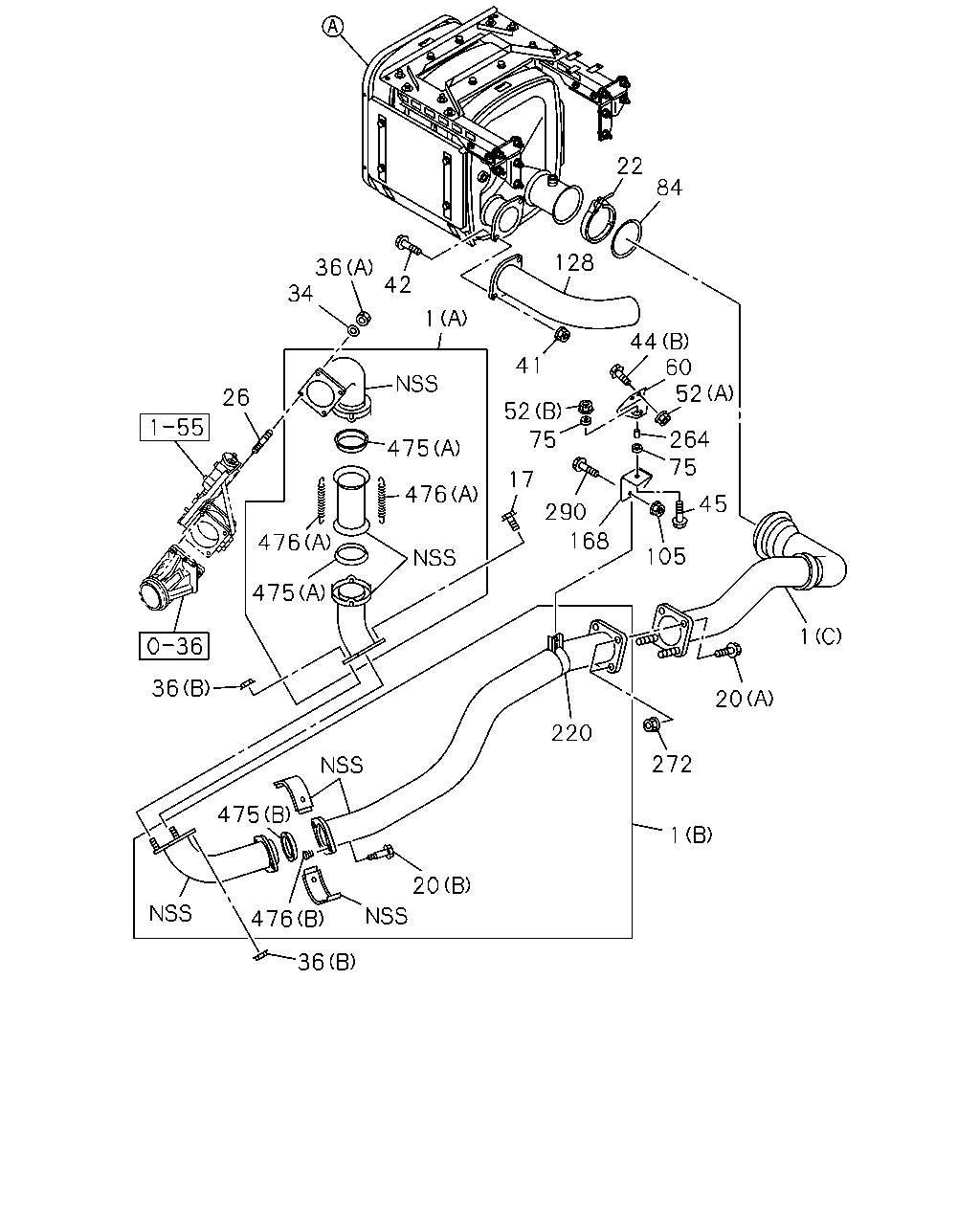

çizim 471795
22 128 84 44 52 52 41 75 17 168 290 264 45 105 42 36 34 1 26 475 476 475 476 36 475 476 20 36 220 272 20 1 1 60 75
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
FULL TRACTOR TRUCK<RD6> (C) 		8-98317-102-0 01 1 1504-
1 PIPE; EXH
TRUCK LOGGING<XP4> (C) 		8-98317-673-0 01 1 1504-1504
1 PIPE; EXH
TRUCK LOGGING<XP4> (C) 		8-98317-103-0 01 1 1505-
1 PIPE; EXH
(B) 		8-98312-661-0 01 1 1504-
1 PIPE; EXH
(A) 		8-98300-063-0 01 1 1504-
17 BOLT; EXH PIPE
M12X35 FLANGE 		1-09000-653-0 02 1 1504-
20 BOLT; FLANGE,EXH PIPE
(A) M12X35 FLANGE 		1-09000-653-0 02 1 1504-
20 BOLT; FLANGE,EXH PIPE
(B) M10X49.8 		8-97039-586-0 02 1 1504-
22 CLAMP; EXH PIPE 8-98316-847-0 01 1 1504-
26 STUD; EXH MANIF
M12X125 L=145 		8-97648-063-0 04 1 1504-
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 1504-
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 04 1 1504-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1504-
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91180-212-0 02 1 1504-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X35 FLANGE 		0-28051-235-0 02 1 1504-
44 BOLT; BRKT
(A) M14X35 FLANGE 		0-28851-435-0 04 1 1504-
44 BOLT; BRKT
(B) M8X30 FLANGE 		0-28050-830-0 02 1 1504-1504
44 BOLT; BRKT
M8X30 FLANGE 		0-28050-830-0 02 1 1505-
45 BOLT; BRKT
M10X50 FLANGE 		0-28051-050-0 01 1 1504-
52 NUT; BRKT
(C) M14 FLANGE 		0-91180-214-0 02 1 1505-1505
52 NUT; BRKT
(C) M14 FLANGE 		0-91180-214-0 04 1 1506-
52 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1504-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1504-
60 BRACKET; FRAME TO BRKT
FULL TRACTOR TRUCK<RD6> 		8-98298-075-0 01 1 1504-
60 BRACKET; FRAME TO BRKT
TRUCK LOGGING<XP4> 		8-98298-074-0 01 1 1504-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 02 1 1504-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 04 1 1504-
84 GASKET; EXH PIPE 8-98299-798-0 01 1 1504-
105 NUT; CLAMP
M8 FLANGE 		0-91180-108-0 02 1 1504-
128 PIPE; EXH,RR 8-98298-081-0 01 1 1504-
168 BRACKET; EXH PIPE,FRT 8-97617-858-0 01 1 1504-
220 CLAMP; EXH PIPE
D=101.4 		1-22133-170-1 01 1 1504-
264 TUBE; DIST,SUPPORT RUBBER
L=25 		1-14234-083-0 01 1 1504-
272 NUT; FLANGE
M12 FLANGE 		0-91180-212-0 04 1 1504-
290 BOLT; CLAMP
M8X35 FLANGE 		0-28650-835-0 02 1 1504-1504
290 BOLT; CLAMP
M8X40 FLANGE 		0-28650-840-0 02 1 1505-
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122 		1-22119-297-1 02 1 1504-
475 BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112 		1-22119-294-1 01 1 1504-
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-248-0 04 1 1504-
476 SPRING; VIBNON,EXH PIPE
(B) 		8-94141-851-0 02 1 1504-

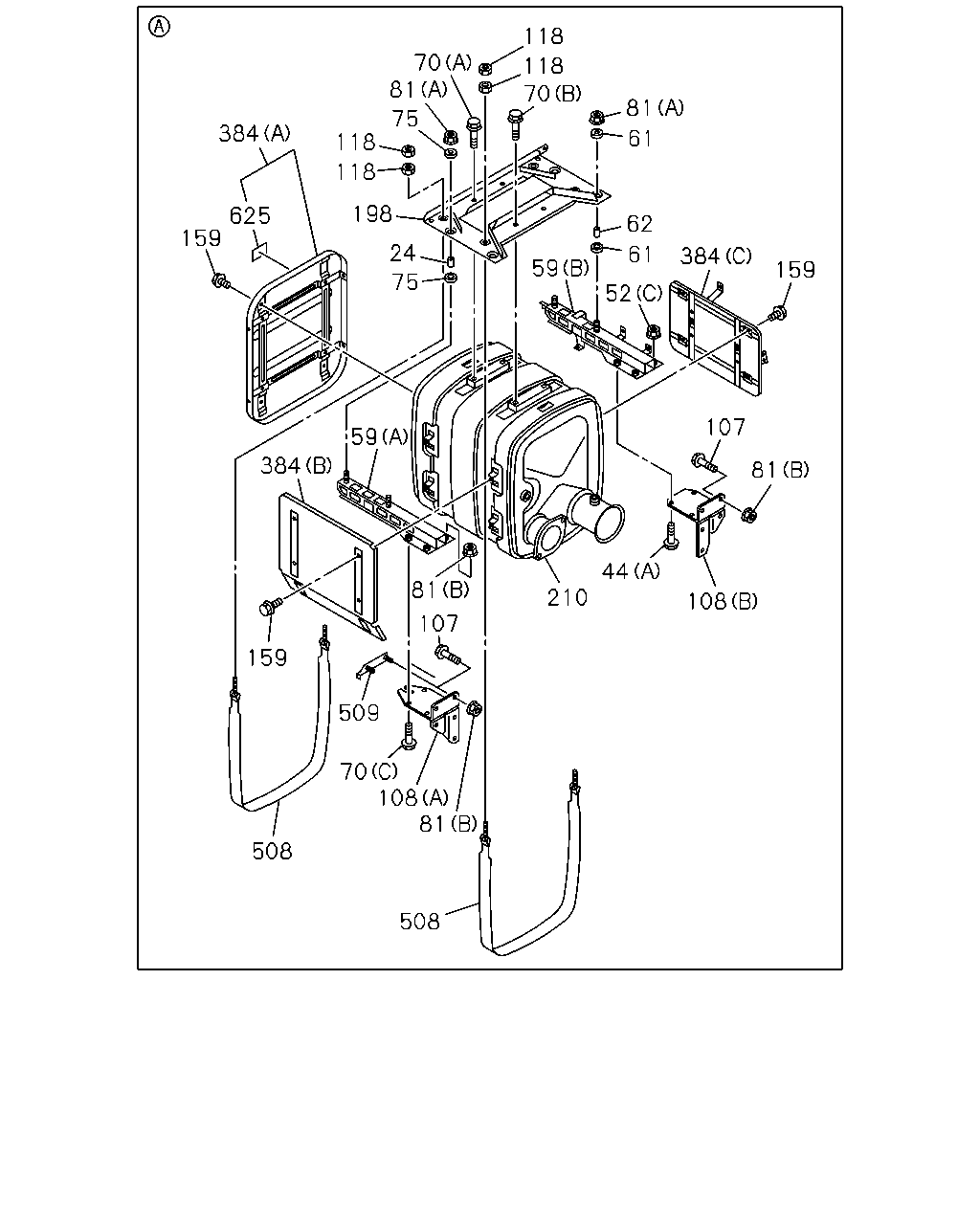

çizim 471897
108 44 210 81 107 159 384 52 61 62 59 81 118 118 70 81 118 384 118 24 198 75 625 159 61 70 75 59 384 159 81 509 70 508 108 81 508 107
BalonParca AdiParca NoAdetTipApplied Date
24 COLLAR; DIST,CLAMP
L=25 		1-14234-083-0 02 1 1504-
44 BOLT; BRKT
(A) M14X35 FLANGE 		0-28851-435-0 04 1 1504-
44 BOLT; BRKT
(B) M8X30 FLANGE 		0-28050-830-0 02 1 1504-1504
44 BOLT; BRKT
M8X30 FLANGE 		0-28050-830-0 02 1 1505-
52 NUT; BRKT
(C) M14 FLANGE 		0-91180-214-0 02 1 1505-1505
52 NUT; BRKT
(C) M14 FLANGE 		0-91180-214-0 04 1 1506-
52 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1504-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1504-
59 BRACKET; EXH SILENCER,FRT
(B) 		8-98311-207-1 01 1 1504-1505
59 BRACKET; EXH SILENCER,FRT
(B) 		8-98322-985-0 01 1 1506-
59 BRACKET; EXH SILENCER,FRT
(A) 		8-98312-533-1 01 1 1504-1505
59 BRACKET; EXH SILENCER,FRT
(A) 		8-98322-986-0 01 1 1506-
61 SUPPORT; RUBBER,BRKT
OD=40 		1-22159-094-0 04 1 1504-
62 TUBE; DIST,BRKT
L=25 		1-14234-083-0 02 1 1504-
70 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 02 1 1504-
70 BOLT; BRKT
(B) M10X30 FLANGE 		0-28051-030-0 02 1 1504-
70 BOLT; BRKT
(C) M14X35 FLANGE 		0-28851-435-0 04 1 1504-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 02 1 1504-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 04 1 1504-
81 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 04 1 1506-
81 NUT; BRKT
FULL TRACTOR TRUCK<RD6> (B) M14 FLANGE 		0-91180-214-0 03 1 1504-
81 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 05 1 1504-
81 NUT; BRKT
TRUCK LOGGING<XP4> (B) M14 FLANGE 		0-91180-214-0 02 1 1504-1504
81 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 02 1 1505-1505
81 NUT; BRKT
TRUCK LOGGING<XP4> (B) M14 FLANGE 		0-91180-214-0 02 1 1505-1505
81 NUT; BRKT
TRUCK LOGGING<XP4> (B) M14 FLANGE 		0-91180-214-0 02 1 1506-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1504-
107 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> M14X40 FLANGE 		0-28851-440-0 03 1 1504-
107 BOLT; BRKT
M14X40 FLANGE 		0-28851-440-0 05 1 1504-
107 BOLT; BRKT
TRUCK LOGGING<XP4> M14X40 FLANGE 		0-28851-440-0 05 1 1504-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FULL TRACTOR TRUCK<RD6> (A) 		8-98312-530-0 01 1 1504-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
TRUCK LOGGING<XP4> (A) 		8-98312-531-0 01 1 1504-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FULL TRACTOR TRUCK<RD6> (B) 		8-98298-088-0 01 1 1504-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
TRUCK LOGGING<XP4> (B) 		8-98298-087-0 01 1 1504-
118 NUT; SILENCER MTG BRKT
M10 		0-91110-510-0 08 1 1504-
159 BOLT; HEAT PROTECTOR
M8X22 W/LK&PL WASHER 		1-09030-042-0 12 1 1504-
198 BRACKET; CONV MTG 8-98309-185-1 01 1 1504-
210 CONVERTER 8-98261-584-0 01 1 1504-
384 PROTECTOR; HEAT SILENCER MTG
(C) 		8-98310-036-0 01 1 1504-
384 PROTECTOR; HEAT SILENCER MTG
(A) 		8-98298-090-0 01 1 1504-
384 PROTECTOR; HEAT SILENCER MTG
(B) 		8-98298-091-0 01 1 1504-
508 BAND; EXHAUST SILENCER 8-98298-080-0 02 1 1504-
509 STUD; BRKT
FULL TRACTOR TRUCK<RD6> 		8-98312-529-0 01 1 1504-
625 LABEL; SAFETY 8-98236-285-0 01 1 1504-
