Sayfa 1-46 - Isuzu EPC

1-46 — DEF TANK AND PIPING (#160045) — 240 parça

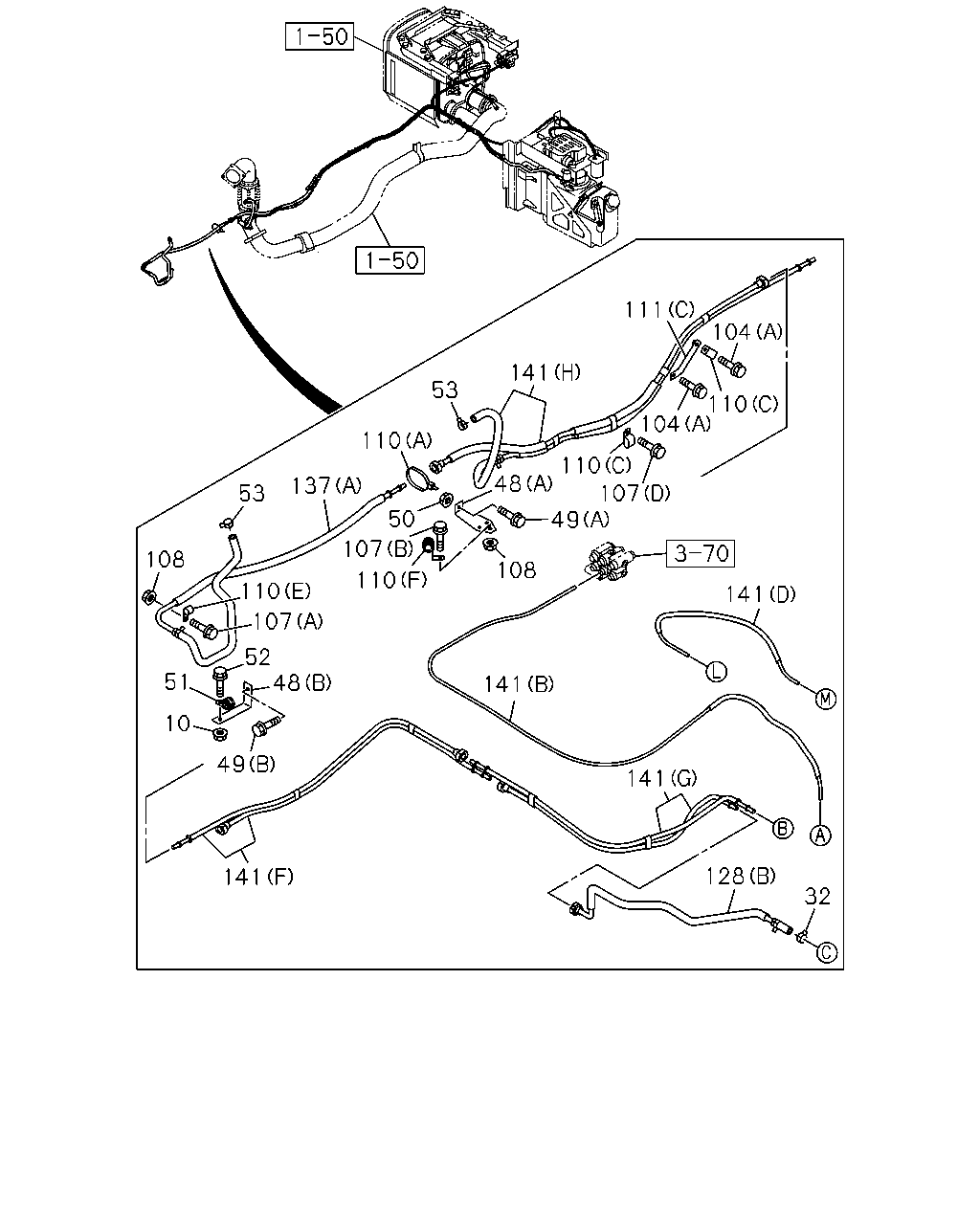

111 104 110 104 110 107 48 49 50 141 107 108 110 141 141 137 110 53 53 141 128 32 49 48 52 107 110 51 10 108 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	NUT; DEF DCM MDL COOL DLVY HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	1504-
32	CLAMP; DEF SPLY HOSE ID=16	8-97329-628-0	02	1	1504-
48	BRACKET; DEF DCM MDL COOL DLVY HOSE CL (A)	1-47479-779-0	01	1	1504-
48	BRACKET; DEF DCM MDL COOL DLVY HOSE CL (B)	8-97631-637-1	01	1	1504-
49	BOLT; DEF DCM MDL COOL DLVY HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-
49	BOLT; DEF DCM MDL COOL DLVY HOSE CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	1504-
50	NUT; DEF DCM MDL COOL DLVY HOSE CLIP B M8 FLANGE	0-91180-108-0	01	1	1504-
51	CLIP; DEF DCM MDL COOL DLVY HOSE ID=21 L=24	8-98019-191-0	01	1	1504-
52	BOLT; DEF DCM MDL COOL DLVY HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1504-
53	CLAMP; DEF DCM MDL COOL DLVY HOSE ID=18.9	8-94478-875-0	02	1	1504-
104	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	03	1	1504-
104	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1504-
104	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	03	1	1504-
107	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	08	1	1504-
107	BOLT; CLIP (A) M8X25 FLANGE	0-28050-825-0	01	1	1504-
107	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1504-
107	BOLT; CLIP (D) M8X25 FLANGE	0-28650-825-0	02	1	1504-
108	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1504-
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	12	1	1504-1506
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	13	1	1507-
110	CLIP; TUBE ASM (B) L=251	8-97619-917-0	01	1	1504-
110	CLIP; TUBE ASM (E) ID=13 L=20	0-95235-235-0	01	1	1504-
110	CLIP; TUBE ASM (C) ID=13X2 L=16	0-95325-225-0	02	1	1504-
110	CLIP; TUBE ASM (F) ID=21 L=30 H=40	1-09700-991-1	01	1	1504-
110	CLIP; TUBE ASM (G) ID=15 L=28	1-09701-216-0	01	1	1504-
110	CLIP; TUBE ASM (D) ID=16	8-97329-628-0	02	1	1504-
111	BRACKET; CLIP,TUBE ASM (F)	8-97645-073-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (E)	1-82698-358-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (B)	8-97629-329-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (A)	8-97634-806-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (C)	8-98294-836-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (D)	8-98295-001-0	01	1	1504-
128	TUBE ASM; DEF TANK HTR DLVY (A)	8-98309-896-0	01	1	1504-
128	TUBE ASM; DEF TANK HTR DLVY (B)	8-98309-898-0	01	1	1504-1505
128	TUBE ASM; DEF TANK HTR DLVY (B)	8-98323-145-0	01	1	1506-
137	TUBE ASM; DEF TANK HTR RTN (B)	8-98309-900-0	01	1	1504-1505
137	TUBE ASM; DEF TANK HTR RTN (B)	8-98323-147-0	01	1	1506-
137	TUBE ASM; DEF TANK HTR RTN (A)	8-98294-815-1	01	1	1504-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (B)	8-98315-976-0	01	1	1504-
141	TUBE ASM; DEF DCM (C)	8-98317-116-0	01	1	1504-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (B)	8-98316-182-0	01	1	1504-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (G)	8-98309-901-0	01	1	1504-1505
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (G)	8-98323-148-0	01	1	1506-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (G)	8-98309-904-0	01	1	1504-1505
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (G)	8-98323-151-0	01	1	1506-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (A)	8-98305-884-0	01	1	1504-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (A)	8-98305-885-0	01	1	1504-
141	TUBE ASM; DEF DCM (H)	8-98294-814-0	01	1	1504-1507
141	TUBE ASM; DEF DCM (H)	8-98323-803-0	01	1	1508-
141	TUBE ASM; DEF DCM (D)	8-98294-819-0	01	1	1504-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (F)	8-98294-803-0	01	1	1504-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (F)	8-98294-801-0	01	1	1504-

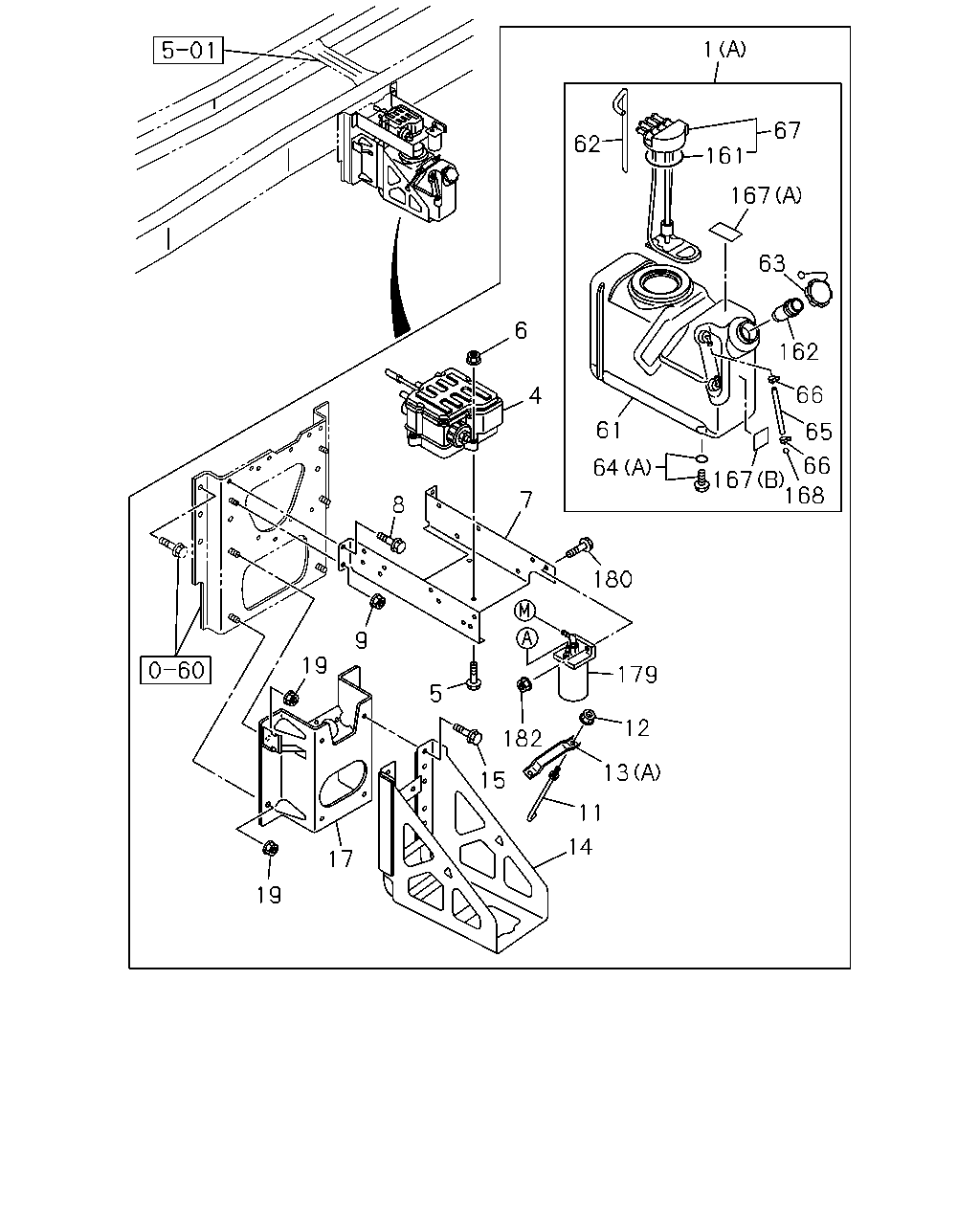

1 67 62 161 63 167 162 61 66 64 167 65 168 66 6 4 7 180 179 12 13 11 14 15 5 182 19 8 9 17 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; DEF (A)	8-98307-060-0	01	1	1504-1505
1	TANK ASM; DEF (B)	8-98295-877-1	01	1	1506-
4	PUMP ASM; DEF,DCM SPLY	8-98221-257-0	01	1	1504-
5	BOLT; PUMP ASM,DEF DCM SPLY M8X45 FLANGE	0-28050-845-0	03	1	1504-
6	NUT; DEF DCM SPLY M8 FLANGE	0-91180-108-0	03	1	1504-
7	BRACKET; DEF DCM SPLY	8-98295-876-1	01	1	1504-
8	BOLT; BRKT,DEF DCM SPLY M10X30 FLANGE	0-28051-030-0	02	1	1504-
9	NUT; BRKT,DEF DCM SPLY M10 FLANGE	0-91180-210-0	02	1	1504-
11	BOLT; DEF TANK	8-98157-936-0	02	1	1504-1505
11	BOLT; DEF TANK M10X25 FLANGE	0-28051-025-0	04	1	1506-
12	NUT; DEF TANK M10 FLANGE	0-91180-210-0	02	1	1504-1505
13	RETAINER; DEF TANK (B)	8-98295-879-0	01	1	1506-
13	RETAINER; DEF TANK (A)	8-98156-747-0	01	1	1504-1505
13	RETAINER; DEF TANK (C)	8-98295-878-1	01	1	1506-
14	BRACKET ASM; DEF TANK	8-98101-914-0	01	1	1504-1505
14	BRACKET ASM; DEF TANK	8-98295-880-2	01	1	1506-
15	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	04	1	1504-1505
15	BOLT; BRKT,DEF TANK M14X35 FLANGE	0-28851-435-0	02	1	1506-
17	BRACKET; DEF TANK	8-98307-059-2	01	1	1504-1505
19	NUT; BRKT,DEF TANK M14 FLANGE	0-91180-214-0	04	1	1504-1505
61	BODY ASM; DEF TANK	8-98120-260-1	01	1	1504-1505
61	BODY ASM; DEF TANK	8-98296-972-1	01	1	1506-
62	HOSE; VENT,DEF TANK	8-98120-261-0	01	1	1504-1505
62	HOSE; VENT,DEF TANK	8-98296-533-0	01	1	1506-
63	CAP ASM; FILLER,DEF TANK	8-98147-581-1	01	1	1504-
64	PLUG; DRAIN,DEF TANK (B)	8-98307-371-0	01	1	1505-
64	PLUG; DRAIN,DEF TANK (A)	8-98120-263-0	01	1	1504-
65	HOSE; WATER LEVEL	8-98120-264-1	01	1	1504-
66	CLAMP; WATER LEVEL HOSE	8-98120-265-1	02	1	1504-
67	SENSOR ASM; DEF TANK	8-98294-465-0	01	1	1504-
161	GASKET; SENSOR ASM,DEF TANK	8-98170-383-0	01	1	1504-
162	ADAPTER; DEF TANK	8-98131-158-0	01	1	1504-
167	PLATE; CAUTION,DEF (A)	8-98231-935-0	01	1	1504-
167	PLATE; CAUTION,DEF (B)	8-98296-524-0	01	1	1504-
168	INDICATOR; WATER LEVEL	8-98296-527-0	01	1	1504-1505
168	INDICATOR; WATER LEVEL	8-98204-163-0	01	1	1506-
179	SEPARATOR ASM	8-98261-587-1	01	1	1504-
180	BOLT; SEPARATOR ASM M8X30 FLANGE	0-28650-830-0	02	1	1504-
182	NUT; SEPARATOR ASM M8 FLANGE	0-91180-108-0	02	1	1504-

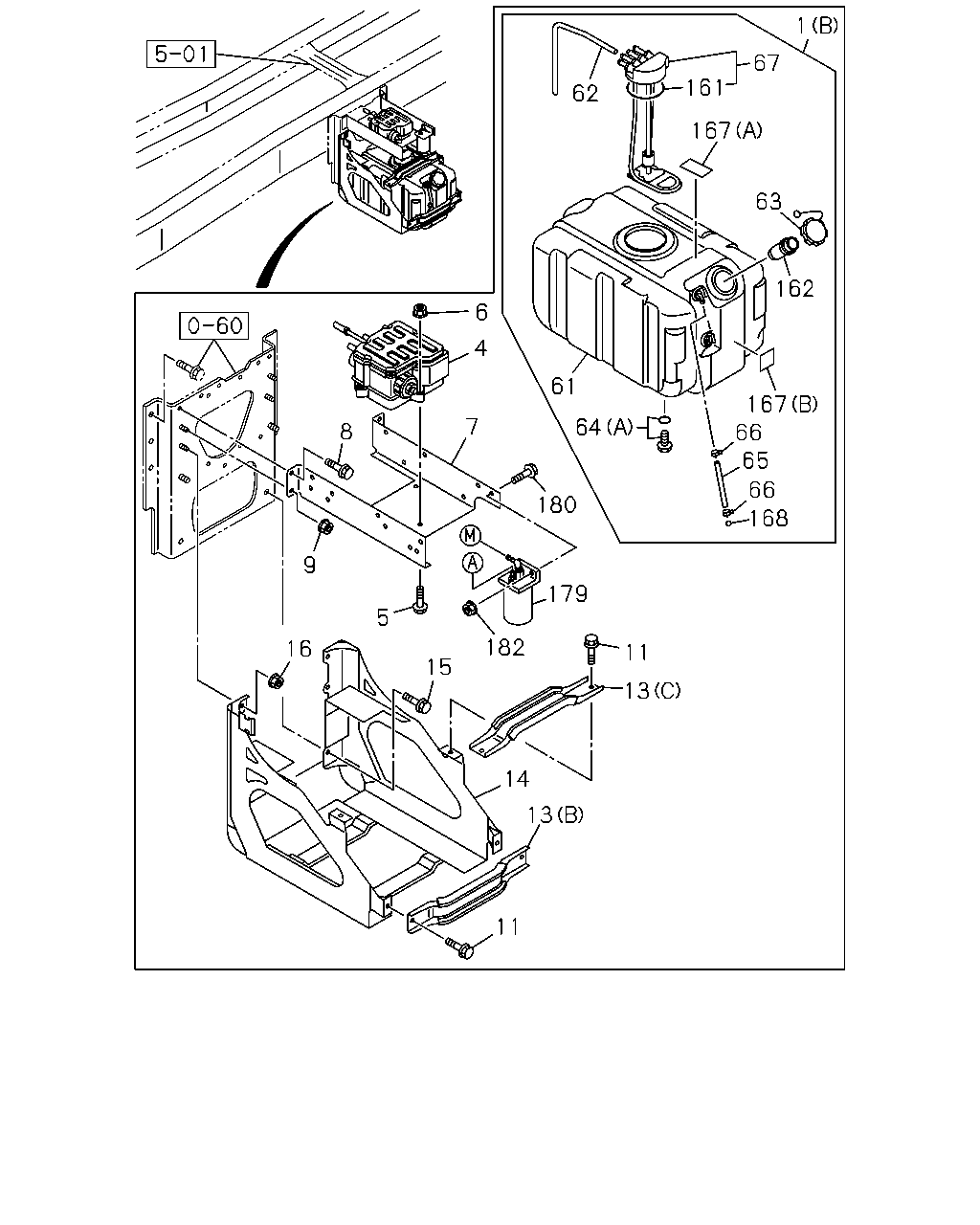

1 67 161 167 63 162 167 66 65 66 168 62 61 64 6 4 7 180 179 8 9 5 15 11 13 182 14 13 11 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; DEF (A)	8-98307-060-0	01	1	1504-1505
1	TANK ASM; DEF (B)	8-98295-877-1	01	1	1506-
4	PUMP ASM; DEF,DCM SPLY	8-98221-257-0	01	1	1504-
5	BOLT; PUMP ASM,DEF DCM SPLY M8X45 FLANGE	0-28050-845-0	03	1	1504-
6	NUT; DEF DCM SPLY M8 FLANGE	0-91180-108-0	03	1	1504-
7	BRACKET; DEF DCM SPLY	8-98295-876-1	01	1	1504-
8	BOLT; BRKT,DEF DCM SPLY M10X30 FLANGE	0-28051-030-0	02	1	1504-
9	NUT; BRKT,DEF DCM SPLY M10 FLANGE	0-91180-210-0	02	1	1504-
11	BOLT; DEF TANK	8-98157-936-0	02	1	1504-1505
11	BOLT; DEF TANK M10X25 FLANGE	0-28051-025-0	04	1	1506-
13	RETAINER; DEF TANK (B)	8-98295-879-0	01	1	1506-
13	RETAINER; DEF TANK (A)	8-98156-747-0	01	1	1504-1505
13	RETAINER; DEF TANK (C)	8-98295-878-1	01	1	1506-
14	BRACKET ASM; DEF TANK	8-98101-914-0	01	1	1504-1505
14	BRACKET ASM; DEF TANK	8-98295-880-2	01	1	1506-
15	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	04	1	1504-1505
15	BOLT; BRKT,DEF TANK M14X35 FLANGE	0-28851-435-0	02	1	1506-
16	NUT; BRKT,DEF TANK M14 FLANGE	0-91180-214-0	04	1	1506-
61	BODY ASM; DEF TANK	8-98120-260-1	01	1	1504-1505
61	BODY ASM; DEF TANK	8-98296-972-1	01	1	1506-
62	HOSE; VENT,DEF TANK	8-98120-261-0	01	1	1504-1505
62	HOSE; VENT,DEF TANK	8-98296-533-0	01	1	1506-
63	CAP ASM; FILLER,DEF TANK	8-98147-581-1	01	1	1504-
64	PLUG; DRAIN,DEF TANK (B)	8-98307-371-0	01	1	1505-
64	PLUG; DRAIN,DEF TANK (A)	8-98120-263-0	01	1	1504-
65	HOSE; WATER LEVEL	8-98120-264-1	01	1	1504-
66	CLAMP; WATER LEVEL HOSE	8-98120-265-1	02	1	1504-
67	SENSOR ASM; DEF TANK	8-98294-465-0	01	1	1504-
161	GASKET; SENSOR ASM,DEF TANK	8-98170-383-0	01	1	1504-
162	ADAPTER; DEF TANK	8-98131-158-0	01	1	1504-
167	PLATE; CAUTION,DEF (A)	8-98231-935-0	01	1	1504-
167	PLATE; CAUTION,DEF (B)	8-98296-524-0	01	1	1504-
168	INDICATOR; WATER LEVEL	8-98296-527-0	01	1	1504-1505
168	INDICATOR; WATER LEVEL	8-98204-163-0	01	1	1506-
179	SEPARATOR ASM	8-98261-587-1	01	1	1504-
180	BOLT; SEPARATOR ASM M8X30 FLANGE	0-28650-830-0	02	1	1504-
182	NUT; SEPARATOR ASM M8 FLANGE	0-91180-108-0	02	1	1504-

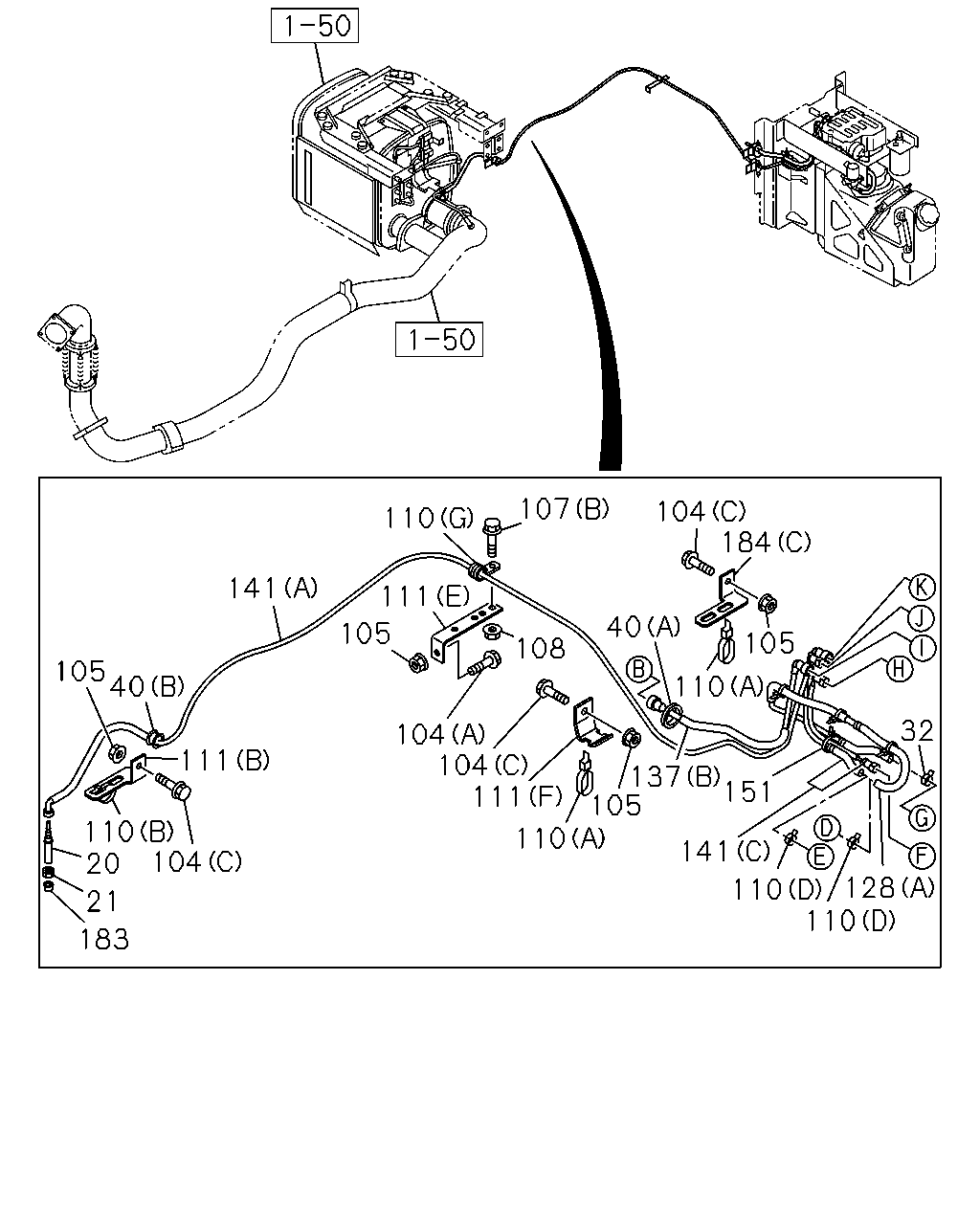

183 21 20 110 104 111 40 105 141 110 111 105 104 104 111 110 107 104 184 40 105 110 137 151 141 110 128 110 32 108 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	INJECTOR ASM; DEF DCM	8-98221-258-0	01	1	1504-
21	NUT; INJECTOR ASM,DEF DCM	8-98221-270-0	01	1	1504-
32	CLAMP; DEF SPLY HOSE ID=16	8-97329-628-0	02	1	1504-
40	GROMMET (A) ID=39 OD=45 T=19	1-09332-077-0	01	1	1504-
40	GROMMET (B) ID=24 OD=30 T=22	1-09332-126-0	01	1	1504-
40	GROMMET FULL TRACTOR TRUCK<RD6> (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1504-
40	GROMMET EXC. FULL TRACTOR TRUCK<RD6> (C) ID=24 OD=30 T=17	9-09956-092-1	01	1	1504-
104	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	03	1	1504-
104	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1504-
104	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	03	1	1504-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1504-
107	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	08	1	1504-
107	BOLT; CLIP (A) M8X25 FLANGE	0-28050-825-0	01	1	1504-
107	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1504-
107	BOLT; CLIP (D) M8X25 FLANGE	0-28650-825-0	02	1	1504-
108	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1504-
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	12	1	1504-1506
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	13	1	1507-
110	CLIP; TUBE ASM (B) L=251	8-97619-917-0	01	1	1504-
110	CLIP; TUBE ASM (E) ID=13 L=20	0-95235-235-0	01	1	1504-
110	CLIP; TUBE ASM (C) ID=13X2 L=16	0-95325-225-0	02	1	1504-
110	CLIP; TUBE ASM (F) ID=21 L=30 H=40	1-09700-991-1	01	1	1504-
110	CLIP; TUBE ASM (G) ID=15 L=28	1-09701-216-0	01	1	1504-
110	CLIP; TUBE ASM (D) ID=16	8-97329-628-0	02	1	1504-
111	BRACKET; CLIP,TUBE ASM (F)	8-97645-073-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (E)	1-82698-358-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (B)	8-97629-329-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (A)	8-97634-806-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (C)	8-98294-836-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (D)	8-98295-001-0	01	1	1504-
128	TUBE ASM; DEF TANK HTR DLVY (A)	8-98309-896-0	01	1	1504-
128	TUBE ASM; DEF TANK HTR DLVY (B)	8-98309-898-0	01	1	1504-1505
128	TUBE ASM; DEF TANK HTR DLVY (B)	8-98323-145-0	01	1	1506-
137	TUBE ASM; DEF TANK HTR RTN (B)	8-98309-900-0	01	1	1504-1505
137	TUBE ASM; DEF TANK HTR RTN (B)	8-98323-147-0	01	1	1506-
137	TUBE ASM; DEF TANK HTR RTN (A)	8-98294-815-1	01	1	1504-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (B)	8-98315-976-0	01	1	1504-
141	TUBE ASM; DEF DCM (C)	8-98317-116-0	01	1	1504-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (B)	8-98316-182-0	01	1	1504-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (G)	8-98309-901-0	01	1	1504-1505
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (G)	8-98323-148-0	01	1	1506-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (G)	8-98309-904-0	01	1	1504-1505
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (G)	8-98323-151-0	01	1	1506-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (A)	8-98305-884-0	01	1	1504-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (A)	8-98305-885-0	01	1	1504-
141	TUBE ASM; DEF DCM (H)	8-98294-814-0	01	1	1504-1507
141	TUBE ASM; DEF DCM (H)	8-98323-803-0	01	1	1508-
141	TUBE ASM; DEF DCM (D)	8-98294-819-0	01	1	1504-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (F)	8-98294-803-0	01	1	1504-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (F)	8-98294-801-0	01	1	1504-
151	CLIP; COVER L=350	1-09707-183-0	01	1	1504-
183	SPACER	8-98221-271-0	01	1	1504-
184	BRACKET; TUBE ASM (A) L=100 H=30	1-47477-645-2	01	1	1504-
184	BRACKET; TUBE ASM (B)	1-47477-694-0	01	1	1504-
184	BRACKET; TUBE ASM (C)	8-97636-092-0	01	1	1504-

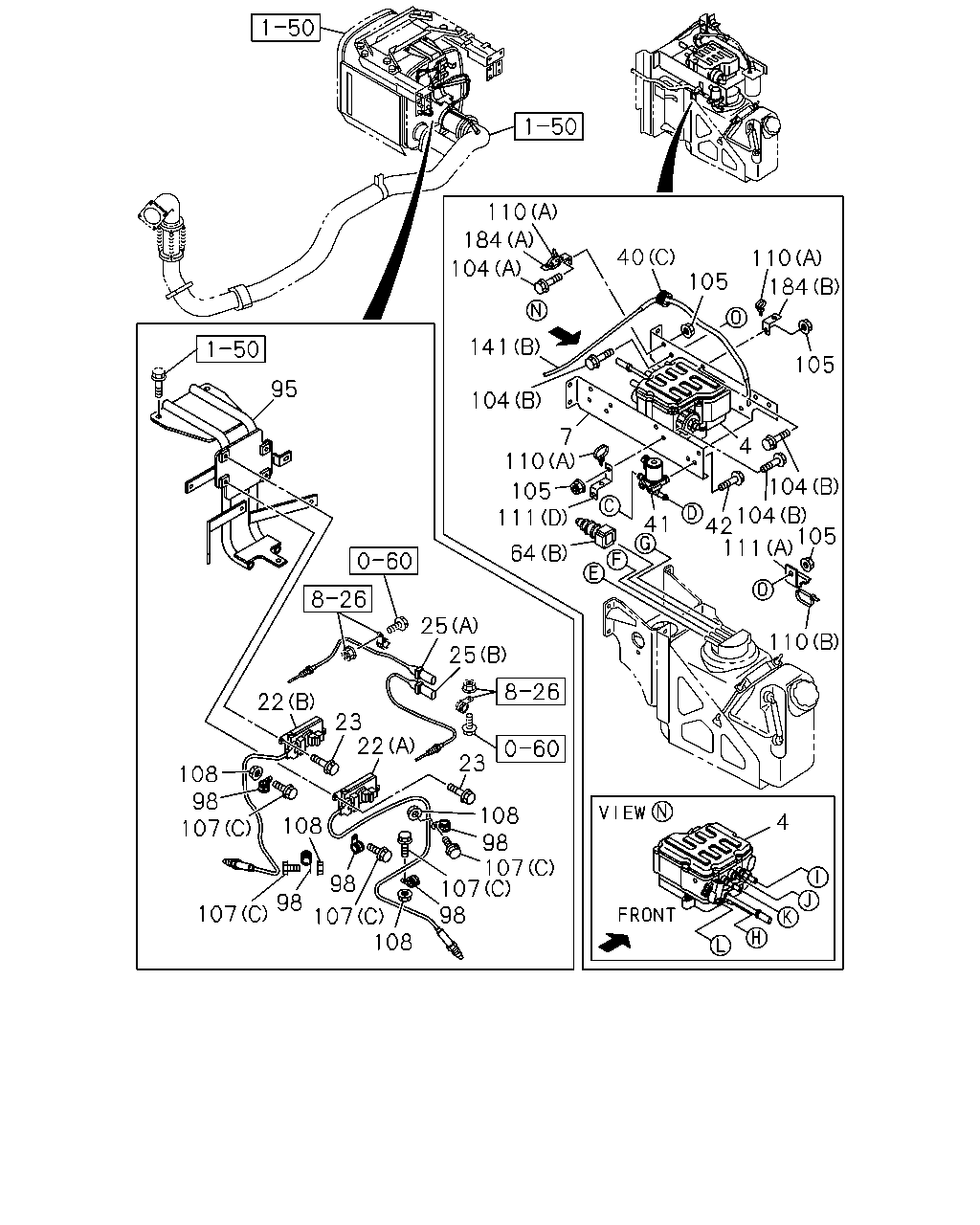

110 184 141 104 40 110 105 184 104 110 111 64 105 105 4 104 105 111 42 110 104 41 7 95 25 25 23 108 98 107 107 98 108 107 98 107 107 98 108 22 23 22 108 98 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	PUMP ASM; DEF,DCM SPLY	8-98221-257-0	01	1	1504-
7	BRACKET; DEF DCM SPLY	8-98295-876-1	01	1	1504-
22	SENSOR; DEF DCM EXH NOX (A)	8-98257-391-0	01	1	1504-
22	SENSOR; DEF DCM EXH NOX (B)	8-98257-392-1	01	1	1504-
23	BOLT; SENSOR,DEF DCM EXH NOX	8-98155-181-0	04	1	1504-
25	SENSOR; DEF DCM EXH TEMP (A)	8-98221-262-0	01	1	1504-
25	SENSOR; DEF DCM EXH TEMP (B)	8-98221-263-0	01	1	1504-
40	GROMMET (A) ID=39 OD=45 T=19	1-09332-077-0	01	1	1504-
40	GROMMET (B) ID=24 OD=30 T=22	1-09332-126-0	01	1	1504-
40	GROMMET FULL TRACTOR TRUCK<RD6> (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1504-
40	GROMMET EXC. FULL TRACTOR TRUCK<RD6> (C) ID=24 OD=30 T=17	9-09956-092-1	01	1	1504-
41	VALVE ASM; DEF TANK HTR DLVY	8-97628-956-1	01	1	1504-
42	BOLT; DEF RSVR HTR DLVY VLV M8X16 FLANGE	0-28050-816-0	02	1	1504-
64	PLUG; DRAIN,DEF TANK (B)	8-98307-371-0	01	1	1505-
64	PLUG; DRAIN,DEF TANK (A)	8-98120-263-0	01	1	1504-
95	BRACKET; HARN,DEF DCM EXH NOX SEN	8-98310-041-0	01	1	1504-
98	CLIP; DEF DCM EXH NOX SEN HARN ID=10 L=16.5	8-98082-034-0	08	1	1504-
104	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	03	1	1504-
104	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1504-
104	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	03	1	1504-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1504-
107	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	08	1	1504-
107	BOLT; CLIP (A) M8X25 FLANGE	0-28050-825-0	01	1	1504-
107	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1504-
107	BOLT; CLIP (D) M8X25 FLANGE	0-28650-825-0	02	1	1504-
108	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1504-
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	12	1	1504-1506
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	13	1	1507-
110	CLIP; TUBE ASM (B) L=251	8-97619-917-0	01	1	1504-
110	CLIP; TUBE ASM (E) ID=13 L=20	0-95235-235-0	01	1	1504-
110	CLIP; TUBE ASM (C) ID=13X2 L=16	0-95325-225-0	02	1	1504-
110	CLIP; TUBE ASM (F) ID=21 L=30 H=40	1-09700-991-1	01	1	1504-
110	CLIP; TUBE ASM (G) ID=15 L=28	1-09701-216-0	01	1	1504-
110	CLIP; TUBE ASM (D) ID=16	8-97329-628-0	02	1	1504-
111	BRACKET; CLIP,TUBE ASM (F)	8-97645-073-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (E)	1-82698-358-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (B)	8-97629-329-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (A)	8-97634-806-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (C)	8-98294-836-0	01	1	1504-
111	BRACKET; CLIP,TUBE ASM (D)	8-98295-001-0	01	1	1504-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (B)	8-98315-976-0	01	1	1504-
141	TUBE ASM; DEF DCM (C)	8-98317-116-0	01	1	1504-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (B)	8-98316-182-0	01	1	1504-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (G)	8-98309-901-0	01	1	1504-1505
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (G)	8-98323-148-0	01	1	1506-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (G)	8-98309-904-0	01	1	1504-1505
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (G)	8-98323-151-0	01	1	1506-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (A)	8-98305-884-0	01	1	1504-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (A)	8-98305-885-0	01	1	1504-
141	TUBE ASM; DEF DCM (H)	8-98294-814-0	01	1	1504-1507
141	TUBE ASM; DEF DCM (H)	8-98323-803-0	01	1	1508-
141	TUBE ASM; DEF DCM (D)	8-98294-819-0	01	1	1504-
141	TUBE ASM; DEF DCM FULL TRACTOR TRUCK<RD6> (F)	8-98294-803-0	01	1	1504-
141	TUBE ASM; DEF DCM EXC. FULL TRACTOR TRUCK<RD6> (F)	8-98294-801-0	01	1	1504-
184	BRACKET; TUBE ASM (A) L=100 H=30	1-47477-645-2	01	1	1504-
184	BRACKET; TUBE ASM (B)	1-47477-694-0	01	1	1504-
184	BRACKET; TUBE ASM (C)	8-97636-092-0	01	1	1504-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
