1-45 — WATER SEDIMENTER; FUEL (#160044) — 8 parça

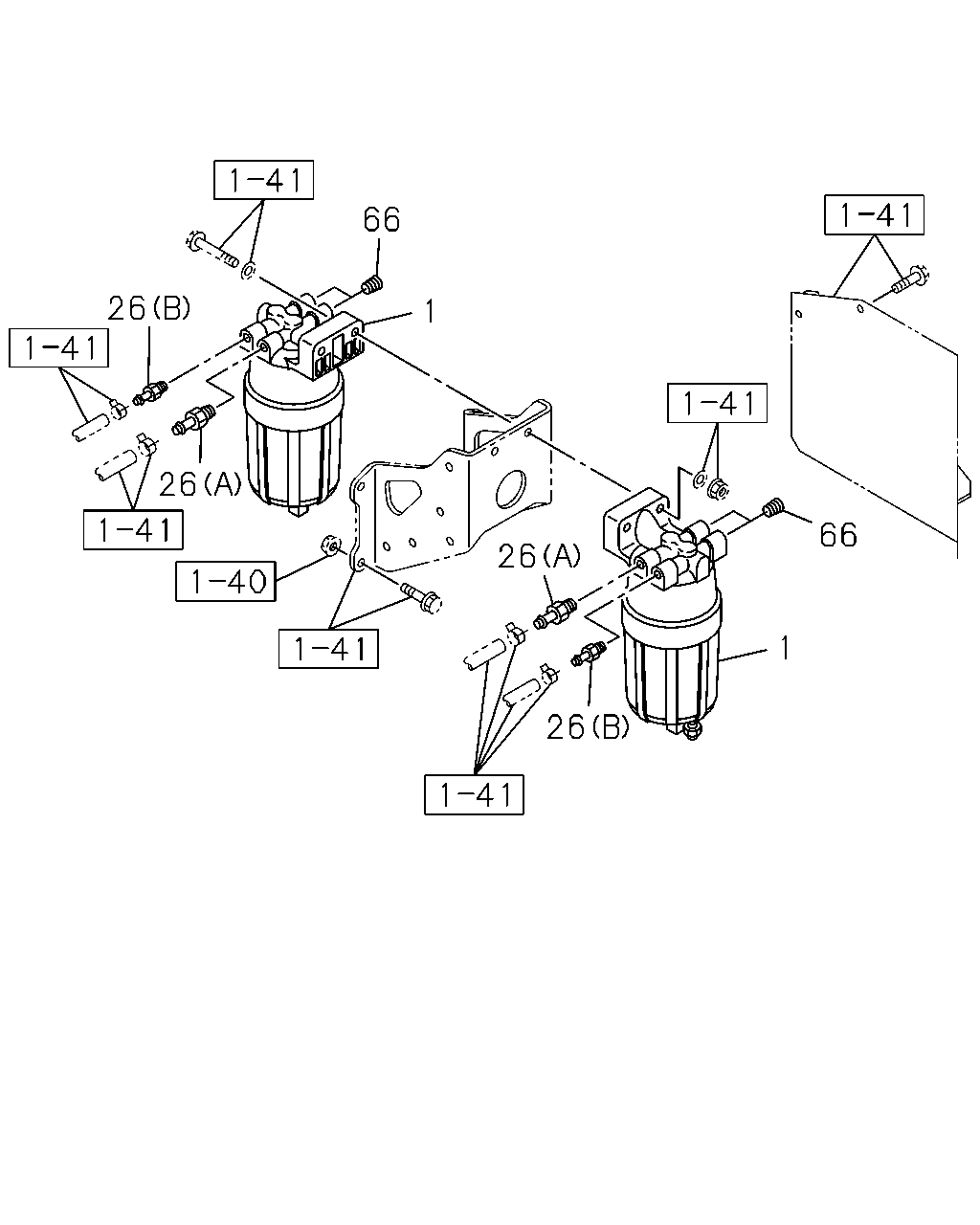

çizim 471734

66 1 26 26 26 26 1 66

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	SEDIMENTER; FUEL POOR QUALITY DIESEL FUEL<KF0>	8-98086-193-1	02	1	1504-
	26	PIPE; FUEL,IN & OUT POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=12	8-98122-952-0	02	1	1504-
	26	PIPE; FUEL,IN & OUT POOR QUALITY DIESEL FUEL<KF0> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1504-
	66	PLUG; FUEL FILTER POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	04	1	1504-

çizim 471899

87 2 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	SEDIMENTER; FUEL POOR QUALITY DIESEL FUEL<KF0>	8-98086-193-1	02	1	1504-
	2	ELEMENT; FUEL FILTER POOR QUALITY DIESEL FUEL<KF0>	8-98092-481-1	02	1	1504-
	2	ELEMENT; FUEL FILTER POOR QUALITY DIESEL FUEL<KF0> BEST VALUE PARTS	1-87610-094-1	02	1	1504-
	87	CASE ASM; SEDIMENTER POOR QUALITY DIESEL FUEL<KF0>	8-98092-482-1	02	1	1504-
