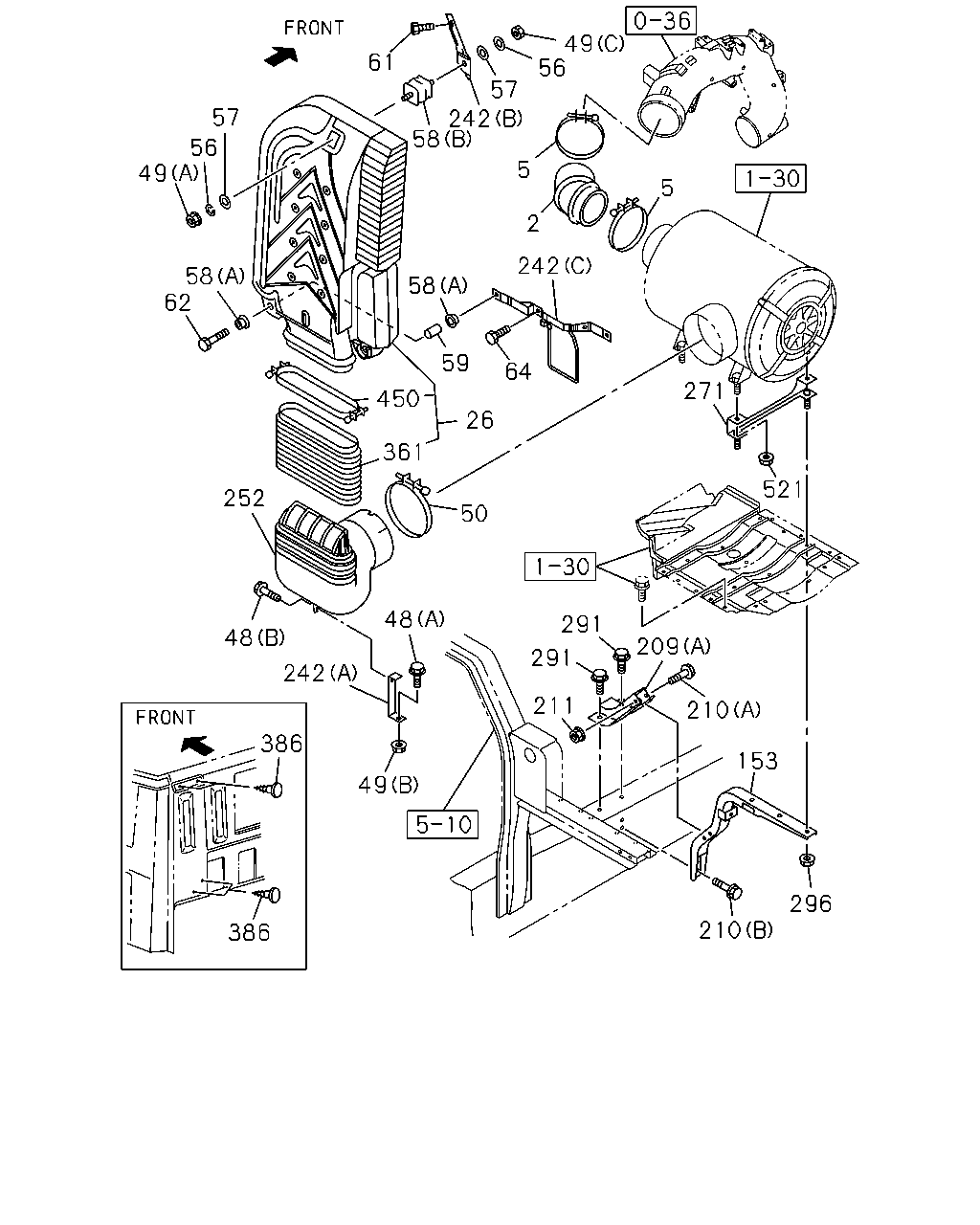

1-31 — AIR DUCT (#160040) — 80 parça

57 56 49 58 62 252 48 242 386 386 49 48 50 361 26 64 59 450 58 58 61 242 57 5 2 242 5 56 49 271 521 209 210 153 296 210 211 291 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	8-98168-974-0	01	1	1504-	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	1504-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	1504-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1504-	●	●	●
48	BOLT; AIR DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-	●	●	●
48	BOLT; AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	01	1	1504-	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	1504-	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	1504-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	04	1	1504-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	1504-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	01	1	1504-	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	1504-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	1504-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	1504-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	04	1	1504-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	02	1	1504-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	1504-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	1504-	●	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	1504-	●	●	●
61	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	1504-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	1504-	●	●	●
64	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	1504-	●	●	●
153	BRACKET; ACL,FRT	1-53419-309-0	01	1	1504-	●	●	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	1504-	●	●	●
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	1504-	●	●	●
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	1504-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	1504-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	1504-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1504-	●	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	1504-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	1504-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (C)	8-98041-994-1	01	1	1504-	●	●	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98196-998-0	01	1	1504-	●	●	●
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	1504-	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1504-	●	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1504-	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	1504-	●	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	1504-	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	1504-	●	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	1504-	●	●	●

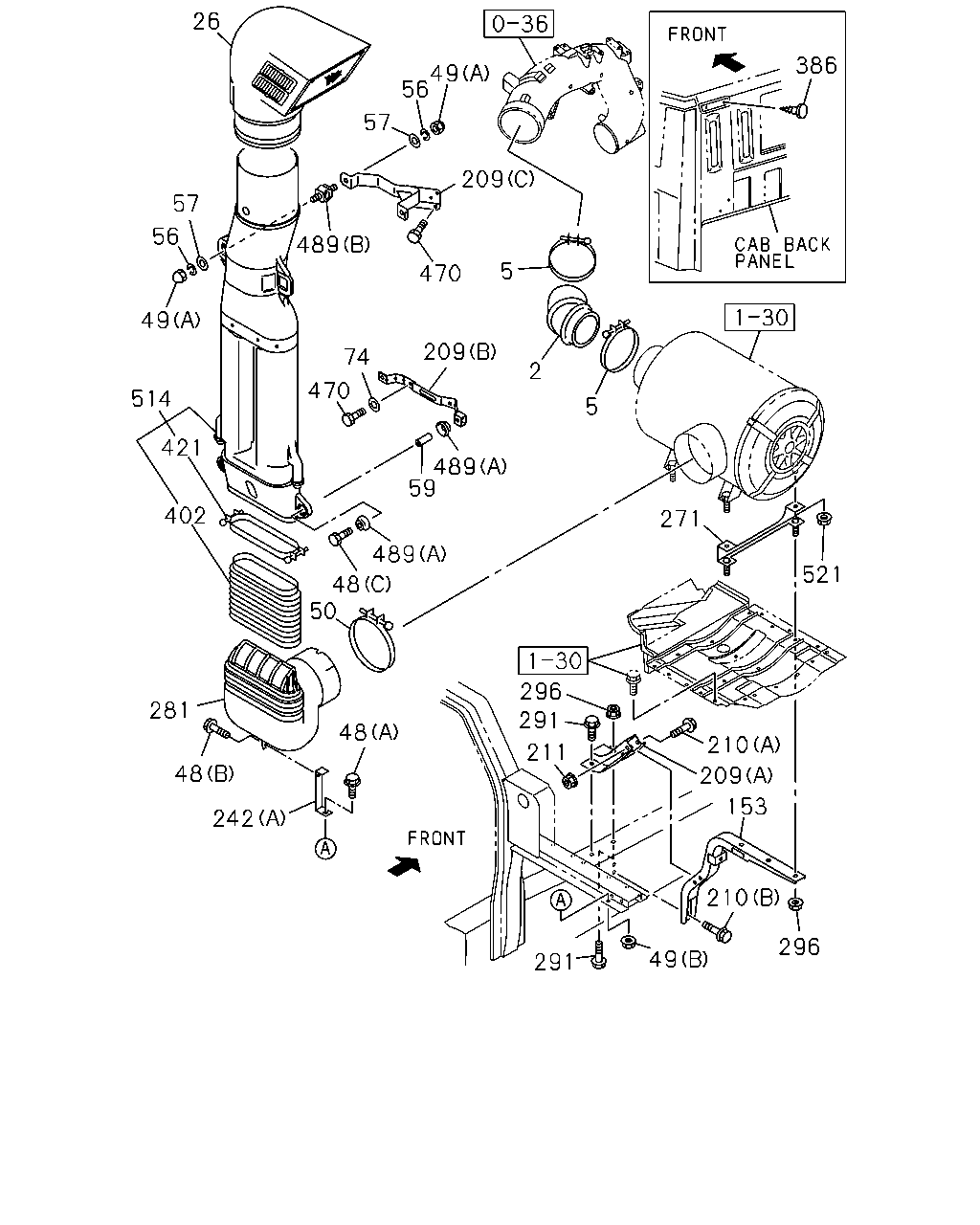

26 57 56 49 514 421 402 281 48 242 48 50 489 48 59 489 209 74 470 470 489 5 2 5 271 521 209 57 56 49 386 296 291 211 291 49 210 153 209 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	8-98168-974-0	01	1	1504-	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	1504-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	1504-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1504-	●	●	●
48	BOLT; AIR DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-	●	●	●
48	BOLT; AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	01	1	1504-	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	1504-	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	1504-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	04	1	1504-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	1504-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	01	1	1504-	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	1504-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	1504-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	1504-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	04	1	1504-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	02	1	1504-	●	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	1504-	●	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	1504-	●	●	●
153	BRACKET; ACL,FRT	1-53419-309-0	01	1	1504-	●	●	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	1504-	●	●	●
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	1504-	●	●	●
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	1504-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	1504-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	1504-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1504-	●	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	1504-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	1504-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (C)	8-98041-994-1	01	1	1504-	●	●	●
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	1504-	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	8-98196-998-0	01	1	1504-	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1504-	●	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1504-	●	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	1504-	●	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-2	01	1	1504-	●	●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	1504-	●	●	●
470	BOLT; BRKT PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	1504-	●	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	1504-	●	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	1504-	●	●	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-1	01	1	1504-	●	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	1504-	●	●	●
