◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11677 - CYH RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#160031) — 82 parça

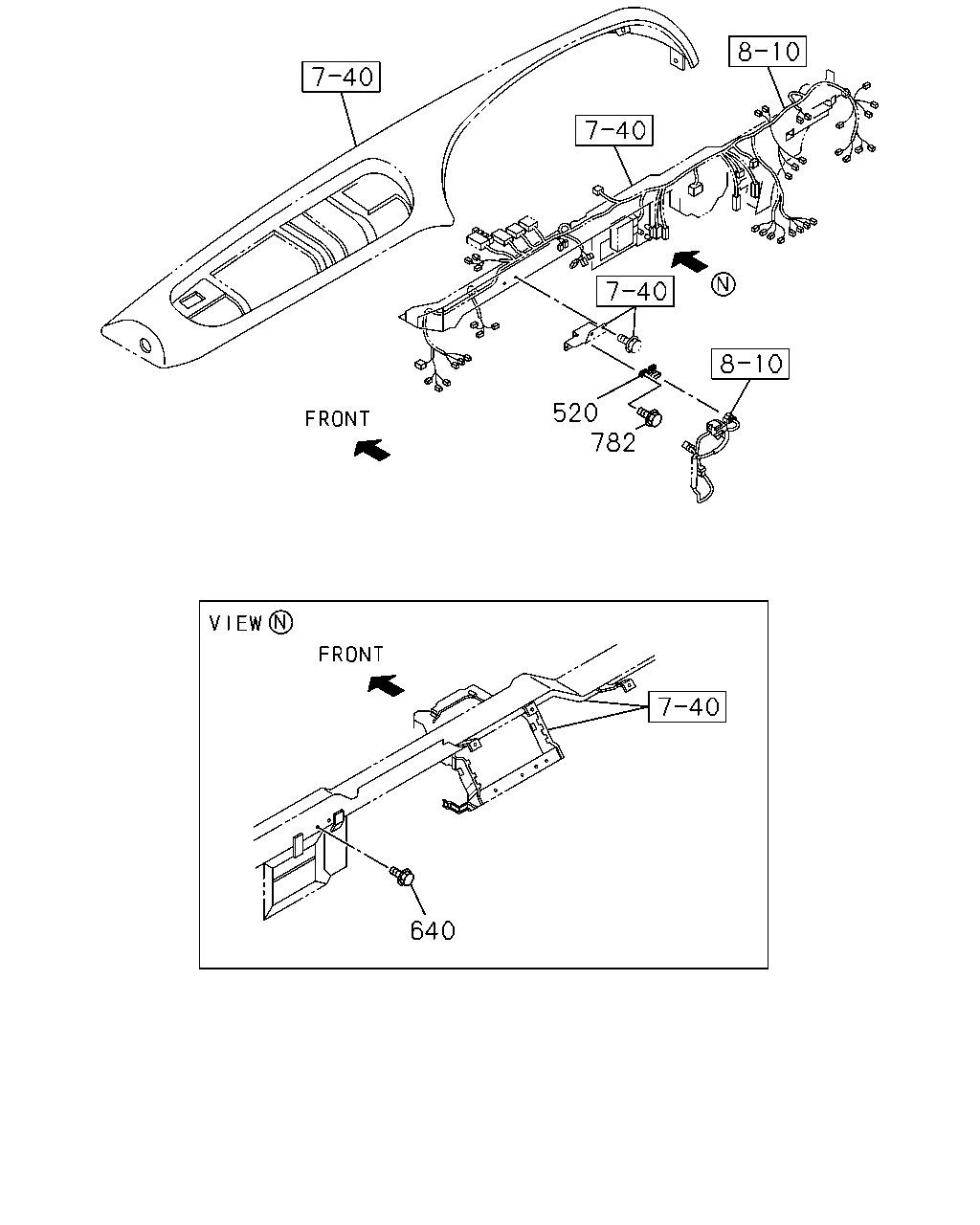

çizim 471089
520 640 782
BalonParca AdiParca NoAdetTipApplied Date
520 SENSOR; PRESSURE 8-98020-514-0 01 1 1504-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1504-

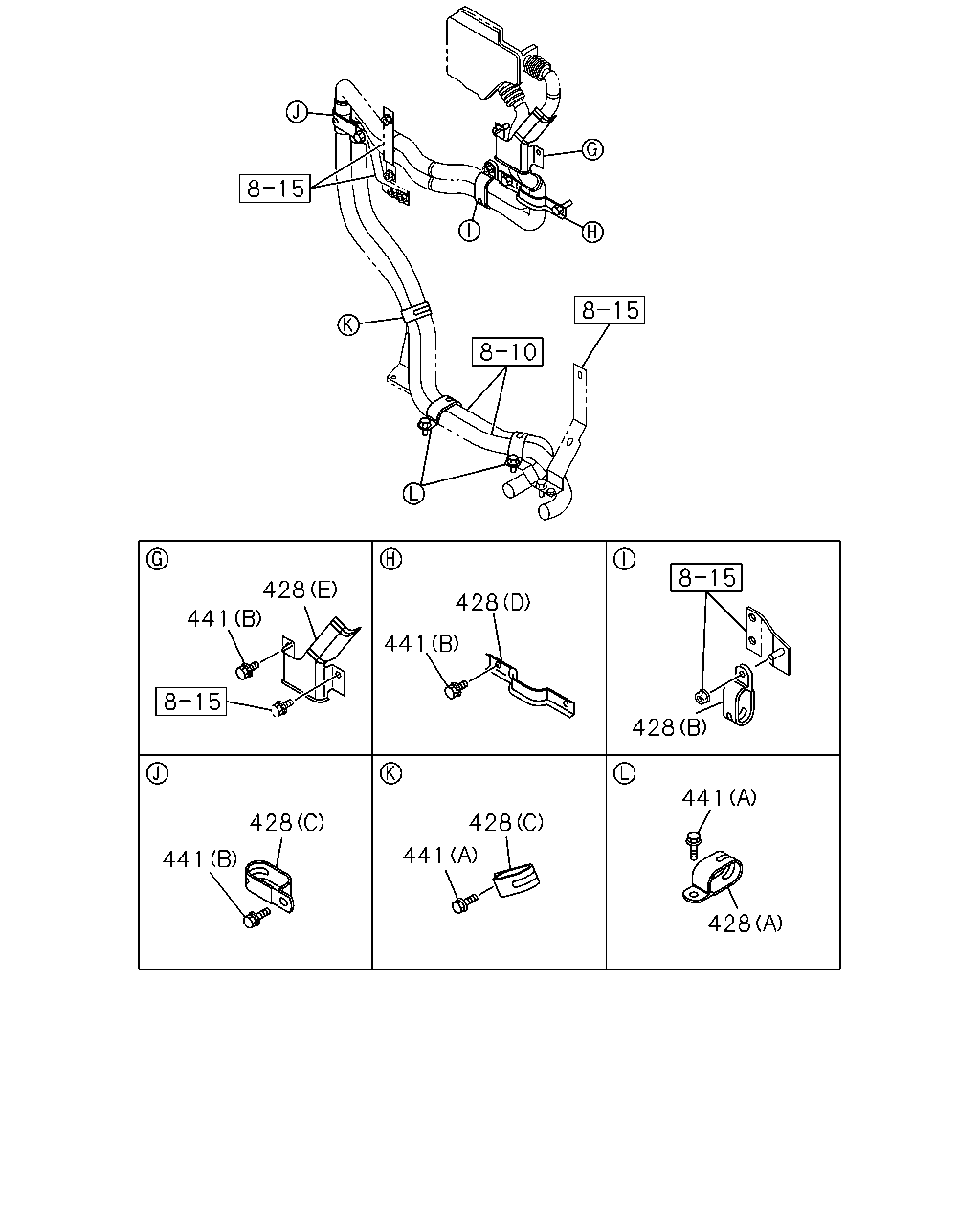

çizim 471090
428 441 441 428 428 441 428 428 441 428 441
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
(A) ID=24X2 L=25 		1-09700-710-0 02 1 1504-
428 CLIP; HARNESS
(B) ID=30X2 L=28 		1-09701-266-0 01 1 1504-
428 CLIP; HARNESS
(C) ID=28X2 L=28 		1-09701-302-0 02 1 1504-
428 CLIP; HARNESS
(D) 		1-82699-911-0 01 1 1504-
428 CLIP; HARNESS
(E) 		8-97636-270-0 01 1 1504-
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1504-
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1504-

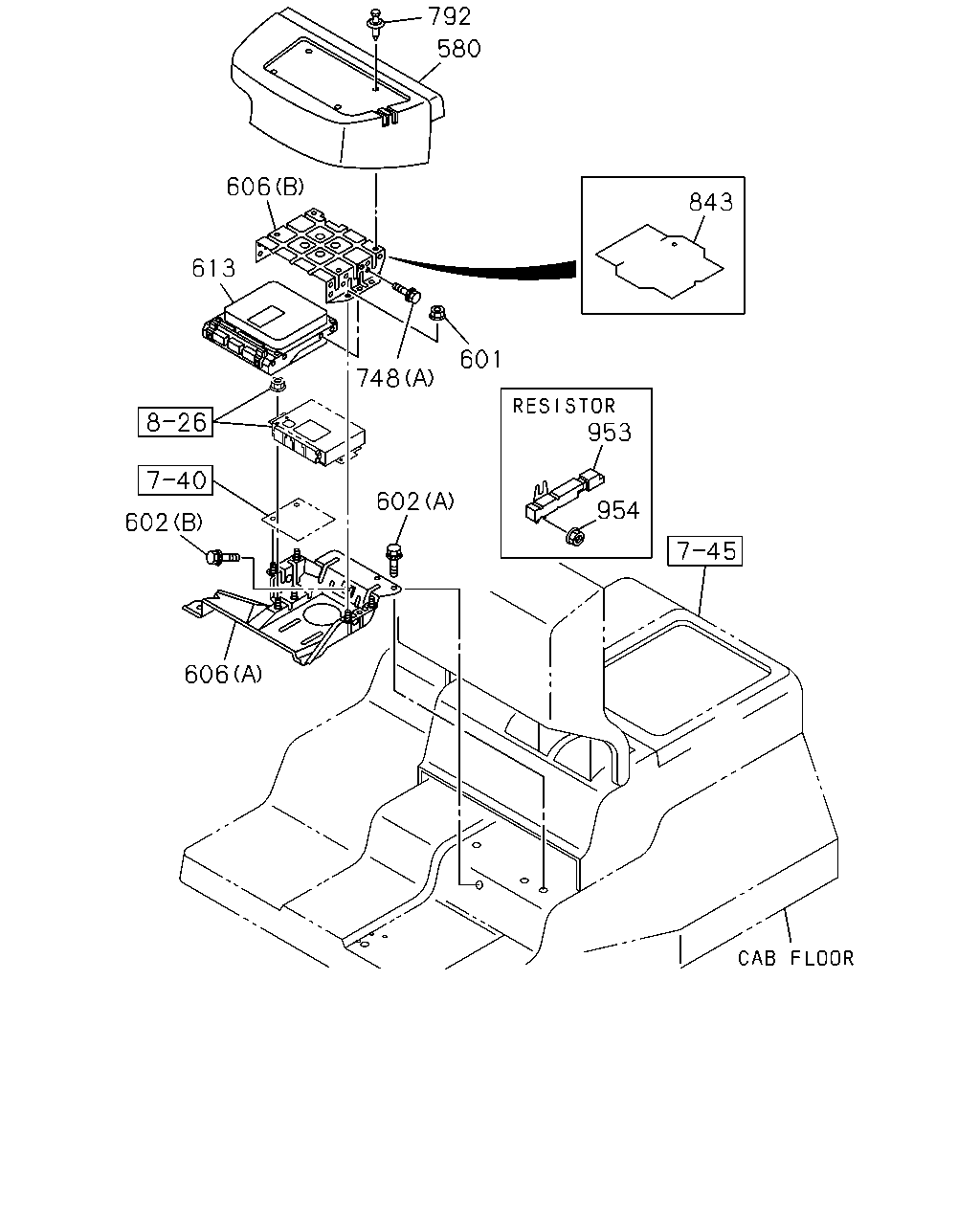

çizim 471130
792 843 580 606 613 601 748 602 606 602 953 954
BalonParca AdiParca NoAdetTipApplied Date
580 COVER; CONT UNIT
DELUXE CARPET<BF2>,VINYL CARPET<B30> 		1-72537-273-1 01 1 1504-
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 1504-
602 BOLT; BRKT
(C) M14X45 FLANGE 		0-28851-445-0 05 1 1504-1507
602 BOLT; BRKT
(C) M14X45 FLANGE 		0-28851-445-0 06 1 1508-
602 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1504-
602 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1504-
606 BRACKET; CONT UNIT
(A) 		8-98182-920-0 01 1 1504-
606 BRACKET; CONT UNIT
(B) 		8-98182-921-0 01 1 1504-
606 BRACKET; CONT UNIT
(C) 		8-98295-873-2 01 1 1504-1505
606 BRACKET; CONT UNIT
(C) 		8-98323-193-0 01 1 1506-1507
606 BRACKET; CONT UNIT
(C) 		8-98329-819-0 01 1 1508-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) 		8-98303-414-1 01 1 1504-
613 CONTROL UNIT; ENG
6WG1 TC-N(71L) 		8-98303-405-1 01 1 1504-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) 		8-98303-420-1 01 1 1504-
748 BOLT; CONT UNIT
(B) M6X35 FLANGE 		0-28050-635-0 04 1 1504-
748 BOLT; CONT UNIT
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1504-
792 FASTENER
DELUXE CARPET<BF2>,VINYL CARPET<B30> D8X13.5 		1-09987-270-0 04 1 1504-
843 SEAL; BRKT 8-98119-974-0 01 1 1504-
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 1504-
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 1504-

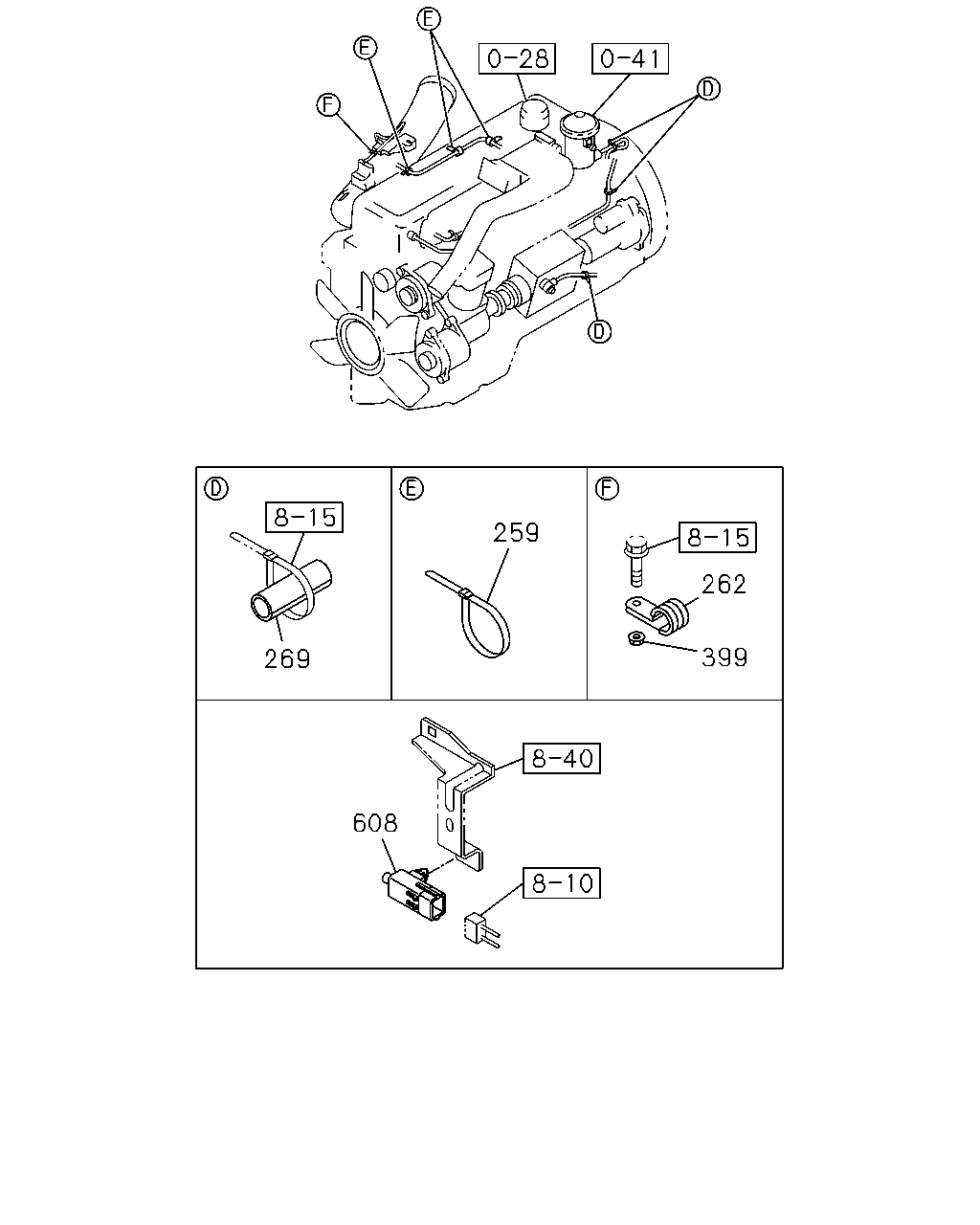

çizim 471757
262 399 259 269 608
BalonParca AdiParca NoAdetTipApplied Date
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 03 1 1504-
262 CLIP; HARNESS
ID=10 L=16.5 		8-98082-034-0 02 1 1504-
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 1504-
399 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-
608 SENSOR; AIR TEMP 8-98214-375-0 01 1 1504-

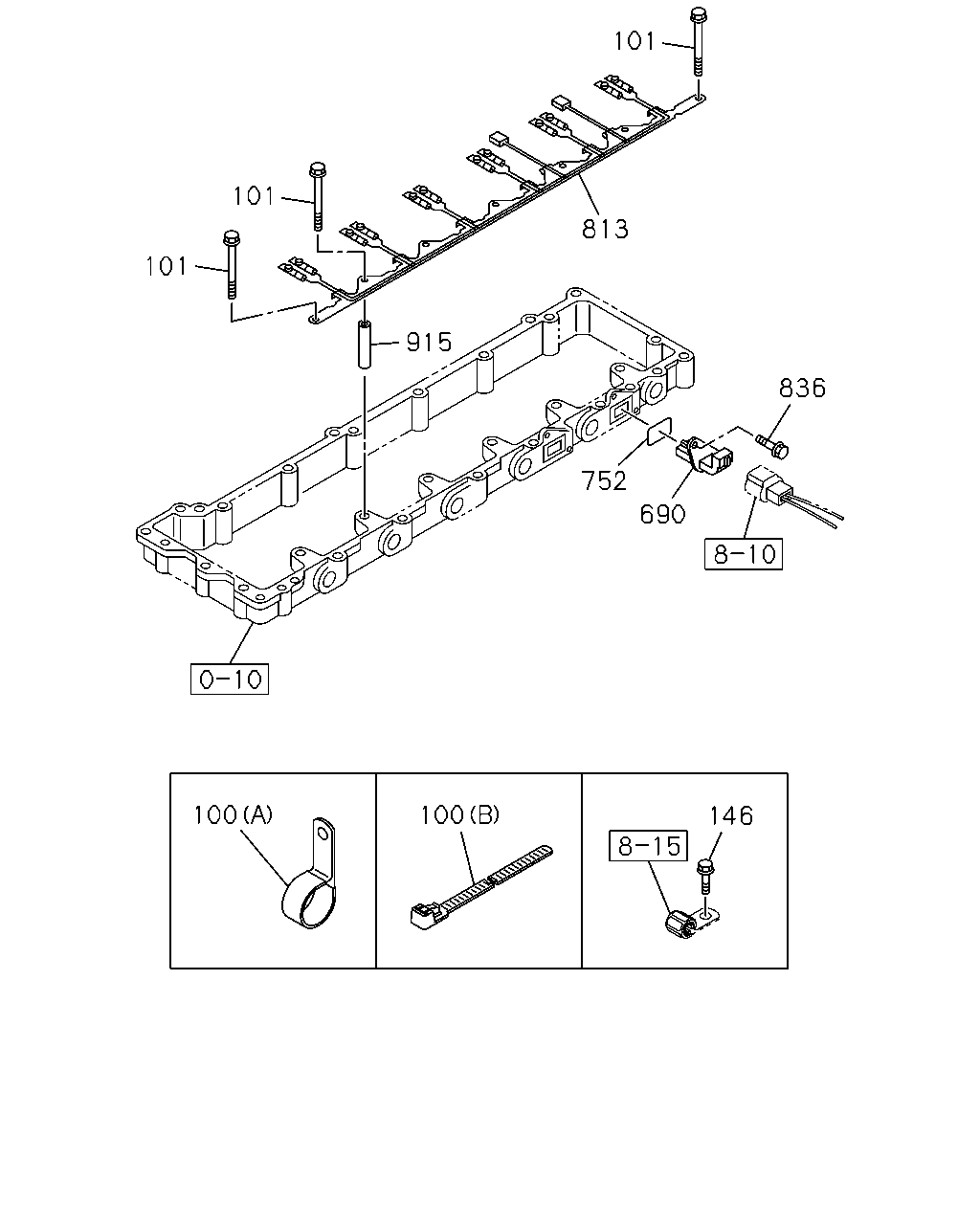

çizim 471774
101 813 836 690 752 915 101 101 100 100 146
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1504-
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1504-
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1504-
146 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 02 1 1504-
690 CONNECTOR 8-94390-858-1 02 1 1504-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1504-
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1504-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1504-
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1504-

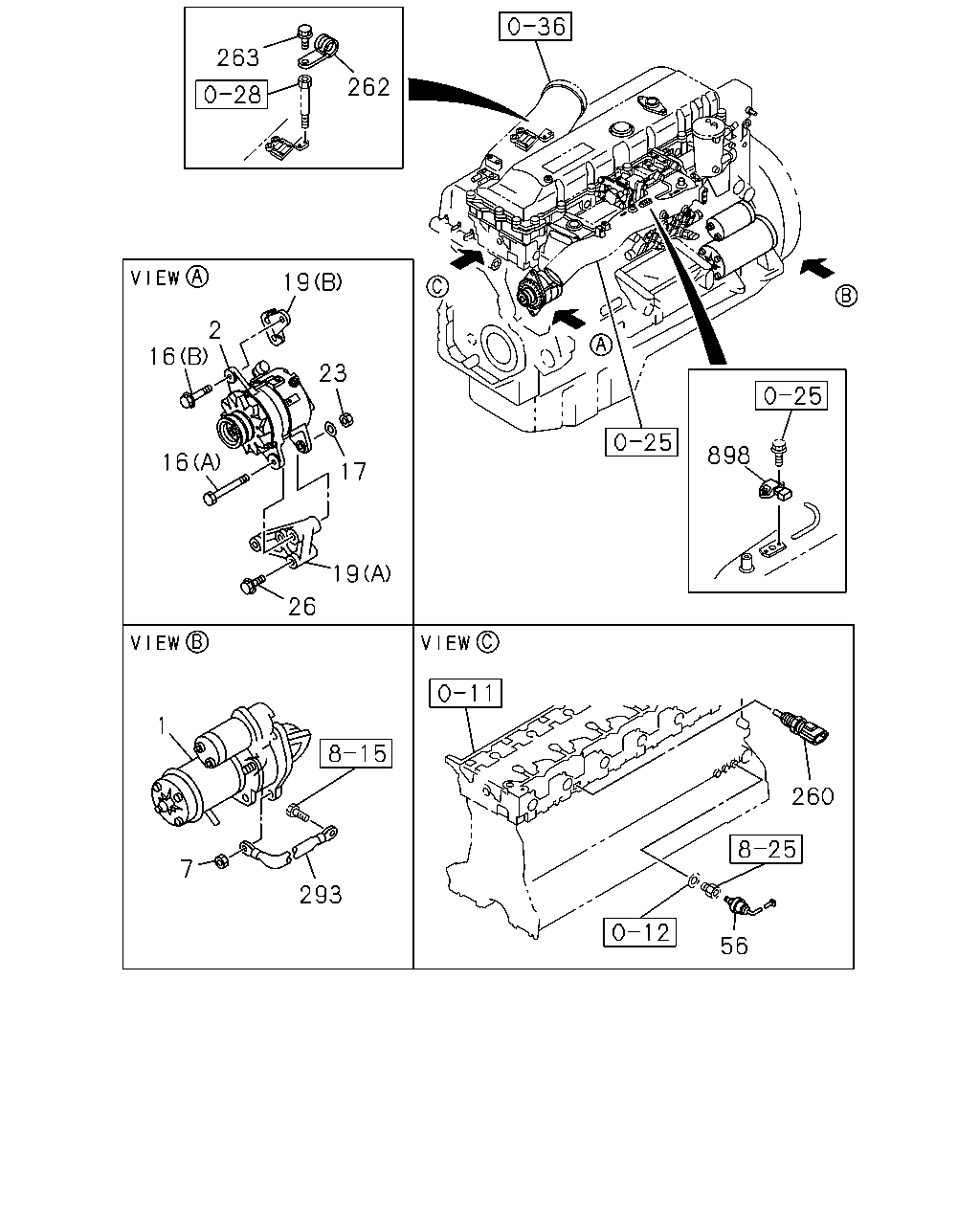

çizim 471873
263 262 19 2 16 23 17 16 19 26 1 7 293 56 260 898
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1504-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		8-98222-256-2 01 1 1504-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1504-
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 1504-
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 1504-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1504-
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 1504-
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 1504-
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 1504-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1504-
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 1504-
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1504-
262 CLIP; HARNESS
ID=10 L=16.5 		8-98082-034-0 02 1 1504-
263 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 1504-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1504-
898 SENSOR; BOOST 8-98009-418-0 01 1 1504-
çizim 472011
10 296 296
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER 8-98104-680-0 01 1 1504-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1504-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1504-

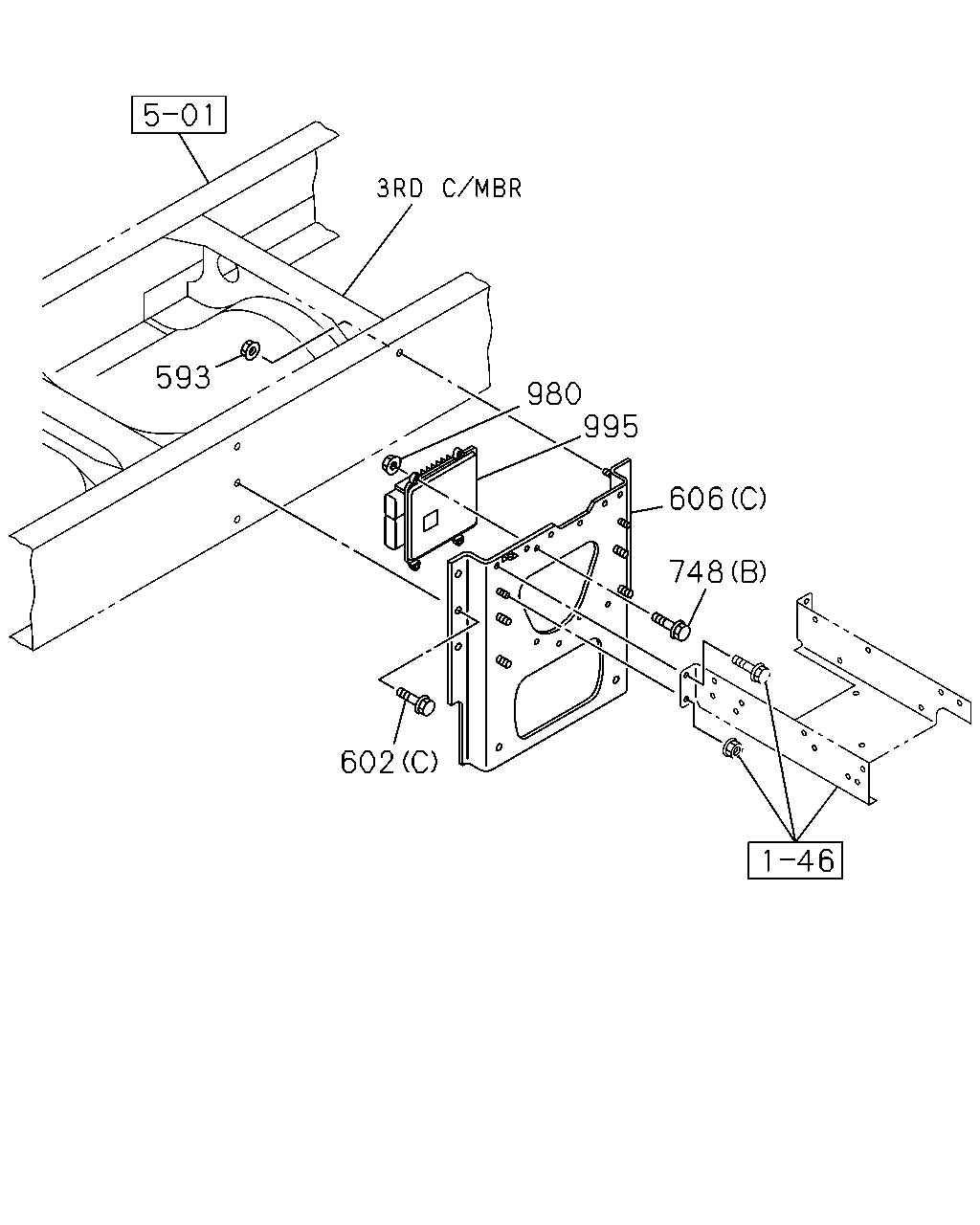

çizim 472025
980 995 606 748 602 593
BalonParca AdiParca NoAdetTipApplied Date
593 NUT; BRKT
M14 FLANGE 		0-91180-214-0 01 1 1504-1507
602 BOLT; BRKT
(C) M14X45 FLANGE 		0-28851-445-0 05 1 1504-1507
602 BOLT; BRKT
(C) M14X45 FLANGE 		0-28851-445-0 06 1 1508-
602 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1504-
602 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1504-
606 BRACKET; CONT UNIT
(A) 		8-98182-920-0 01 1 1504-
606 BRACKET; CONT UNIT
(B) 		8-98182-921-0 01 1 1504-
606 BRACKET; CONT UNIT
(C) 		8-98295-873-2 01 1 1504-1505
606 BRACKET; CONT UNIT
(C) 		8-98323-193-0 01 1 1506-1507
606 BRACKET; CONT UNIT
(C) 		8-98329-819-0 01 1 1508-
748 BOLT; CONT UNIT
(B) M6X35 FLANGE 		0-28050-635-0 04 1 1504-
748 BOLT; CONT UNIT
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1504-
980 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1504-
995 CONTROL UNIT; DEF DCM
6WG1 TC-N(71L) 		8-98307-591-0 01 1 1504-1504
995 CONTROL UNIT; DEF DCM
6WG1 TC-N(71L) 		8-98255-002-2 01 1 1505-
995 CONTROL UNIT; DEF DCM
6WG1 TC-C(72L) 		8-98307-592-0 01 1 1504-1504
995 CONTROL UNIT; DEF DCM
6WG1 TC-C(72L) 		8-98255-003-2 01 1 1505-
995 CONTROL UNIT; DEF DCM
6WG1 TC-S(97L) 		8-98307-594-0 01 1 1504-1504
995 CONTROL UNIT; DEF DCM
6WG1 TC-S(97L) 		8-98255-005-2 01 1 1505-
