0-40 — FUEL INJECTION SYSTEM (#160025) — 76 parça

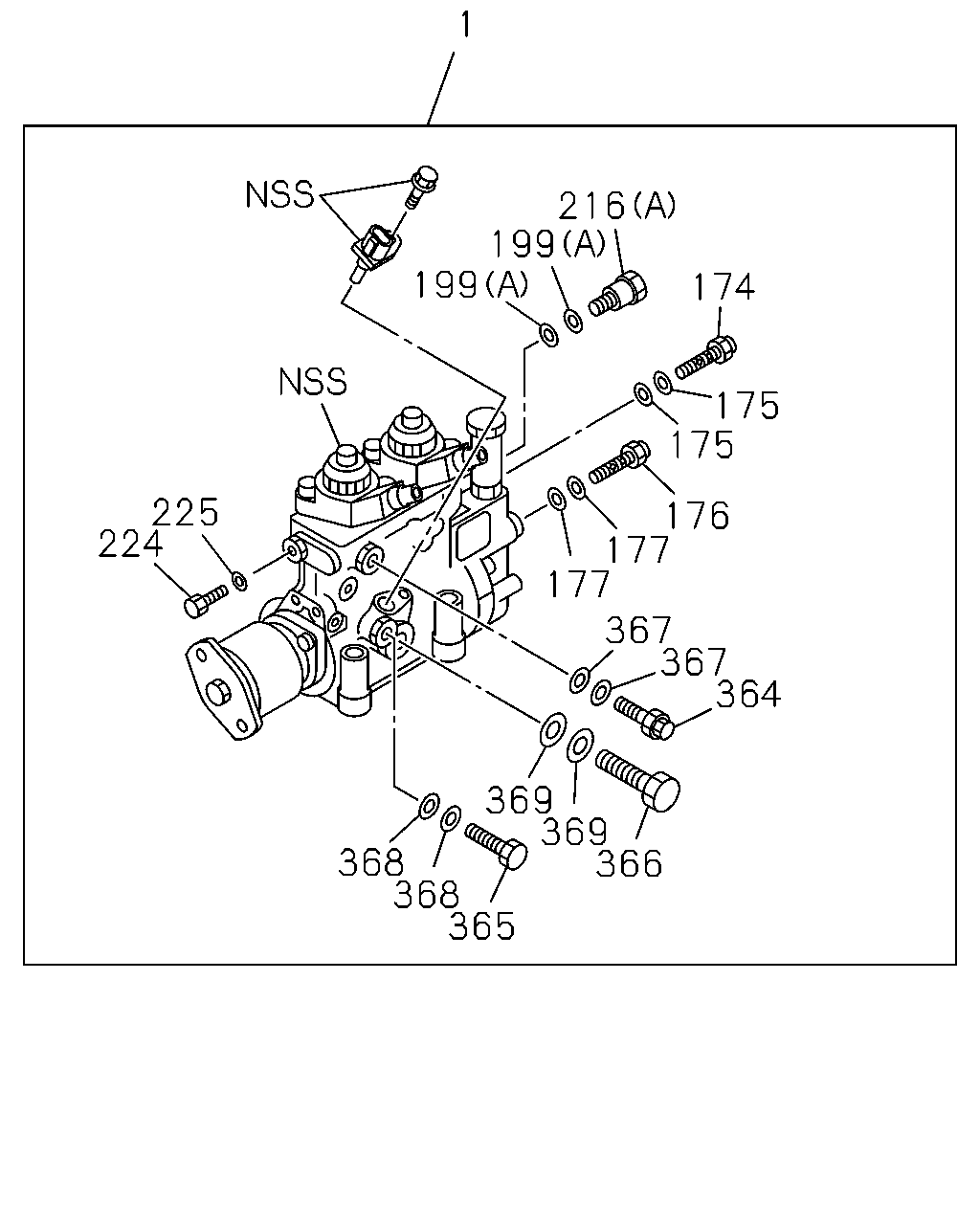

çizim 471075
174 175 175 177 176 177 367 367 364 366 369 369 368 368 365 224 225 199 216 1 199
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97603-414-4 01 1 1504- ● ● ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 1504- ● ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 1504- ● ● ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 1504- ● ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 1504- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1504- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 1504- ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1504- ● ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 1504- ● ● ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 1504- ● ● ●
225 GASKET; PLUG 1-15619-502-0 01 1 1504- ● ● ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 1504- ● ● ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 1504- ● ● ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 1504- ● ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 1504- ● ● ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 1504- ● ● ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 1504- ● ● ●

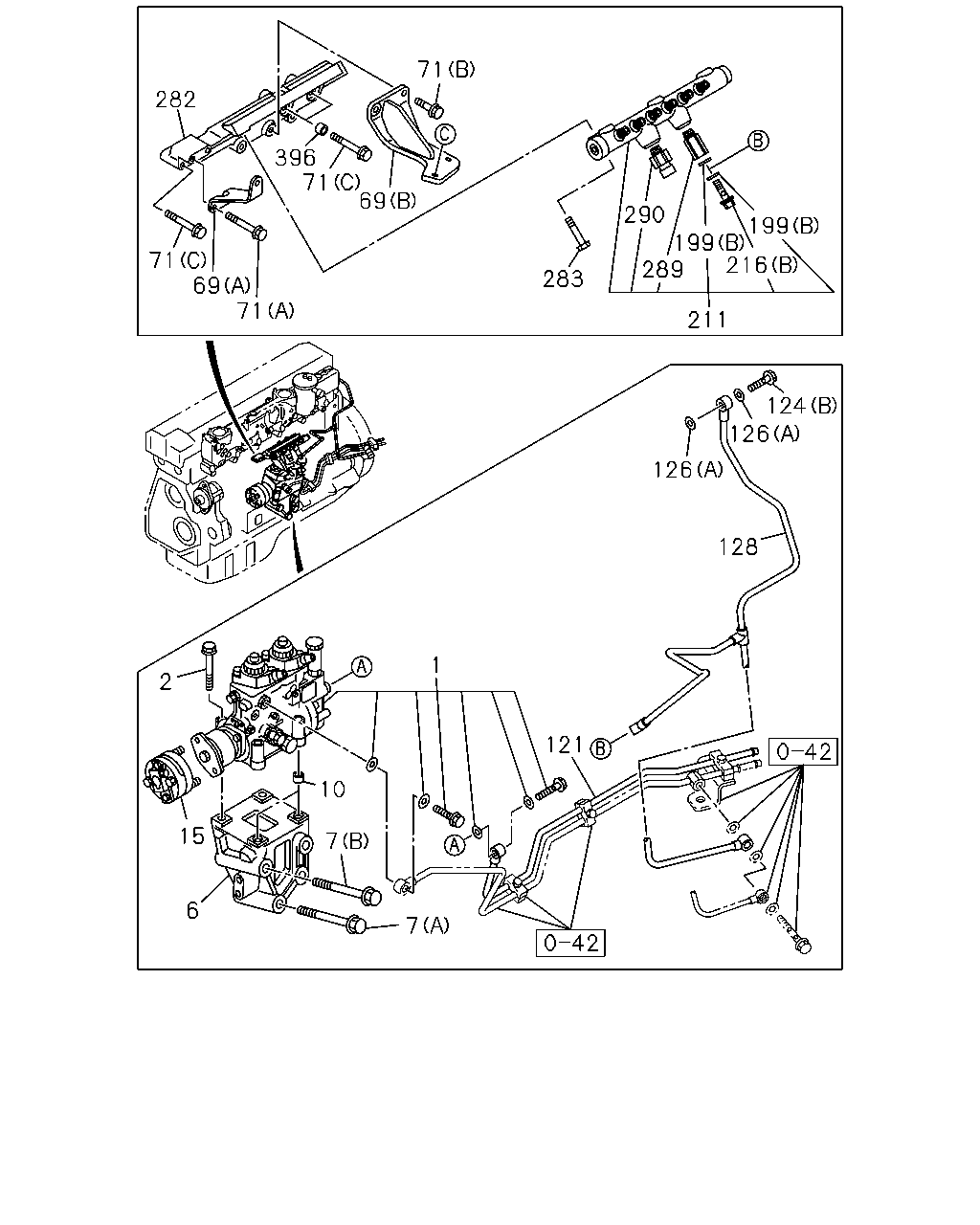

çizim 471082
126 126 124 128 121 10 7 15 6 7 2 1 71 69 71 282 396 71 69 71 283 290 289 199 199 216 211
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97603-414-4 01 1 1504- ● ● ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 1504- ● ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-179-0 01 1 1504- ● ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 1504- ● ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 1504- ● ● ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 1504- ● ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-192-0 01 1 1504- ● ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98098-855-0 01 1 1504- ● ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98270-829-1 01 1 1504- ● ● ●
71 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1504- ● ● ●
71 BOLT; BRKT
(B) M10X25 FLANGE 		0-28151-025-0 02 1 1504- ● ● ●
71 BOLT; BRKT
(C) M10X60 FLANGE 		0-28151-060-0 03 1 1504- ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98210-488-0 01 1 1504- ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1504- ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1504- ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 02 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=21 		8-97251-047-0 01 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 1504- ● ● ●
128 PIPE ASM; INJ 8-98247-264-0 01 1 1504- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1504- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 1504- ● ● ●
211 RAIL ASM; COMMON 8-98191-924-0 01 1 1504- ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1504- ● ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 1504- ● ● ●
282 BRACKET; COMMON RAIL 8-98098-852-0 01 1 1504- ● ● ●
283 BOLT; COMMON RAIL
M10X50 FLANGE 		0-28151-050-0 02 1 1504- ● ● ●
289 LIMITER; FUEL PRESS 8-98032-283-0 01 1 1504- ● ● ●
290 SENSOR; PRESS 8-97318-684-0 01 1 1504- ● ● ●
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 1504- ● ● ●

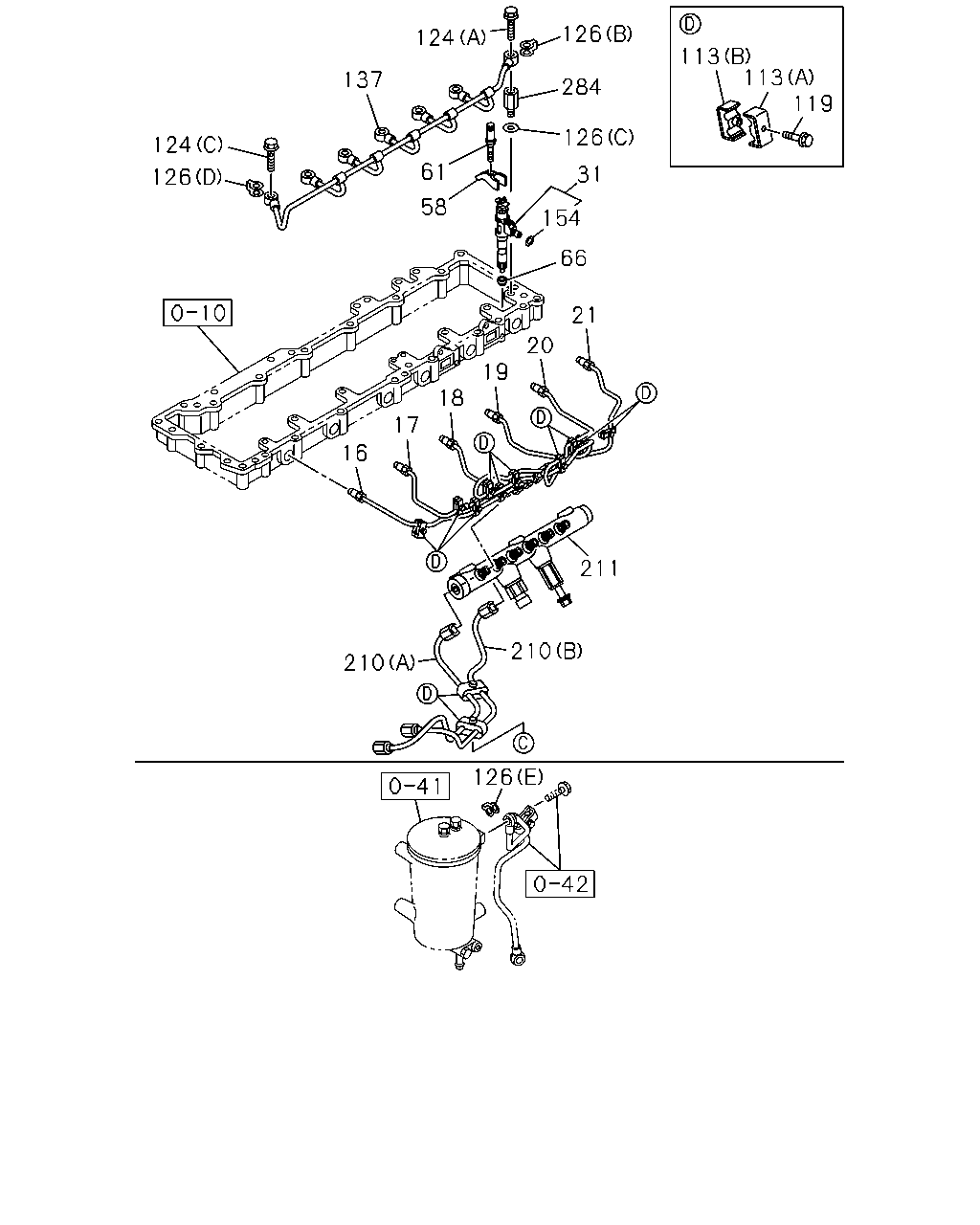

çizim 471084
21 20 19 18 17 16 126 124 137 124 126 284 61 31 126 58 154 113 119 113 211 210 210 126 66
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PIPE; INJ NO.1 8-98209-759-0 01 1 1504- ● ● ●
17 PIPE; INJ NO.2 8-98209-763-0 01 1 1504- ● ● ●
18 PIPE; INJ NO.3 8-98209-764-0 01 1 1504- ● ● ●
19 PIPE; INJ NO.4 8-98209-765-0 01 1 1504- ● ● ●
20 PIPE; INJ NO.5 8-98209-766-0 01 1 1504- ● ● ●
21 PIPE; INJ NO.6 8-98209-767-0 01 1 1504- ● ● ●
31 NOZZLE ASM; INJ 8-98240-293-0 06 1 1504- ● ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97603-469-0 06 1 1504- ● ● ●
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 1504- ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10 		8-97216-082-0 06 1 1504- ● ● ●
113 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 12 1 1504- ● ● ●
113 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 12 1 1504- ● ● ●
119 BOLT; CLIP,INJ PIPE
M6X40 FLANGE 		0-28050-640-0 12 1 1504- ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1504- ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1504- ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 02 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=21 		8-97251-047-0 01 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1504- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 1504- ● ● ●
137 PIPE ASM; LEAK OFF 8-97617-161-0 01 1 1504- ● ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1504- ● ● ●
210 PIPE; INJ,C/R
(A) 		8-98209-654-0 01 1 1504- ● ● ●
210 PIPE; INJ,C/R
(B) 		8-98209-655-0 01 1 1504- ● ● ●
211 RAIL ASM; COMMON 8-98191-924-0 01 1 1504- ● ● ●
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 1504- ● ● ●
