Isuzu WW
▶
TRUCKS
▶
CYH
▶
11677 - CYH RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

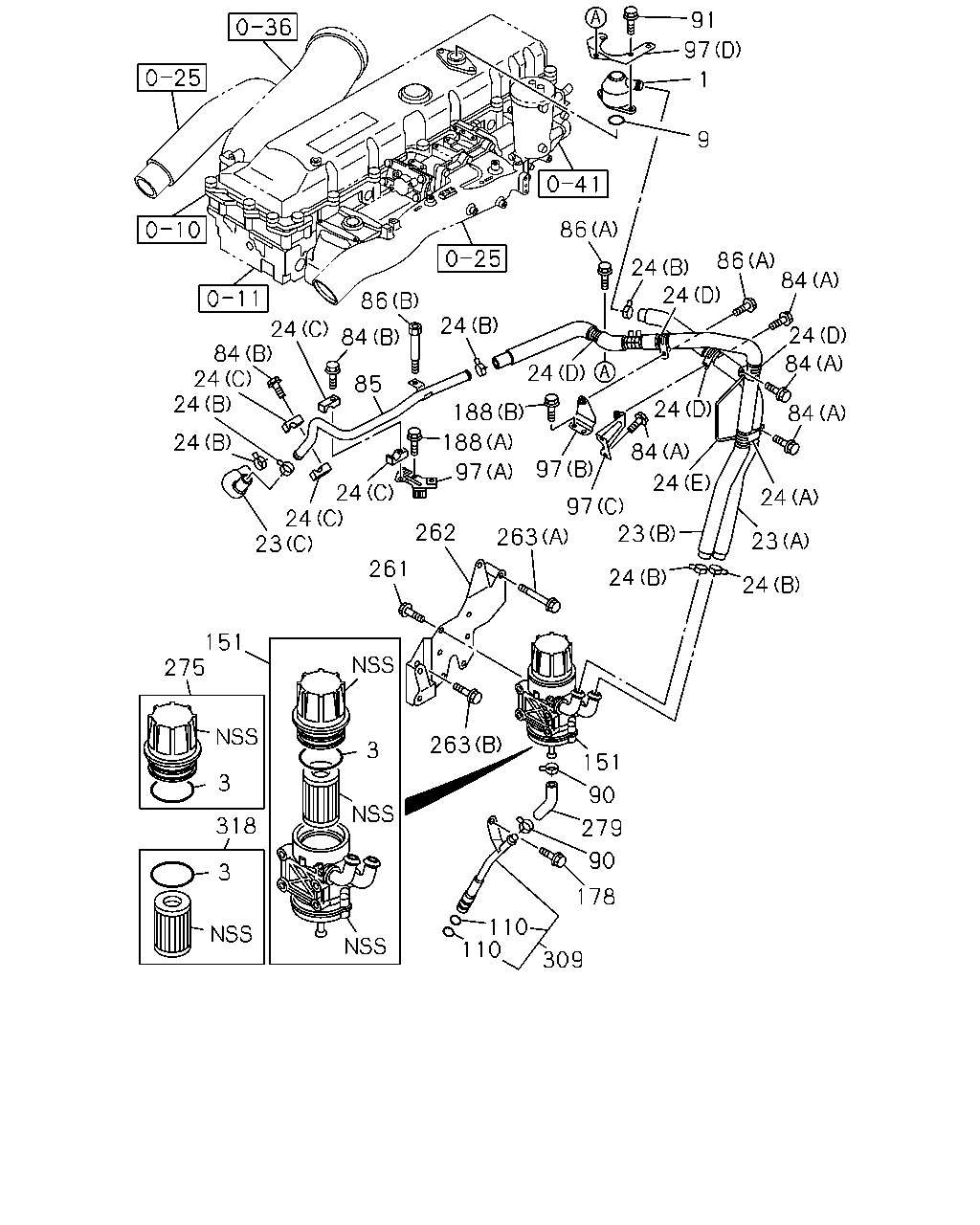

0-28 — VENTILATION SYSTEM
(#160016) — 35 parça
Tümü
A - 6WG1 TC-N
B - 6WG1 TC-C
C - 6WG1 TC-S
84
24
24
24
24
86
84
85
24
24
23
151
275
3
318
3
3
110
309
110
178
90
279
90
151
263
261
262
263
97
188
188
24
86
24
97
97
24
23
24
23
24
24
84
24
24
24
86
9
91
97
1
84
24
84
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BREATHER; AIR
1-11740-181-1
01
1
1504-
●
●
●
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1504-
●
●
●
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
01
1
1504-
●
●
●
23
HOSE; RUBBER,VENTILATOR PIPE
(A)
8-98247-131-0
01
1
1504-
●
●
●
23
HOSE; RUBBER,VENTILATOR PIPE
(B)
8-98247-134-0
01
1
1504-
●
●
●
23
HOSE; RUBBER,VENTILATOR PIPE
(C)
8-98247-593-1
01
1
1504-
●
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
(A) ID=30X2 L=28
1-09701-266-0
01
1
1504-
●
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
(B) ID=28.5
1-09707-150-0
06
1
1504-
●
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
(C) ID=24.5 L=22
8-97603-362-1
04
1
1504-
●
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
(D) ID=33 L=30
8-97619-250-0
04
1
1504-
●
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
(E)
8-98216-429-0
01
1
1504-
●
●
●
84
BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE
0-28050-816-0
05
1
1504-
●
●
●
84
BOLT; PIPE CLIP,VENTILATOR
(B) M8X60 FLANGE
0-28050-860-0
02
1
1504-
●
●
●
85
PIPE; BREATHER
8-98247-772-0
01
1
1504-
●
●
●
86
BOLT; BREATHER PIPE
(A) M8X16 FLANGE
0-28050-816-0
02
1
1504-
●
●
●
86
BOLT; BREATHER PIPE
(B)
8-97377-804-0
01
1
1504-
●
●
●
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
1504-
●
●
●
91
BOLT; AIR BREATHER
M10X25 FLANGE
0-28151-025-0
02
1
1504-
●
●
●
97
BRACKET; HOSE
(A)
8-98122-985-1
01
1
1504-
●
●
●
97
BRACKET; HOSE
(B)
8-98247-648-0
01
1
1504-
●
●
●
97
BRACKET; HOSE
(C)
8-98247-649-0
01
1
1504-
●
●
●
97
BRACKET; HOSE
(D)
8-98248-144-0
01
1
1504-
●
●
●
110
GASKET; PIPE
ID=11
1-09623-469-0
02
1
1504-
●
●
●
151
SEPARATOR; OIL,PCV
8-98126-690-0
01
1
1504-
●
●
●
178
BOLT; PIPE
M8X16 FLANGE
0-28050-816-0
01
1
1504-
●
●
●
188
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1504-
●
●
●
188
BOLT; BRKT
(B) M10X20 FLANGE
0-28151-020-0
02
1
1504-
●
●
●
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
1504-
●
●
●
262
BRACKET; OIL SEPARETOR
8-98122-426-0
01
1
1504-
●
●
●
263
BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE
0-28151-090-0
01
1
1504-
●
●
●
263
BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE
0-28951-425-0
02
1
1504-
●
●
●
275
CAP; PCV
8-97625-726-0
01
1
1504-
●
●
●
279
HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000
0-02759-100-0
01
1
1504-
●
●
●
309
PIPE ASM; OIL SEPARATOR
8-98122-427-0
01
1
1504-
●
●
●
318
ELEMENT KIT; PCV
8-97625-725-0
01
1
1504-
●
●
●
