0-25 — INLET MANIFOLD (#160014) — 23 parça

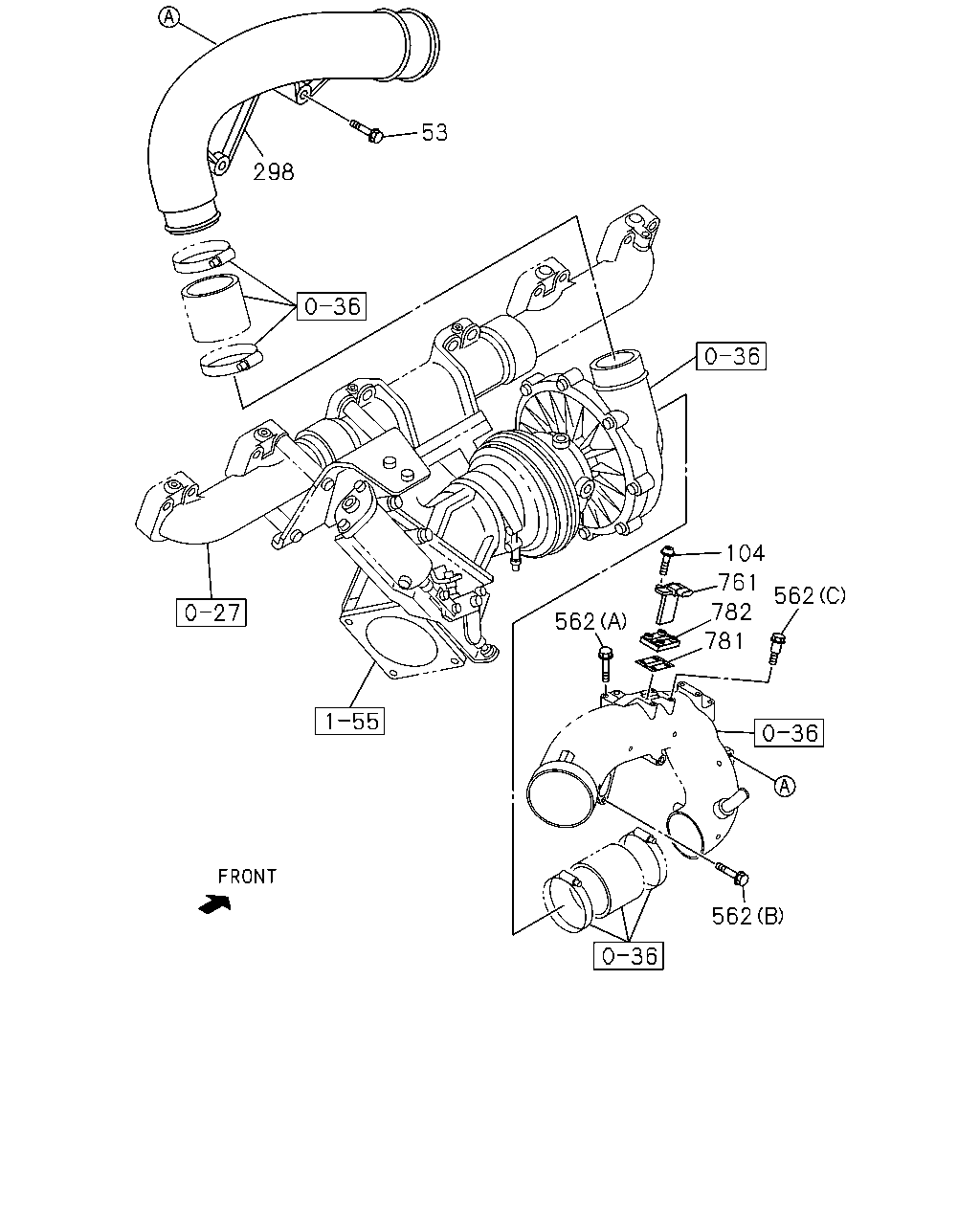

çizim 471028
104 562 761 782 781 562 562 298 53
BalonParca AdiParca NoAdetTipApplied Date A B C
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28151-060-0 02 1 1504- ● ● ●
104 SCREW
M4X20 W/LK&PL WASHER 		9-03920-420-0 04 1 1504- ● ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 8-98195-096-0 01 1 1504- ● ● ●
562 BOLT; INL DUCT
(A) M10X50 FLANGE 		0-28151-050-0 02 1 1504- ● ● ●
562 BOLT; INL DUCT
(B) M10X70 FLANGE 		0-28151-070-0 01 1 1504- ● ● ●
562 BOLT; INL DUCT
(C) M10X49.8 		8-97039-586-0 02 1 1504- ● ● ●
761 SENSOR; MANIF 8-97601-967-0 01 1 1504- ● ● ●
781 GASKET; SENSOR 8-98212-728-0 01 1 1504- ● ● ●
782 ADAPTER; SENSOR 8-98169-371-0 01 1 1504- ● ● ●

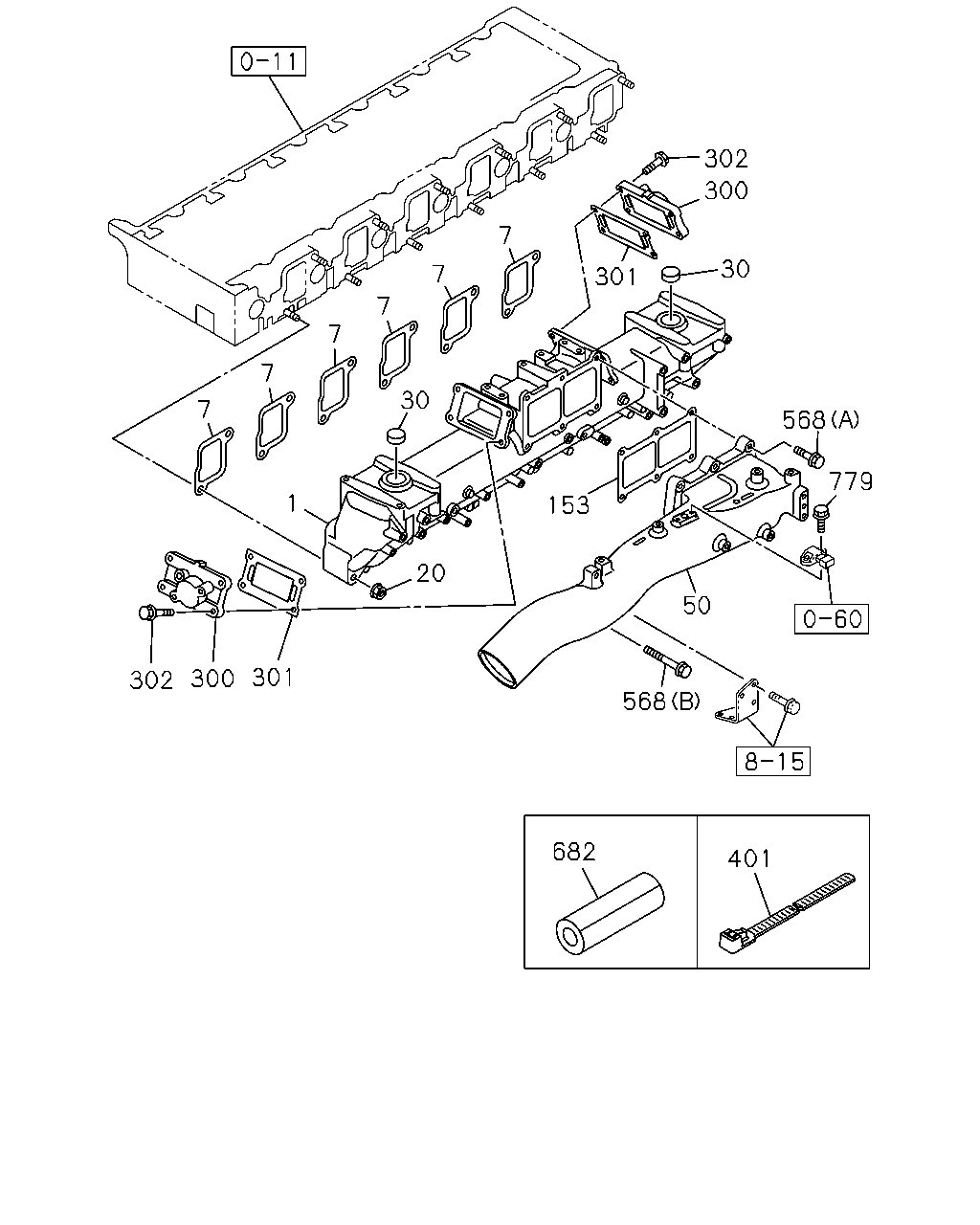

çizim 471040
302 300 301 30 7 7 7 7 7 7 568 779 568 50 401 682 301 300 302 1 30 153 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL 8-98227-864-0 01 1 1504- ● ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97615-623-1 06 1 1504- ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 1504- ● ● ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 1504- ● ● ●
50 PIPE; INL 8-98189-459-1 01 1 1504- ● ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-094-1 01 1 1504- ● ● ●
300 COVER; INL MANIF 8-98178-944-0 02 1 1504- ● ● ●
301 GASKET; INL MANIF COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97648-198-0 02 1 1504- ● ● ●
302 BOLT; INL MANIF COVER
M10X40 FLANGE 		0-28151-040-0 08 1 1504- ● ● ●
401 CLIP; BAND
L=250 		8-98216-430-0 01 1 1504- ● ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 1504- ● ● ●
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28151-080-0 01 1 1504- ● ● ●
682 COVER; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1504- ● ● ●
779 BOLT; SENSOR
M4X10 W/PL WASHER 		8-97316-615-0 02 1 1504- ● ● ●
