Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#160012) — 51 parça

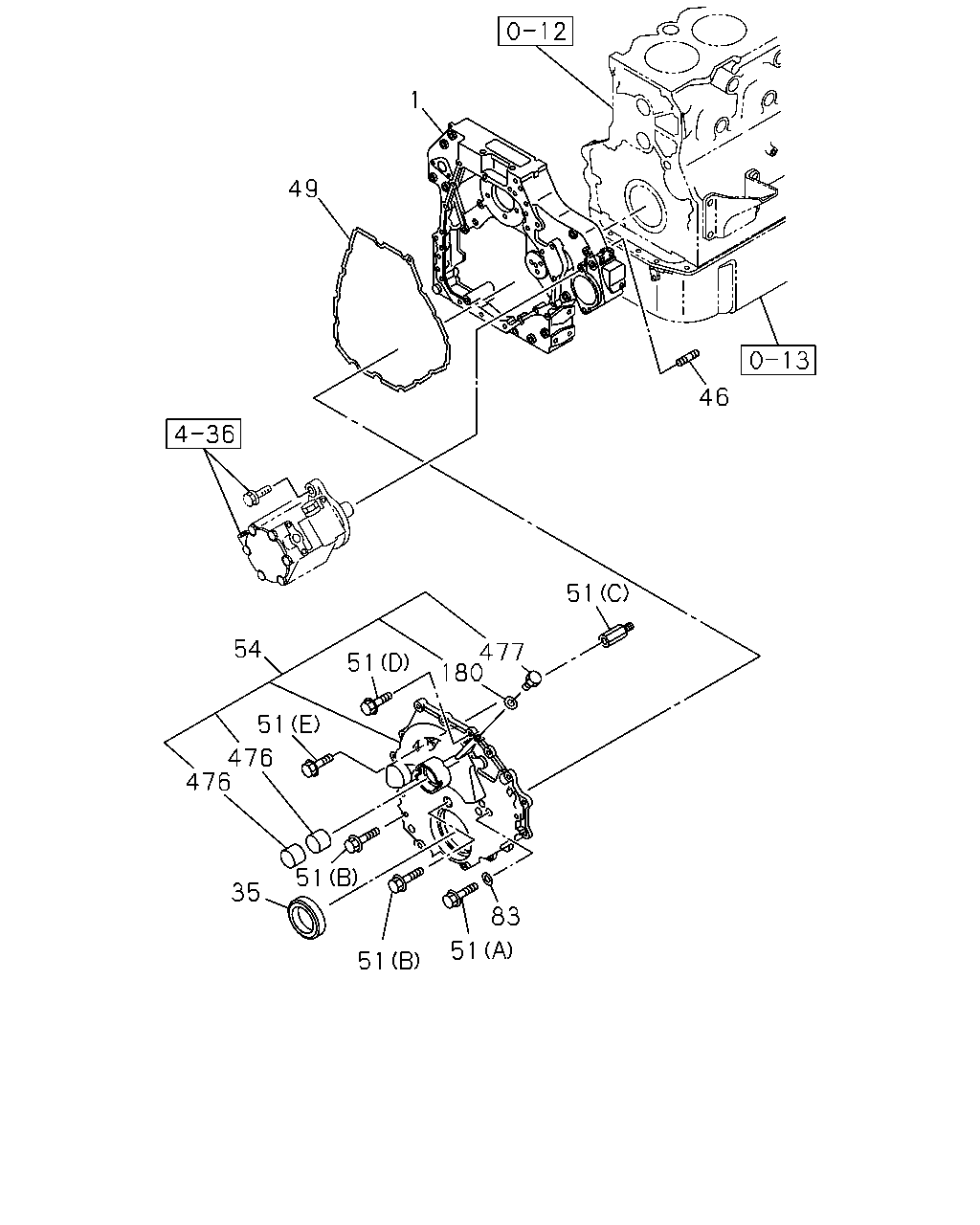

1 49 54 51 477 180 51 51 476 476 35 51 51 51 83 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	8-98249-369-0	01	1	1504-	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	8-97617-308-0	01	1	1504-	●	●	●
46	STUD; BRG COVER,RR M14X45 L=66	0-44011-445-0	01	1	1504-	●	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98061-423-0	01	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (A) M8X40	0-10955-840-0	03	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (B) M10X30 FLANGE	0-28151-030-0	15	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (D) M10X40 FLANGE	0-28151-040-0	01	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (E) M10X50 FLANGE	0-28151-050-0	02	1	1504-	●	●	●
51	BOLT; GEAR CASE COVER (C) M10X90	8-97603-482-0	02	1	1504-	●	●	●
54	COVER; GEAR CASE	8-98269-504-0	01	1	1504-	●	●	●
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	1504-	●	●	●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1504-	●	●	●
476	BUSHING; COVER	1-09330-096-0	02	1	1504-	●	●	●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	1504-	●	●	●

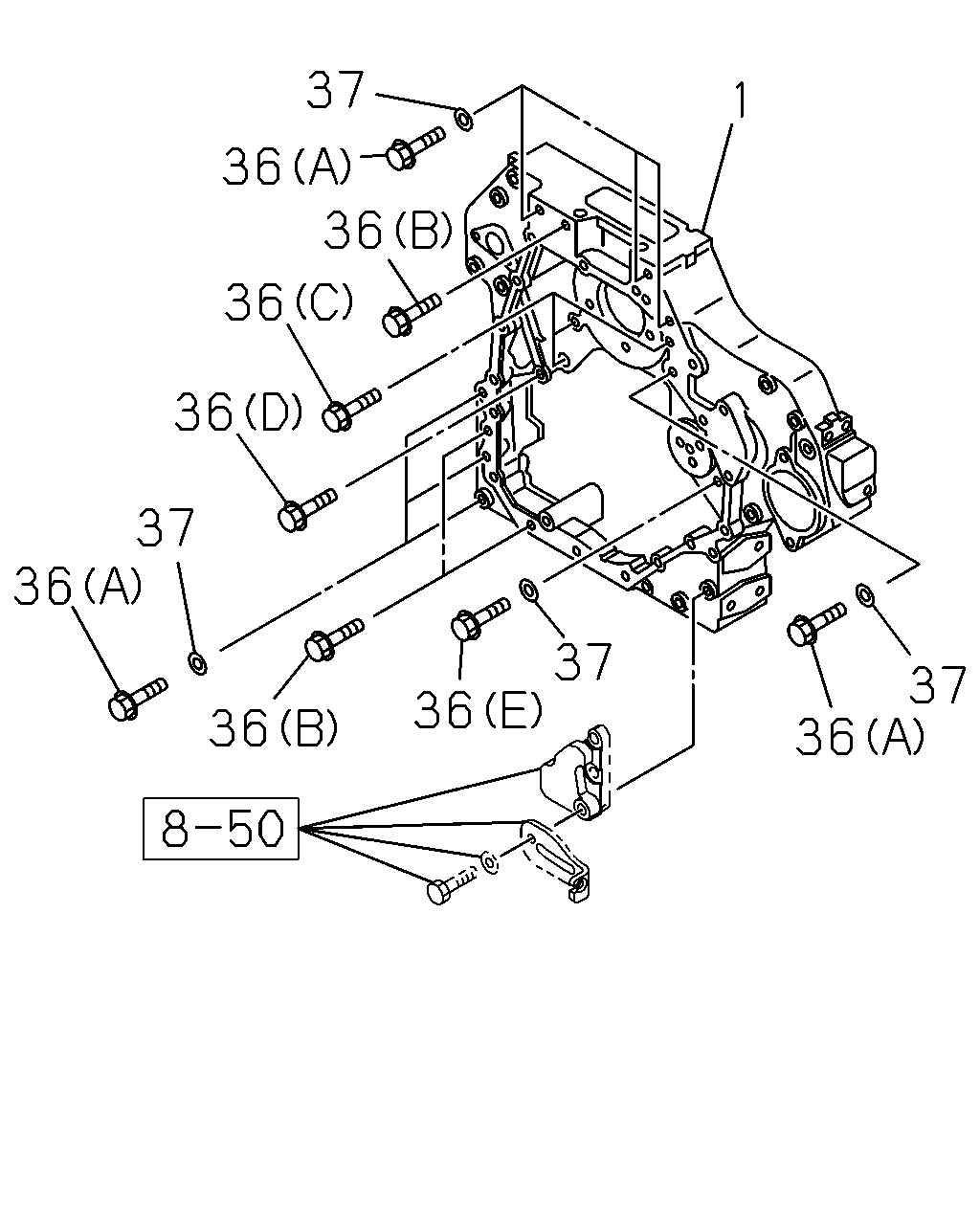

36 36 36 36 36 36 36 36 37 1 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	8-98249-369-0	01	1	1504-	●	●	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28151-000-0	03	1	1504-	●	●	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28151-025-0	04	1	1504-	●	●	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28151-035-0	01	1	1504-	●	●	●
36	BOLT; GEAR CASE (A) M14X110	1-09020-007-0	15	1	1504-	●	●	●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	1504-	●	●	●
37	WASHER; PL,GEAR CASE ID=15 OD=26	0-91614-514-0	08	1	1504-	●	●	●

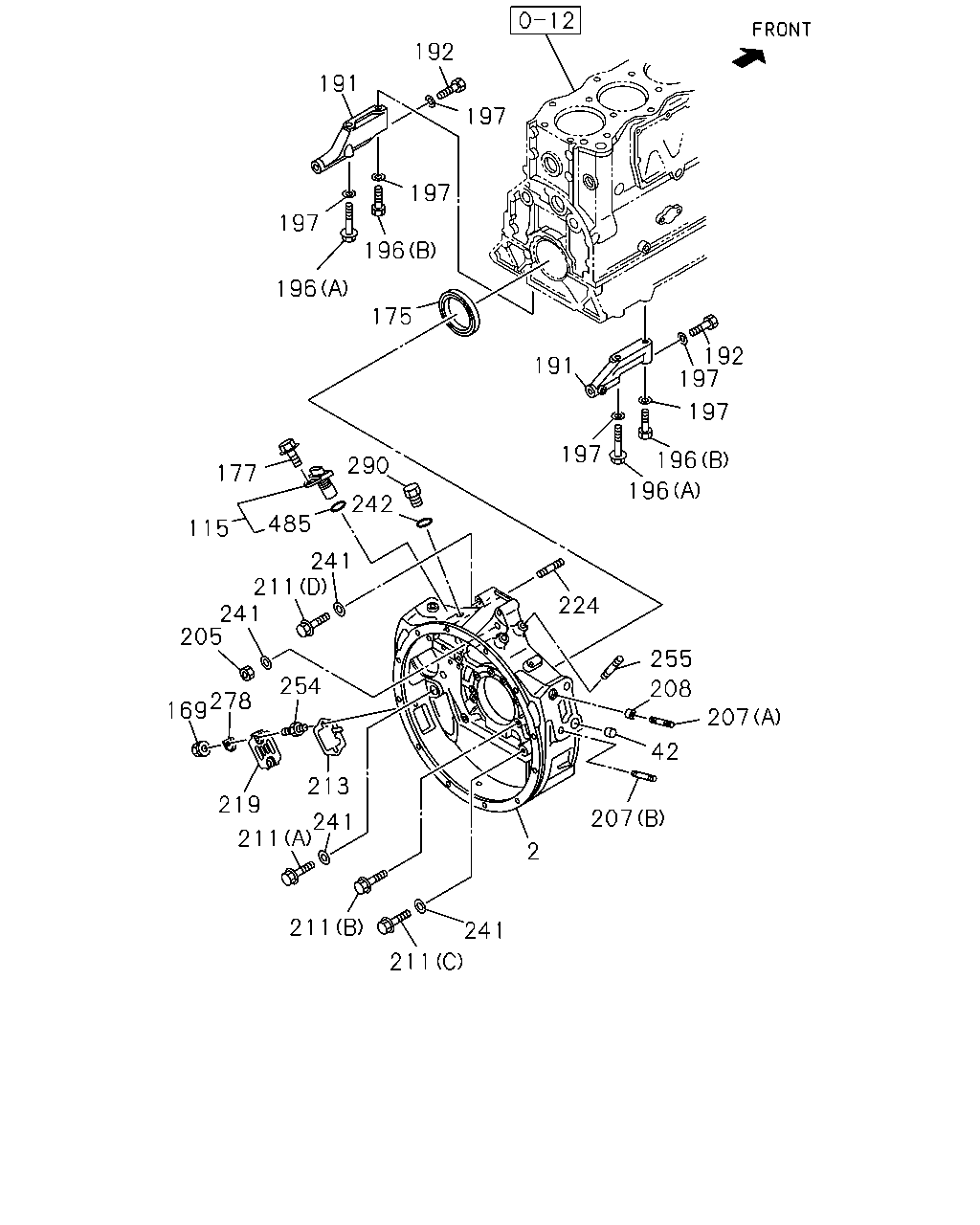

191 197 196 196 197 175 197 192 191 197 196 196 197 197 192 255 208 224 177 290 242 485 241 211 115 241 205 169 278 254 219 211 213 241 211 211 241 2 42 207 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-98182-183-2	01	1	1504-	●	●	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	1504-	●	●	●
115	SENSOR; REVOLUTION,ENG SPD	8-97606-943-0	01	1	1504-	●	●	●
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1504-	●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	1504-	●	●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	1504-	●	●	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	1504-	●	●	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	1504-	●	●	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	1504-	●	●	●
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	1504-	●	●	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	1504-	●	●	●
197	WASHER; PL,STAY ID=15 OD=26	0-91614-514-0	06	1	1504-	●	●	●
205	NUT; HSG M14	0-91110-514-0	01	1	1504-	●	●	●
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	1504-	●	●	●
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	1504-	●	●	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	1504-	●	●	●
211	BOLT; HSG (C) M14X50	0-16956-450-0	02	1	1504-	●	●	●
211	BOLT; HSG (B) M8X35 FLANGE	0-28050-835-0	08	1	1504-	●	●	●
211	BOLT; HSG (D) M14X70	9-91666-470-0	02	1	1504-	●	●	●
211	BOLT; HSG (A) M14X45	9-92361-445-0	10	1	1504-	●	●	●
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	1504-	●	●	●
219	COVER; POINTER	1-11349-131-0	01	1	1504-	●	●	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	1504-	●	●	●
241	WASHER; PL,HSG ID=15 OD=26	0-91614-514-0	15	1	1504-	●	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	1504-	●	●	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	1504-	●	●	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	1504-	●	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	1504-	●	●	●
290	PLUG; SENSOR HOLE M20X10.5	8-98009-333-0	01	1	1504-	●	●	●
485	GASKET; SENSOR ID=14.2 OD=18.8	8-97369-404-0	01	1	1504-	●	●	●
