Isuzu WW
▶
TRUCKS
▶
FSR
▶
11364 - FSR(MALAYSIA)W/B4200
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶

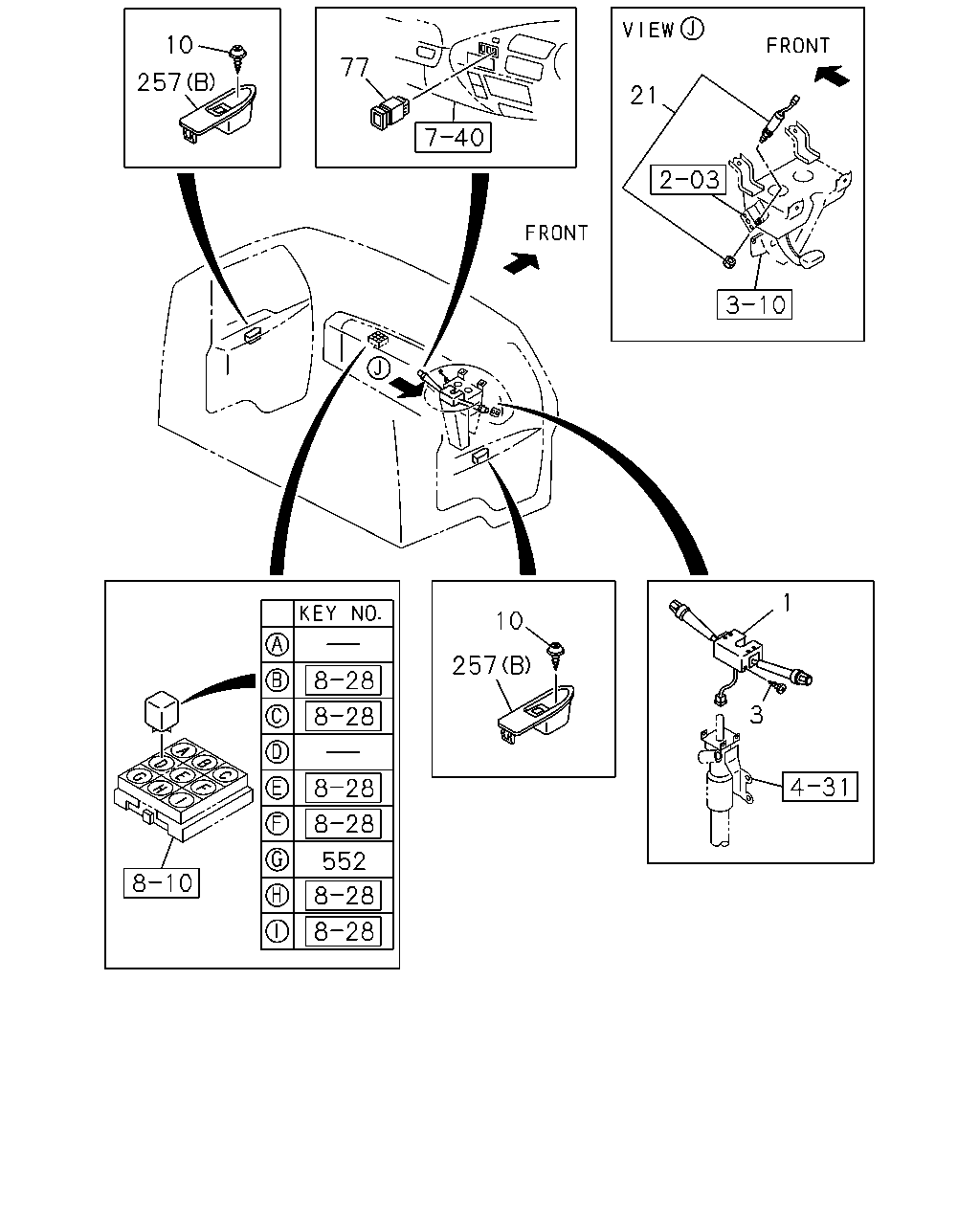

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#16001) — 20 parça
◀
[825A] CAB SIDE (14 parça)
[825A] DOOR SIDE (6 parça)
▶
10
77
257
21
1
10
257
3
552
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-403-4
01
1
9706-0103
1
SWITCH; COMB
1-82360-618-0
01
1
0104-0312
1
SWITCH; COMB
1-82360-714-0
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
9706-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
9706-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER MAL
0-74360-516-0
02
1
0605-
21
SWITCH; CLU
1-82380-114-3
01
1
9706-
77
SWITCH; PTO
PTO CONTROL<SV6>
1-82340-403-0
01
1
9706-
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
9706-
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
9706-
257
COVER; HOLE,SW
(A) MAL
8-94229-914-1
01
1
9706-
552
RELAY; CIGAR LIGHTER
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
9706-0111
552
RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
29
30
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
MAL
8-97855-032-3
01
1
9706-
30
SCREW; DOOR SW
M5X16 MAL
8-94279-341-0
01
1
9706-9906
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
9907-
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
9706-
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
9706-
257
COVER; HOLE,SW
(A) MAL
8-94229-914-1
01
1
9706-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
