9-96 — SERVICE PARTS (#160001) — 94 parça

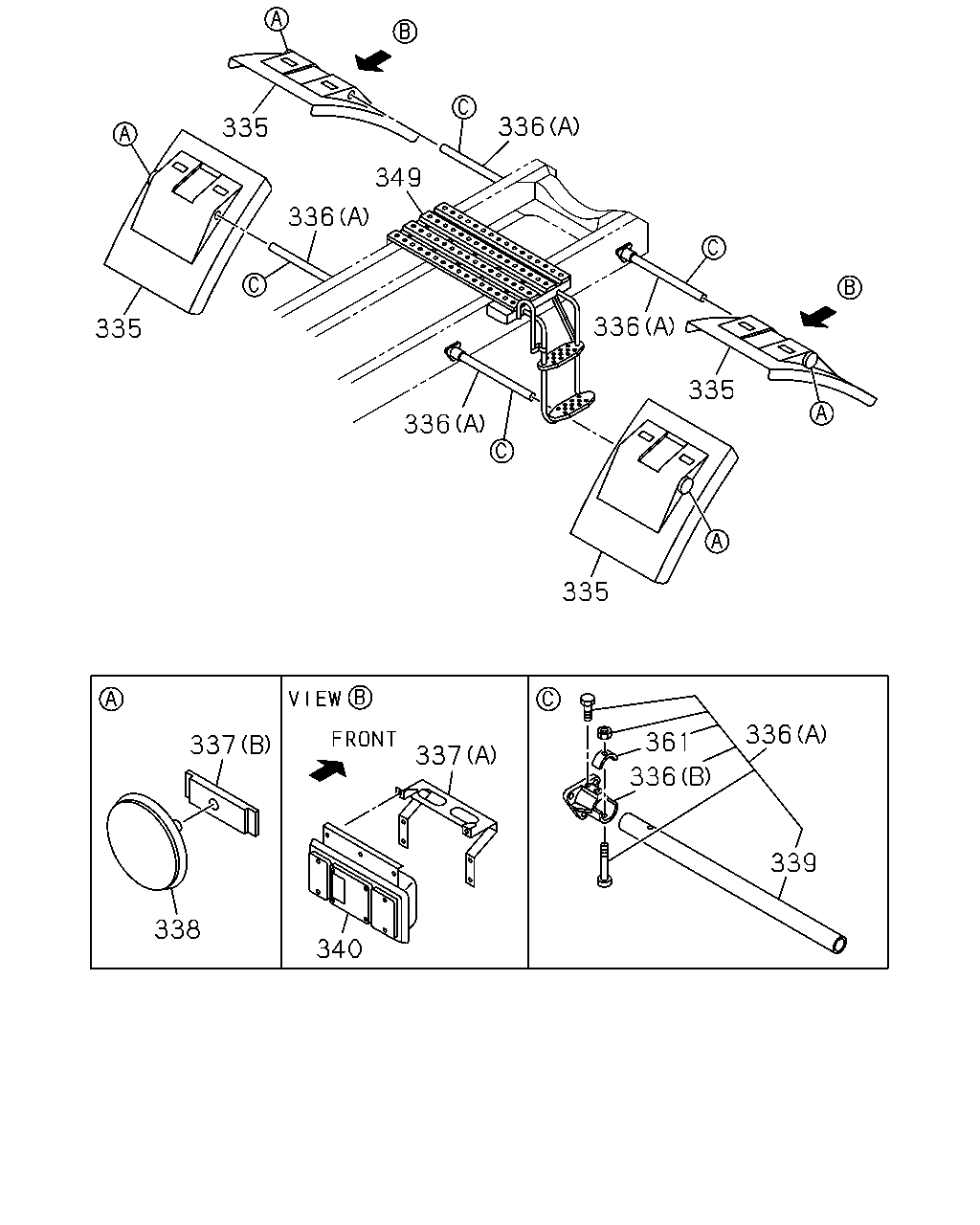

çizim 471366
335 336 349 335 336 336 335 335 336 361 336 336 339 337 340 338 337
BalonParca AdiParca NoAdetTipApplied Date A B
335 FENDER; RR,RR BODY
CHI 		1-87223-033-0 04 1 1409- ●
336 BRACKET; RR FENDER
(A) CHI 		1-87223-032-0 04 1 1409- ●
336 BRACKET; RR FENDER
(B) CHI 		1-87223-036-0 04 1 1409- ●
337 BRACKET; REFLECTOR
(A) CHI 		1-87223-031-0 02 1 1409- ●
337 BRACKET; REFLECTOR
(B) CHI 		1-87223-035-0 04 1 1409- ●
338 REFLECTOR; RR BODY
CHI 		1-87223-034-0 04 1 1409- ●
339 PIPE
CHI 		1-87223-038-0 04 1 1409- ●
340 LAMP ASM; RR COMB
CHI 		1-87223-039-0 01 1 1409- ● ●
340 LAMP ASM; RR COMB
CHI 		1-87223-040-0 01 1 1409- ● ●
349 DECK; FRONT
CHI 		1-87223-020-0 01 1 1409- ●
361 BRACKET
CHI 		1-87223-037-0 04 1 1409- ●
çizim 471367
320 320 353 333 328 331 318
BalonParca AdiParca NoAdetTipApplied Date A B
318 CONTROLLER; ABS
CHI 		1-87223-044-0 01 1 1409- ●
318 CONTROLLER; ABS
CHI 		1-87223-045-0 01 1 1409- ●
320 SOCKET; TRAILER
(A) CHI 		1-82698-178-2 01 1 1409- ●
320 SOCKET; TRAILER
(B) CHI 		1-87223-009-0 01 1 1409- ●
328 HARNESS; BODY
CHI 		1-87223-018-0 01 1 1409- ● ●
331 BRACKET; CONT UNIT,ABS
CHI 		1-87223-019-0 01 1 1409- ● ●
333 METER COMPL; CLUSTER
CHI CHI 		8-97430-216-0 01 1 1409- ● ●
353 HANDLE; SPARE TIRE CARRIER
CHI CHI 		9-23110-018-0 01 1 1409- ●

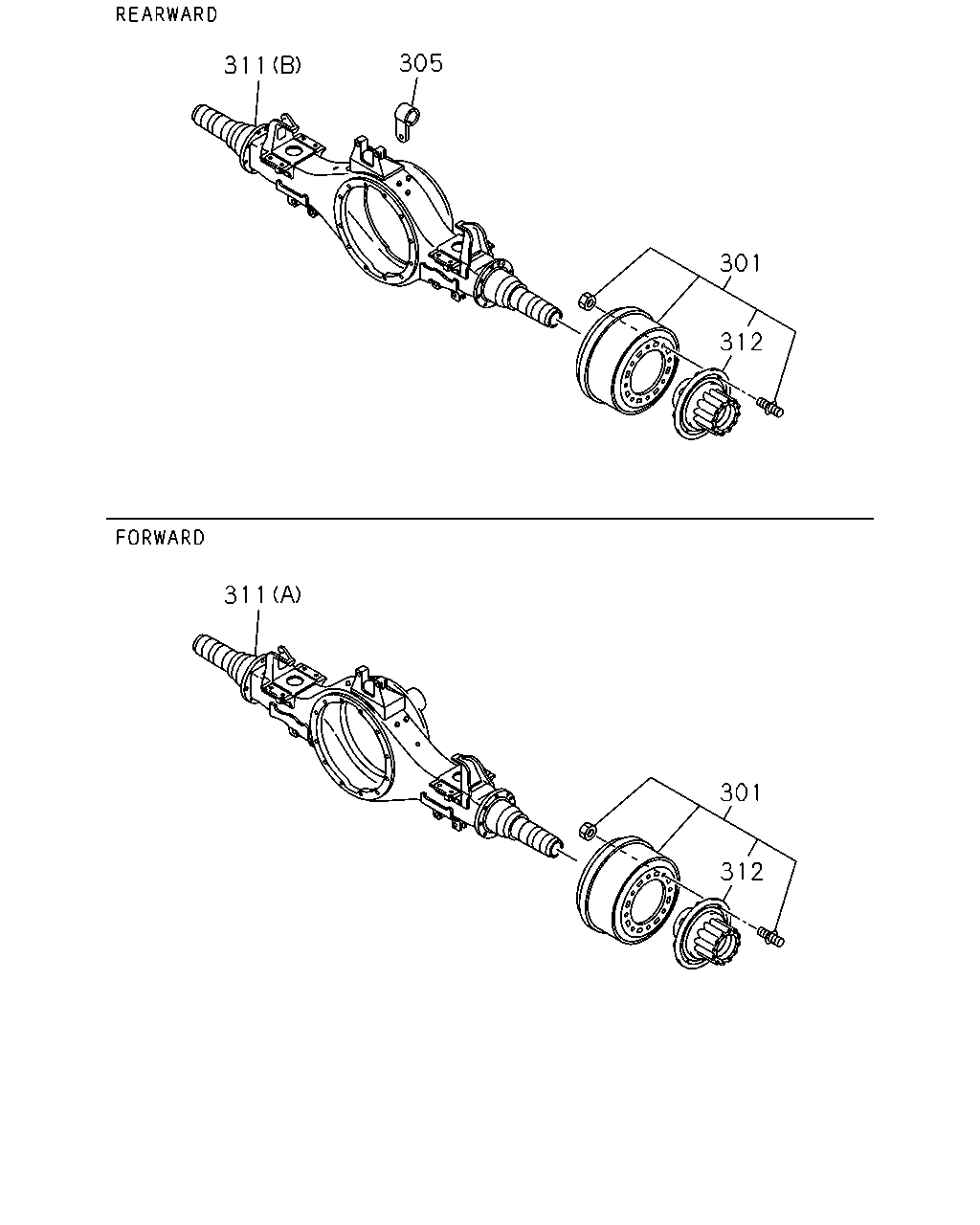

çizim 471422
311 305 301 312 301 312 311
BalonParca AdiParca NoAdetTipApplied Date A B
301 HUB & DRUM ASM; REAR
CHI 		1-42391-351-2 04 1 1409- ● ●
305 CLIP; HARNESS
CHI ID=9 L=16 		0-95234-825-0 15 1 1409- ● ●
311 CASE; RR AXLE
(B) CHI 		1-42190-254-0 01 1 1409- ● ●
311 CASE; RR AXLE
(A) CHI 		1-42190-248-0 01 1 1409- ● ●
312 HUB; RR AXLE
CHI 		1-42311-085-0 04 1 1409- ● ●

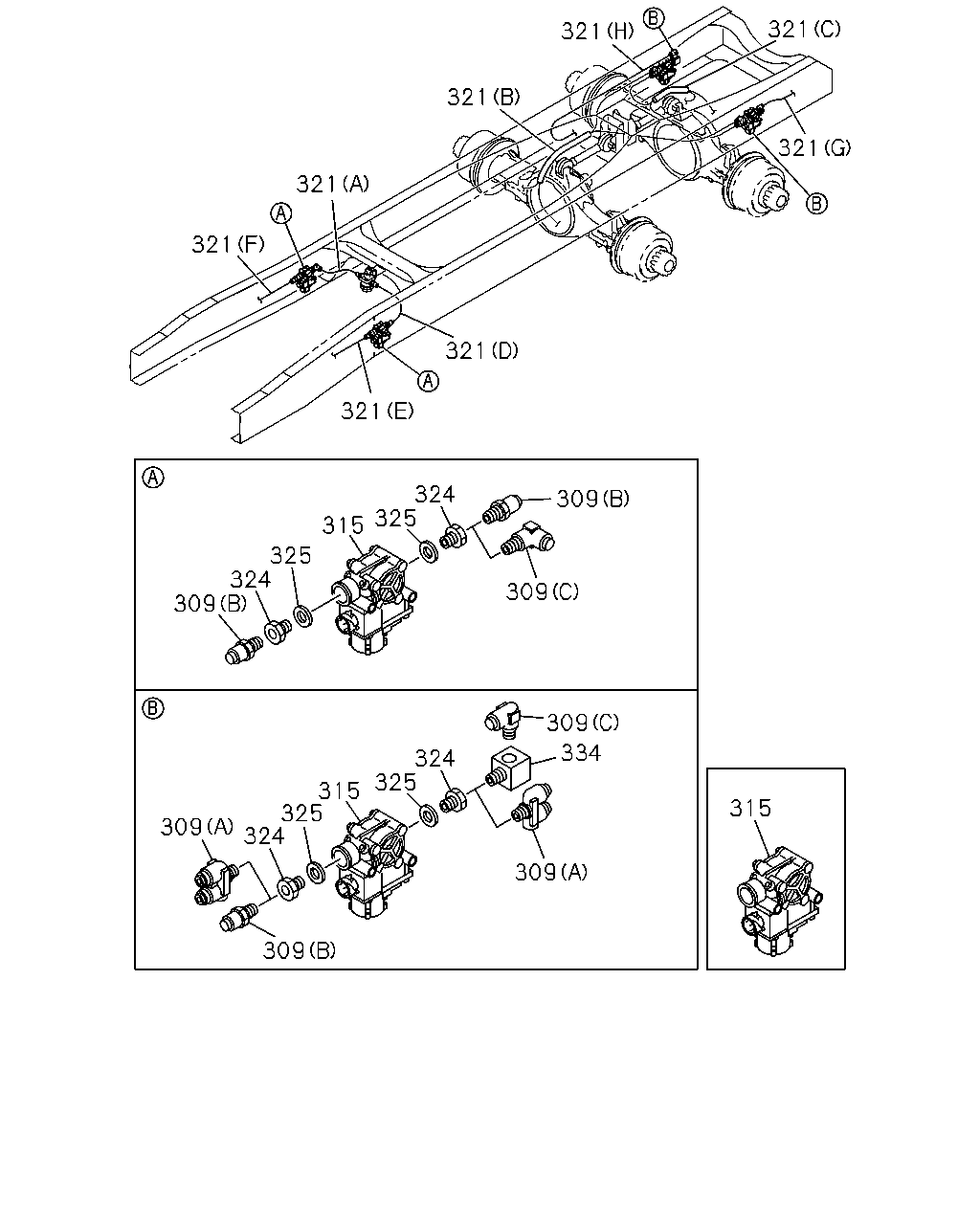

çizim 471425
321 321 321 321 321 321 321 321 324 325 315 325 324 309 309 309 309 334 324 325 315 325 324 309 309 309 315
BalonParca AdiParca NoAdetTipApplied Date A B
309 CONNECTOR; ELBOW
(A) CHI DIN12X2 & R3/8 3WAY CHI 		8-97430-308-0 02 1 1409- ● ●
309 CONNECTOR; ELBOW
(B) CHI DIN12 & R3/8 STRAIGHT 		8-97431-397-0 06 1 1409- ● ●
309 CONNECTOR; ELBOW
(C) CHI DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1409- ● ●
315 MODULATOR
CHI 		1-87223-002-0 08 1 1409- ● ●
321 TUBE; NYLON
(A) CHI L=280 		1-09399-006-0 01 1 1409- ● ●
321 TUBE; NYLON
(B) CHI 		1-87223-010-0 01 1 1409- ●
321 TUBE; NYLON
(C) CHI 		1-87223-012-0 01 1 1409- ●
321 TUBE; NYLON
(C) CHI 		1-87223-012-0 01 1 1409- ●
321 TUBE; NYLON
(D) CHI 		1-09399-018-0 01 1 1409- ● ●
321 TUBE; NYLON
(E) CHI 		1-09399-008-0 01 1 1409- ● ●
321 TUBE; NYLON
(F) CHI 		1-09399-026-0 01 1 1409- ● ●
321 TUBE; NYLON
(G) CHI 		1-09397-009-0 01 1 1409- ● ●
321 TUBE; NYLON
(H) CHI 		1-09397-043-0 01 1 1409- ● ●
324 ADAPTER
CHI INNER PT3/8,OUTER M22 CHI 		1-09650-494-1 08 1 1409- ● ●
325 GASKET
CHI ID=22.5 CHI 		9-09571-422-0 08 1 1409- ● ●
334 CONNECTOR; RELAY VLV
CHI PT3/8 ELBOW CHI 		1-09660-696-0 03 1 1409- ● ●

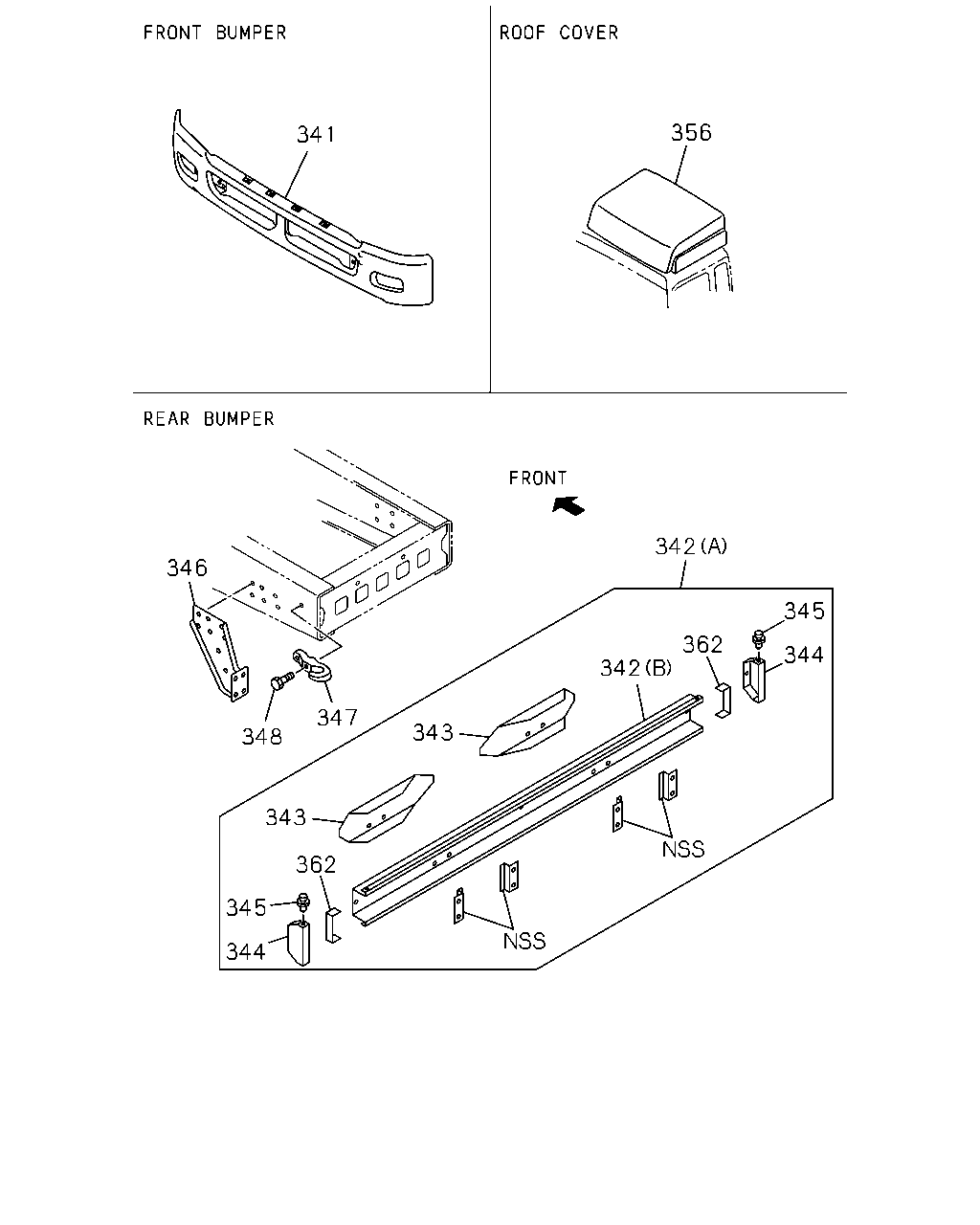

çizim 471439
341 356 347 346 348 343 362 345 344 343 342 342 362 345 344
BalonParca AdiParca NoAdetTipApplied Date A B
341 BUMPER ASM; FRT
CHI 		8-97431-208-0 01 1 1409- ● ●
342 BUMPER; RR
(A) CHI STAMP B2L CHI 		1-71220-076-1 01 1 1409- ●
342 BUMPER; RR
(B) CHI 		1-71220-088-1 01 1 1409- ●
343 REINFORCEMENT; RR BUMPER
CHI 		1-71220-094-0 02 1 1409- ●
344 COVER; RR
CHI CHI 		1-71290-040-0 02 1 1409- ●
345 RIVET; REFLECTOR
CHI PUSH RIVET BLACK CHI 		1-71290-041-0 06 1 1409- ●
346 BRACKET; BUMPER
CHI STAMP BU CHI 		1-71230-254-1 01 1 1409- ●
346 BRACKET; BUMPER
CHI STAMP BU CHI 		1-71230-255-1 01 1 1409- ●
347 HOOK
CHI CHI 		1-57181-027-1 01 1 1409- ●
348 BOLT; HOOK
CHI M16X70 CHI 		0-10861-670-0 01 1 1409- ●
356 COVER; ROOF
CHI 		1-87223-041-0 01 1 1409- ● ●
362 BRACKET; BUMPER
CHI 		1-87223-042-0 02 1 1409- ●

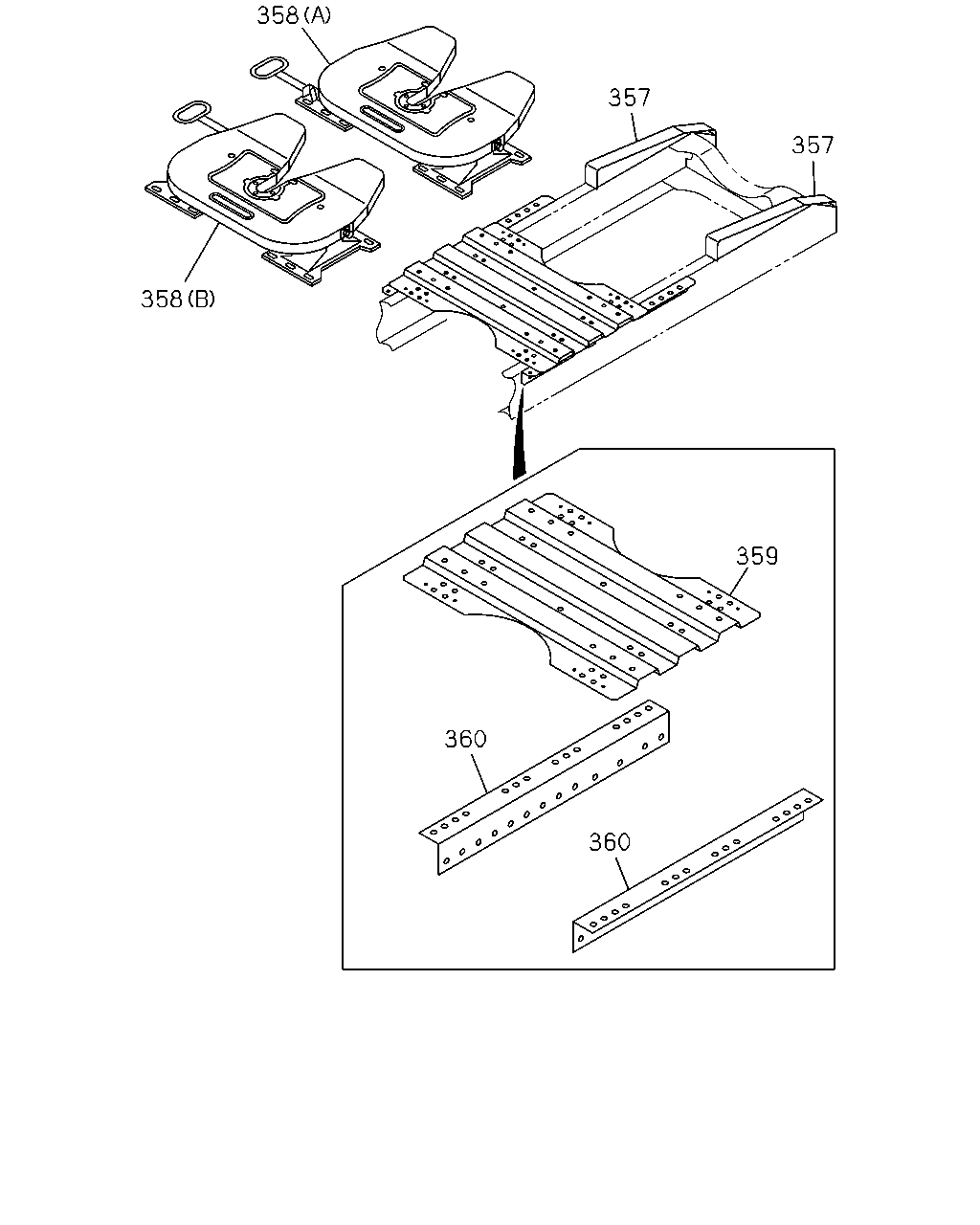

çizim 471447
358 357 357 358 360 360 359
BalonParca AdiParca NoAdetTipApplied Date A B
357 GUIDE; COUPLER
CHI 		1-87223-023-0 02 1 1409- ●
358 COUPLER ASM
(A) CHI 		1-87223-024-0 01 1 1409- ●
358 COUPLER ASM
(B) CHI 		1-87223-025-0 01 1 1409- ●
359 BASE; COUPLER
CHI 		1-87223-026-0 01 1 1409- ●
360 OUTRIGGER
CHI 		1-87223-029-0 01 1 1409- ●
360 OUTRIGGER
CHI 		1-87223-030-0 01 1 1409- ●

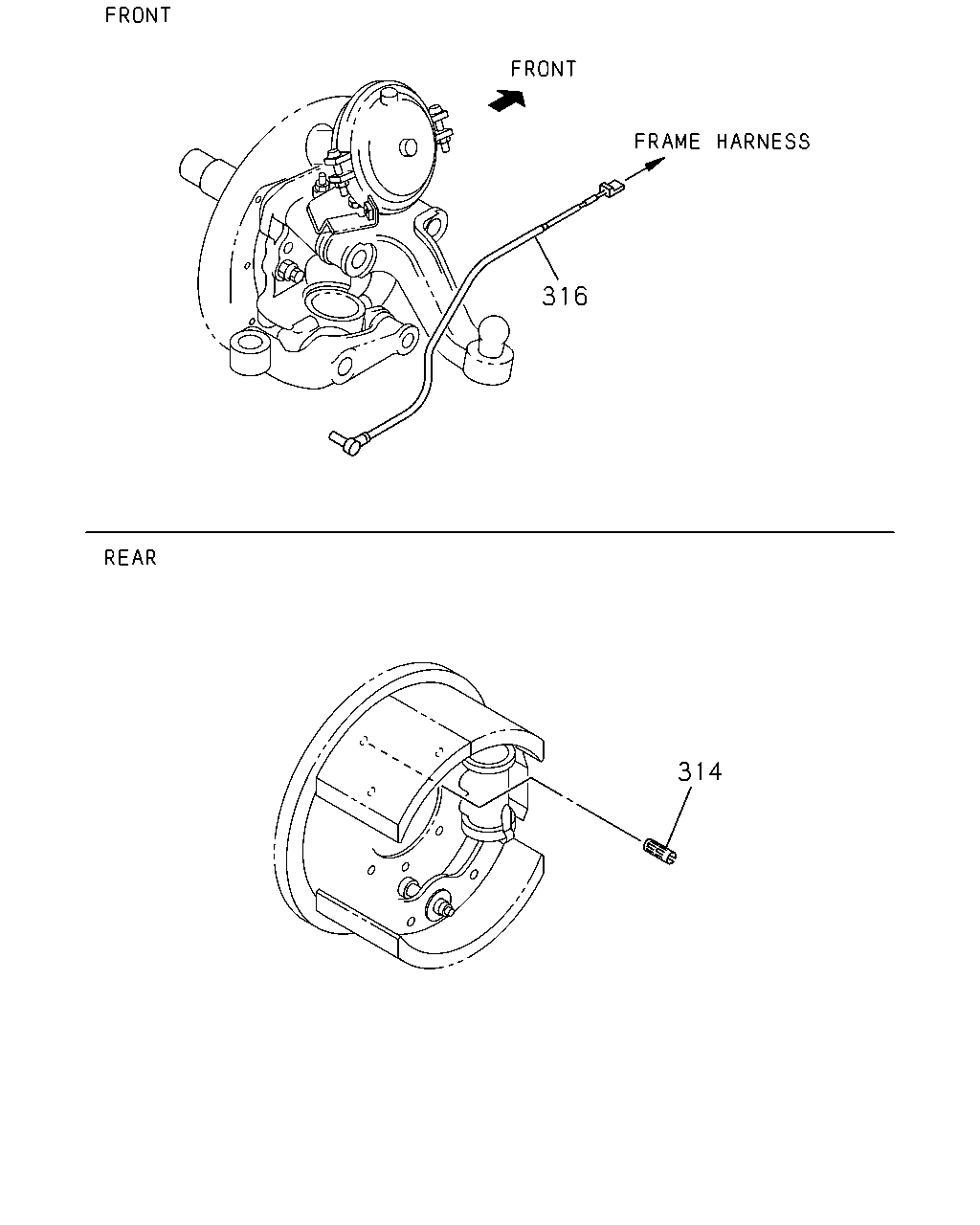

çizim 471450
316 314
BalonParca AdiParca NoAdetTipApplied Date A B
314 BUSHING; BRKT
CHI 		1-87223-001-0 02 1 1409- ● ●
316 SENSOR; SPEED,ABS
CHI 		1-87223-004-0 01 1 1409- ● ●
316 SENSOR; SPEED,ABS
CHI 		1-87223-005-0 01 1 1409- ● ●

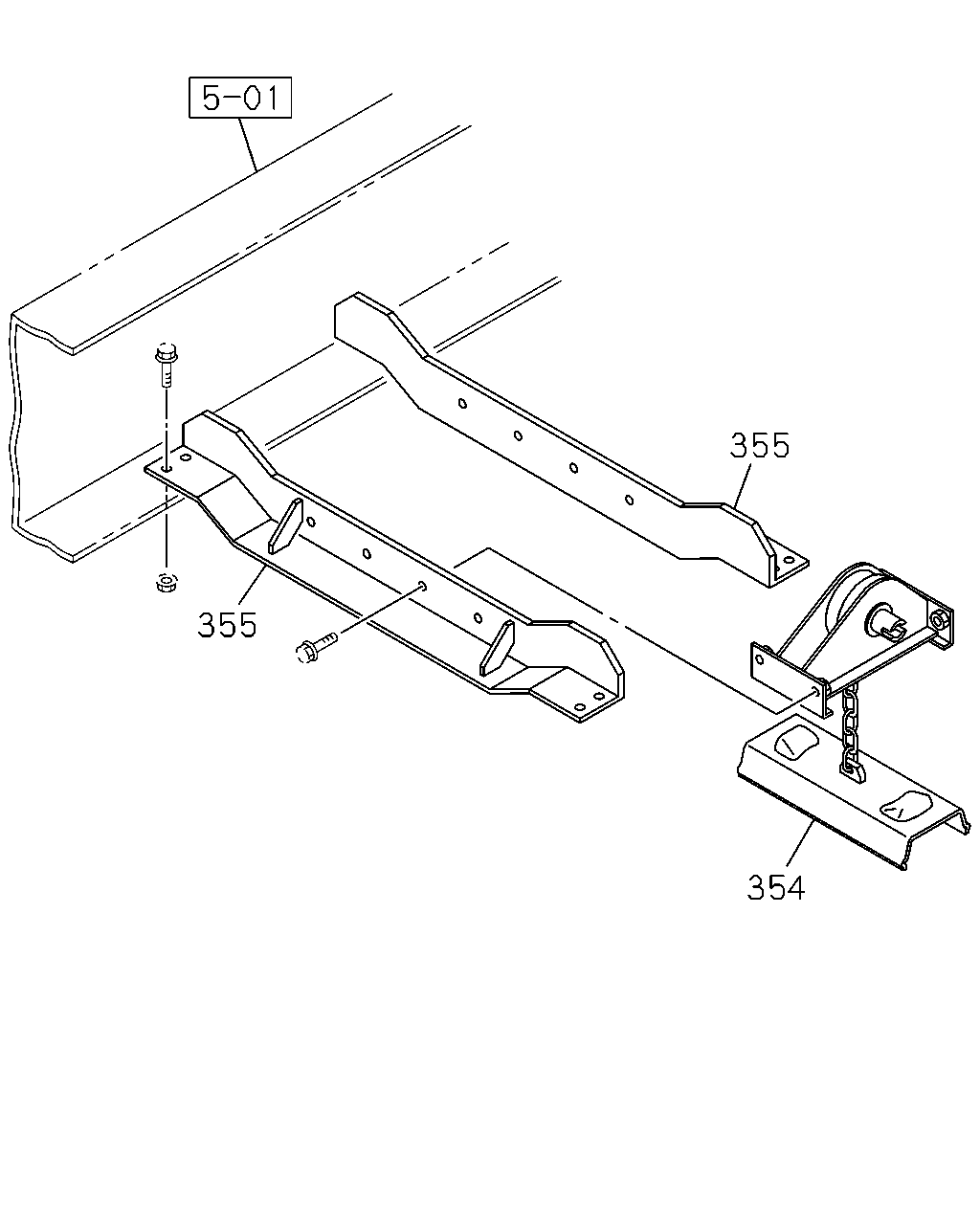

çizim 471761
355 355 354
BalonParca AdiParca NoAdetTipApplied Date A B
354 HANGER ASM; TIRE FT
CHI 		1-53630-210-4 01 1 1409- ●
355 BRACKET; SPARE TIRE
CHI 		8-97608-196-1 02 1 1409- ●

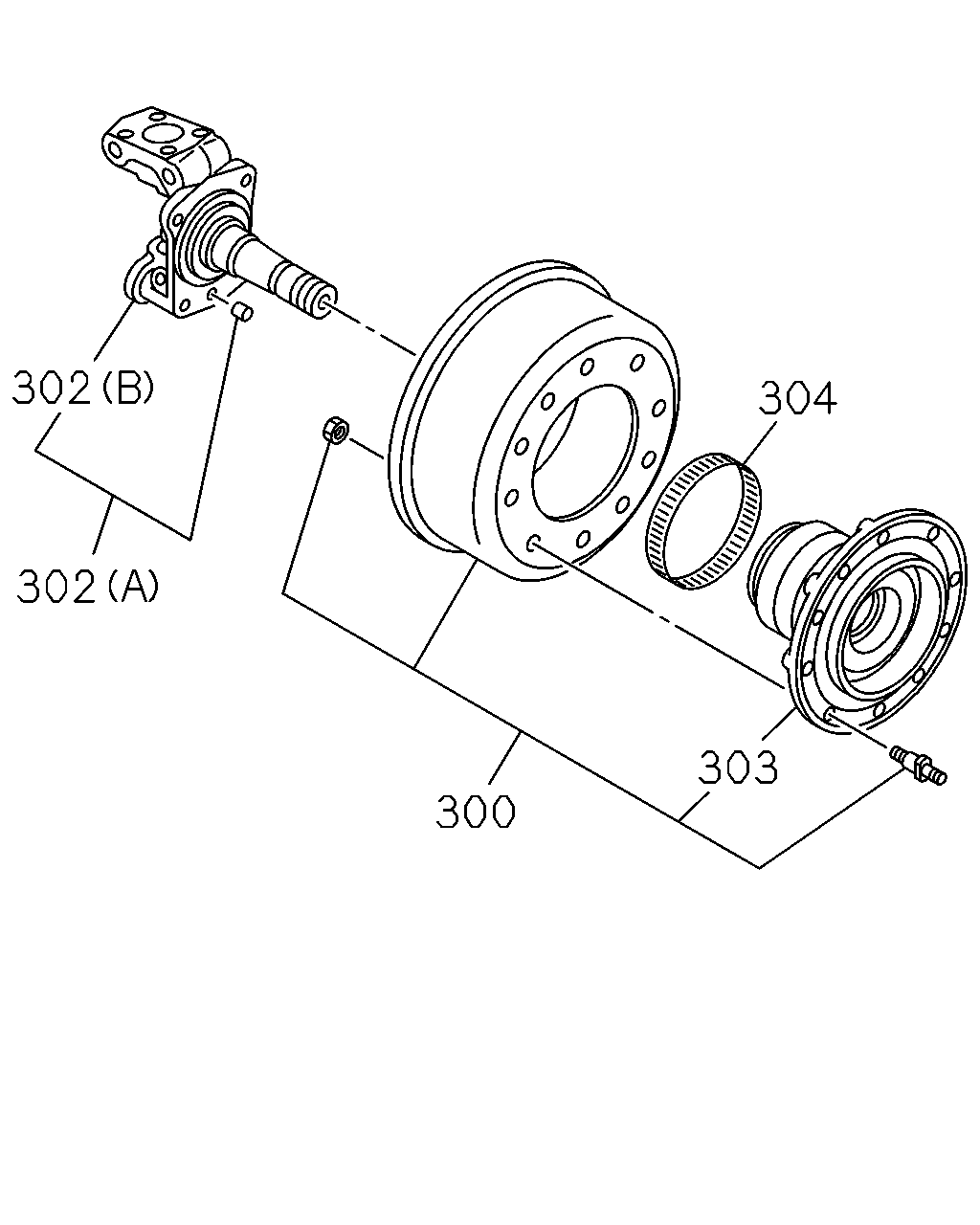

çizim 471913
302 302 300 303 304
BalonParca AdiParca NoAdetTipApplied Date A B
300 HUB & DRUM ASM; FRONT BRAKE
CHI 		1-42391-457-0 02 1 1409- ● ●
302 KNUCKLE; FRT AXLE
(A) CHI 		1-43132-067-4 01 1 1409- ● ●
302 KNUCKLE; FRT AXLE
(B) CHI CHI 		1-43132-079-1 01 1 1409- ● ●
302 KNUCKLE; FRT AXLE
(A) CHI 		1-43131-067-5 01 1 1409- ● ●
302 KNUCKLE; FRT AXLE
(B) CHI CHI 		1-43131-079-1 01 1 1409- ● ●
303 HUB; FRT AXLE
CHI 		1-42312-100-1 02 1 1409- ● ●
304 RING; EXCITER,FRT HUB
CHI 		1-87223-003-0 02 1 1409- ● ●
çizim 471924
350 351 351 352 352
BalonParca AdiParca NoAdetTipApplied Date A B
350 SPACER; HANGER BRKT
CHI 		1-87223-021-0 01 1 1409- ●
351 STUD; BRKT TO FRAME
CHI 		1-87223-022-0 02 1 1409- ●
352 SPACER; CARRIER
(A) CHI CHI 		1-53631-444-0 01 1 1409- ●
352 SPACER; CARRIER
(B) CHI 		1-53637-007-0 02 1 1409- ●

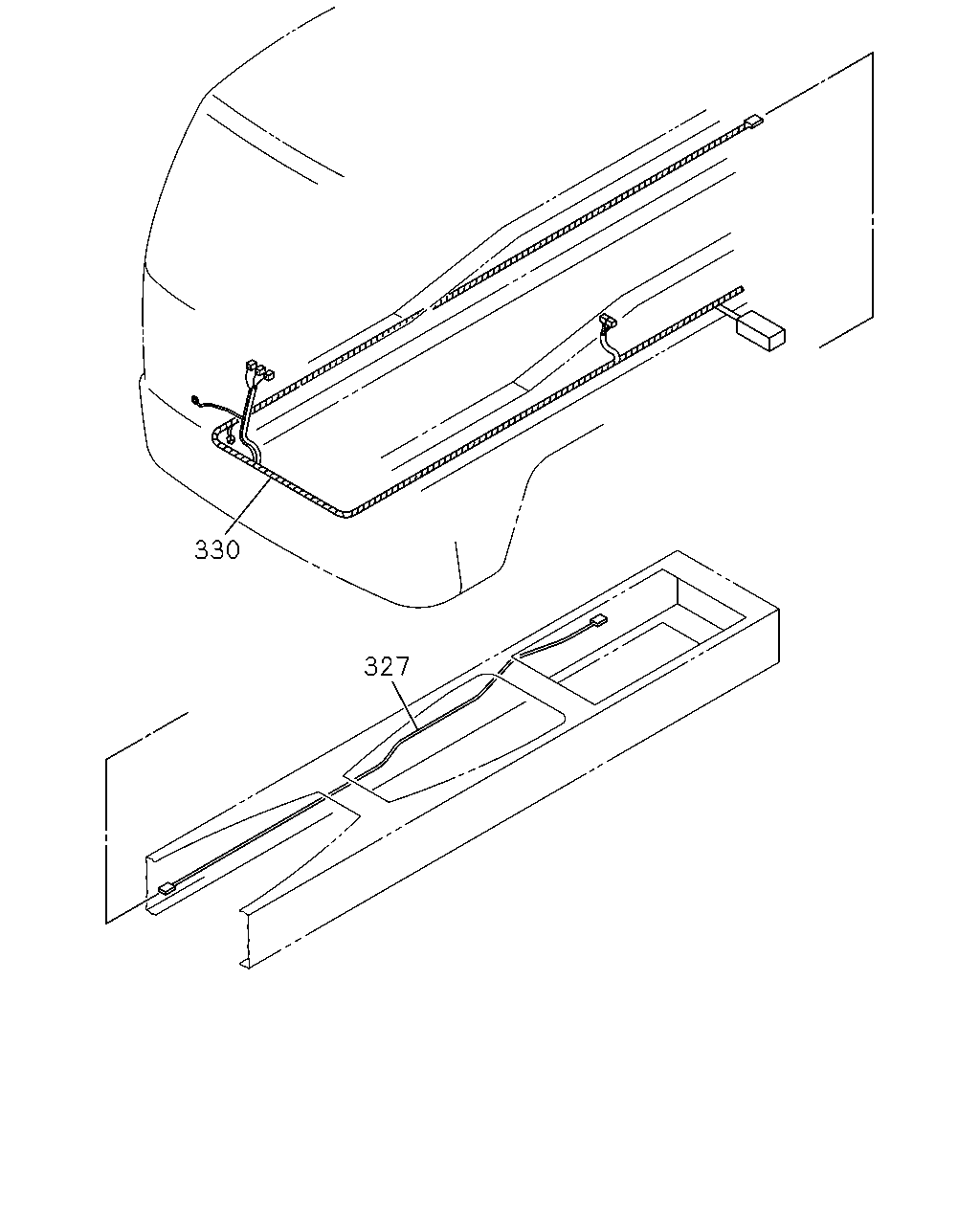

çizim 471990
330 327
BalonParca AdiParca NoAdetTipApplied Date A B
327 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) CHI 		8-97431-372-0 01 1 1409- ●
327 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) CHI 		8-97431-371-0 01 1 1409- ●
327 HARNESS; FRAME,RR
CHI 		8-97431-369-0 01 1 1409- ●
330 HARNESS; FRAME
CHI 		8-97431-367-1 01 1 1409- ●
330 HARNESS; FRAME
CHI 		8-97431-366-1 01 1 1409- ●

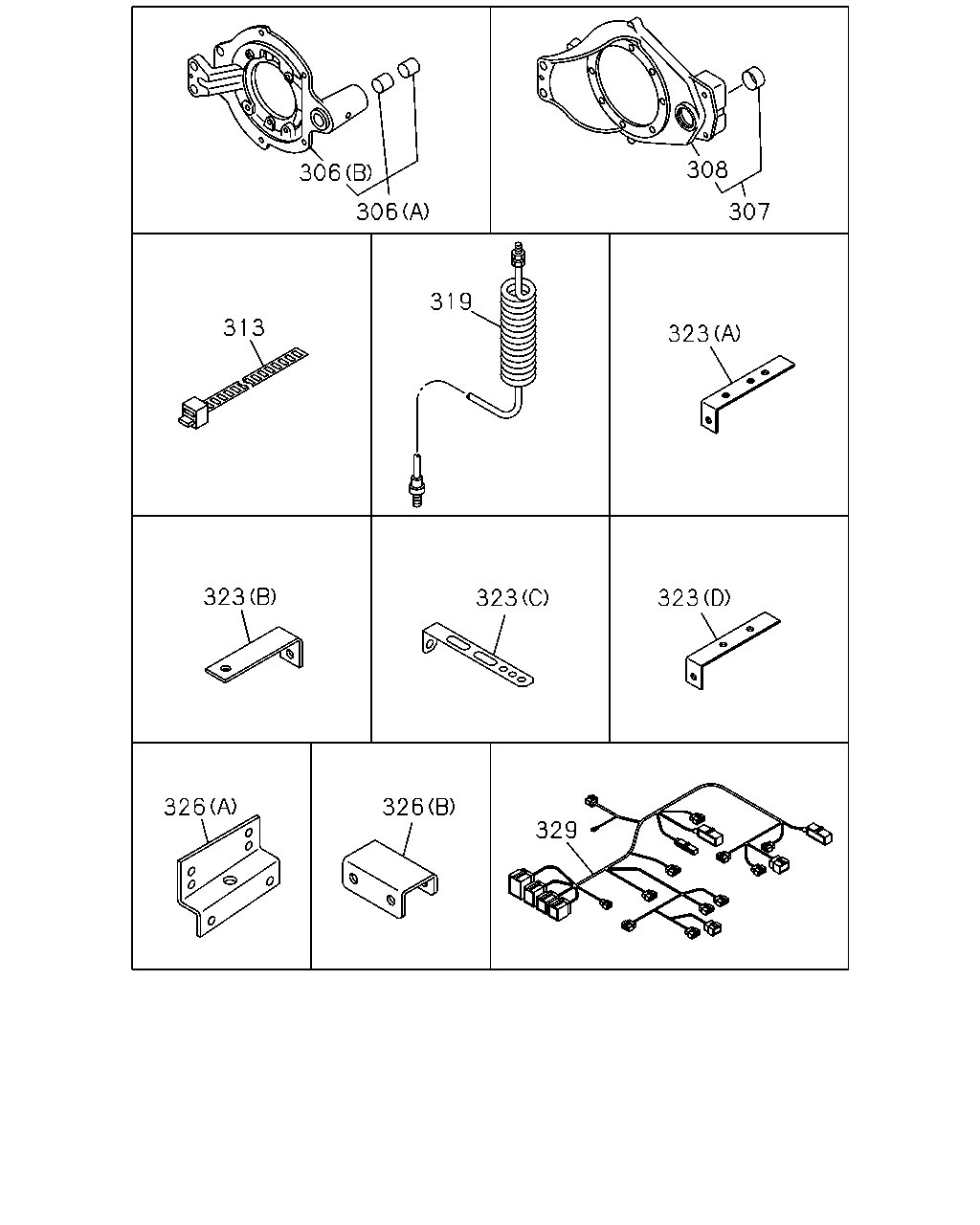

çizim 472083
306 306 319 313 323 326 326 323 329 323 323 307 308
BalonParca AdiParca NoAdetTipApplied Date A B
306 BRACKET; ANCHOR,FRT
(A) CHI 		1-47137-119-3 01 1 1409- ● ●
306 BRACKET; ANCHOR,FRT
(B) CHI 		1-47137-453-0 01 1 1409- ● ●
306 BRACKET; ANCHOR,FRT
(A) CHI 		1-47137-118-3 01 1 1409- ● ●
306 BRACKET; ANCHOR,FRT
(B) CHI 		1-47137-452-0 01 1 1409- ● ●
307 BRACKET; ANCHOR PIN,W/BUSHING
CHI 		1-47137-120-2 02 1 1409- ● ●
308 BRACKET; ANCHOR PIN,RR WHEEL BRK
CHI 		1-47137-152-0 02 1 1409- ● ●
313 CLIP; BAND
CHI L=330 CHI 		5-09709-118-0 20 1 1409- ● ●
319 CABLE; JUMPER,EBS
CHI L=5500 		1-82659-198-3 01 1 1409- ●
323 BRACKET; CLIP
(A) CHI L=120 CHI 		8-97619-440-0 01 1 1409- ● ●
323 BRACKET; CLIP
(B) CHI L=112 CHI 		1-47475-694-1 01 1 1409- ● ●
323 BRACKET; CLIP
(C) CHI L=160 H=30 CHI 		1-47479-759-0 02 1 1409- ● ●
323 BRACKET; CLIP
(D) CHI L=115 H=30 CHI 		1-47477-715-3 02 1 1409- ● ●
326 BRACKET; MODULATOR
(B) CHI 		1-87223-015-0 01 1 1409- ● ●
326 BRACKET; MODULATOR
(A) CHI 		1-87223-013-0 03 1 1409- ● ●
329 HARNESS; GOVERNOR
CHI 		8-97431-379-0 01 1 1409- ● ●
