◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#1600) — 15 parça

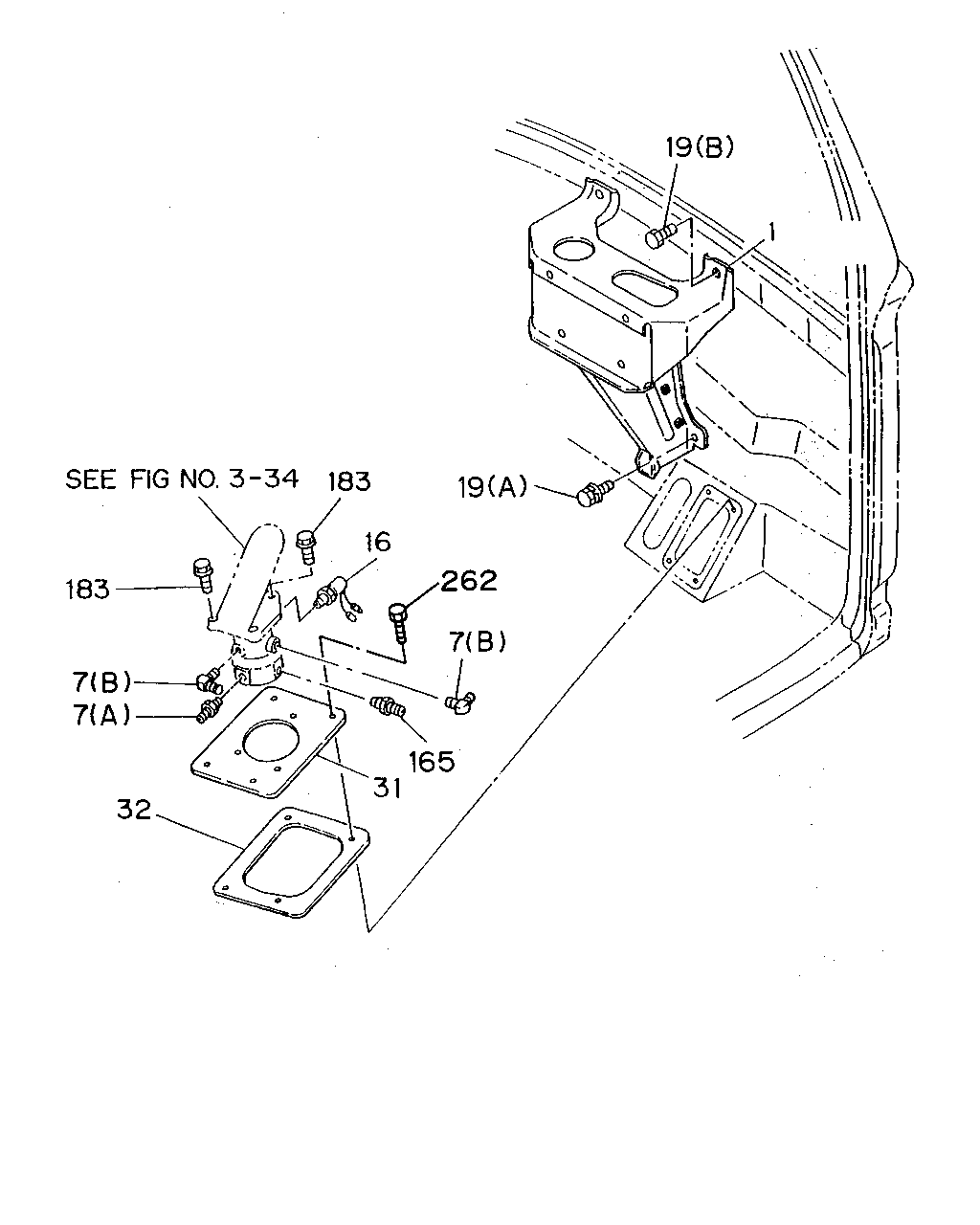

çizim 94426
19 1 19 16 183 262 7 165 31 32 7 7 183
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BRACKET ASM; PEDAL 1-73998-464-9 01 1 9207- ● ● ● ● ●
7 CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9207-9501 ● ● ● ● ●
7 CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9502- ● ● ● ● ●
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW 		1-09650-180-1 02 1 9207-9302 ● ● ● ● ●
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 9303-9501 ● ● ● ● ●
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 9502- ● ● ● ● ●
16 SWITCH; STOP LAMP
OPERATE PRESSURE 0.3 		1-82410-080-1 02 1 9207- ● ● ● ● ●
19 BOLT; BRKT
(A) M8X20 		1-09980-435-0 01 1 9207- ● ● ● ● ●
19 BOLT; BRKT
(B) M8X20 		1-09980-529-0 03 1 9207- ● ● ● ● ●
31 PLATE; MTG,BRKT VLV 1-73997-620-4 01 1 9207- ● ● ● ● ●
32 SHEET; BRK VALVE BRKT 1-73997-622-4 01 1 9207- ● ● ● ● ●
165 CONNECTOR; SECONDARY DELIVERY
M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9207- ● ● ● ● ●
183 BOLT; BRK VLV
M10X25 W/LK WASHER 		1-09980-503-0 01 1 9207- ● ● ● ● ●
183 BOLT; BRK VLV
M10X35 W/LK WASHER 		1-09980-504-0 02 1 9207- ● ● ● ● ●
262 BOLT; PLATE
M6X16 W/LK&PL WASHER 		1-09980-586-0 04 1 9207- ● ● ● ● ●
