1 |

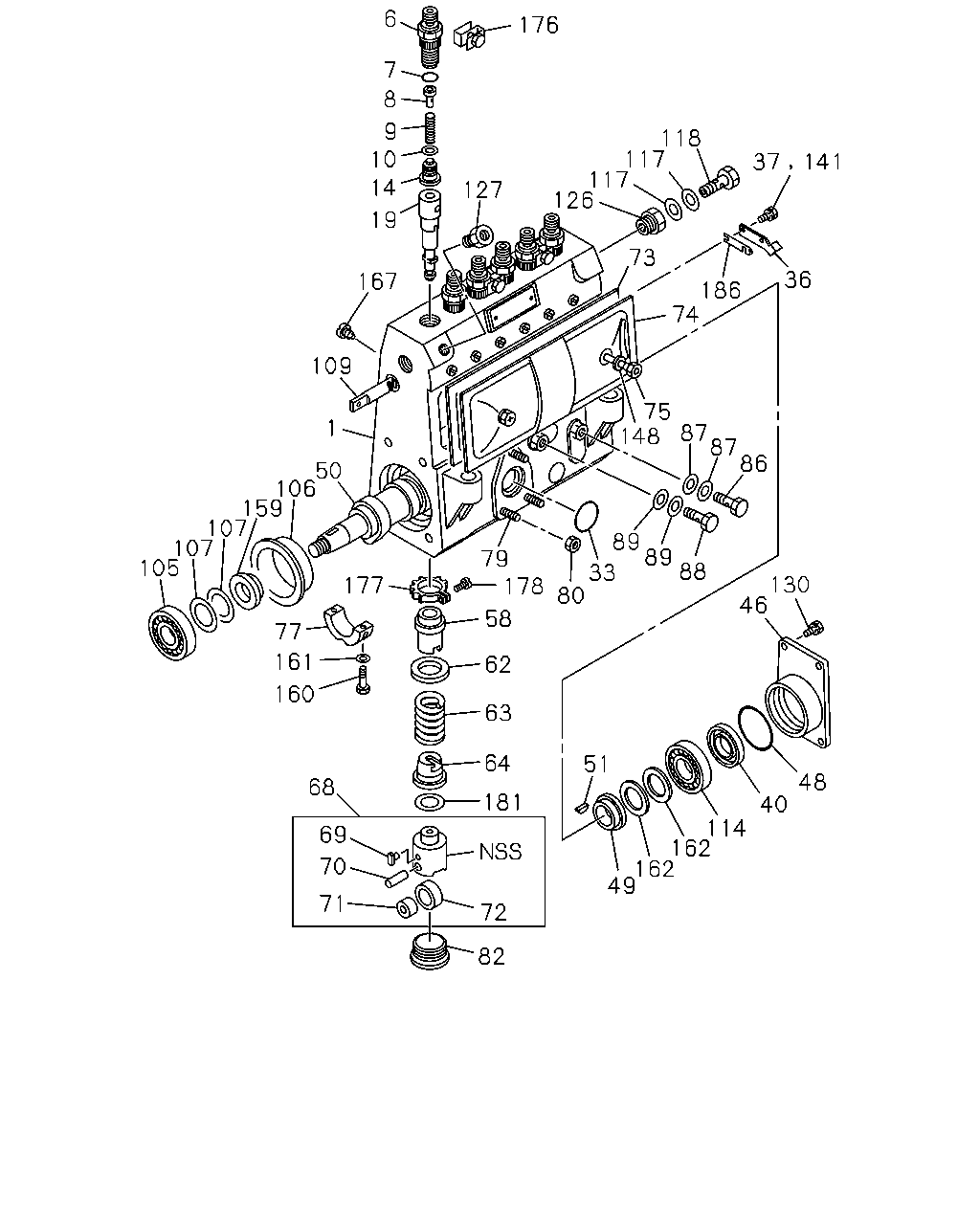

HOUSING; PUMP,FUEL INJ
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15611-115-0 |
01 |
1 |
- |
| |
1 |
HOUSING; PUMP,FUEL INJ
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15611-120-0 |
01 |
1 |
- |
| |
6 |
HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15644-009-0 |
06 |
1 |
- |
| |
6 |
HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15644-017-0 |
06 |
1 |
- |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-09623-052-0 |
06 |
1 |
- |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81235-046-0 |
06 |
1 |
- |
| |
8 |
STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15649-005-0 |
06 |
1 |
- |
| |
8 |
STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-045-0 |
06 |
1 |
- |
| |
9 |
SPRING; DELIVERY VLV
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15634-011-0 |
06 |
1 |
- |
| |
9 |
SPRING; DELIVERY VLV
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15643-003-0 |
06 |
1 |
- |
| |
10 |
GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15619-103-0 |
06 |
1 |
- |
| |
10 |
GASKET; DELIVERY VLV,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15649-001-0 |
06 |
1 |
- |
| |
14 |
VALVE; DELIVERY,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15641-019-0 |
06 |
1 |
- |
| |
14 |
VALVE; DELIVERY,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1
|
1-15641-020-0 |
06 |
1 |
- |
| |
14 |
VALVE; DELIVERY,INJ PUMP
ASM PART: G = 8-94394-735-0, H = 8-94395-050-0
|
1-15641-030-0 |
06 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: G = 8-94394-735-0, H = 8-94395-050-0
|
1-15631-113-0 |
06 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15631-139-0 |
06 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1
|
1-15631-140-0 |
06 |
1 |
- |
| |
33 |
GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15629-058-0 |
01 |
1 |
- |
| |
36 |
POINTER; TIMING,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15619-304-0 |
01 |
1 |
- |
| |
37 |
BOLT; POINTER FIX,INJ PUMP
ASM PART: B = 8-94393-462-3
|
1-15729-758-0 |
02 |
1 |
- |
| |
40 |
SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81225-071-0 |
01 |
1 |
- |
| |
46 |
COVER; FRT,PUMP HSG
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15629-034-0 |
01 |
1 |
- |
| |
48 |
GASKET; FRT COVER TO HSG
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15629-059-0 |
01 |
1 |
- |
| |
49 |
RING; FRT BRG,CM/SHF
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15629-004-0 |
01 |
1 |
- |
| |
49 |
RING; FRT BRG,CM/SHF
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-024-0 |
01 |
1 |
- |
| |
50 |
CAMSHAFT; INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15621-078-0 |
01 |
1 |
- |
| |
50 |
CAMSHAFT; INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15621-080-0 |
01 |
1 |
- |
| |
51 |
KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-83539-024-0 |
01 |
1 |
- |
| |
58 |
SLEEVE; CONT,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
9-81225-058-0 |
06 |
1 |
- |
| |
58 |
SLEEVE; CONT,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81231-523-0 |
06 |
1 |
- |
| |
62 |
SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15639-022-0 |
06 |
1 |
- |
| |
62 |
SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
9-81235-015-0 |
06 |
1 |
- |
| |
63 |
SPRING; PLUNGER,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15634-007-0 |
06 |
1 |
- |
| |
63 |
SPRING; PLUNGER,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
8-94387-977-0 |
06 |
1 |
- |
| |
64 |
SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15639-023-0 |
06 |
1 |
- |
| |
64 |
SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
9-81235-021-0 |
06 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15622-006-0 |
06 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15622-009-0 |
06 |
1 |
- |
| |
69 |
GUIDE; TAPPET,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15629-018-0 |
06 |
1 |
- |
| |
69 |
GUIDE; TAPPET,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15619-041-0 |
06 |
1 |
- |
| |
70 |
PIN; TAPPET ROLLER,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15622-006-0 |
06 |
1 |
- |
| |
70 |
PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81215-185-0 |
06 |
1 |
- |
| |
71 |
BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15619-162-0 |
06 |
1 |
- |
| |
71 |
BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15629-001-0 |
06 |
1 |
- |
| |
72 |
ROLLER; TAPPET,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15622-003-0 |
06 |
1 |
- |
| |
72 |
ROLLER; TAPPET,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15629-010-0 |
06 |
1 |
- |
| |
73 |
GASKET; COVER TO HSG
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15729-960-0 |
01 |
1 |
- |
| |
74 |
COVER; HSG,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15612-050-0 |
01 |
1 |
- |
| |
75 |
SCREW; COVER TO HSG
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15619-003-0 |
02 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15619-237-0 |
01 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15629-014-0 |
01 |
1 |
- |
| |
79 |
STUD; FUEL FEED PUMP TO HSG
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81215-115-0 |
03 |
1 |
- |
| |
80 |
NUT; FUEL FEED PUMP FIX
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
8-94171-110-0 |
03 |
1 |
- |
| |
82 |
PLUG; HSG,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15619-160-0 |
06 |
1 |
- |
| |
82 |
PLUG; HSG,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15619-136-0 |
06 |
1 |
- |
| |
86 |
BOLT; EYE,OIL RETURN,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15619-091-0 |
01 |
1 |
- |
| |
87 |
GASKET; OIL RETURN BOLT,INJ PUMP
L=96 ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15729-066-0 |
02 |
1 |
- |
| |
88 |
BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15619-092-0 |
01 |
1 |
- |
| |
89 |
GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15719-093-0 |
02 |
1 |
- |
| |
105 |
BEARING; CM/SHF RR,INJ PUMP
NTN ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-09800-038-0 |
01 |
1 |
- |
| |
105 |
BEARING; CM/SHF RR,INJ PUMP
NSK ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-00090-677-0 |
01 |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=2.40
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15639-088-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.70
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-039-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.10
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15629-015-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.12
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15629-016-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.14
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15629-017-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.16
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15629-018-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.18
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15629-019-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.50
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15629-020-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.00
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15629-038-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.40
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15629-090-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.30
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81225-033-0 |
AR |
1 |
- |
| |
109 |
RACK; CONT,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15637-003-0 |
01 |
1 |
- |
| |
114 |
BEARING; CM/SHF FRT,INJ PUMP
NSK ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15629-002-0 |
01 |
1 |
- |
| |
114 |
BEARING; CM/SHF FRT,INJ PUMP
NTN ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15629-003-0 |
01 |
1 |
- |
| |
117 |
GASKET; EYE BOLT,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15759-012-0 |
02 |
1 |
- |
| |
118 |
BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15759-011-0 |
01 |
1 |
- |
| |
126 |
ADAPTER; EYE BOLT,PUMP HSG
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81235-017-0 |
01 |
1 |
- |
| |
127 |
ADAPTER; FUEL PIPE
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15619-190-0 |
01 |
1 |
- |
| |
127 |
ADAPTER; FUEL PIPE
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
1-15629-057-0 |
01 |
1 |
- |
| |
130 |
SCREW; FRT COVER TO HSG
M6X14 W/LK WASHER
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, F = 8-94394-314-1,
G = 8-94394-735-0
|
9-01900-614-0 |
04 |
1 |
- |
| |
141 |
BOLT; POINTER
ASM PART: A = 8-94393-459-2, C = 8-94393-465-0,
D = 8-94393-474-1, E = 8-94393-714-1,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15729-758-0 |
02 |
1 |
- |
| |
148 |
GASKET; COVER FIX BOLT
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81215-144-0 |
02 |
1 |
- |
| |
159 |
RING; RR BEARING,CM/SHF,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-023-0 |
01 |
1 |
- |
| |
159 |
RING; RR BEARING,CM/SHF,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81225-059-0 |
01 |
1 |
- |
| |
160 |
SCREW; CENTER BRG,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15629-017-0 |
02 |
1 |
- |
| |
160 |
SCREW; CENTER BRG,INJ PUMP
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
9-88410-066-0 |
02 |
1 |
- |
| |
161 |
GASKET; SCREW,CENTER BRG
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81225-043-0 |
02 |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.30
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15629-007-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=1.00
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
1-15629-008-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.10 OD=24
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-025-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.12 OD=24
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-026-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.14 OD=24
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-027-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.16 OD=24
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-028-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.18 OD=24
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-029-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.30 OD=24
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-030-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.50 OD=24
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-031-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=1.00 OD=24
ASM PART: C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1
|
5-15629-032-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.10
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81225-049-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.12
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81225-050-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.14
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81225-051-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.16
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81225-052-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.18
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81225-053-0 |
AR |
1 |
- |
| |
162 |
SHIM; FRT BRG,CM/SHF
T=0.50
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
F = 8-94394-314-1, G = 8-94394-735-0,
H = 8-94395-050-0
|
9-81225-054-0 |
AR |
1 |
- |
| |
167 |
BOLT; CONT RACK,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15639-003-0 |
01 |
1 |
- |
| |
176 |
PLATE; LK,DELIVERY VLV HOLDER
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15625-001-0 |
03 |
1 |
- |
| |
177 |
PINION; CONT SLEEVE,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81225-057-0 |
06 |
1 |
- |
| |
178 |
SCREW; PINION,INJ PUMP
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81235-003-0 |
06 |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.60
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-001-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.70
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-002-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.80
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-003-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.90
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-004-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.00
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-005-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.10
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-007-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.20
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-008-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.30
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-009-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.40
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-010-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.55
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-011-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.65
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-012-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.75
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-013-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.85
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-015-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.20
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-025-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.25
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-026-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.35
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-027-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.30
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-034-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.40
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-035-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.50
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-036-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.45
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-037-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.50
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-106-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.60
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-107-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.35
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-108-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.45
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-109-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.55
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
5-15619-110-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.95
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81235-042-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.05
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81235-043-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.15
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81235-044-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.25
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
9-81235-045-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=0.20
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15639-093-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=0.30
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15639-094-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=0.50
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15639-095-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=1.00
ASM PART: A = 8-94393-459-2, B = 8-94393-462-3,
C = 8-94393-465-0, D = 8-94393-474-1,
E = 8-94393-714-1, F = 8-94394-314-1,
G = 8-94394-735-0, H = 8-94395-050-0
|
1-15639-096-0 |
AR |
1 |
- |
