◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11364 - FSR(MALAYSIA)W/B4200 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#15998) — 182 parça

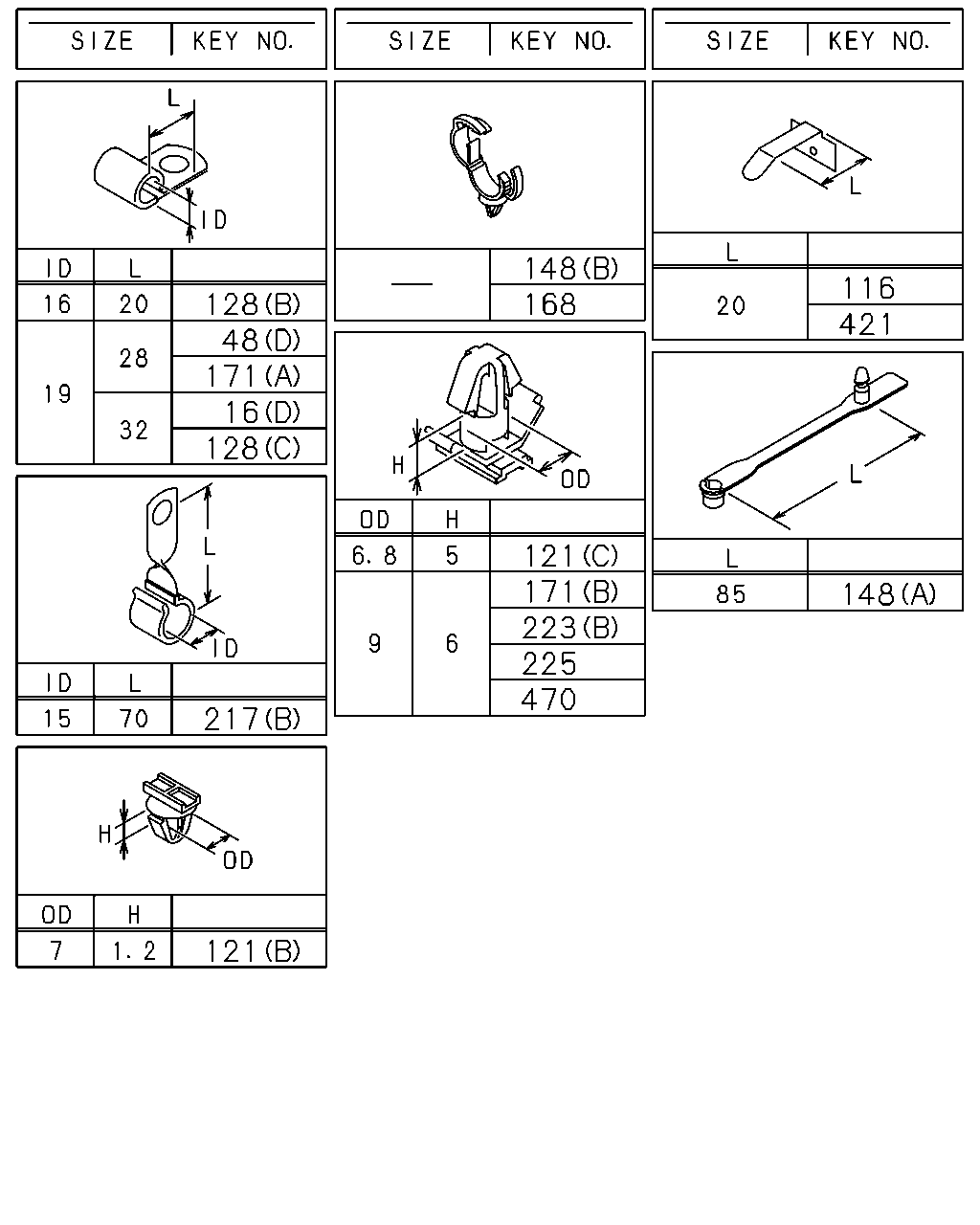

çizim 71949
148 168 116 421 128 48 171 16 128 121 171 223 225 470 148 217 121
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 9706-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 9706-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9706-
16 CLIP; HARNESS
(E) ID=19 H=33 L=45 		1-09701-045-0 01 1 9706-9801
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 9706-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 9706-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 9706-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 9706-
16 CLIP; HARNESS
EXC. FRONT FENDER WIDE<SA4> (F) L=175 MAL 		8-97110-167-0 02 1 9706-
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 		1-09700-403-0 01 1 9706-
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 		1-09700-403-0 03 1 9706-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 9706-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 9706-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 03 1 9706-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 04 1 9706-
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 9706-0606
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 9706-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9706-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 14 1 9706-
48 CLIP; FRAME HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9706-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9706-0009
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
(A) L=140 MAL 		5-09707-031-1 01 1 0005-
121 CLIP; FACIA HARNESS
FRONT FENDER WIDE<SA4> (B) OD=7 H=1.2 		8-94364-750-0 02 1 9706-
121 CLIP; FACIA HARNESS
EXC. FRONT FENDER WIDE<SA4> (C) OD=6.8 H=5 		8-97082-051-0 02 1 9706-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 9706-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 9706-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9706-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 MAL 		8-97069-515-0 01 1 9706-
168 CLIP; DASH HARNESS
ID=6 & 10-13 MAL 		8-97069-515-0 05 1 9706-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 9706-
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		9-09525-856-0 04 1 9706-0606
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		0-95235-856-0 04 1 0607-
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 9706-
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 9706-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9706-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 9706-
223 CLIP; AIR TANK HARNESS
(C) L=140 MAL 		5-09707-031-1 01 1 9706-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9706-
223 CLIP; AIR TANK HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 9706-9909
223 CLIP; AIR TANK HARNESS
(E) ID=20 L=50 		9-09917-430-0 04 1 9910-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> OD=9 H=6 		1-09709-178-0 01 1 9706-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9706-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9706-
çizim 71952
133 210 423 520 184 524 219 294 209
BalonParca AdiParca NoAdetTipApplied Date
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER MAL 		8-94279-402-0 01 1 9706-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER MAL 		8-94279-200-0 01 1 0107-0210
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9908-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9706-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9908-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9706-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 9706-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 04 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 9706-0602
294 NUT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9908-9909
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9908-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9706-0602
524 NUT; HARNESS
M6 FLANGE MAL 		0-91180-106-0 01 1 0603-

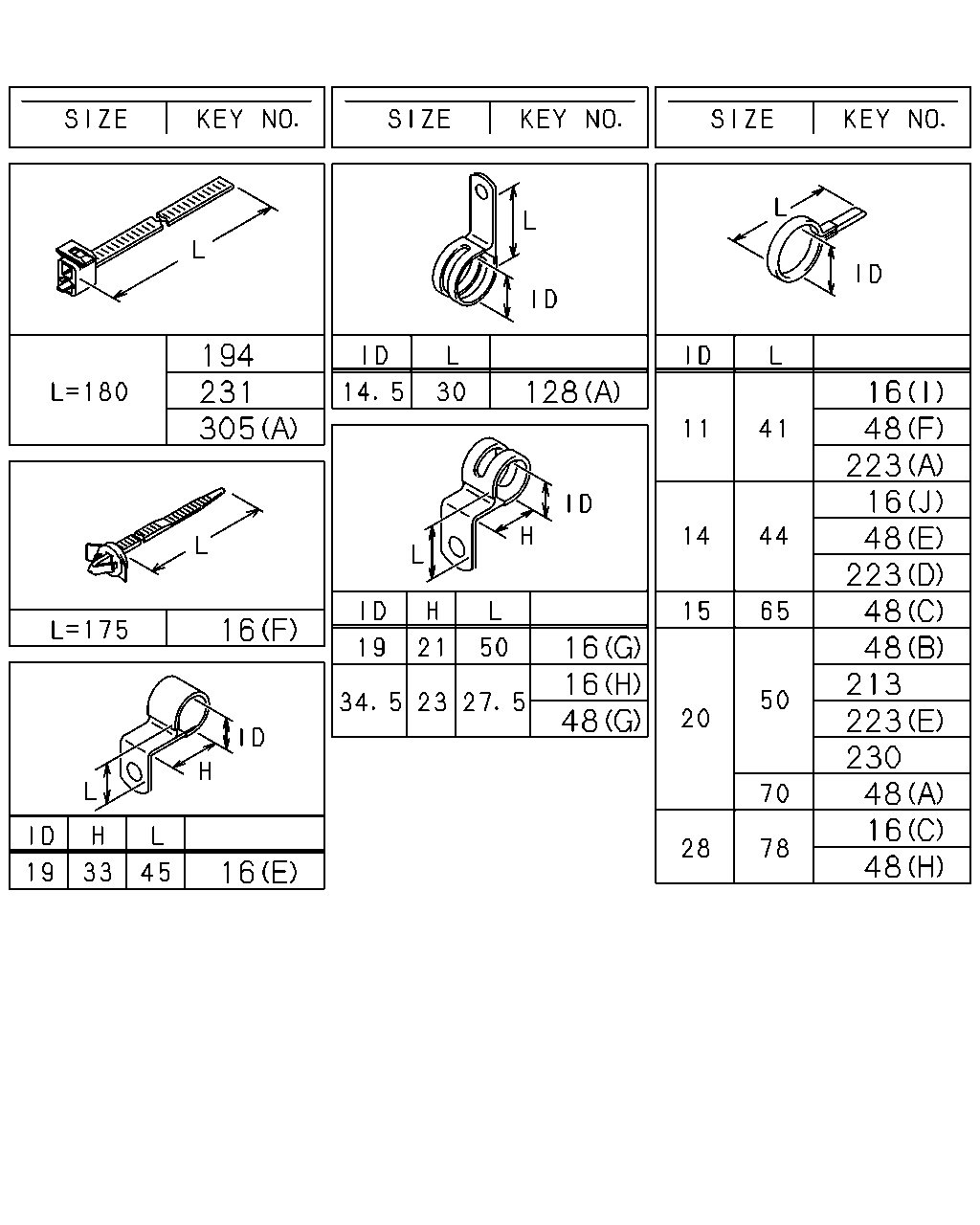

çizim 71985
194 231 305 128 16 48 223 16 48 223 48 48 213 223 230 48 16 48 16 16 16 48 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 9706-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 9706-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9706-
16 CLIP; HARNESS
(E) ID=19 H=33 L=45 		1-09701-045-0 01 1 9706-9801
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 9706-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 9706-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 9706-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 9706-
16 CLIP; HARNESS
EXC. FRONT FENDER WIDE<SA4> (F) L=175 MAL 		8-97110-167-0 02 1 9706-
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 		1-09700-403-0 01 1 9706-
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 		1-09700-403-0 03 1 9706-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 9706-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 9706-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 03 1 9706-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 04 1 9706-
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 9706-0606
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 9706-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9706-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 14 1 9706-
48 CLIP; FRAME HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9706-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 9706-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 9706-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 9706-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9706-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9706-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 9706-
223 CLIP; AIR TANK HARNESS
(C) L=140 MAL 		5-09707-031-1 01 1 9706-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9706-
223 CLIP; AIR TANK HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 9706-9909
223 CLIP; AIR TANK HARNESS
(E) ID=20 L=50 		9-09917-430-0 04 1 9910-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9706-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9706-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9706-
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 MAL 		5-09707-031-1 01 1 9706-

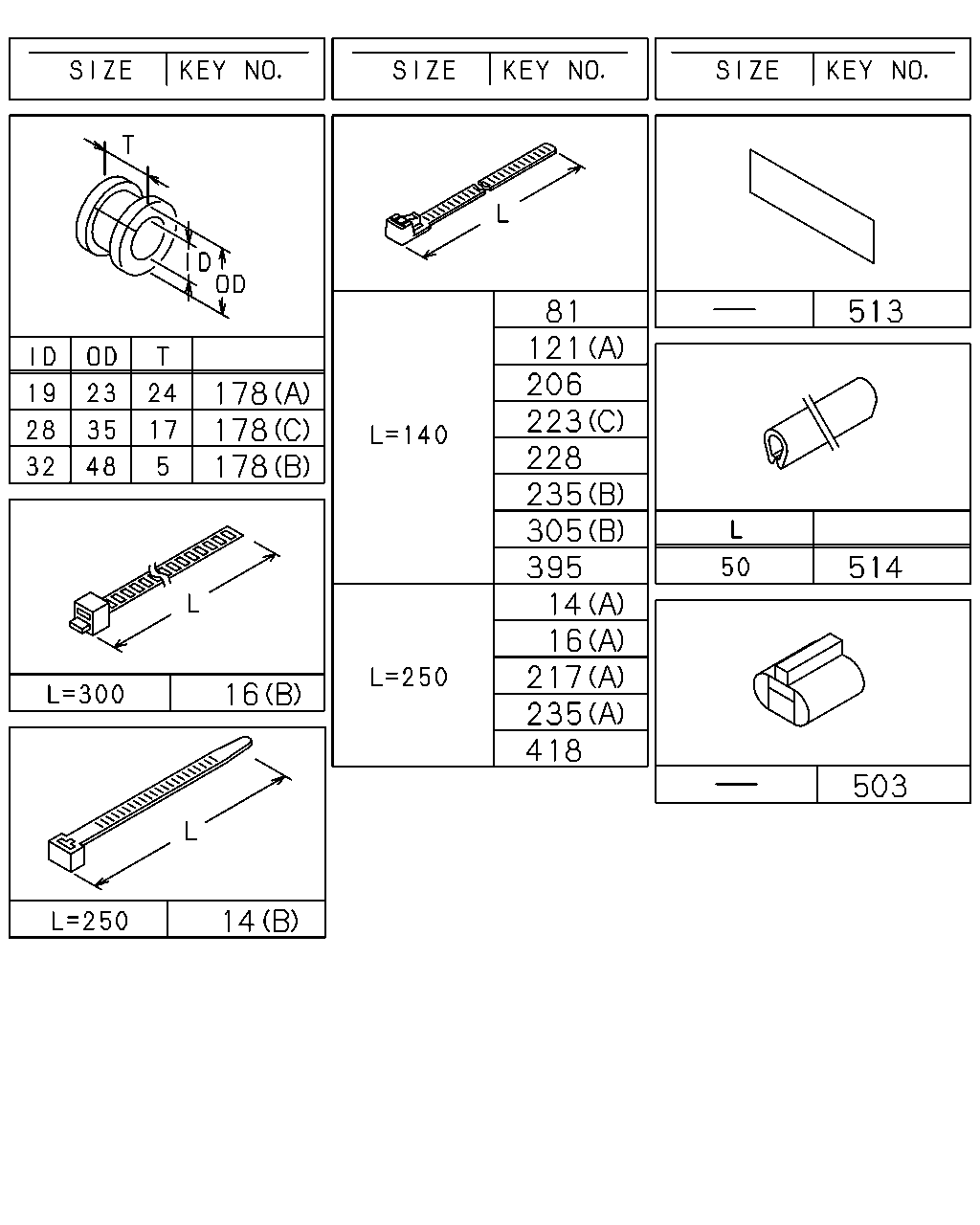

çizim 72715
178 178 178 16 14 503 514 513 81 121 206 223 228 235 305 395 14 16 217 235 418
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0002-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 9706-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 9706-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9706-
16 CLIP; HARNESS
(E) ID=19 H=33 L=45 		1-09701-045-0 01 1 9706-9801
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 9706-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 9706-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 9706-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 9706-
16 CLIP; HARNESS
EXC. FRONT FENDER WIDE<SA4> (F) L=175 MAL 		8-97110-167-0 02 1 9706-
81 CLIP; HARNESS
L=140 MAL 		5-09707-031-1 02 1 9706-
121 CLIP; FACIA HARNESS
(A) L=140 MAL 		5-09707-031-1 01 1 0005-
121 CLIP; FACIA HARNESS
FRONT FENDER WIDE<SA4> (B) OD=7 H=1.2 		8-94364-750-0 02 1 9706-
121 CLIP; FACIA HARNESS
EXC. FRONT FENDER WIDE<SA4> (C) OD=6.8 H=5 		8-97082-051-0 02 1 9706-
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9706-
178 GROMMET; HARNESS
(B) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9706-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 9706-
206 CLIP; FUEL TANK HARNESS
L=140 MAL 		5-09707-031-1 02 1 9706-
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 9706-
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 9706-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9706-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 9706-
223 CLIP; AIR TANK HARNESS
(C) L=140 MAL 		5-09707-031-1 01 1 9706-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9706-
223 CLIP; AIR TANK HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 9706-9909
223 CLIP; AIR TANK HARNESS
(E) ID=20 L=50 		9-09917-430-0 04 1 9910-
228 CLIP; COOLER HARNESS
L=140 MAL 		5-09707-031-1 01 1 9706-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9706-9801
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=140 MAL 		5-09707-031-1 01 1 9706-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9706-
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 MAL 		5-09707-031-1 01 1 9706-
395 CLIP; WIPER HARNESS
L=140 MAL 		5-09707-031-1 01 1 0005-
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=250 		5-09707-030-1 01 1 0703-
503 CONNECTOR 1-82690-668-0 01 1 9706-
503 CONNECTOR
EXC. AIR DRYER<PS7> 		1-82690-668-0 01 1 9706-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0005-0906
514 FINISHER; HARNESS
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) L=50 		8-94270-377-1 01 1 0907-

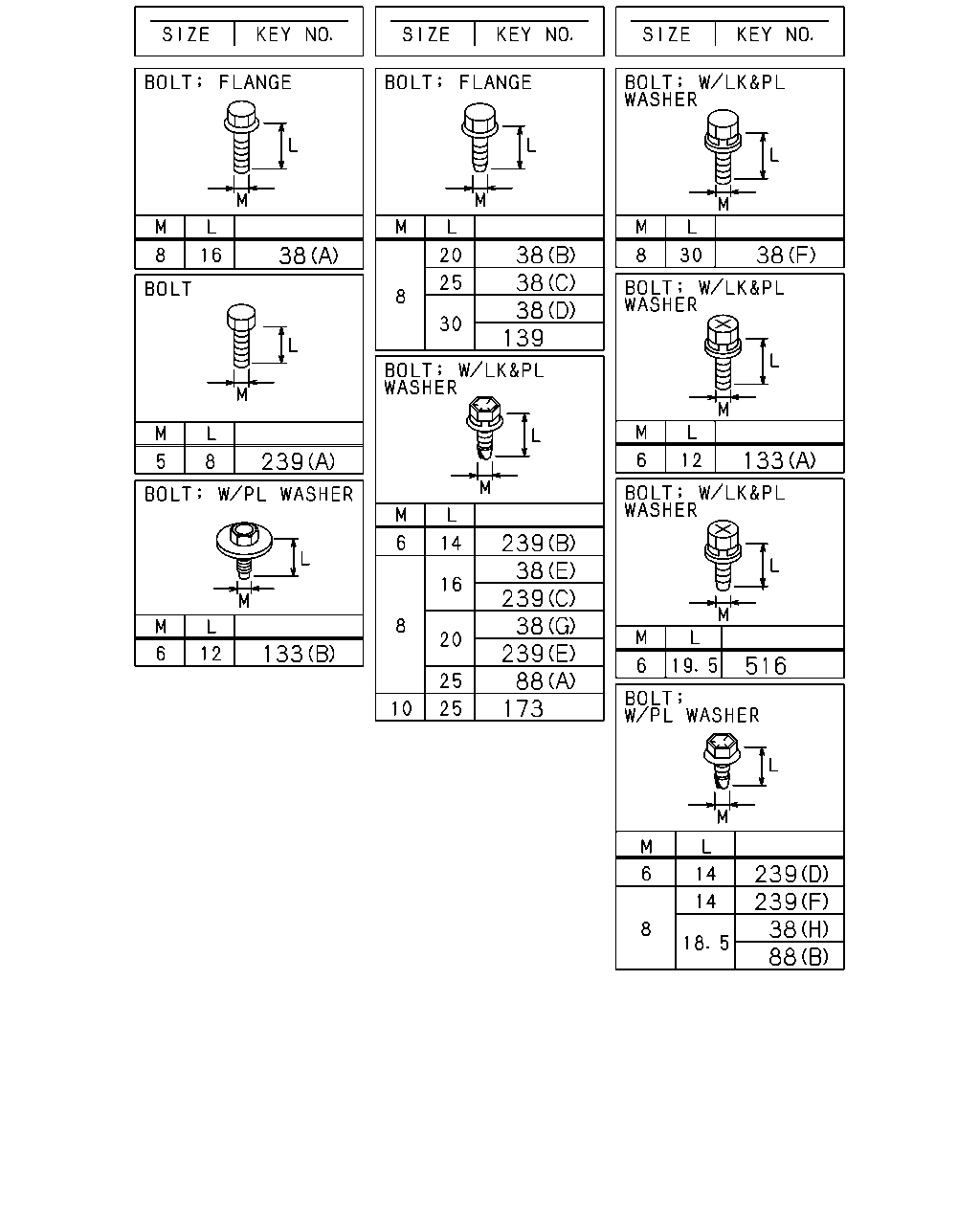

çizim 72743
38 38 38 139 38 133 239 38 239 38 239 88 173 516 239 239 38 88 38 239 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9706-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE MAL 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE MAL 		0-28680-820-0 02 1 9706-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28680-825-0 01 1 9706-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 9706-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9706-9907
38 BOLT; CLIP,HARNESS
(E) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-9909
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-1201
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9706-0512
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9706-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER MAL 		8-94279-402-0 01 1 9706-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER MAL 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9706-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9706-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9706-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9706-1007
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9706-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1008-
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1008-
239 BOLT; GRAND
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9706-9907
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-1201
239 BOLT; GRAND
(F) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 9706-
çizim 102630
335 154 59
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9706-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9706-
335 BRACKET; CONNECTOR 1-82699-517-0 01 1 9706-9910
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 9911-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
