Isuzu WW
▶
TRUCKS
▶
FSR
▶
11364 - FSR(MALAYSIA)W/B4200
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#15997) — 60 parça
◀

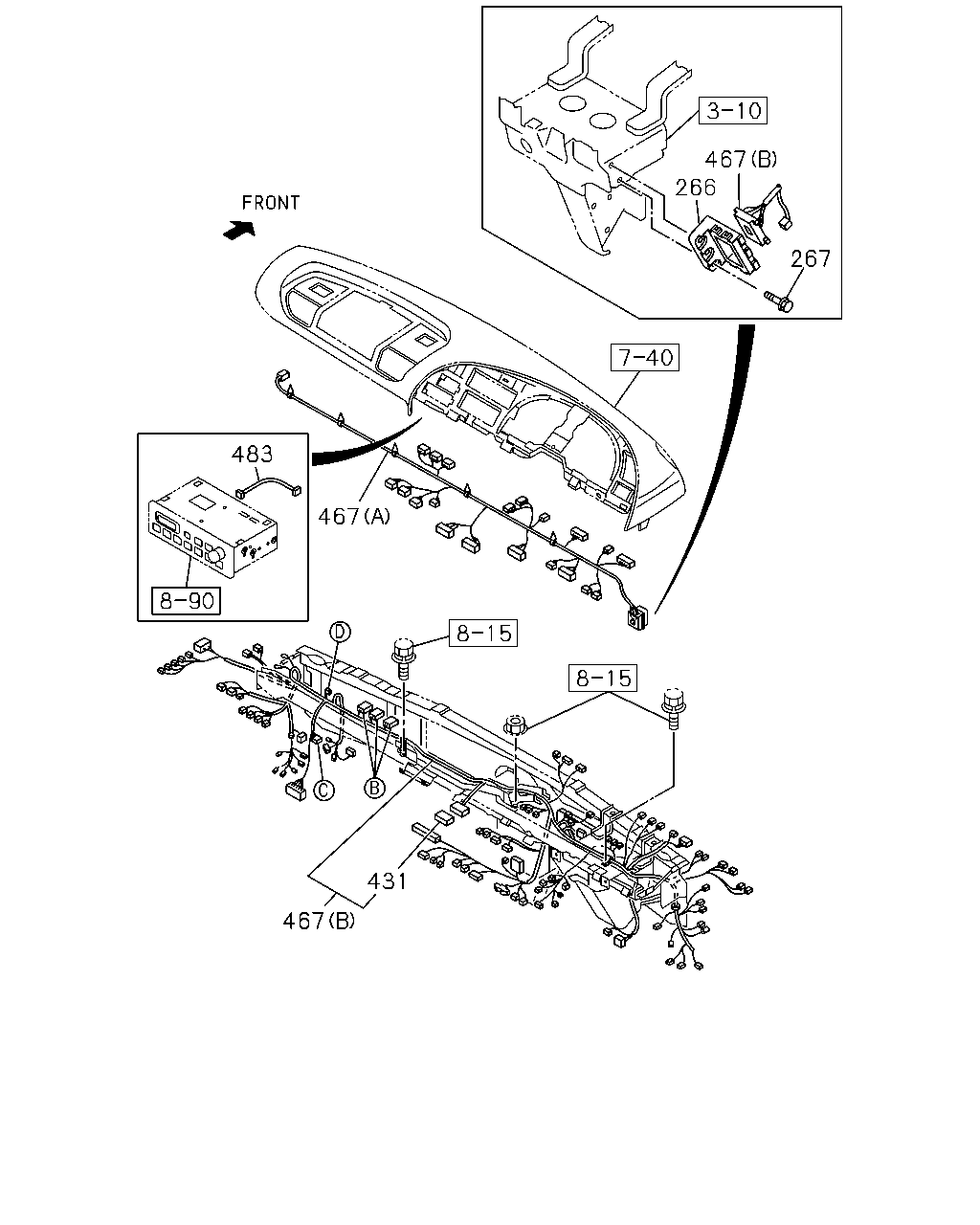

[810A] FACIA HARNESS (8 parça)

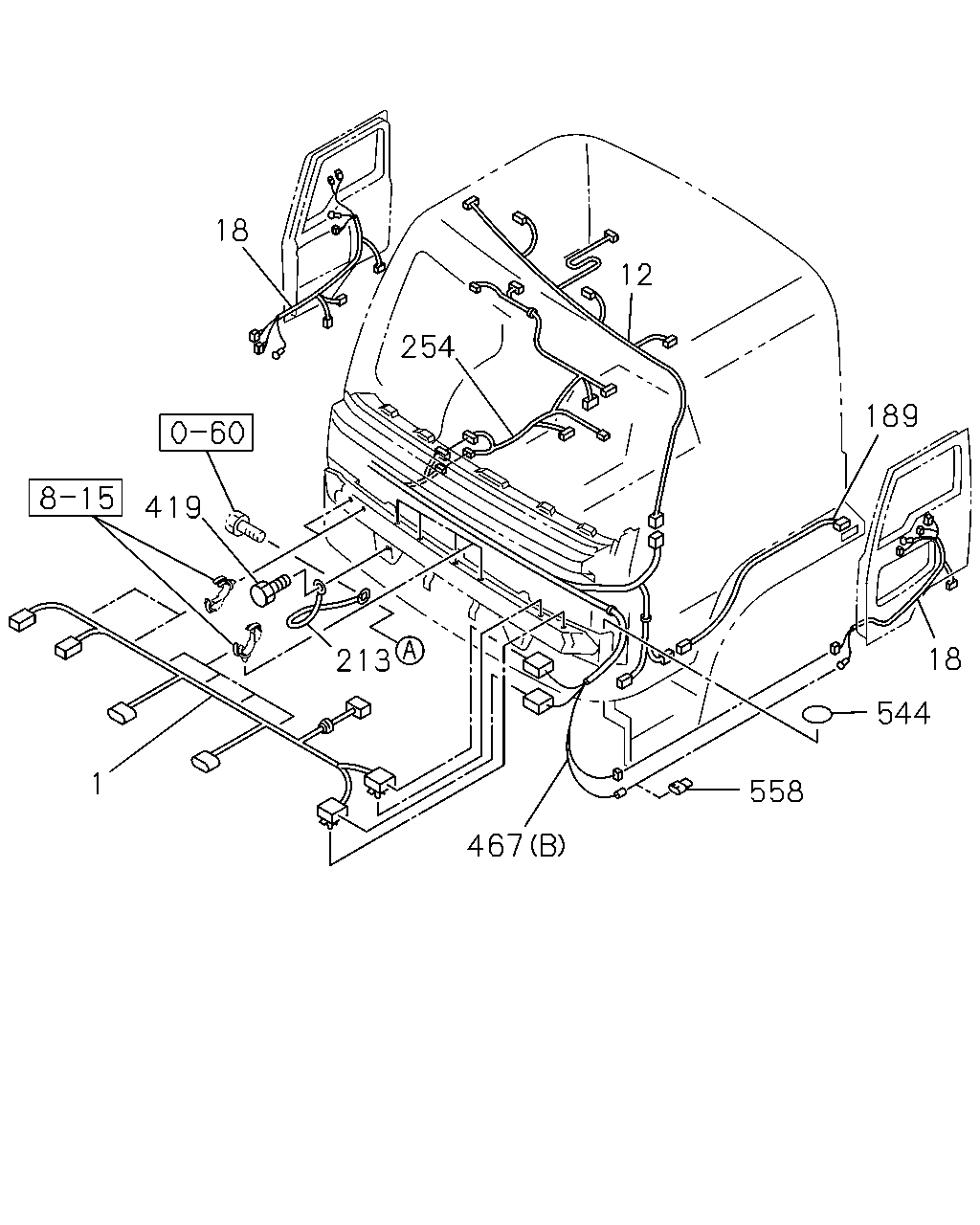

[810A] CAB,FLOOR,DOOR HARNESS AND EARTH CABLE (15 parça)

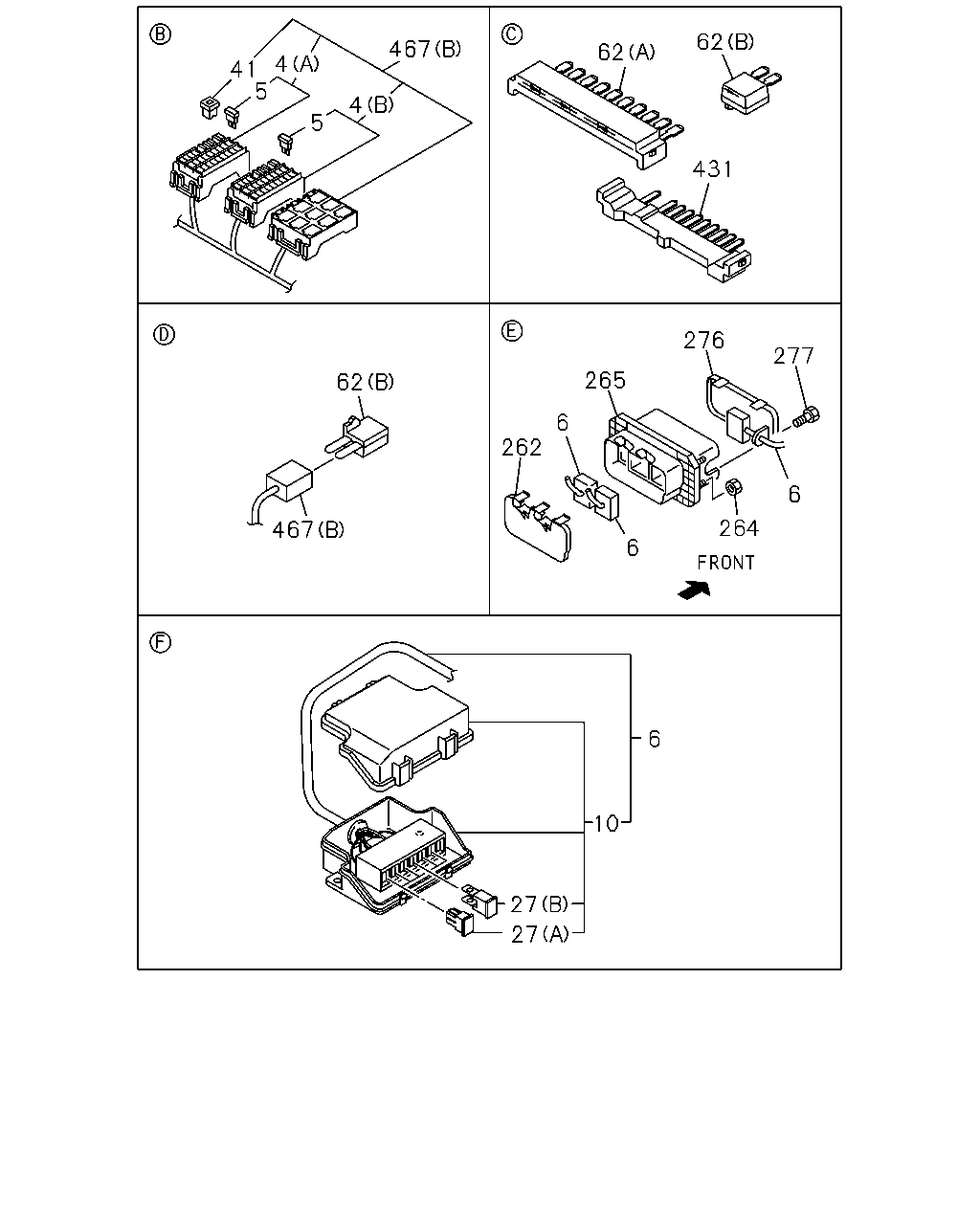

[810A] FUSE BOX AND FUSE,DIODE (25 parça)

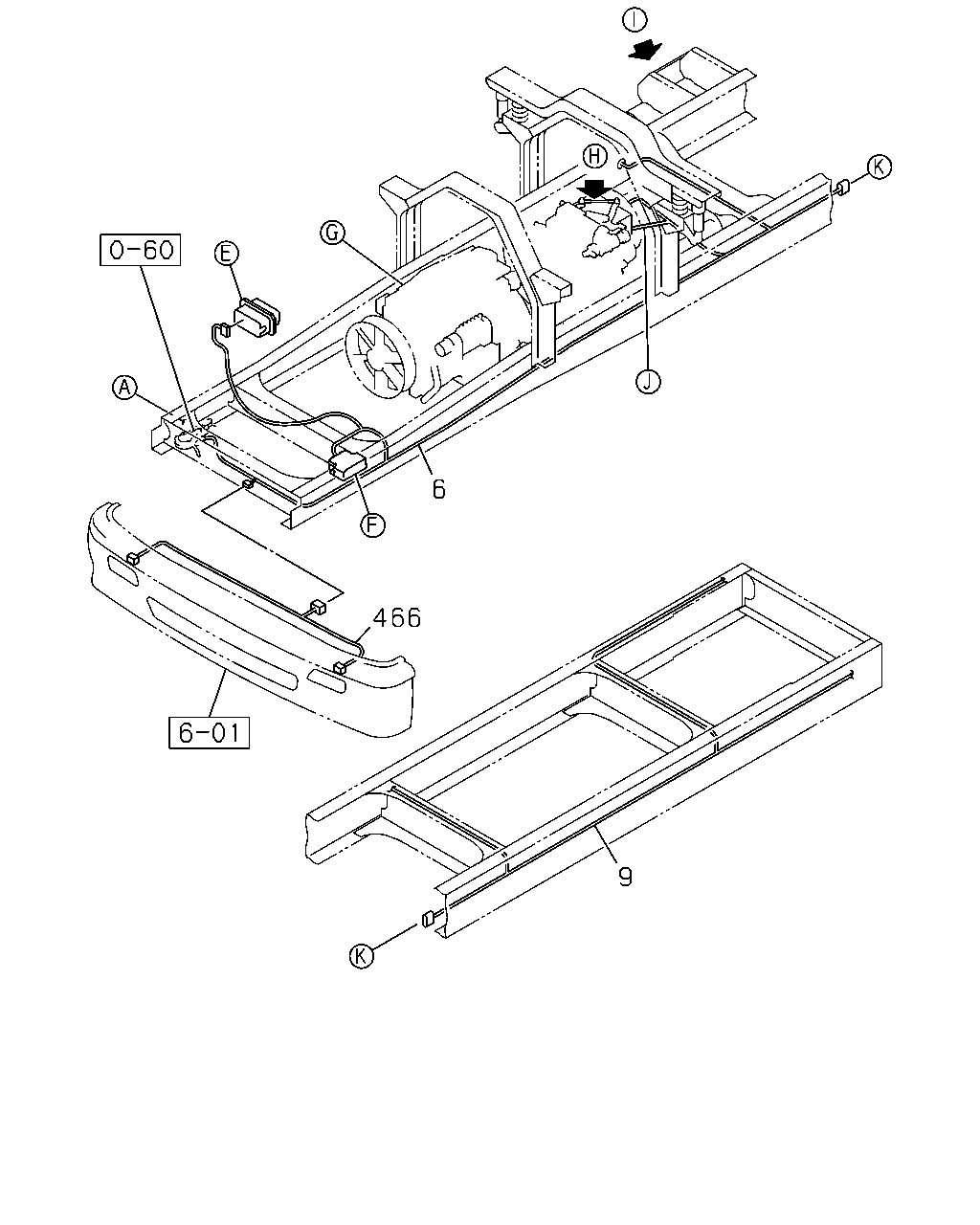

[810A] BUMPER AND FRAME HARNESS (3 parça)

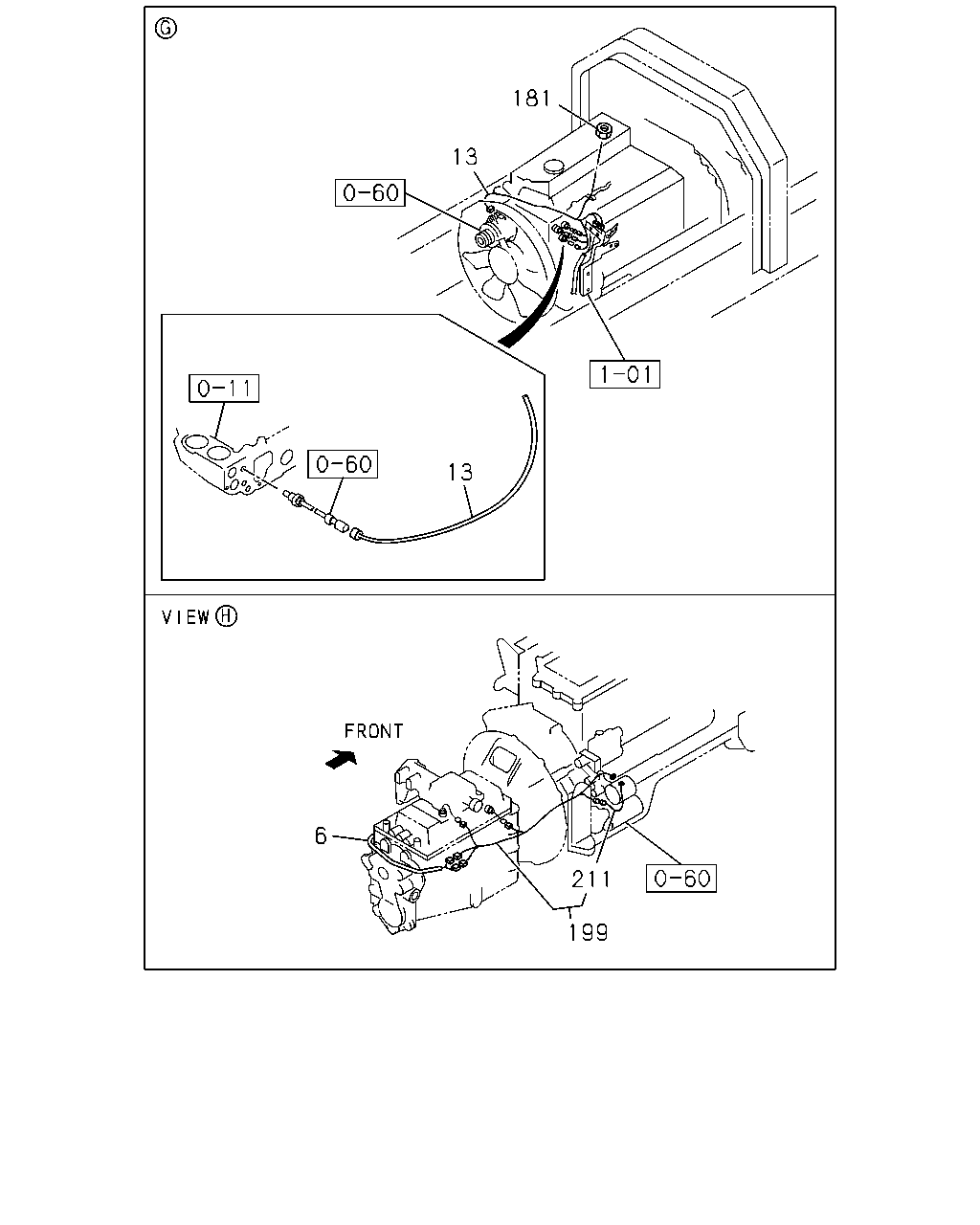

[810A] ENG AND STARTER HARNESS (5 parça)

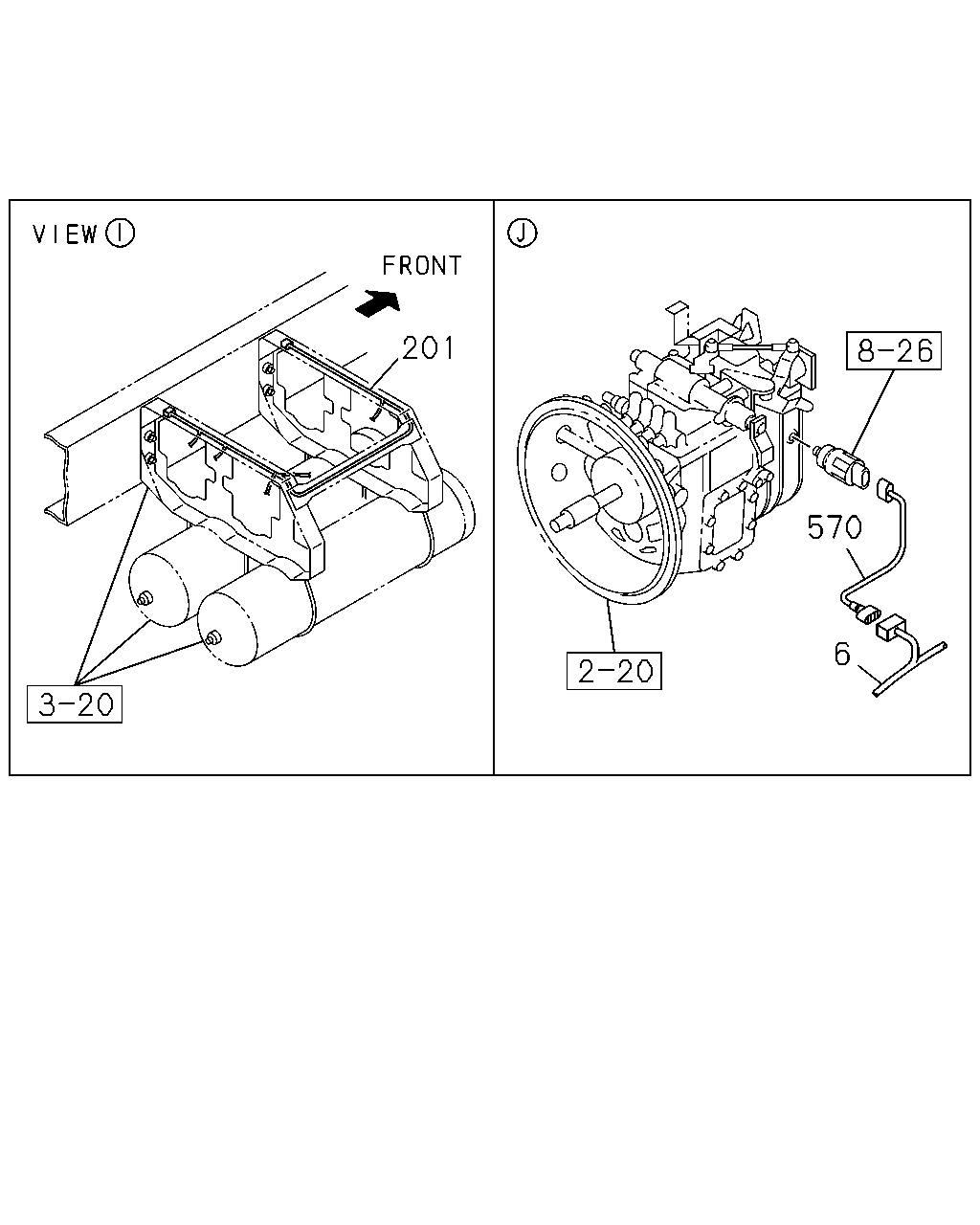

[810A] AIR TANK,SPEED SENSOR HARNESS (4 parça)
▶
467
266
267
483
467
431
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
266
BRACKET; CONN BOX
1-82699-580-0
01
1
9706-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
9706-
431
CONNECTOR; JOINT
10P BROWN MAL
1-82699-601-0
02
1
9706-
431
CONNECTOR; JOINT
10P BROWN MAL
1-82699-601-0
02
1
9706-
467
HARNESS; FACIA
(B) LOWER
1-82625-699-7
01
1
9706-0411
467
HARNESS; FACIA
(B) LOWER
1-82662-558-1
01
1
0412-
467
HARNESS; FACIA
(A) UPPER
1-82625-708-6
01
1
9706-
483
HARNESS; EXT,RADIO
RADIO CLARION(SK2)
8-98075-645-0
01
1
0703-
18
12
254
189
419
213
18
544
1
558
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
1-82625-717-1
01
1
9706-
12
HARNESS; ROOF
1-82625-713-4
01
1
9706-
18
HARNESS; DOOR
EXC. FRONT FENDER WIDE<SA4>
1-82626-785-0
02
1
9706-9904
18
HARNESS; DOOR
EXC. FRONT FENDER WIDE<SA4>
1-82628-581-0
02
1
9905-
189
HARNESS; EXT
FRONT FENDER WIDE<SA4>
1-82625-673-2
02
1
9706-
213
CABLE; EARTH,CAB TO FRAME
1-82657-055-1
01
1
9706-
254
HARNESS; CAB FLOOR
1-82625-711-5
01
1
9706-
419
BOLT; CAB EARTH
M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
9706-1201
419
BOLT; CAB EARTH
M8X18.5 W/PL WASHER MAL
8-98141-255-0
01
1
1202-
419
BOLT; CAB EARTH
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
9908-0004
467
HARNESS; FACIA
(B) LOWER
1-82625-699-7
01
1
9706-0411
467
HARNESS; FACIA
(B) LOWER
1-82662-558-1
01
1
0412-
467
HARNESS; FACIA
(A) UPPER
1-82625-708-6
01
1
9706-
544
SEAL; FRT MTG RAIL
OD=25 BLACK MAL
1-76798-019-0
01
1
9706-
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
9706-
62
467
62
4
41
5
4
5
431
276
277
265
62
6
262
6
264
467
6
6
10
27
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX14
1-82510-265-0
01
1
9706-9710
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX14
1-82510-486-0
01
1
9711-
4
BOX ASM; FUSE,HARNESS
(B) 15AX13
1-82510-475-0
01
1
9706-9710
4
BOX ASM; FUSE,HARNESS
(B) 15AX14
1-82510-472-0
01
1
9711-
5
FUSE; FACIA HARNESS
15A BLUE MAL
5-82516-003-0
13
1
9706-9710
5
FUSE; FACIA HARNESS
15A BLUE MAL
5-82516-003-0
14
1
9711-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
14
1
9706-
6
HARNESS; FRAME
1-82639-011-2
01
1
9706-
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
9706-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
03
1
9706-
27
FUSE UNIT
(B) 60A YELLOW
8-94468-669-0
01
1
9706-
41
PULLER; FUSE
L=25.3 B=11.5 MAL
8-94121-482-0
01
1
9706-
62
DIODE; HARNESS
(A) BLACK 10P
1-82699-703-0
02
1
9706-
62
DIODE; HARNESS
(B) BLACK 2P-1.5A MAL
8-94422-639-1
01
1
9711-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
9706-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
9706-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
9706-
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
9706-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50140-625-0
02
1
9706-0512
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0601-
431
CONNECTOR; JOINT
10P BROWN MAL
1-82699-601-0
02
1
9706-
431
CONNECTOR; JOINT
10P BROWN MAL
1-82699-601-0
02
1
9706-
467
HARNESS; FACIA
(B) LOWER
1-82625-699-7
01
1
9706-0411
467
HARNESS; FACIA
(B) LOWER
1-82662-558-1
01
1
0412-
467
HARNESS; FACIA
(A) UPPER
1-82625-708-6
01
1
9706-
6
466
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82639-011-2
01
1
9706-
9
HARNESS; FRAME,RR
1-82639-024-0
01
1
9706-
466
HARNESS; BUMPER
1-82638-996-1
01
1
9706-
181
13
13
6
211
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82639-011-2
01
1
9706-
13
HARNESS; ENG
1-82640-714-0
01
1
9706-
181
NUT; GLOW PLUG HARNESS
M4 FLANGE
5-09440-007-0
01
1
9706-
199
HARNESS; STARTER
1-82640-717-3
01
1
9706-
211
WIRE; FUSIBLE LINK,STARTER
WHITE
1-82659-124-1
01
1
9706-
201
570
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82639-011-2
01
1
9706-
201
HARNESS; AIR TANK
1-82670-503-2
01
1
9706-
570
HARNESS; SPEED SENSOR
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7>
1-82670-078-0
01
1
9706-9801
570
HARNESS; SPEED SENSOR
1-82670-078-0
01
1
9802-
