◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11364 - FSR(MALAYSIA)W/B4200 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#15991) — 131 parça

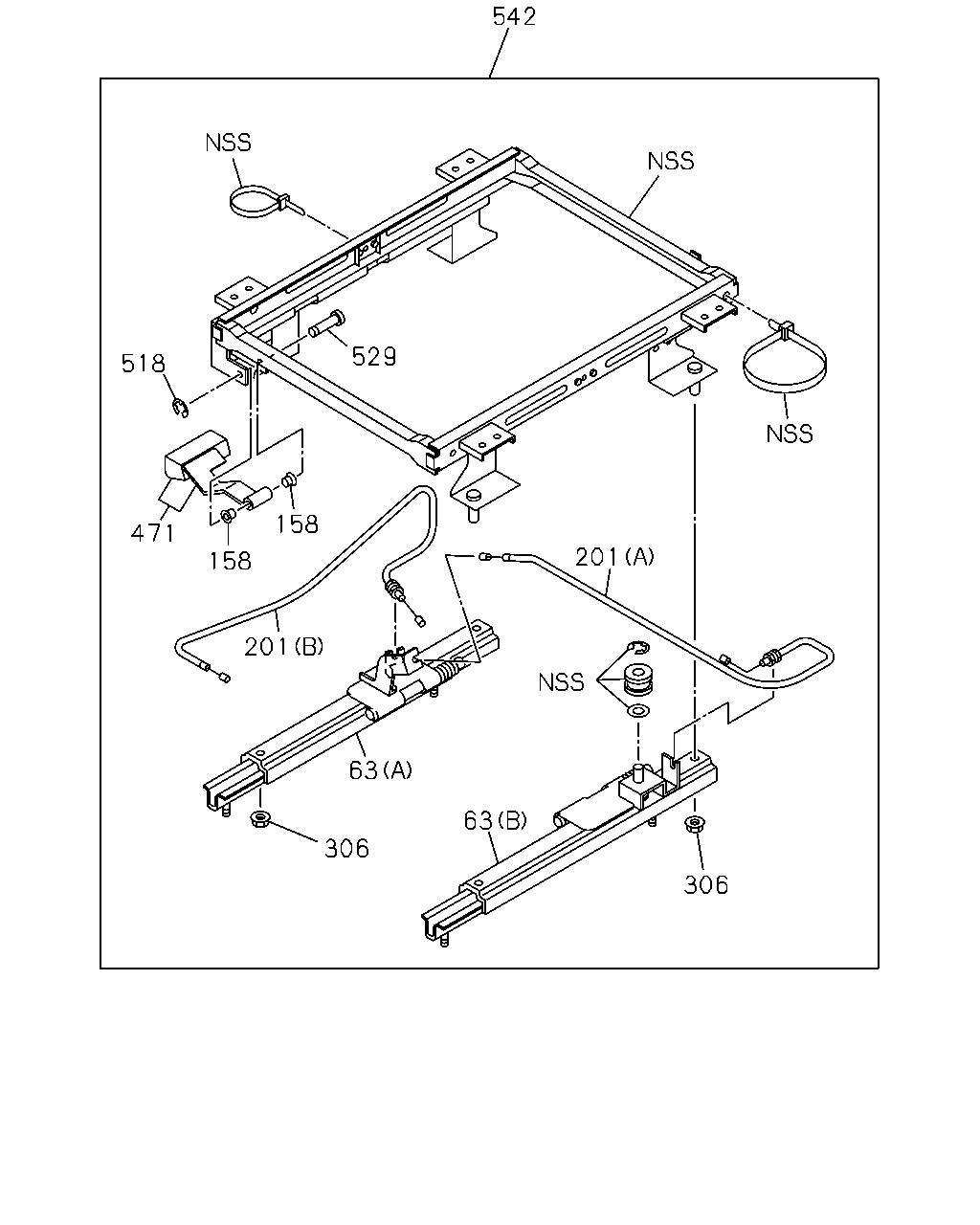

çizim 72736
542 529 518 158 471 201 158 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 9706-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 9706-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9706-
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 9706-
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 9706-
306 NUT; SEAT ADJ
M8 FLANGE MAL 		8-94279-518-0 04 1 9706-0003
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0004-
471 LEVER; SEAT ADJ 1-75518-205-1 01 1 9706-9712
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 9801-0710
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711-
518 NUT; TILT ADJ 1-75518-263-0 01 1 9706-
529 PIN; LINK 1-75518-262-0 01 1 9706-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-286-3 01 1 9706-1502
542 ADJUSTER ASM; SEAT SLIDE 8-98291-659-0 01 1 1503-

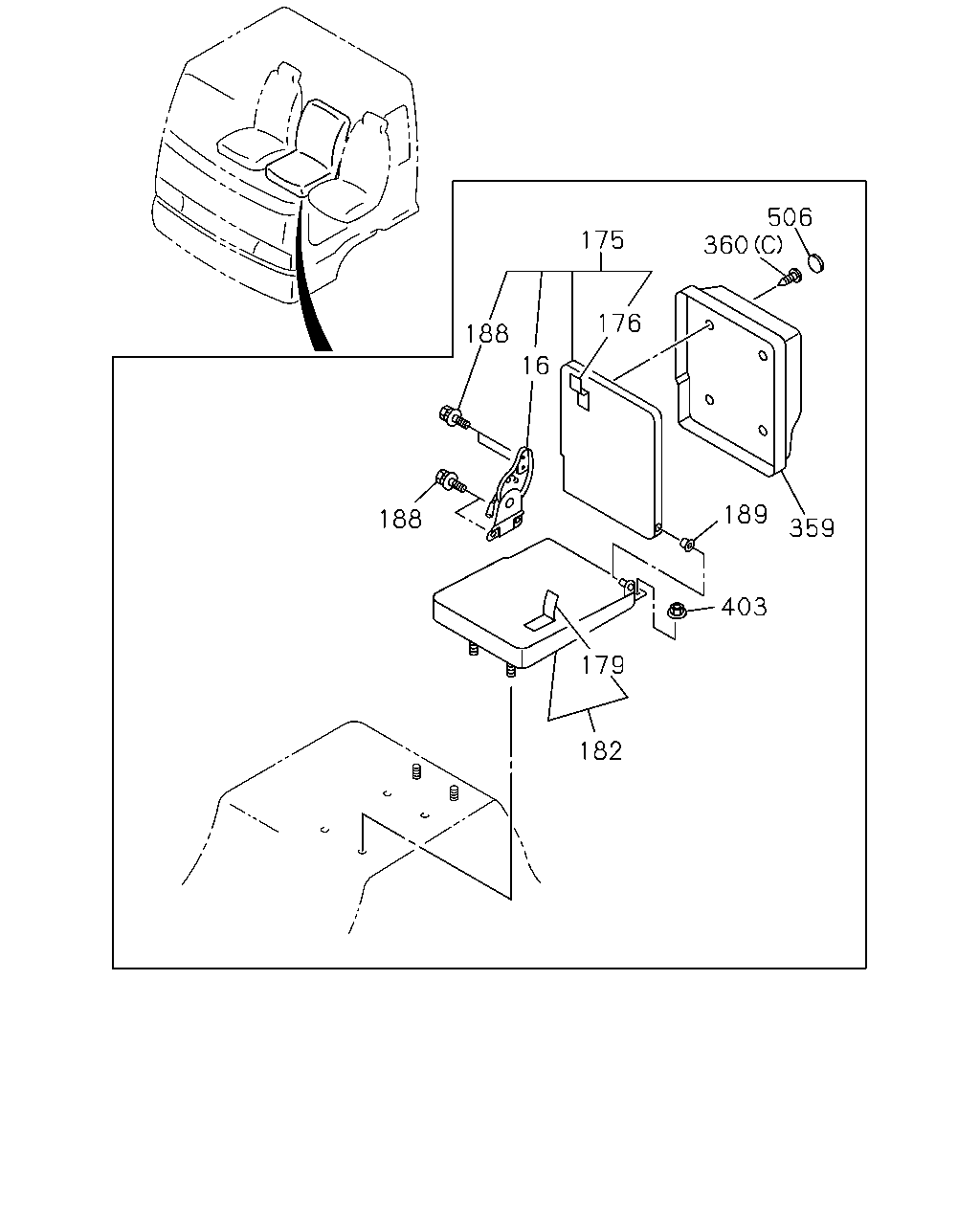

çizim 72737
506 360 175 176 188 16 189 188 359 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING 1-75418-057-1 01 1 9706-0003
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 0004-
175 BACK ASM; PASSENGER CENTER SEAT 1-75028-925-0 01 1 9706-0003
175 BACK ASM; PASSENGER CENTER SEAT 1-75207-253-3 01 1 0004-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-258-1 01 1 9706-0003
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-641-1 01 1 0004-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-327-0 01 1 9706-0003
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-627-1 01 1 0004-
182 CUSHION ASM; CENTER SEAT 1-75028-821-0 01 1 9706-0003
182 CUSHION ASM; CENTER SEAT 1-75026-829-4 01 1 0004-
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 9706-
189 BUSHING; HINGE,CENTER SEAT BACK
MAL 		8-97854-900-0 01 1 9706-
359 BOX; PARCEL 1-72538-157-6 01 1 9706-1006
359 BOX; PARCEL 8-98145-115-0 01 1 1007-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9706-0612
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
(D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9706-0612
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9706-1006
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-504-1 04 1 9706-9806
403 NUT; CENTER SEAT
M8 FLANGE MAL 		8-94279-518-0 04 1 9807-0312
403 NUT; CENTER SEAT
M8 FLANGE 		1-75538-207-0 04 1 0401-0703
403 NUT; CENTER SEAT
M8 FLANGE MAL 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX 1-09983-164-3 04 1 9706-1006
506 CAP; PARCEL BOX 1-09983-164-3 02 1 1007-

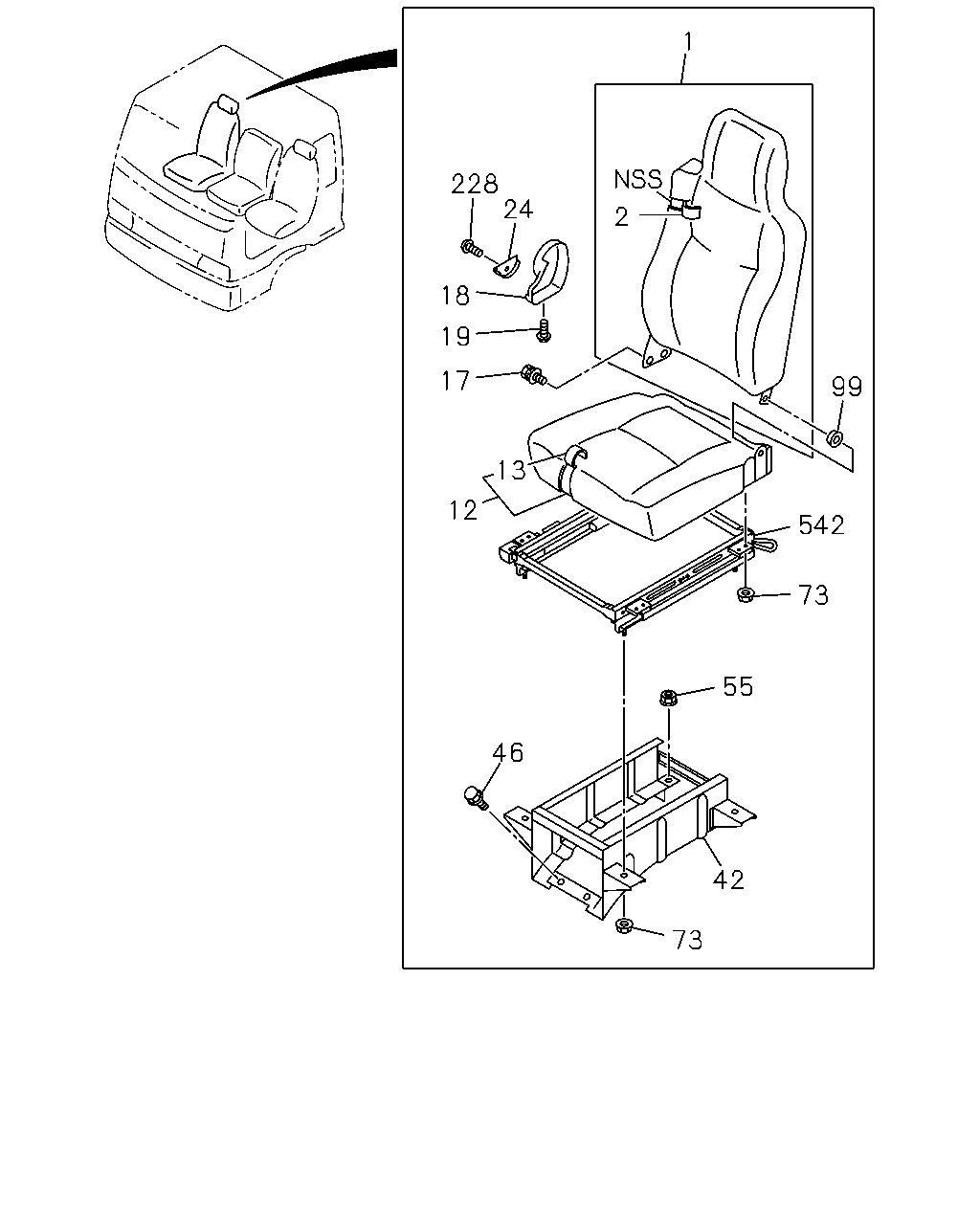

çizim 72740
1 228 24 2 18 19 17 99 13 12 542 73 55 46 42 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 1-75028-618-2 01 1 9706-0003
1 BACK ASM; SEAT 1-75026-721-0 01 1 0004-0105
1 BACK ASM; SEAT 1-75208-060-3 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK 1-75116-274-1 01 1 9706-0003
2 COVER; TRIM,FRT SEAT,BACK 1-75116-600-1 01 1 0004-
12 CUSHION; SEAT,FRT 1-75028-799-2 01 1 9706-0003
12 CUSHION; SEAT,FRT 1-75026-686-1 01 1 0004-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-318-1 01 1 9706-0003
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-554-1 01 1 0004-
17 BOLT; RECLINING
M8X18 MAL 		8-94279-109-1 02 1 9706-0003
17 BOLT; RECLINING
M8X20 MAL 		8-97255-906-0 02 1 0004-
18 COVER; RECLINING 1-75418-050-0 01 1 9706-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9706-
24 KNOB; RECLINING,FRT,SEAT
PASSENGER 		1-75418-056-0 01 1 9706-
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-059-0 01 1 9706-0710
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-068-0 01 1 0711-
42 STAND; DRIVER SEAT 1-75558-491-4 01 1 9706-0003
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 0004-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9706-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9706-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE MAL 		0-91180-110-0 02 1 0704-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE MAL 		8-94279-518-0 04 1 9706-0003
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE MAL 		8-94279-518-0 08 1 9706-0003
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0004-
99 BUSHING; SEAT BACK
MAL 		8-97854-087-0 01 1 9706-
228 SCREW; KNOB
M4X6 MAL 		8-97042-273-0 01 1 9706-0710
228 SCREW; KNOB
M4X6 MAL 		8-97042-273-0 01 1 9706-0710
228 SCREW; KNOB
PASSENGER M4X6 MAL 		8-97042-273-0 01 1 0711-
228 SCREW; KNOB
DRIVER M4 MAL 		8-98062-662-0 01 1 0711-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-286-3 01 1 9706-1502
542 ADJUSTER ASM; SEAT SLIDE 8-98291-659-0 01 1 1503-

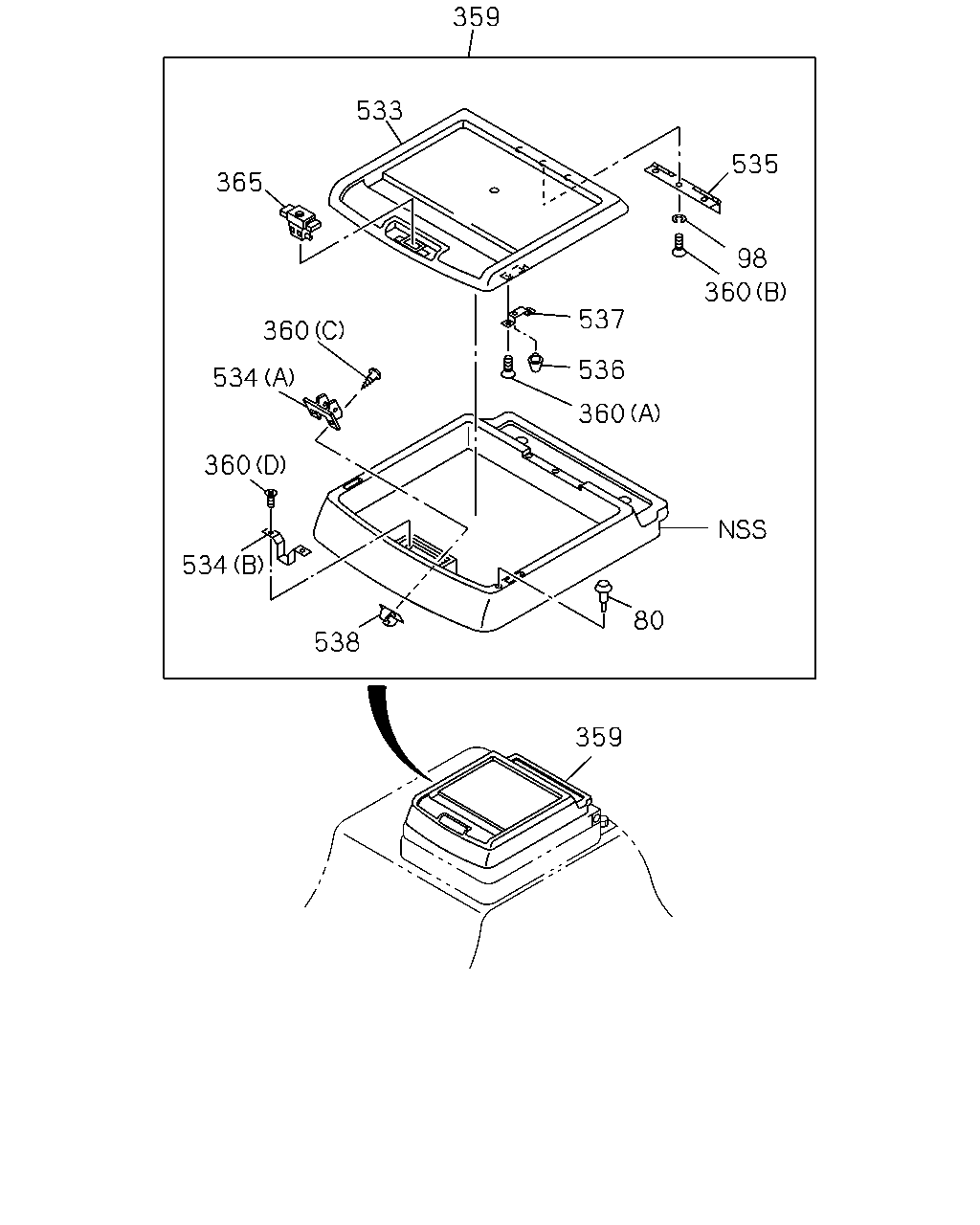

çizim 72741
359 533 535 365 98 360 537 360 536 534 360 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER 1-72538-187-0 02 1 1007-
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9706-
359 BOX; PARCEL 1-72538-157-6 01 1 9706-1006
359 BOX; PARCEL 8-98145-115-0 01 1 1007-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9706-0612
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
(D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9706-0612
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9706-1006
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT 1-72538-180-0 01 1 9706-
533 LID; PARCEL BOX 1-72538-194-3 01 1 9706-1006
533 LID; PARCEL BOX 8-98145-119-0 01 1 1007-
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 9706-1006
534 STRIKER; PARCEL BOX
(B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 9706-
536 RUBBER; CUSHION 5-09983-002-1 02 1 9706-1006
537 BRACKET; RUBBER 1-72548-057-1 02 1 9706-1006
538 GROMMET; SCREW 1-09983-165-0 02 1 9706-1006

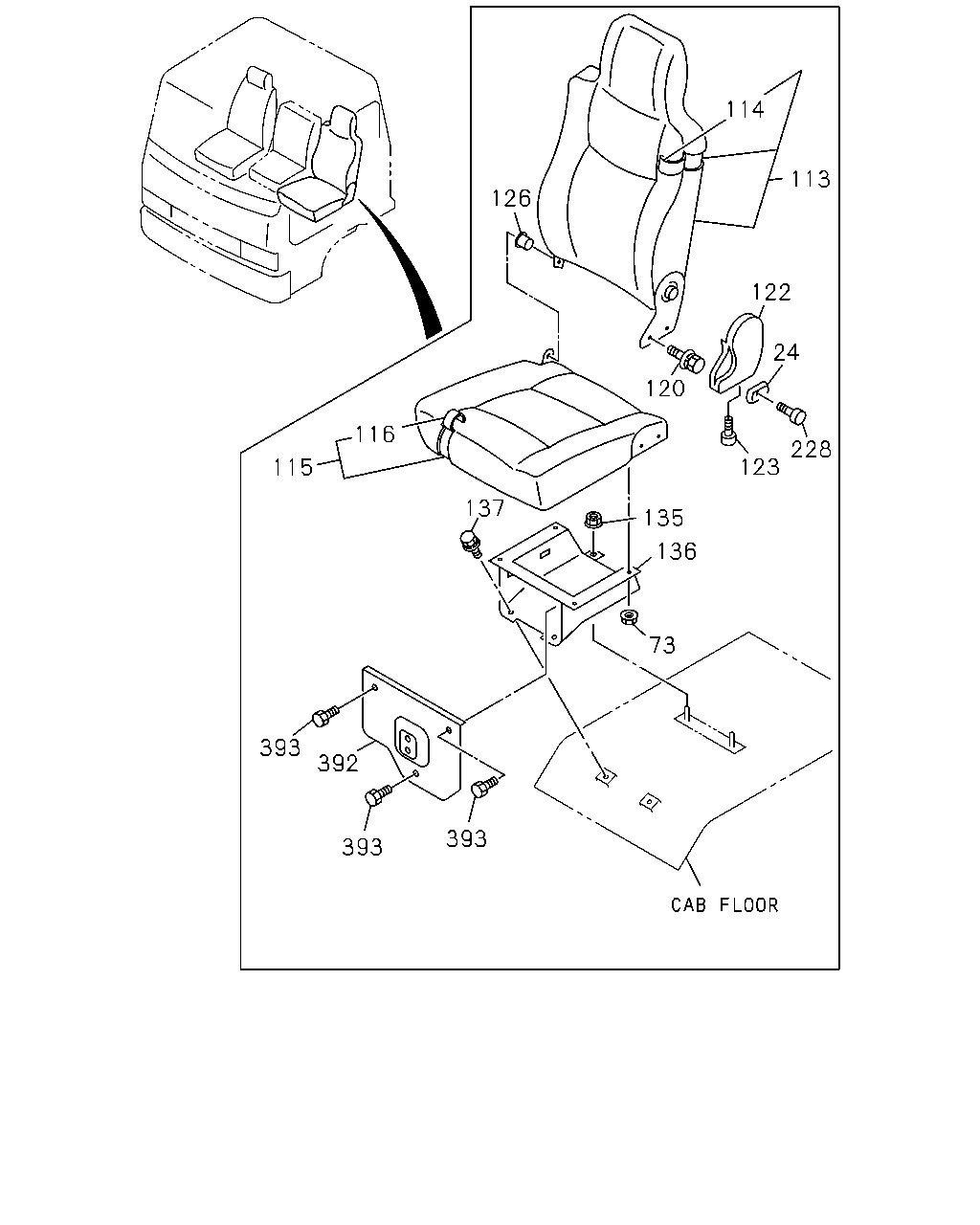

çizim 72742
114 113 126 122 24 120 116 228 123 115 137 135 136 73 393 392 393 393
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
PASSENGER 		1-75418-056-0 01 1 9706-
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-059-0 01 1 9706-0710
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-068-0 01 1 0711-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE MAL 		8-94279-518-0 04 1 9706-0003
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE MAL 		8-94279-518-0 08 1 9706-0003
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0004-
113 BACK ASM; SEAT 1-75028-615-2 01 1 9706-0003
113 BACK ASM; SEAT 1-75026-720-0 01 1 0004-0105
113 BACK ASM; SEAT 1-75208-059-3 01 1 0106-
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-273-1 01 1 9706-0003
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-599-1 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT 1-75028-800-2 01 1 9706-0003
115 CUSHION ASM; PASSENGER SEAT 1-75026-773-1 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-319-1 01 1 9706-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-577-1 01 1 0004-
120 BOLT; RECLINING ADJ
M8X18 MAL 		8-94279-109-1 02 1 9706-0003
120 BOLT; RECLINING ADJ
M8X20 MAL 		8-97255-906-0 02 1 0004-
122 COVER; ADJ,RECLINING 1-75418-052-0 01 1 9706-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9706-
126 BUSHING; HINGE,RECLINING
MAL 		8-97854-087-0 01 1 9706-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9706-0703
135 NUT; SEAT STAND
M10 FLANGE MAL 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT 1-75558-550-7 01 1 9706-1305
136 STAND; PASSENGER SEAT 8-98242-292-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9706-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
228 SCREW; KNOB
M4X6 MAL 		8-97042-273-0 01 1 9706-0710
228 SCREW; KNOB
M4X6 MAL 		8-97042-273-0 01 1 9706-0710
228 SCREW; KNOB
PASSENGER M4X6 MAL 		8-97042-273-0 01 1 0711-
228 SCREW; KNOB
DRIVER M4 MAL 		8-98062-662-0 01 1 0711-
392 COVER; STAND,PASSENGER SEAT 1-75558-523-4 01 1 9706-0111
392 COVER; STAND,PASSENGER SEAT 1-75558-556-1 01 1 0112-
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 03 1 9706-0703
393 BOLT; COVER,SEAT STAND
M6X16 		0-52000-616-0 03 1 0704-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
