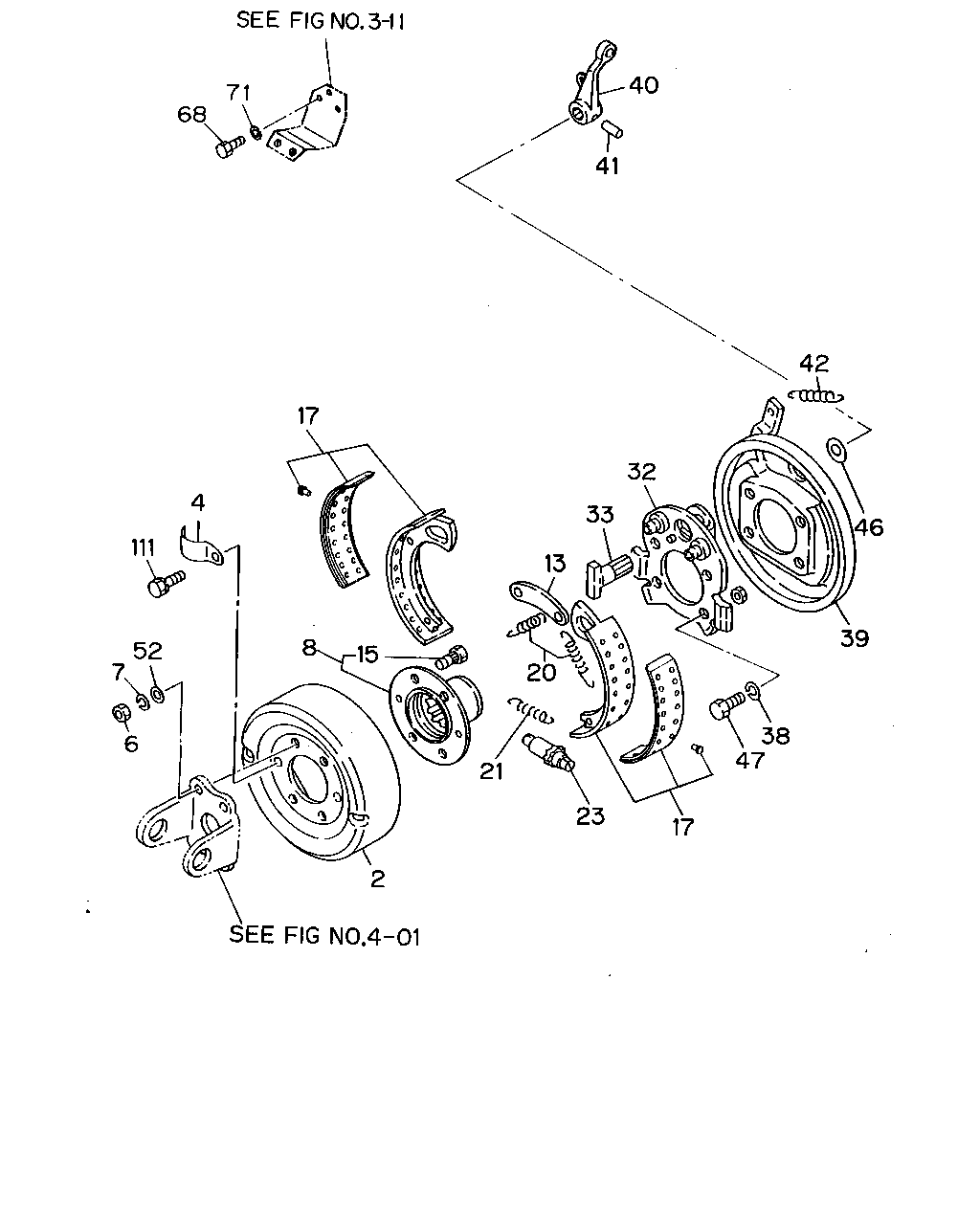

3-08 — PARKING BRAKE (#1599) — 26 parça

17 4 111 52 7 6 2 8 15 21 23 17 47 38 39 46 42 32 33 13 20 68 71 40 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-46211-004-1	01	1	9207-	●	●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING(B3A)	9-46219-015-1	02	1	9207-	●	●
6	NUT; FLANGE EXC. REAR WHEEL PARKING(B3A) M12	9-99110-512-0	04	1	9207-	●	●
7	WASHER; LK,FLANGE EXC. REAR WHEEL PARKING(B3A) ID=12.2	9-09150-512-0	04	1	9207-	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-37240-049-1	01	1	9207-	●	●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING(B3A)	9-46239-003-0	01	1	9207-	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING(B3A) M12X39	1-09046-001-1	04	1	9207-	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-46220-012-0	02	1	9207-9411	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-46220-024-0	02	1	9412-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING(B3A)	9-09942-567-1	02	1	9207-	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING(B3A)	1-09583-268-0	01	1	9207-	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING(B3A)	9-46240-008-0	01	1	9207-	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-46213-023-0	01	1	9207-	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-46251-005-0	01	1	9207-	●	●
38	WASHER; LK,SUPPORT PLATE EXC. REAR WHEEL PARKING(B3A) ID=14.2	9-09150-514-0	04	1	9207-	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-46213-020-0	01	1	9207-	●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING(B3A)	1-46252-003-0	01	1	9207-	●	●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING(B3A)	9-09878-594-0	01	1	9207-	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING(B3A)	9-09942-592-0	01	1	9207-9308	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING(B3A)	9-09942-592-0	01	1	9409-	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING(B3A)	9-09855-367-0	01	1	9207-	●	●
47	BOLT; SUPPORT PLATE EXC. REAR WHEEL PARKING(B3A) M14X32	0-23801-432-0	04	1	9207-	●	●
52	WASHER; PL EXC. REAR WHEEL PARKING(B3A) ID=12.5	9-09164-512-0	04	1	9207-	●	●
68	BOLT; BRKT,PARKING BRK CONT EXC. REAR WHEEL PARKING(B3A) M10X20	0-23801-020-0	03	1	9207-	●	●
71	WASHER; LK,BRKT FIX,PARKING EXC. REAR WHEEL PARKING(B3A) ID=10.2	9-09150-510-0	03	1	9207-	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9207-	●	●
