Isuzu WW
▶
TRUCKS
▶
FSR
▶
11364 - FSR(MALAYSIA)W/B4200
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#15989) — 36 parça
◀

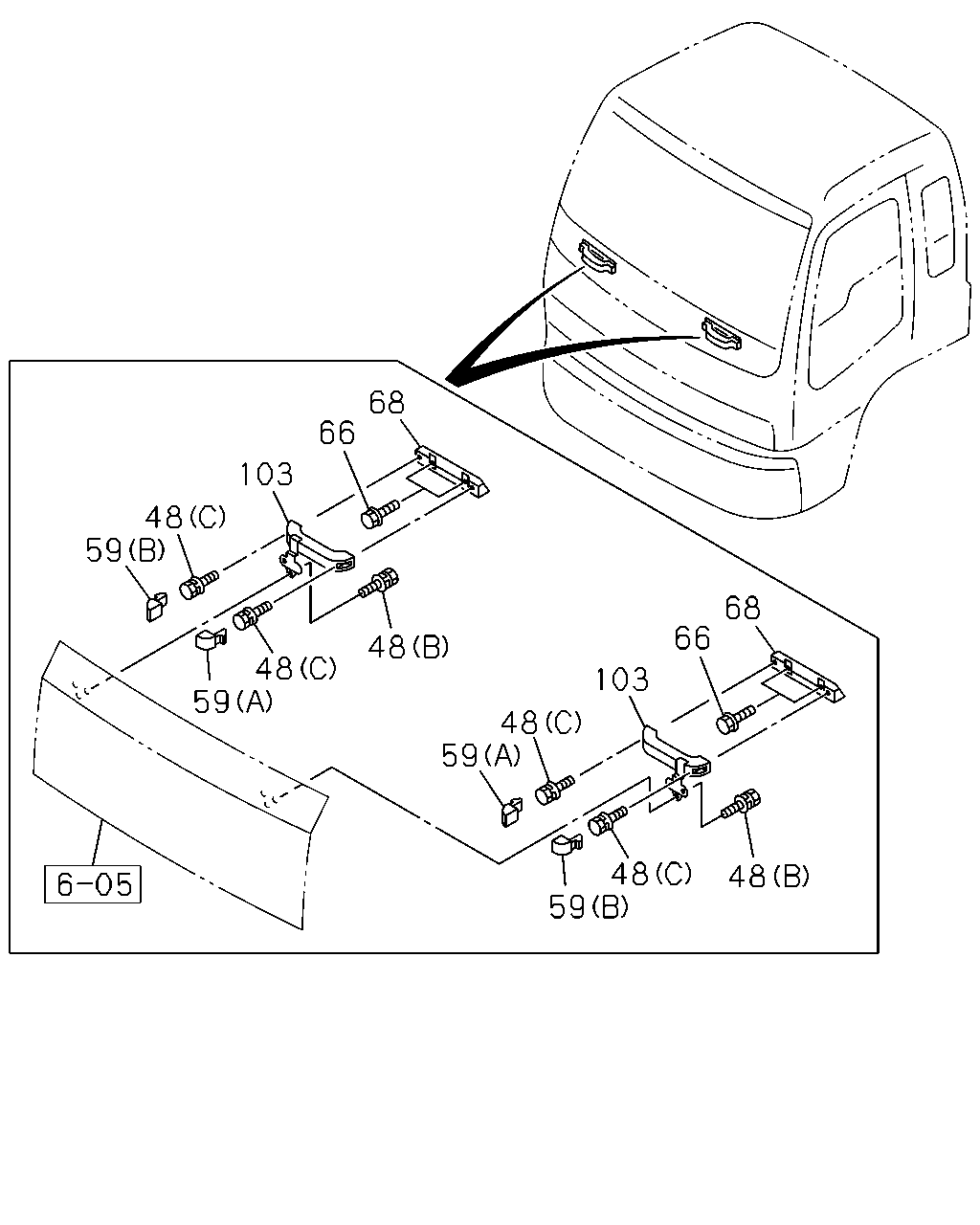

[743A] ASSIST GRIP;FRT PANEL (9 parça)

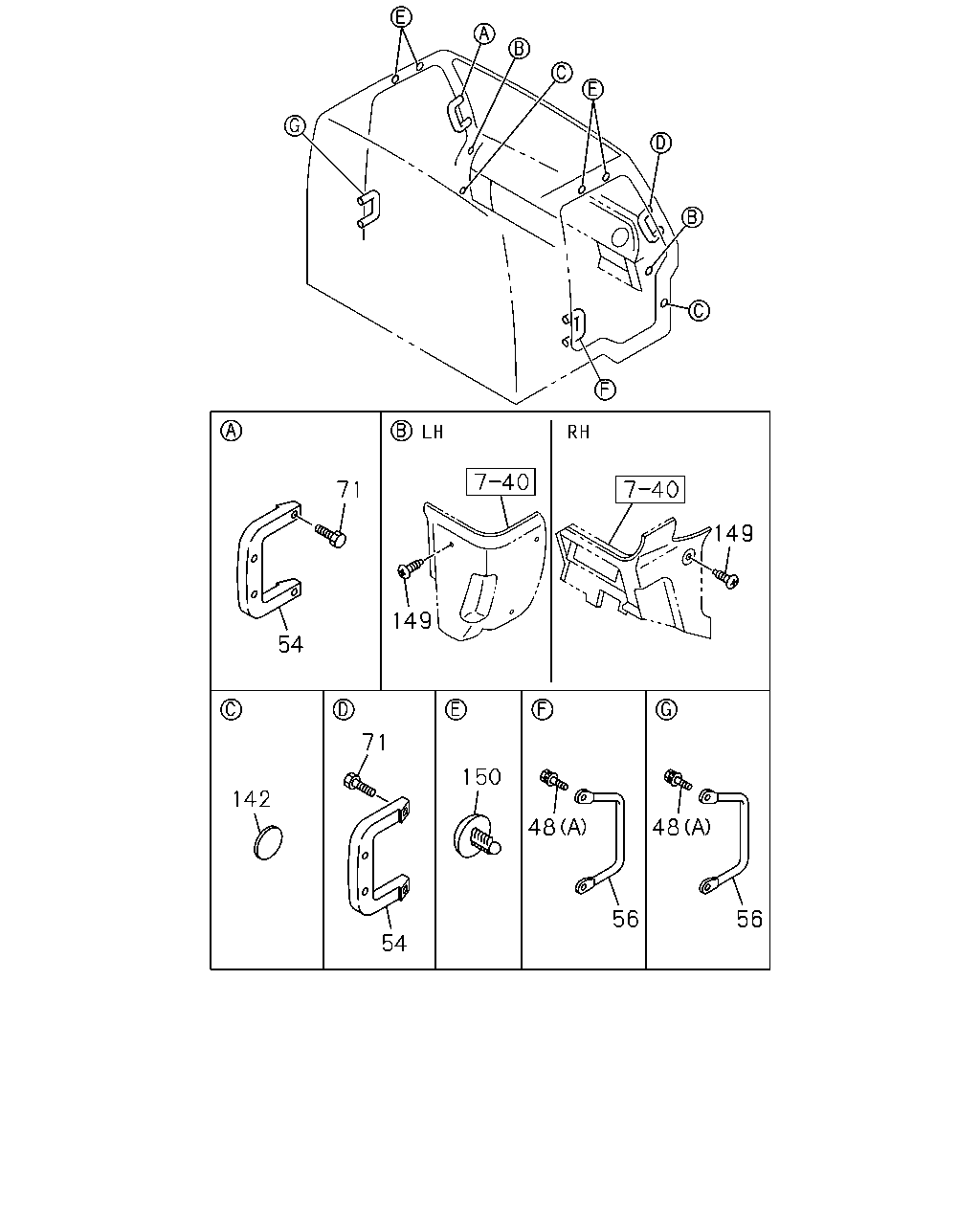

[743A] ASSIST GRIP;CAB INSIDE (14 parça)
[743A] FIXING;SUN VISOR (13 parça)
▶
68
66
103
48
59
68
66
48
48
59
103
48
59
48
59
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
9706-
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9706-
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9706-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
9706-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
9706-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER MAL
8-94279-207-0
04
1
9706-
68
BRACKET; ASSIST GRIP,FRT PANEL
1-65580-203-0
02
1
9706-
103
GRIP; ASSIST,FRT PNL
1-71998-792-2
01
1
9706-
103
GRIP; ASSIST,FRT PNL
1-71998-791-2
01
1
9706-
71
149
149
54
71
150
142
48
48
56
56
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
9706-
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9706-
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9706-
54
GRIP; ASSIST,QUARTER SIDE
1-73618-158-2
02
1
9706-0211
54
GRIP; ASSIST,QUARTER SIDE
1-73618-185-1
02
1
0212-
56
GRIP; ASSIST,SIDE SILL
1-73617-062-5
02
1
9706-0402
56
GRIP; ASSIST,SIDE SILL
1-73617-570-0
02
1
0403-0804
56
GRIP; ASSIST,SIDE SILL
8-98081-700-0
02
1
0805-
71
SCREW
M6X20 W/LK&PL WASHER
1-09981-509-0
04
1
9706-0211
71
SCREW
M6X34 W/LK&PL WASHER MAL
8-94279-411-0
04
1
0212-
142
SEAL; ASSIST GRIP
OD=25 BLACK MAL
1-76798-019-0
02
1
9706-
149
SCREW; ASSIST GRIP HOLE
M6X16
8-94479-534-0
02
1
9706-0302
149
SCREW; ASSIST GRIP HOLE
M6X12
8-97094-854-0
02
1
0303-
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 LIGHT GRAY
1-73996-301-0
04
1
9706-
24
26
24
14
24
33
24
121
26
14
33
121
34
23
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
SCREW; BRKT
M6X24 W/LK&PL WASHER MAL
8-94279-404-0
02
1
9706-
23
SUN VISOR
1-73138-148-2
01
1
9706-
23
SUN VISOR
1-73138-150-2
01
1
9706-
24
BRACKET; SUN VISOR
(B)
1-73138-145-0
02
1
9706-
24
BRACKET; SUN VISOR
(A)
1-73138-144-1
01
1
9706-
24
BRACKET; SUN VISOR
(A)
1-73138-143-1
01
1
9706-
26
HOLDER; SUN VISOR
1-73138-142-0
02
1
9706-
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70580-416-0
02
1
9706-0101
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70580-420-0
02
1
0102-0603
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
0604-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
9706-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
9706-
121
SCREW; BRKT,SUN VISOR
M6X24 W/LK&PL WASHER MAL
8-94279-404-0
02
1
9706-
