Isuzu WW
▶
TRUCKS
▶
FSR
▶
11364 - FSR(MALAYSIA)W/B4200
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#15986) — 101 parça
◀

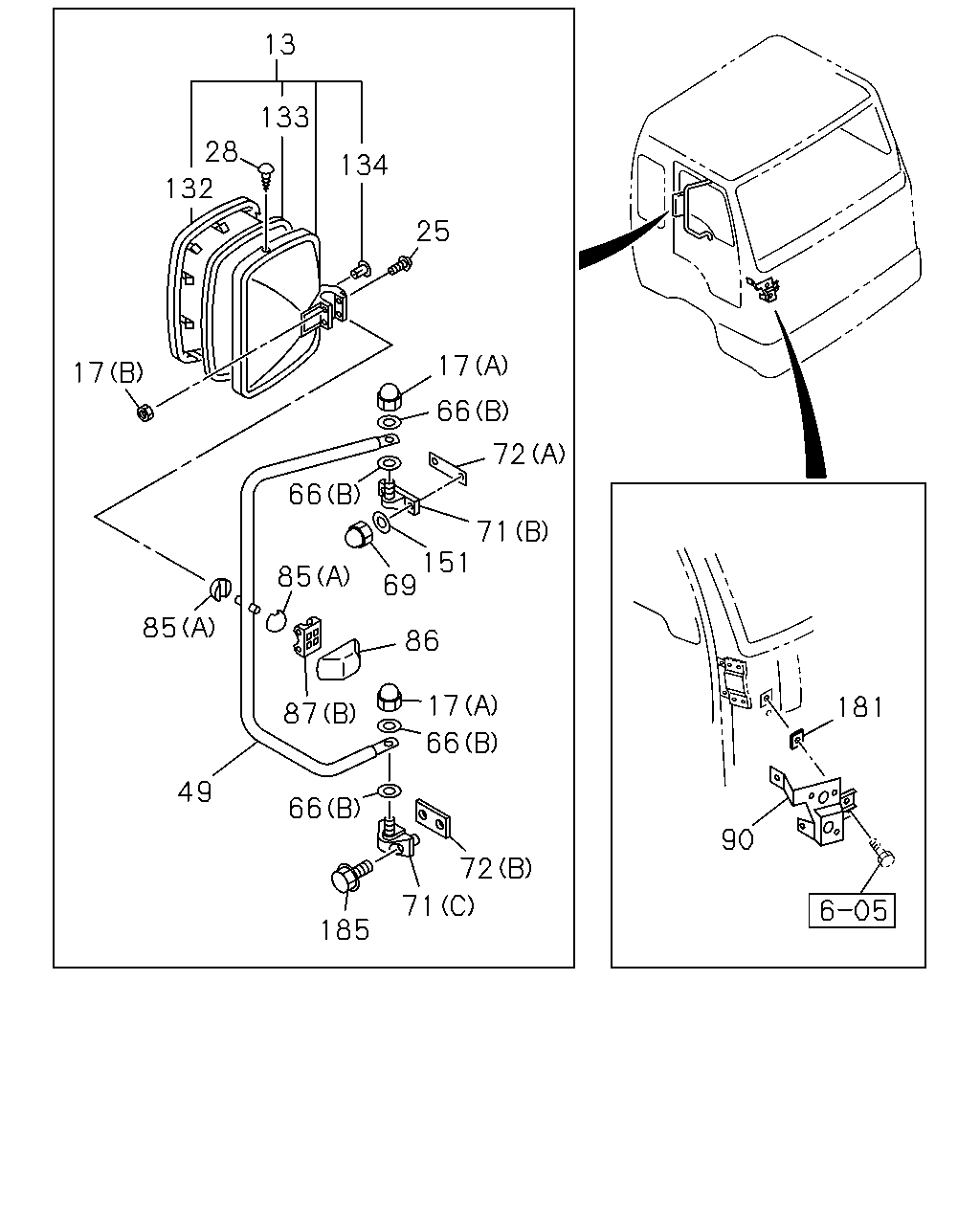

[720A] RH (48 parça)

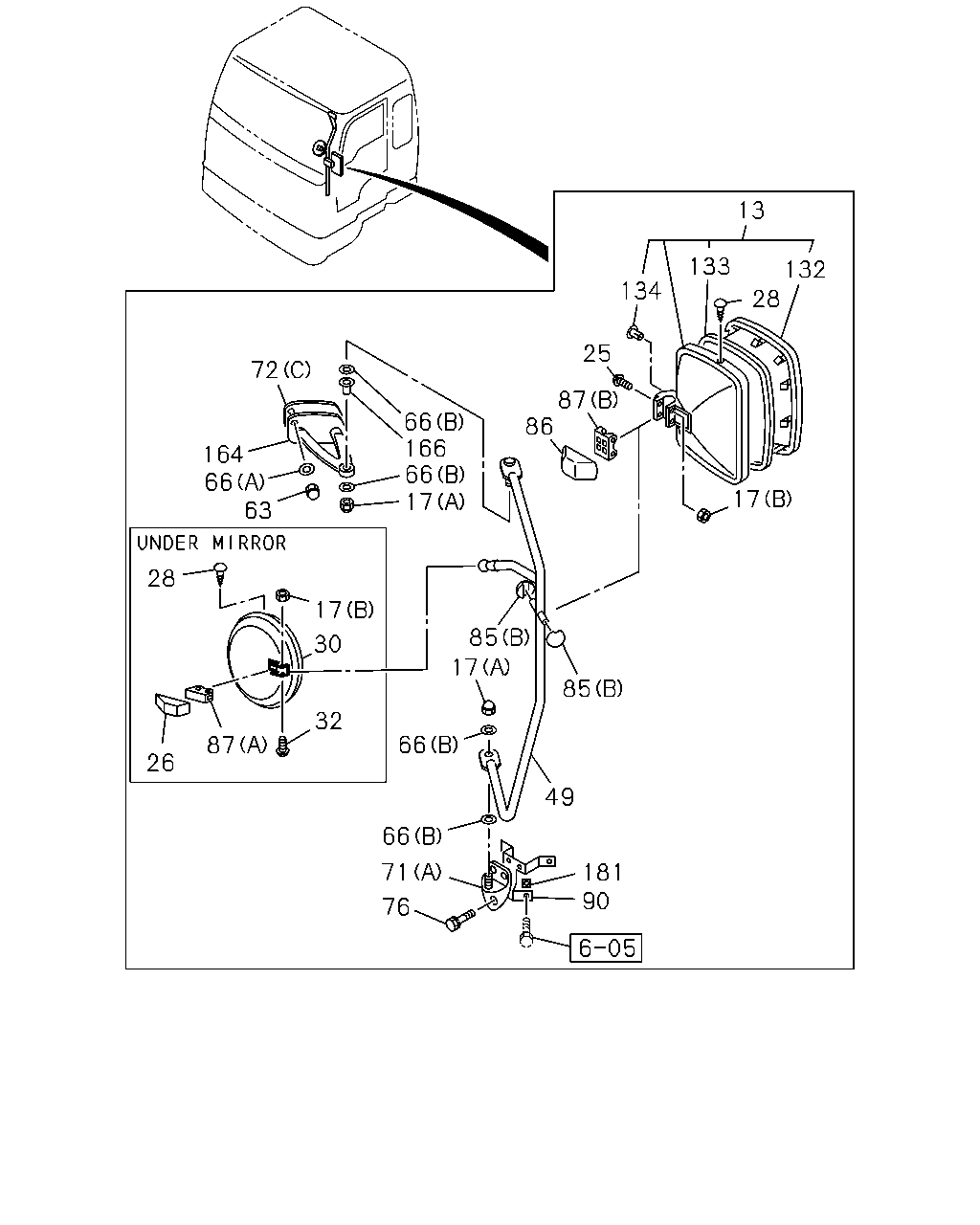

[720A] LH (50 parça)
[720A] ROOM MIRROR (3 parça)
▶
13
133
28
134
132
25
17
17
66
72
66
71
151
69
85
85
86
17
181
87
66
49
66
90
72
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
01
1
9706-
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
01
1
9706-
17
NUT; CAP,MIRROR STAY
(A) M10
1-09984-183-0
04
1
9706-0208
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT MAL
1-09984-134-0
04
1
0209-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
04
1
9706-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
02
1
9706-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
02
1
9706-0404
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
02
1
9706-0404
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
02
1
0405-
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
02
1
0405-
28
GROMMET; UNDER MIRROR
BLACK
1-71737-678-0
02
1
9706-9910
28
GROMMET; UNDER MIRROR
BLACK
1-71737-678-0
01
1
9706-9910
49
STAY; MIRROR SIDE
1-71797-856-2
01
1
9706-
49
STAY; MIRROR SIDE
1-71798-490-3
01
1
9706-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-204-0
08
1
9706-9710
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
9711-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
9706-
69
NUT; CAP
M8
1-09984-187-0
02
1
9706-0809
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
02
1
0810-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-484-1
01
1
9706-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-486-2
01
1
9706-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-581-3
01
1
9706-
72
SHEET
(A)
1-71798-487-3
01
1
9706-
72
SHEET
(B)
1-71798-488-1
01
1
9706-
72
SHEET
(C)
1-71798-393-3
01
1
9706-
85
PIVOT; MAIN MIRROR
(B) ID=22.2
1-71736-489-2
02
1
9706-
85
PIVOT; MAIN MIRROR
(A) ID=19.1
1-71737-633-2
02
1
9706-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
01
1
9706-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
01
1
9706-
87
SPACER
(B)
1-71737-704-0
01
1
9706-
87
SPACER
(B)
1-71737-704-0
01
1
9706-
87
SPACER
(A)
1-71737-646-2
01
1
9706-
90
BRACKET; MIRROR STAY
1-71798-229-4
01
1
9706-9903
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
9904-
90
BRACKET; MIRROR STAY
1-71798-228-4
01
1
9706-9903
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
9904-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
132
RING; MIRROR
MAL
1-71737-934-0
01
1
9706-
132
RING; MIRROR
MAL
1-71737-934-0
01
1
9706-
133
LENS; MIRROR,OUTSIDE
MAL
1-71737-927-0
01
1
9706-
133
LENS; MIRROR,OUTSIDE
MAL
1-71737-927-0
01
1
9706-
134
CLIP; MIRROR LENS
MAL
1-71737-936-0
01
1
9706-
134
CLIP; MIRROR LENS
MAL
1-71737-936-0
01
1
9706-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
9706-
181
SEAL; BRKT
25X25 MAL
8-94272-533-0
04
1
9902-
185
BOLT; BRKT
M8X35 FLANGE
0-28690-835-0
02
1
9706-0512
185
BOLT; BRKT
M8X35 FLANGE
0-28660-835-0
02
1
0601-0605
185
BOLT; BRKT
M8X35 FLANGE
8-98046-876-0
02
1
0606-
13
133
132
28
134
25
72
87
86
66
166
66
17
164
66
63
17
28
17
85
30
17
85
32
66
87
26
49
66
71
181
90
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
01
1
9706-
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
01
1
9706-
17
NUT; CAP,MIRROR STAY
(A) M10
1-09984-183-0
04
1
9706-0208
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT MAL
1-09984-134-0
04
1
0209-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
04
1
9706-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
02
1
9706-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
02
1
9706-0404
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
02
1
9706-0404
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
02
1
0405-
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
02
1
0405-
26
COVER; OUTSIDE MIRROR
BLACK
1-71737-649-1
01
1
9706-
28
GROMMET; UNDER MIRROR
BLACK
1-71737-678-0
02
1
9706-9910
28
GROMMET; UNDER MIRROR
BLACK
1-71737-678-0
01
1
9706-9910
30
MIRROR; UNDER
1-71798-591-1
01
1
9706-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
1-71737-797-0
02
1
9706-
49
STAY; MIRROR SIDE
1-71797-856-2
01
1
9706-
49
STAY; MIRROR SIDE
1-71798-490-3
01
1
9706-
63
NUT; STAY
M8
1-09984-187-0
02
1
9706-
63
NUT; STAY
M8
1-71707-105-0
02
1
0004-0005
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-204-0
08
1
9706-9710
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
9711-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
9706-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-484-1
01
1
9706-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-486-2
01
1
9706-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-581-3
01
1
9706-
72
SHEET
(A)
1-71798-487-3
01
1
9706-
72
SHEET
(B)
1-71798-488-1
01
1
9706-
72
SHEET
(C)
1-71798-393-3
01
1
9706-
76
BOLT; STAY BRKT
M8X30 W/LK WASHER MAL
8-94279-183-1
03
1
9706-
85
PIVOT; MAIN MIRROR
(B) ID=22.2
1-71736-489-2
02
1
9706-
85
PIVOT; MAIN MIRROR
(A) ID=19.1
1-71737-633-2
02
1
9706-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
01
1
9706-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
01
1
9706-
87
SPACER
(B)
1-71737-704-0
01
1
9706-
87
SPACER
(B)
1-71737-704-0
01
1
9706-
87
SPACER
(A)
1-71737-646-2
01
1
9706-
90
BRACKET; MIRROR STAY
1-71798-229-4
01
1
9706-9903
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
9904-
90
BRACKET; MIRROR STAY
1-71798-228-4
01
1
9706-9903
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
9904-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
132
RING; MIRROR
MAL
1-71737-934-0
01
1
9706-
132
RING; MIRROR
MAL
1-71737-934-0
01
1
9706-
133
LENS; MIRROR,OUTSIDE
MAL
1-71737-927-0
01
1
9706-
133
LENS; MIRROR,OUTSIDE
MAL
1-71737-927-0
01
1
9706-
134
CLIP; MIRROR LENS
MAL
1-71737-936-0
01
1
9706-
134
CLIP; MIRROR LENS
MAL
1-71737-936-0
01
1
9706-
164
STAY; ROOF
1-71798-211-4
01
1
9706-
166
BUSHING; STAY
1-09983-175-1
01
1
9706-
181
SEAL; BRKT
25X25 MAL
8-94272-533-0
04
1
9902-
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
1-73118-026-1
01
1
9706-
2
SCREW; MIRROR TO BODY
M6X25
1-09981-441-0
02
1
9706-9906
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
9907-
