Sayfa 3-05 - Isuzu EPC

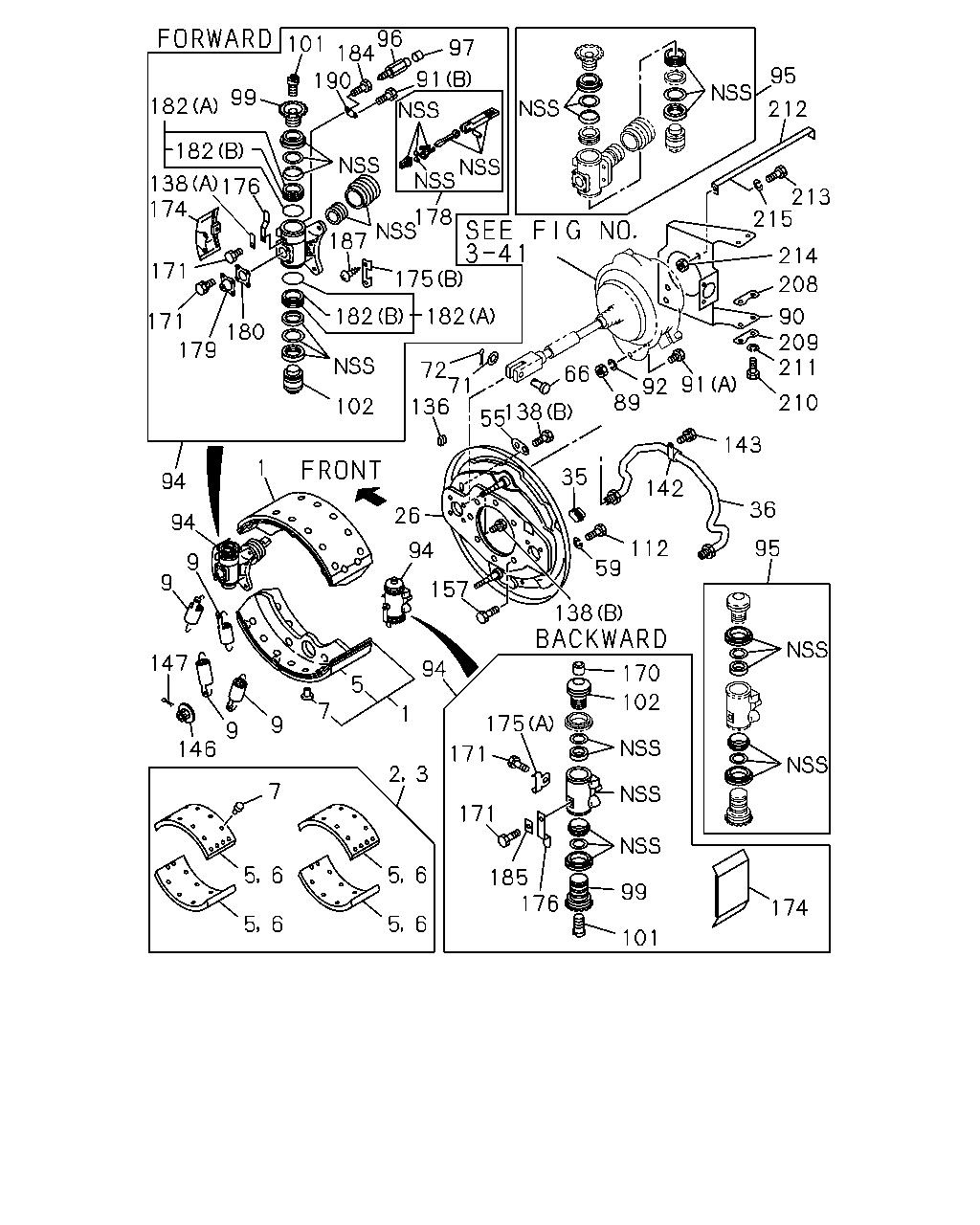

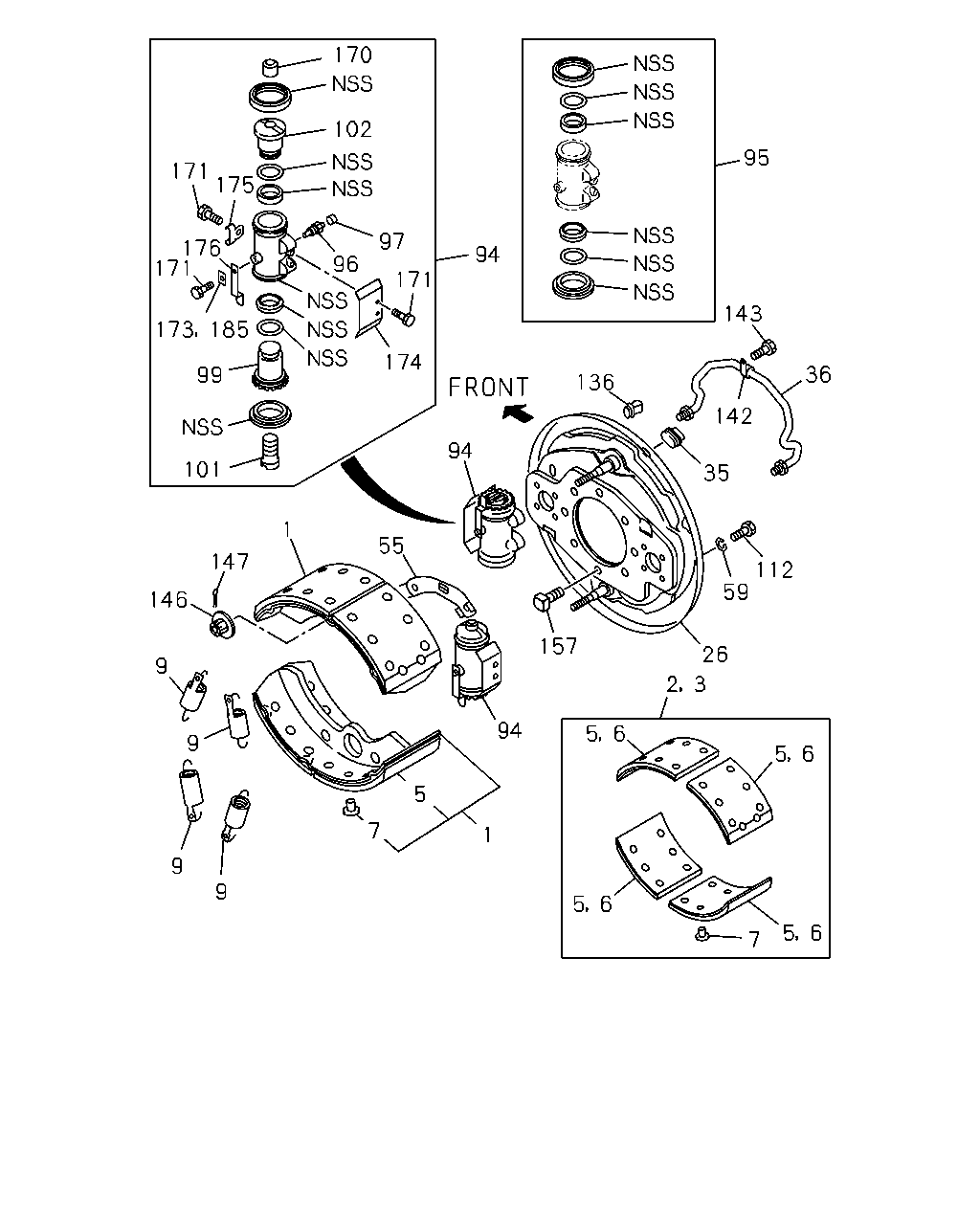

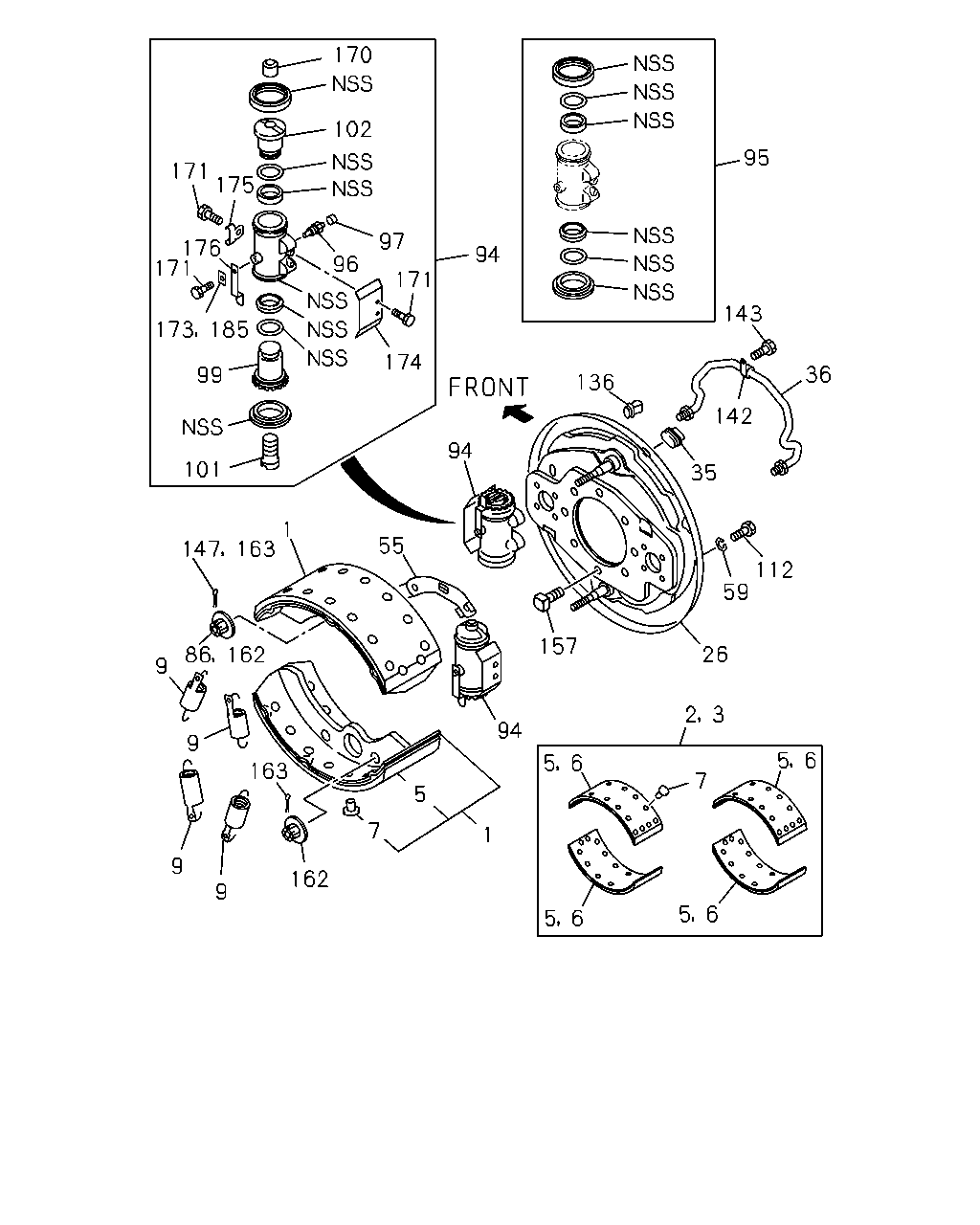

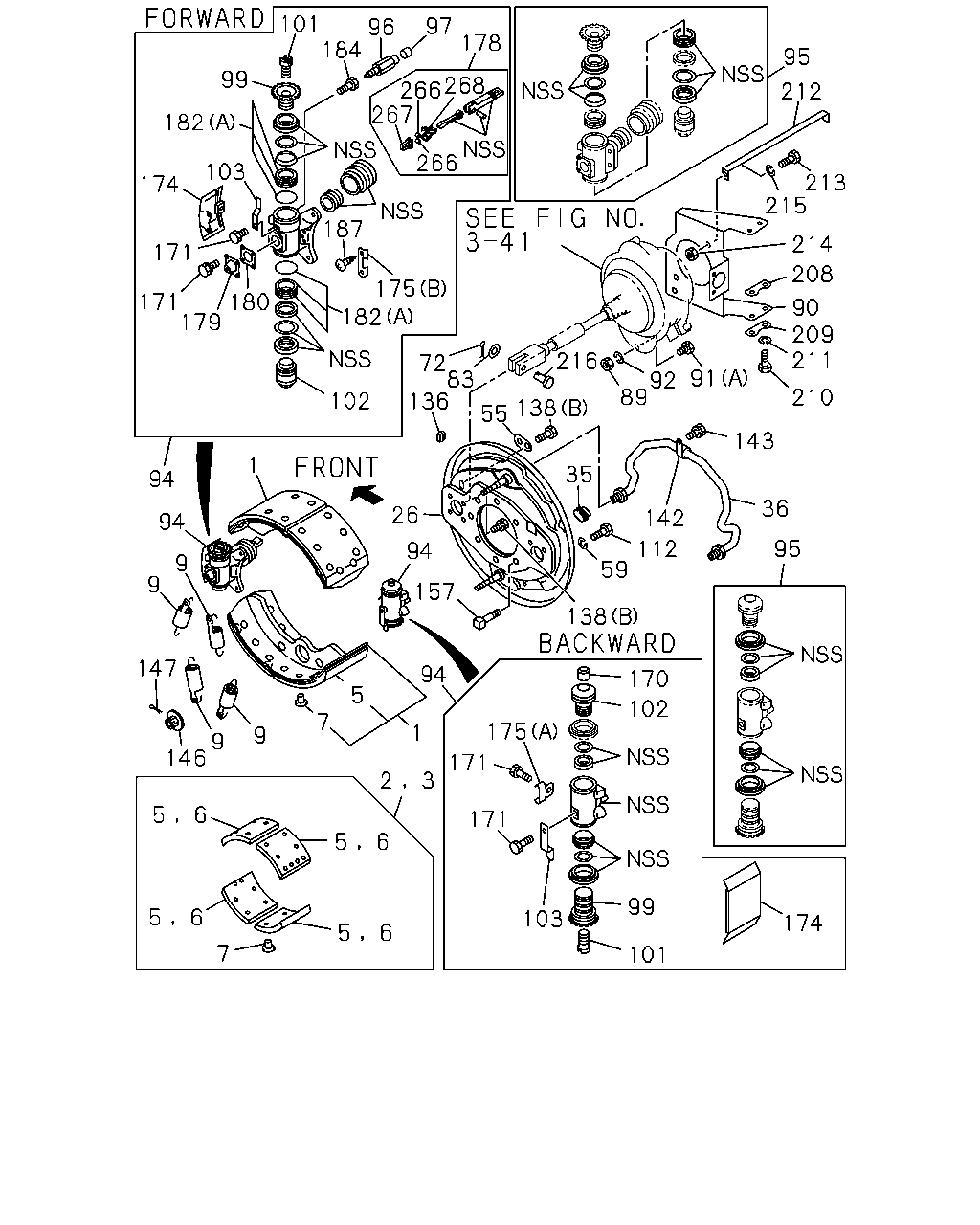

3-05 — REAR WHEEL BRAKE (#1598) — 605 parça

101 184 96 97 91 190 99 182 182 138 174 176 95 212 213 215 214 208 209 90 211 210 91 92 89 66 138 55 136 72 71 102 182 175 178 187 182 180 179 171 171 94 94 9 9 147 146 9 9 7 5 1 94 157 94 26 1 35 142 112 59 143 36 95 170 102 175 171 171 185 176 99 101 174 138 2 3 6 5 7 5 6 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-547-0	04	1	9207-	●
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-47110-547-0	04	1	9207-		●
1	SHOE; BRK,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47120-027-0	04	1	9207-	●	●
1	SHOE; BRK,RR REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-832-0	04	1	9207-		●
1	SHOE; BRK,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47120-028-0	04	1	9207-			●	●	●
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-403-0	04	1	9207-			●	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-87870-242-0	01	1	9207-	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87870-242-0	01	1	9207-		●
2	LINING SET; RR BRK,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-076-0	01	1	9207-	●	●
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-941-0	01	1	9207-		●
2	LINING SET; RR BRK,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-106-0	02	1	9207-			●	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-648-0	02	1	9207-			●	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-87870-243-0	01	1	9207-	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87870-243-0	01	1	9207-		●
3	LINING SET; RR BRK,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-109-0	01	1	9207-	●	●
3	LINING SET; RR BRK,OVER SIZE REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-942-0	01	1	9207-		●
3	LINING SET; RR BRK,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-107-0	02	1	9207-			●	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-649-0	02	1	9207-			●	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-511-0	04	1	9207-	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-47115-511-0	04	1	9207-		●
5	LINING; RR BRK SHOE,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-136-0	04	1	9207-	●	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-822-0	04	1	9207-		●
5	LINING; RR BRK SHOE,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-139-0	08	1	9207-			●	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-394-0	08	1	9207-			●	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-137-0	04	1	9207-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-140-0	08	1	9207-			●	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9207-	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	9207-			●	●	●
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9207-	●	●	●	●	●
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9207-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-443-0	01	1	9207-		●
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9207-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-442-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-447-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-446-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-439-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-438-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-457-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-456-0	01	1	9207-			●	●	●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9207-	●	●	●	●	●
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47416-356-0	02	1	9207-	●	●	●	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING(B3A)	1-47415-139-0	01	1	9207-		●	●	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING(B3A)	1-47415-138-0	01	1	9207-		●	●	●	●
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47139-068-0	04	1	9207-	●	●	●	●	●
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-032-0	04	1	9207-		●	●	●	●
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) ID=14.2	9-09150-614-0	16	1	9207-	●	●	●	●	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING(B3A) ID=14.2	9-09150-614-0	12	1	9207-		●	●	●	●
66	PIN; JAW JOINT REAR WHEEL PARKING(B3A)	9-08234-038-0	02	1	9207-		●
71	WASHER; PL,JAW JOINT REAR WHEEL PARKING(B3A) ID=10.5 OD=18	9-09160-510-0	02	1	9207-		●
72	PIN; SPLIT REAR WHEEL PARKING(B3A) OD=2.8 L=18	9-08113-018-0	02	1	9207-		●	●	●	●
89	NUT; CHAMBER REAR WHEEL PARKING(B3A) M12	9-99110-512-0	04	1	9207-		●	●	●	●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-122-1	01	1	9207-9412		●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-157-0	01	1	9501-		●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-121-4	01	1	9207-		●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-147-0	01	1	9207-			●	●	●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-146-0	01	1	9207-			●	●	●
91	BOLT; CHAMBER REAR WHEEL PARKING(B3A) (B) M6X8	0-20800-608-0	01	1	9207-		●
91	BOLT; CHAMBER REAR WHEEL PARKING(B3A) (A) M12X30	0-20801-230-0	04	1	9207-		●	●	●	●
92	WASHER; LK,CHAMBER REAR WHEEL PARKING(B3A) ID=12.2	9-09150-612-0	04	1	9207-		●	●	●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-590-1	01	1	9207-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-590-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-588-1	01	1	9207-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-588-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-589-1	01	1	9207-	●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-587-1	01	1	9207-	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-651-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-650-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-430-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-429-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-432-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-431-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-604-1	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-603-1	01	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL	1-87830-581-0	04	1	9207-	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-87830-581-0	04	1	9207-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-87830-581-0	02	1	9207-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-87830-646-0	02	1	9207-		●
95	CUP SET; RR WHEEL CYL BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87830-552-0	04	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-87830-552-0	04	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-87830-551-0	02	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> BACKWARD	1-87830-552-0	02	1	9207-			●	●	●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9207-	●	●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING(B3A) L=44	1-47615-007-0	02	1	9207-			●	●	●
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING(B3A)	1-47615-009-0	02	1	9207-			●	●	●
97	CAP; BLEEDER,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) OD=9.5	9-47619-005-0	02	1	9207-	●	●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-223-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-238-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-222-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-237-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-223-0	02	1	9207-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-222-0	02	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-157-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-159-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-156-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-160-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-157-0	02	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-156-0	02	1	9207-			●	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9207-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9207-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-023-0	02	1	9207-			●	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-022-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-224-0	04	1	9207-	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-224-0	02	1	9207-		●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-239-0	02	1	9207-		●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-158-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-161-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-158-0	04	1	9207-			●	●	●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING(B3A)	9-92361-435-0	16	1	9207-	●	●	●	●	●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING(B3A)	9-92361-435-0	12	1	9207-		●	●	●	●
136	GROMMET	1-09333-065-2	04	1	9207-	●	●	●	●	●
138	SCREW; LOCK PLATE REAR WHEEL PARKING(B3A) (A)	1-47169-009-0	01	1	9207-		●
138	SCREW; LOCK PLATE REAR WHEEL PARKING(B3A) (B) M5X10 W/LK WASHER	9-03910-510-0	04	1	9207-		●	●	●	●
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9207-	●	●	●	●	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9207-	●	●	●	●	●
146	NUT; HOLDER REAR WHEEL PARKING(B3A)	1-09440-009-0	04	1	9207-		●
146	NUT; HOLDER	1-09440-009-0	04	1	9207-			●	●	●
147	PIN; HOLDER EXC. REAR WHEEL PARKING(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9207-	●	●
147	PIN; HOLDER REAR WHEEL PARKING(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9207-		●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	04	1	9207-			●	●	●
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING(B3A) M14X56	1-09060-004-0	12	1	9207-	●	●	●	●	●
157	BOLT; RR BRK SET REAR WHEEL PARKING(B3A) M14X50	9-92061-450-0	04	1	9207-		●
157	BOLT; RR BRK SET REAR WHEEL PARKING(B3A) M14X52	1-09000-310-0	04	1	9207-			●	●	●
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47619-039-0	04	1	9207-	●	●
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-039-0	02	1	9207-		●
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-019-0	02	1	9207-			●	●	●
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47619-019-0	04	1	9207-			●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	12	1	9207-	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X8	0-20800-608-0	04	1	9207-	●	●	●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	9207-	●	●	●	●	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X8	0-20800-608-0	02	1	9207-		●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	18	1	9207-		●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9207-		●	●	●	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	20	1	9207-			●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	08	1	9207-			●	●	●
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9207-	●	●	●	●	●
175	HANGER; RR WHEEL BRK EXC. REAR WHEEL PARKING(B3A)	1-47118-084-0	08	1	9207-	●	●	●	●	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING(B3A) (A)	1-47118-084-0	04	1	9207-		●	●	●	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING(B3A) (B)	1-47619-022-0	02	1	9207-		●	●	●	●
176	STOPPER; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47169-008-0	04	1	9207-	●	●	●	●	●
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47169-008-0	02	1	9207-		●
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47629-057-0	02	1	9207-		●
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47640-005-0	02	1	9207-		●
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47640-002-0	02	1	9207-			●	●	●
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47649-011-0	02	1	9207-		●
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47649-009-0	02	1	9207-			●	●	●
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-016-0	01	1	9207-		●
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-017-0	01	1	9207-		●
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-017-0	02	1	9207-			●	●	●
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING(B3A) (A)	1-47620-094-0	04	1	9207-		●
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING(B3A) (B)	1-47629-080-0	04	1	9207-		●
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING(B3A) (A)	1-47620-042-0	02	1	9207-			●	●	●
184	CONNECTOR; RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-09660-112-0	04	1	9207-		●	●	●	●
185	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9207-	●	●
185	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47169-009-0	02	1	9207-			●	●	●
187	SCREW; HANGER REAR WHEEL PARKING(B3A)	9-03065-616-0	03	1	9207-		●
187	SCREW; HANGER REAR WHEEL PARKING(B3A)	9-03065-616-0	04	1	9207-			●	●	●
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING(B3A)	1-47169-009-0	01	1	9207-		●
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING(B3A)	0-20800-608-0	01	1	9207-		●
208	WASHER; BRKT REAR WHEEL PARKING(B3A) L=106	1-42129-028-3	04	1	9207-		●
208	WASHER; BRKT REAR WHEEL PARKING(B3A) L=106	1-42129-028-3	02	1	9207-			●	●	●
208	WASHER; BRKT REAR WHEEL PARKING(B3A) L=113	1-42129-163-2	02	1	9207-			●	●	●
209	SHIM; BRKT REAR WHEEL PARKING(B3A) L=106	1-42129-027-4	12	1	9207-		●
209	SHIM; BRKT REAR WHEEL PARKING(B3A) L=106	1-42129-027-4	06	1	9207-			●	●	●
209	SHIM; BRKT REAR WHEEL PARKING(B3A) L=113	1-42129-162-1	06	1	9207-			●	●	●
210	BOLT; BRKT FIX REAR WHEEL PARKING(B3A) M12X25	0-20801-225-0	08	1	9207-		●	●	●	●
210	BOLT; BRKT FIX REAR WHEEL PARKING(B3A) M12X38	0-20801-238-0	08	1	9207-		●	●	●	●
211	WASHER; LK,BRKT FIX REAR WHEEL PARKING(B3A) ID=12.2	9-09150-612-0	16	1	9207-		●	●	●	●
212	STAY REAR WHEEL PARKING(B3A)	1-48258-078-0	01	1	9207-		●	●	●	●
213	BOLT; STAY FIX REAR WHEEL PARKING(B3A) M12X25	0-20801-225-0	02	1	9207-		●	●	●	●
214	NUT; STAY FIX REAR WHEEL PARKING(B3A) M12	9-99111-512-0	02	1	9207-		●	●	●	●
215	WASHER; LK,STAY FIX REAR WHEEL PARKING(B3A) ID=12.2	9-09150-612-0	02	1	9207-		●	●	●	●

5 6 7 5 6 5 6 6 5 2 3 26 59 112 157 94 1 5 7 9 9 9 9 146 147 1 55 94 136 142 35 36 143 174 101 99 185 173 171 96 171 176 175 171 170 102 97 94 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-547-0	04	1	9207-	●
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-47110-547-0	04	1	9207-		●
1	SHOE; BRK,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47120-027-0	04	1	9207-	●	●
1	SHOE; BRK,RR REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-832-0	04	1	9207-		●
1	SHOE; BRK,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47120-028-0	04	1	9207-			●	●	●
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-403-0	04	1	9207-			●	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-87870-242-0	01	1	9207-	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87870-242-0	01	1	9207-		●
2	LINING SET; RR BRK,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-076-0	01	1	9207-	●	●
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-941-0	01	1	9207-		●
2	LINING SET; RR BRK,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-106-0	02	1	9207-			●	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-648-0	02	1	9207-			●	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-87870-243-0	01	1	9207-	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87870-243-0	01	1	9207-		●
3	LINING SET; RR BRK,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-109-0	01	1	9207-	●	●
3	LINING SET; RR BRK,OVER SIZE REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-942-0	01	1	9207-		●
3	LINING SET; RR BRK,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-107-0	02	1	9207-			●	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-649-0	02	1	9207-			●	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-511-0	04	1	9207-	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-47115-511-0	04	1	9207-		●
5	LINING; RR BRK SHOE,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-136-0	04	1	9207-	●	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-822-0	04	1	9207-		●
5	LINING; RR BRK SHOE,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-139-0	08	1	9207-			●	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-394-0	08	1	9207-			●	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-137-0	04	1	9207-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-140-0	08	1	9207-			●	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9207-	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	9207-			●	●	●
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9207-	●	●	●	●	●
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9207-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-443-0	01	1	9207-		●
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9207-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-442-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-447-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-446-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-439-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-438-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-457-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-456-0	01	1	9207-			●	●	●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9207-	●	●	●	●	●
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47416-356-0	02	1	9207-	●	●	●	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING(B3A)	1-47415-139-0	01	1	9207-		●	●	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING(B3A)	1-47415-138-0	01	1	9207-		●	●	●	●
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47139-068-0	04	1	9207-	●	●	●	●	●
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-032-0	04	1	9207-		●	●	●	●
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) ID=14.2	9-09150-614-0	16	1	9207-	●	●	●	●	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING(B3A) ID=14.2	9-09150-614-0	12	1	9207-		●	●	●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-590-1	01	1	9207-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-590-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-588-1	01	1	9207-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-588-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-589-1	01	1	9207-	●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-587-1	01	1	9207-	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-651-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-650-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-430-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-429-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-432-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-431-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-604-1	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-603-1	01	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL	1-87830-581-0	04	1	9207-	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-87830-581-0	04	1	9207-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-87830-581-0	02	1	9207-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-87830-646-0	02	1	9207-		●
95	CUP SET; RR WHEEL CYL BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87830-552-0	04	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-87830-552-0	04	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-87830-551-0	02	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> BACKWARD	1-87830-552-0	02	1	9207-			●	●	●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9207-	●	●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING(B3A) L=44	1-47615-007-0	02	1	9207-			●	●	●
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING(B3A)	1-47615-009-0	02	1	9207-			●	●	●
97	CAP; BLEEDER,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) OD=9.5	9-47619-005-0	02	1	9207-	●	●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-223-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-238-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-222-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-237-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-223-0	02	1	9207-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-222-0	02	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-157-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-159-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-156-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-160-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-157-0	02	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-156-0	02	1	9207-			●	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9207-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9207-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-023-0	02	1	9207-			●	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-022-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-224-0	04	1	9207-	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-224-0	02	1	9207-		●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-239-0	02	1	9207-		●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-158-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-161-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-158-0	04	1	9207-			●	●	●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING(B3A)	9-92361-435-0	16	1	9207-	●	●	●	●	●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING(B3A)	9-92361-435-0	12	1	9207-		●	●	●	●
136	GROMMET	1-09333-065-2	04	1	9207-	●	●	●	●	●
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9207-	●	●	●	●	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9207-	●	●	●	●	●
146	NUT; HOLDER REAR WHEEL PARKING(B3A)	1-09440-009-0	04	1	9207-		●
146	NUT; HOLDER	1-09440-009-0	04	1	9207-			●	●	●
147	PIN; HOLDER EXC. REAR WHEEL PARKING(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9207-	●	●
147	PIN; HOLDER REAR WHEEL PARKING(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9207-		●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	04	1	9207-			●	●	●
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING(B3A) M14X56	1-09060-004-0	12	1	9207-	●	●	●	●	●
157	BOLT; RR BRK SET REAR WHEEL PARKING(B3A) M14X50	9-92061-450-0	04	1	9207-		●
157	BOLT; RR BRK SET REAR WHEEL PARKING(B3A) M14X52	1-09000-310-0	04	1	9207-			●	●	●
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47619-039-0	04	1	9207-	●	●
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-039-0	02	1	9207-		●
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-019-0	02	1	9207-			●	●	●
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47619-019-0	04	1	9207-			●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	12	1	9207-	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X8	0-20800-608-0	04	1	9207-	●	●	●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	9207-	●	●	●	●	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X8	0-20800-608-0	02	1	9207-		●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	18	1	9207-		●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9207-		●	●	●	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	20	1	9207-			●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	08	1	9207-			●	●	●
173	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47169-009-0	02	1	9207-	●	●	●	●	●
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9207-	●	●	●	●	●
175	HANGER; RR WHEEL BRK EXC. REAR WHEEL PARKING(B3A)	1-47118-084-0	08	1	9207-	●	●	●	●	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING(B3A) (A)	1-47118-084-0	04	1	9207-		●	●	●	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING(B3A) (B)	1-47619-022-0	02	1	9207-		●	●	●	●
176	STOPPER; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47169-008-0	04	1	9207-	●	●	●	●	●
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47169-008-0	02	1	9207-		●
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47629-057-0	02	1	9207-		●
185	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9207-	●	●
185	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47169-009-0	02	1	9207-			●	●	●

170 102 171 175 176 171 173 185 96 97 171 94 174 99 101 147 163 1 55 94 136 95 143 36 142 35 112 59 26 2 3 7 5 6 6 5 6 5 5 6 94 157 1 5 7 163 162 9 9 9 9 86 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-547-0	04	1	9207-	●
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-47110-547-0	04	1	9207-		●
1	SHOE; BRK,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47120-027-0	04	1	9207-	●	●
1	SHOE; BRK,RR REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-832-0	04	1	9207-		●
1	SHOE; BRK,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47120-028-0	04	1	9207-			●	●	●
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-403-0	04	1	9207-			●	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-87870-242-0	01	1	9207-	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87870-242-0	01	1	9207-		●
2	LINING SET; RR BRK,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-076-0	01	1	9207-	●	●
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-941-0	01	1	9207-		●
2	LINING SET; RR BRK,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-106-0	02	1	9207-			●	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-648-0	02	1	9207-			●	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-87870-243-0	01	1	9207-	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87870-243-0	01	1	9207-		●
3	LINING SET; RR BRK,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-109-0	01	1	9207-	●	●
3	LINING SET; RR BRK,OVER SIZE REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-942-0	01	1	9207-		●
3	LINING SET; RR BRK,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-107-0	02	1	9207-			●	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-649-0	02	1	9207-			●	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-511-0	04	1	9207-	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-47115-511-0	04	1	9207-		●
5	LINING; RR BRK SHOE,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-136-0	04	1	9207-	●	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-822-0	04	1	9207-		●
5	LINING; RR BRK SHOE,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-139-0	08	1	9207-			●	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-394-0	08	1	9207-			●	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-137-0	04	1	9207-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-140-0	08	1	9207-			●	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9207-	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	9207-			●	●	●
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9207-	●	●	●	●	●
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9207-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-443-0	01	1	9207-		●
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9207-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-442-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-447-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-446-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-439-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-438-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-457-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-456-0	01	1	9207-			●	●	●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9207-	●	●	●	●	●
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47416-356-0	02	1	9207-	●	●	●	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING(B3A)	1-47415-139-0	01	1	9207-		●	●	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING(B3A)	1-47415-138-0	01	1	9207-		●	●	●	●
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47139-068-0	04	1	9207-	●	●	●	●	●
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-032-0	04	1	9207-		●	●	●	●
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) ID=14.2	9-09150-614-0	16	1	9207-	●	●	●	●	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING(B3A) ID=14.2	9-09150-614-0	12	1	9207-		●	●	●	●
86	NUT; FLANGE	1-09440-009-0	02	1	9207-	●
86	NUT; FLANGE EXC. REAR WHEEL PARKING(B3A)	1-09440-009-0	02	1	9207-		●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-590-1	01	1	9207-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-590-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-588-1	01	1	9207-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-588-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-589-1	01	1	9207-	●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-587-1	01	1	9207-	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-651-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-650-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-430-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-429-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-432-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-431-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-604-1	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-603-1	01	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL	1-87830-581-0	04	1	9207-	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-87830-581-0	04	1	9207-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-87830-581-0	02	1	9207-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-87830-646-0	02	1	9207-		●
95	CUP SET; RR WHEEL CYL BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87830-552-0	04	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-87830-552-0	04	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-87830-551-0	02	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> BACKWARD	1-87830-552-0	02	1	9207-			●	●	●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9207-	●	●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING(B3A) L=44	1-47615-007-0	02	1	9207-			●	●	●
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING(B3A)	1-47615-009-0	02	1	9207-			●	●	●
97	CAP; BLEEDER,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) OD=9.5	9-47619-005-0	02	1	9207-	●	●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-223-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-238-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-222-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-237-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-223-0	02	1	9207-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-222-0	02	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-157-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-159-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-156-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-160-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-157-0	02	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-156-0	02	1	9207-			●	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9207-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9207-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-023-0	02	1	9207-			●	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-022-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-224-0	04	1	9207-	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-224-0	02	1	9207-		●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-239-0	02	1	9207-		●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-158-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-161-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-158-0	04	1	9207-			●	●	●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING(B3A)	9-92361-435-0	16	1	9207-	●	●	●	●	●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING(B3A)	9-92361-435-0	12	1	9207-		●	●	●	●
136	GROMMET	1-09333-065-2	04	1	9207-	●	●	●	●	●
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9207-	●	●	●	●	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9207-	●	●	●	●	●
147	PIN; HOLDER EXC. REAR WHEEL PARKING(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9207-	●	●
147	PIN; HOLDER REAR WHEEL PARKING(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9207-		●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	04	1	9207-			●	●	●
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING(B3A) M14X56	1-09060-004-0	12	1	9207-	●	●	●	●	●
157	BOLT; RR BRK SET REAR WHEEL PARKING(B3A) M14X50	9-92061-450-0	04	1	9207-		●
157	BOLT; RR BRK SET REAR WHEEL PARKING(B3A) M14X52	1-09000-310-0	04	1	9207-			●	●	●
162	NUT; SHOE HOLD DOWN EXC. REAR WHEEL PARKING(B3A)	1-09440-009-0	02	1	9207-	●	●
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9207-	●	●
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47619-039-0	04	1	9207-	●	●
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-039-0	02	1	9207-		●
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-019-0	02	1	9207-			●	●	●
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47619-019-0	04	1	9207-			●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	12	1	9207-	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X8	0-20800-608-0	04	1	9207-	●	●	●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	9207-	●	●	●	●	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X8	0-20800-608-0	02	1	9207-		●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	18	1	9207-		●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9207-		●	●	●	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	20	1	9207-			●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	08	1	9207-			●	●	●
173	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47169-009-0	02	1	9207-	●	●	●	●	●
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9207-	●	●	●	●	●
175	HANGER; RR WHEEL BRK EXC. REAR WHEEL PARKING(B3A)	1-47118-084-0	08	1	9207-	●	●	●	●	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING(B3A) (A)	1-47118-084-0	04	1	9207-		●	●	●	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING(B3A) (B)	1-47619-022-0	02	1	9207-		●	●	●	●
176	STOPPER; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47169-008-0	04	1	9207-	●	●	●	●	●
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47169-008-0	02	1	9207-		●
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47629-057-0	02	1	9207-		●
185	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9207-	●	●
185	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47169-009-0	02	1	9207-			●	●	●

101 96 184 97 178 95 99 268 266 267 212 182 266 103 213 215 174 187 214 171 208 175 182 171 179 180 90 209 211 216 72 83 136 91 92 89 210 102 138 55 143 1 35 94 36 26 142 94 112 95 94 9 59 9 157 138 147 94 170 5 102 7 175 1 9 9 146 171 2 3 5 6 171 6 5 99 5 6 103 174 5 6 7 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-547-0	04	1	9207-	●
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-47110-547-0	04	1	9207-		●
1	SHOE; BRK,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47120-027-0	04	1	9207-	●	●
1	SHOE; BRK,RR REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-832-0	04	1	9207-		●
1	SHOE; BRK,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47120-028-0	04	1	9207-			●	●	●
1	SHOE; BRK,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47110-403-0	04	1	9207-			●	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-87870-242-0	01	1	9207-	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87870-242-0	01	1	9207-		●
2	LINING SET; RR BRK,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-076-0	01	1	9207-	●	●
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-941-0	01	1	9207-		●
2	LINING SET; RR BRK,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-106-0	02	1	9207-			●	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-648-0	02	1	9207-			●	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-87870-243-0	01	1	9207-	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87870-243-0	01	1	9207-		●
3	LINING SET; RR BRK,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-109-0	01	1	9207-	●	●
3	LINING SET; RR BRK,OVER SIZE REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-942-0	01	1	9207-		●
3	LINING SET; RR BRK,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88310-107-0	02	1	9207-			●	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-88302-649-0	02	1	9207-			●	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-511-0	04	1	9207-	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-47115-511-0	04	1	9207-		●
5	LINING; RR BRK SHOE,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-136-0	04	1	9207-	●	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-822-0	04	1	9207-		●
5	LINING; RR BRK SHOE,STANDARD BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-139-0	08	1	9207-			●	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47115-394-0	08	1	9207-			●	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-137-0	04	1	9207-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47125-140-0	08	1	9207-			●	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9207-	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	9207-			●	●	●
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9207-	●	●	●	●	●
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9207-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-443-0	01	1	9207-		●
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9207-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-442-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-447-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-446-0	01	1	9207-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-439-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING(B3A)	1-47150-438-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-457-0	01	1	9207-			●	●	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47150-456-0	01	1	9207-			●	●	●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9207-	●	●	●	●	●
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING(B3A)	1-47416-356-0	02	1	9207-	●	●	●	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING(B3A)	1-47415-139-0	01	1	9207-		●	●	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING(B3A)	1-47415-138-0	01	1	9207-		●	●	●	●
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47139-068-0	04	1	9207-	●	●	●	●	●
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-032-0	04	1	9207-		●	●	●	●
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) ID=14.2	9-09150-614-0	16	1	9207-	●	●	●	●	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING(B3A) ID=14.2	9-09150-614-0	12	1	9207-		●	●	●	●
72	PIN; SPLIT REAR WHEEL PARKING(B3A) OD=2.8 L=18	9-08113-018-0	02	1	9207-		●	●	●	●
83	WASHER; PL REAR WHEEL PARKING(B3A) ID=10.5 OD=18	9-09160-510-0	02	1	9408-			●	●	●
89	NUT; CHAMBER REAR WHEEL PARKING(B3A) M12	9-99110-512-0	04	1	9207-		●	●	●	●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-122-1	01	1	9207-9412		●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-157-0	01	1	9501-		●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-121-4	01	1	9207-		●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-147-0	01	1	9207-			●	●	●
90	BRACKET; CHAMBER REAR WHEEL PARKING(B3A)	1-48258-146-0	01	1	9207-			●	●	●
91	BOLT; CHAMBER REAR WHEEL PARKING(B3A) (B) M6X8	0-20800-608-0	01	1	9207-		●
91	BOLT; CHAMBER REAR WHEEL PARKING(B3A) (A) M12X30	0-20801-230-0	04	1	9207-		●	●	●	●
92	WASHER; LK,CHAMBER REAR WHEEL PARKING(B3A) ID=12.2	9-09150-612-0	04	1	9207-		●	●	●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-590-1	01	1	9207-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-590-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-588-1	01	1	9207-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-588-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-589-1	01	1	9207-	●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-587-1	01	1	9207-	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-651-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-650-1	01	1	9207-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-430-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-429-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-432-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING(B3A) FORWARD	1-47600-431-2	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-604-1	01	1	9207-			●	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING(B3A) FORWARD	1-47600-603-1	01	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL	1-87830-581-0	04	1	9207-	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-87830-581-0	04	1	9207-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-87830-581-0	02	1	9207-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-87830-646-0	02	1	9207-		●
95	CUP SET; RR WHEEL CYL BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A)	1-87830-552-0	04	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-87830-552-0	04	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-87830-551-0	02	1	9207-			●	●	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> BACKWARD	1-87830-552-0	02	1	9207-			●	●	●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9207-	●	●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING(B3A) L=44	1-47615-007-0	02	1	9207-			●	●	●
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING(B3A)	1-47615-009-0	02	1	9207-			●	●	●
97	CAP; BLEEDER,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) OD=9.5	9-47619-005-0	02	1	9207-	●	●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-223-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-238-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-222-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-237-0	01	1	9207-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-223-0	02	1	9207-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-222-0	02	1	9207-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-157-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-159-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-156-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-160-0	01	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-157-0	02	1	9207-			●	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-156-0	02	1	9207-			●	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9207-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9207-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-023-0	02	1	9207-			●	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-022-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-224-0	04	1	9207-	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-224-0	02	1	9207-		●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-239-0	02	1	9207-		●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) BACKWARD	1-47624-158-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING(B3A) FORWARD	1-47624-161-0	02	1	9207-			●	●	●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47624-158-0	04	1	9207-			●	●	●
103	SPRING; LK,RR WHEEL CYL,ADJ REAR WHEEL PARKING(B3A)	1-47629-057-0	04	1	9207-			●	●	●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING(B3A)	9-92361-435-0	16	1	9207-	●	●	●	●	●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING(B3A)	9-92361-435-0	12	1	9207-		●	●	●	●
136	GROMMET	1-09333-065-2	04	1	9207-	●	●	●	●	●
138	SCREW; LOCK PLATE REAR WHEEL PARKING(B3A) (A)	1-47169-009-0	01	1	9207-		●
138	SCREW; LOCK PLATE REAR WHEEL PARKING(B3A) (B) M5X10 W/LK WASHER	9-03910-510-0	04	1	9207-		●	●	●	●
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9207-	●	●	●	●	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9207-	●	●	●	●	●
146	NUT; HOLDER REAR WHEEL PARKING(B3A)	1-09440-009-0	04	1	9207-		●
146	NUT; HOLDER	1-09440-009-0	04	1	9207-			●	●	●
147	PIN; HOLDER EXC. REAR WHEEL PARKING(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9207-	●	●
147	PIN; HOLDER REAR WHEEL PARKING(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9207-		●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	04	1	9207-			●	●	●
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING(B3A) M14X56	1-09060-004-0	12	1	9207-	●	●	●	●	●
157	BOLT; RR BRK SET REAR WHEEL PARKING(B3A) M14X50	9-92061-450-0	04	1	9207-		●
157	BOLT; RR BRK SET REAR WHEEL PARKING(B3A) M14X52	1-09000-310-0	04	1	9207-			●	●	●
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47619-039-0	04	1	9207-	●	●
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-039-0	02	1	9207-		●
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-019-0	02	1	9207-			●	●	●
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A)	1-47619-019-0	04	1	9207-			●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	12	1	9207-	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X8	0-20800-608-0	04	1	9207-	●	●	●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	9207-	●	●	●	●	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X8	0-20800-608-0	02	1	9207-		●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	18	1	9207-		●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9207-		●	●	●	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	20	1	9207-			●	●	●
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING(B3A) M6X10	9-01900-610-0	08	1	9207-			●	●	●
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9207-	●	●	●	●	●
175	HANGER; RR WHEEL BRK EXC. REAR WHEEL PARKING(B3A)	1-47118-084-0	08	1	9207-	●	●	●	●	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING(B3A) (A)	1-47118-084-0	04	1	9207-		●	●	●	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING(B3A) (B)	1-47619-022-0	02	1	9207-		●	●	●	●
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47640-005-0	02	1	9207-		●
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47640-002-0	02	1	9207-			●	●	●
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47649-011-0	02	1	9207-		●
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47649-009-0	02	1	9207-			●	●	●
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-016-0	01	1	9207-		●
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-017-0	01	1	9207-		●
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-47619-017-0	02	1	9207-			●	●	●
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING(B3A) (A)	1-47620-094-0	04	1	9207-		●
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING(B3A) (B)	1-47629-080-0	04	1	9207-		●
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING(B3A) (A)	1-47620-042-0	02	1	9207-			●	●	●
184	CONNECTOR; RR WHEEL CYL REAR WHEEL PARKING(B3A)	1-09660-112-0	04	1	9207-		●	●	●	●
187	SCREW; HANGER REAR WHEEL PARKING(B3A)	9-03065-616-0	03	1	9207-		●
187	SCREW; HANGER REAR WHEEL PARKING(B3A)	9-03065-616-0	04	1	9207-			●	●	●
208	WASHER; BRKT REAR WHEEL PARKING(B3A) L=106	1-42129-028-3	04	1	9207-		●
208	WASHER; BRKT REAR WHEEL PARKING(B3A) L=106	1-42129-028-3	02	1	9207-			●	●	●
208	WASHER; BRKT REAR WHEEL PARKING(B3A) L=113	1-42129-163-2	02	1	9207-			●	●	●
209	SHIM; BRKT REAR WHEEL PARKING(B3A) L=106	1-42129-027-4	12	1	9207-		●
209	SHIM; BRKT REAR WHEEL PARKING(B3A) L=106	1-42129-027-4	06	1	9207-			●	●	●
209	SHIM; BRKT REAR WHEEL PARKING(B3A) L=113	1-42129-162-1	06	1	9207-			●	●	●
210	BOLT; BRKT FIX REAR WHEEL PARKING(B3A) M12X25	0-20801-225-0	08	1	9207-		●	●	●	●
210	BOLT; BRKT FIX REAR WHEEL PARKING(B3A) M12X38	0-20801-238-0	08	1	9207-		●	●	●	●
211	WASHER; LK,BRKT FIX REAR WHEEL PARKING(B3A) ID=12.2	9-09150-612-0	16	1	9207-		●	●	●	●
212	STAY REAR WHEEL PARKING(B3A)	1-48258-078-0	01	1	9207-		●	●	●	●
213	BOLT; STAY FIX REAR WHEEL PARKING(B3A) M12X25	0-20801-225-0	02	1	9207-		●	●	●	●
214	NUT; STAY FIX REAR WHEEL PARKING(B3A) M12	9-99111-512-0	02	1	9207-		●	●	●	●
215	WASHER; LK,STAY FIX REAR WHEEL PARKING(B3A) ID=12.2	9-09150-612-0	02	1	9207-		●	●	●	●
216	PIN; STAY FIX REAR WHEEL PARKING(B3A)	9-08234-038-0	02	1	9207-			●	●	●
266	ROLLER; WEDGE REAR WHEEL PARKING(B3A)	1-47643-004-0	04	1	9207-			●	●	●
267	CAGE; WEDGE REAR WHEEL PARKING(B3A)	1-47649-007-0	02	1	9207-			●	●	●
268	RETAINER; WEDGE REAR WHEEL PARKING(B3A)	1-47649-008-0	02	1	9207-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
