◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11364 - FSR(MALAYSIA)W/B4200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#15978) — 13 parça

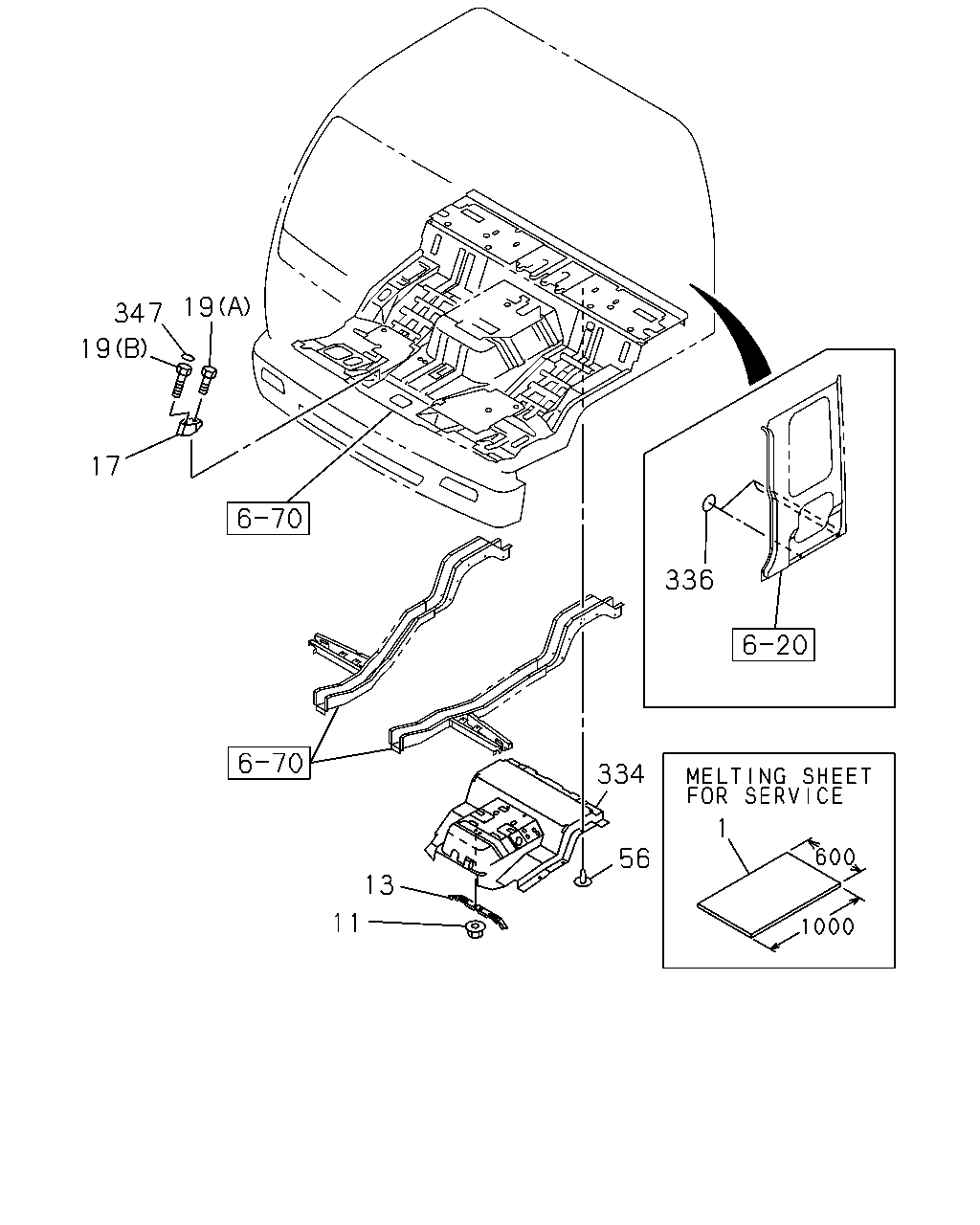

çizim 72484
19 347 19 17 336 334 1 56 13 11
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 MAL 		1-61970-039-0 AR 1 9706-
11 NUT; HEAT INSULATOR
M8 FLANGE MAL 		8-94279-518-0 02 1 9706-0401
11 NUT; HEAT INSULATOR
M8 FLANGE 		1-75538-207-0 02 1 0402-
13 PLATE; HEAT INSULATOR 1-71998-812-4 01 1 9706-
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 9706-
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 01 1 9706-
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 9706-
56 CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4 		8-97808-623-0 17 1 9706-
334 INSULATOR; ENG HOOD 1-71998-811-9 01 1 9706-
336 SEAL; FLOOR SIDE
OD=25 BLACK MAL 		1-76798-019-0 04 1 9706-9803
336 SEAL; FLOOR SIDE
FRONT FENDER WIDE<SA4> OD=25 BLACK MAL 		1-76798-019-0 04 1 9804-
336 SEAL; FLOOR SIDE
EXC. FRONT FENDER WIDE<SA4> OD=25 BLACK MAL 		1-76798-019-0 06 1 9804-
347 SEAL; FOOT RESTR
OD=25 BLACK MAL 		1-76798-019-0 02 1 9706-
